CR900-B|Intel®|System-On-Modules|DFI

CR900-B
Home System-On-Modules COM Express Basic CR900-B
  • 3rd/2nd Gen Intel® Core™, Intel® QM77 Chipset
  • Dual channel DDR3L 1600MHz SODIMM up to 16GB
  • 1 VGA, 1 LVDS
  • Multiple expansion: 1 PCIe x16, 4 SATA, 1 LPC, 1 I2C, 1 SMBus
  • Rich I/O: 1 Intel GbE, 8 USB 2.0
  • 7-Year CPU Life Cycle Support Until Q3' 18 (Based on Intel IOTG Roadmap)

Status : EOL

COM ESD Protection: Air Gap ±15kv
PCIe x16
HDMI
DVI-I
DDR3
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
UL Certification
CE Certification
FCC Certification

CR900-B Related Tags

#Intel#PCIe x16#Windows#VGA#DDR3#DDR3L#RoHS Certification#UL Certification#CE Certification#FCC Certification#UL-US Certification

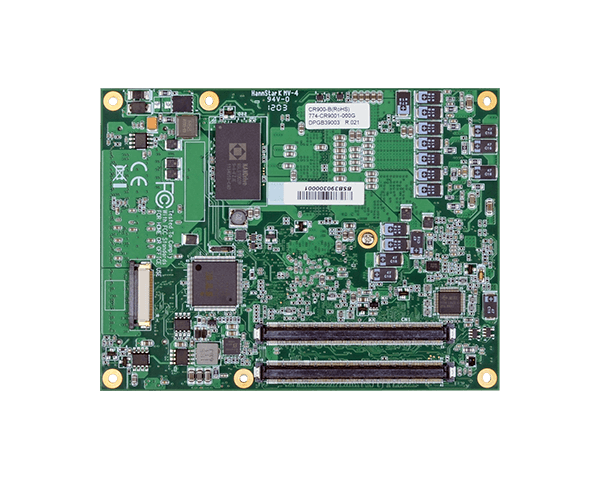

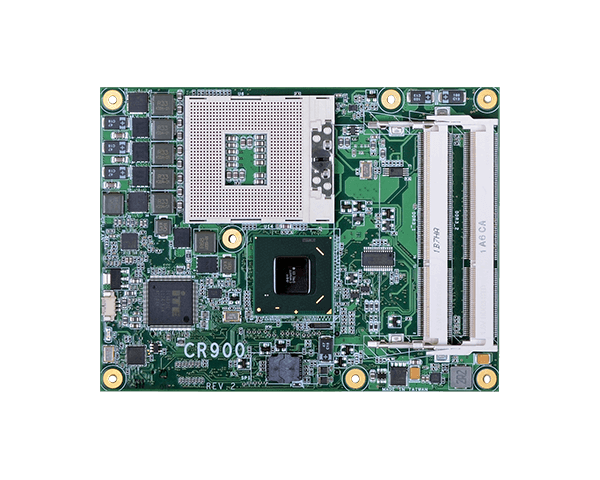

COM Express Basic, CR900-B
COM Express Basic, CR900-B
System
Processor
Socket G2 988B for:
- 3rd generation Intel® Core™ processors (22nm process technology)
Intel® Core™ i5-3610ME, 3M Cache, 2.7GHz (3.3GHz), 35W
Intel® Celeron™ 1020E, 2M Cache, 2.20 GHz, 35W
- 2nd generation Intel® Core™ processors (32nm process technology)
Intel® Celeron™ B810E, 2M Cache, 1.6GHz, 35W
Intel® Celeron™ 847E, 2M Cache, 1.1GHz, 17W
Intel® Celeron™ 827E, 1.5M Cache, 1.4GHz, 17W
Chipset
Intel® QM77 Chipset
Memory
Two 204-pin SODIMM up to 16GB
Dual Channel DDR3L 1600MHz
BIOS
64Mbit SPI
Graphics
Controller
Intel® HD Graphics 4000 (3rd generation processors)
Intel® HD Graphics 3000 (2nd generation processors)
Intel® HD Graphics (Intel® Celeron™ processors)
Feature
DirectX Video Acceleration (DXVA) for accelerating video processing
- Full AVC/VC1/MPEG2 HW Decode
Supports DirectX 11/10.1/10/9 and OpenGL 3.0 (3rd generation processors)
Supports DirectX 10.1/10/9 and OpenGL 3.0 (2nd generation processors)
Display
1 x VGA
1 x LVDS
VGA: resolution up to 2048x1536 @ 75Hz
LVDS: dual channel 36/48-bit, resolution up to 1920x1200 @ 60Hz
Expansion
Interface
1 x PCIe x16
1 x PCIe x4 and 1 x PCIe x1 or 5 x PCIe x1
4 x PCI
1 x LPC
1 x IDE
1 x I2C
1 x SMBus
Audio
Interface
HD Audio
Ethernet
Controller
1 x Intel® 82579LM (10/100/1000Mbps)
I/O
USB
8 x USB 2.0
SATA
2 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10
2 x SATA 2.0 (up to 3Gb/s)
SSD
1 x 4GB/8GB/16GB/32GB SSD (available upon request)
GPIO
1 x 8-bit GPIO
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
4.75V~20V, 5VSB, VCC_RTC (ATX mode)
4.75V~20V, VCC_RTC (AT mode)
Consumption
59.78 W with i7-3610QE at 2.30GHz and 2x 1GB DDR3 SODIMM
OS Support
OS Support
Windows XP Professional x86 & SP3 (32-bit)
Windows XP Professional x64 & SP2 (64-bit)
Windows 7 Ultimate x86 & SP1 (32-bit)
Windows 7 Ultimate x64 & SP1 (64-bit)
Windows 8 Enterprise x86 (32-bit)
Windows 8 Enterprise x64 (64-bit)
Environment
Temperature
Operating: 0 to 60°C
Storage: -20 to 85°C
Humidity
Operating: 10 to 90% RH
Storage: 10 to 90% RH
MTBF
TBD
Mechanism
Dimensions
COM Express® Basic 95mm (3.74") x 125mm (4.9")
Compliance
PICMG COM Express® R2.1, Type 2
Standards and Certifications
Certifications
CE, FCC Class B, RoHS, UL
Packing List
Packing List
1 CR900-B board
Heat sink with fan: 761-111007-000G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    CR900-B
    Part Number :
    770-CR9001-000G
    Description :

* More configurations are available for ODM project. Please contact your sales representative for more information.

Optional Items
  • Item Name Part Number Description
  • Item Name :
    Heat spreader with heat sink and fan
    Part Number :
    761-CR9000-000G
    Description :
  • Item Name :
    COM330-B carrier board kit
    Part Number :
    770-COM330-000G
    Description :
  • Item Name :
    Heat spreader
    Part Number :
    A71-011012-000G
    Description :
