KB968

System-On-Modules COM Express Compact KB968
  • AMD® Embedded G-Series
  • Rich I/O: 1 Intel GbE, 2 USB 3.0, 6 USB 2.0
  • Multiple expansion: 1 PCIe x4, 1 LPC, 1 I2C, 1 SMBus
  • 1 VGA, 1 LVDS/DP, 1 DP
  • Single channel DDR3 1600MHz SODIMM up to 8GB
  • 5-Year CPU Life Cycle Support

Status : EOL

Compact Size
1G Ethernet
VGA
Multiple Expansion
DDR3
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW

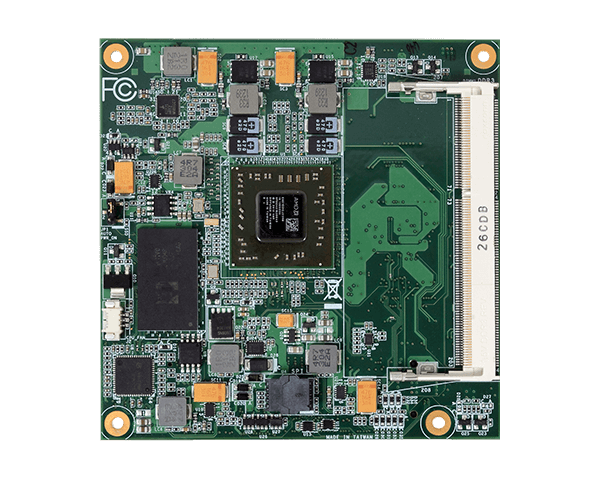

COM Express Type 6, KB968

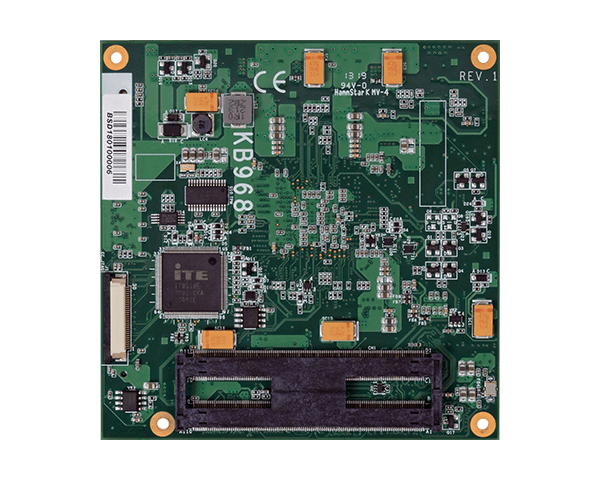

COM Express Type 6, KB968

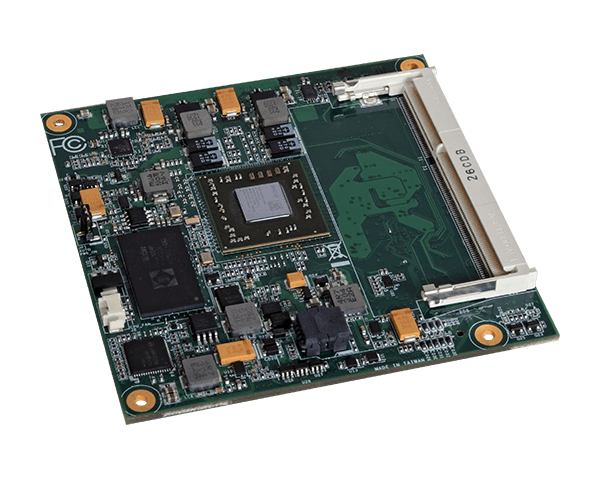

COM Express Type 6, KB968

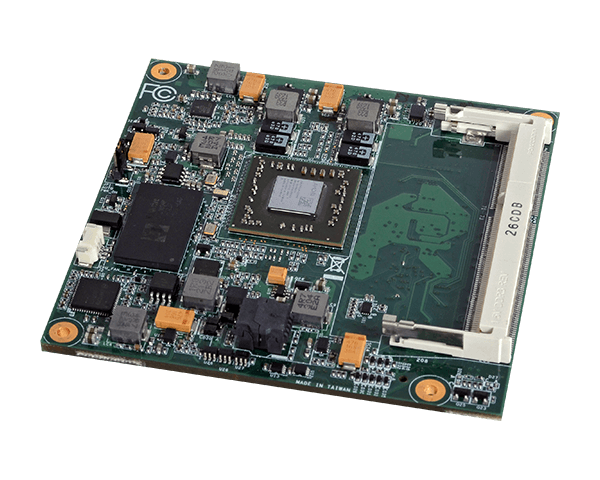

COM Express Type 6, KB968
System
Processor
AMD® Embedded G-Series SoC FT3 BGA
AMD® GX-415GA, Quad Core, 2M Cache, 1.5GHz, 15W
AMD® GX-420CA, Quad Core, 2M Cache, 2.0GHz, 25W
AMD® GX-217GA, Dual Core, 1M Cache, 1.65GHz, 15W
AMD® GX-210HA, Dual Core, 1M Cache, 1.0GHz, 9W
AMD® GX-210JA, Dual Core, 1M Cache, 1.0GHz, 6W
AMD® GX-416RA, Quad Core, 2M Cache, 1.6GHz, 15W, without GPU
Memory
One 204-pin SODIMM up to 8GB
Dual Channel DDR3 1600MHz
BIOS
32Mbit SPI
Graphics
Controller
Advanced discrete-level GPU integrated in the processor
Feature
Supports hardware acceleration for DirectX 11.1, H.264, MPEG-2, MPEG-4 AVC, VC-1 and WMV
Display
1 x VGA
1 x LVDS/DP
1 x DP
VGA: resolution up to 2048x1536 @ 60Hz
LVDS: single channel 18-bit, resolution up to 1600x900 @ 60Hz
DP: resolution up to 4096x2160 @ 30Hz
Expansion
Interface
1 x PCIe x4 (GFX)
4 x PCIe x1 (GPP, GPP3 is connected to onboard LAN by default)
1 x LPC
1 x I2C
1 x SMBus
2 x Serial (TX/RX)
Audio
Interface
HD Audio
Ethernet
Controller
1 x Intel® WGI210AT (10/100/1000Mbps)
I/O
USB
2 x USB 3.0
6 x USB 2.0
SATA
2 x SATA 3.0 (up to 6Gb/s)
SSD
1 x 2GB/4GB8GB/16GB/32GB/64GB SSD (available upon request)
DIO
1 x 8-bit DIO
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Available Upon Request
Power
Type
12V, 5VSB, VCC_RTC (ATX mode)
12V, VCC_RTC (AT mode)
Consumption
KB968-GX420BBS: 28.58 W with GX-420CA at 2.0GHz and 1 x 4GB DDR3 SODIMM
OS Support
OS Support
Windows 7 Ultimate x86 & SP1 (32-bit)
Windows 7 Ultimate x64 & SP1 (64-bit)
Windows 8 Enterprise x86 (32-bit)
Windows 8 Enterprise x64 (64-bit)
Environment
Temperature
Operating: 0 to 60°C
Storage: -20 to 85°C
Humidity
Operating: 10 to 90% RH
Storage: 10 to 90% RH
MTBF
TBD
Mechanism
Dimensions
COM Express® Compact 95mm (3.74") x 95mm (3.74")
Compliance
PICMG COM Express® R2.1, Type 6
Packing List
Packing List
1 KB968 board
Heat spreader with heat sink and fan: 761-KB9680-000G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    KB968-GX210JBBS
    Part Number :
    TBD
    Description :
    Cooler, AMD GX-210JA, 2 SODIMM DDR3 , 0 to 60°C
  • Model Name :
    KB968-GX210HBBS
    Part Number :
    TBD
    Description :
    Cooler, AMD GX-210HA, 2 SODIMM DDR3 , 0 to 60°C
  • Model Name :
    KB968-GX217BBS
    Part Number :
    TBD
    Description :
    Cooler, AMD GX-217GA, 2 SODIMM DDR3 , 0 to 60°C
  • Model Name :
    KB968-GX420BBS
    Part Number :
    TBD
    Description :
    Cooler, AMD GX-420GA, 2 SODIMM DDR3 , 0 to 60°C
  • Model Name :
    KB968-GX415BBS
    Part Number :
    TBD
    Description :
    Cooler, AMD GX-415GA, 2 SODIMM DDR3 , 0 to 60°C
  • Model Name :
    KB968-GX416BBS
    Part Number :
    TBD
    Description :
    Cooler, AMD GX-416RA, 2 SODIMM DDR3 , 0 to 60°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    COM331-B carrier board kit
    Part Number :
    770-COM331-000G
    Description :
