X103-DC12｜Industrial Motherboards｜DFI

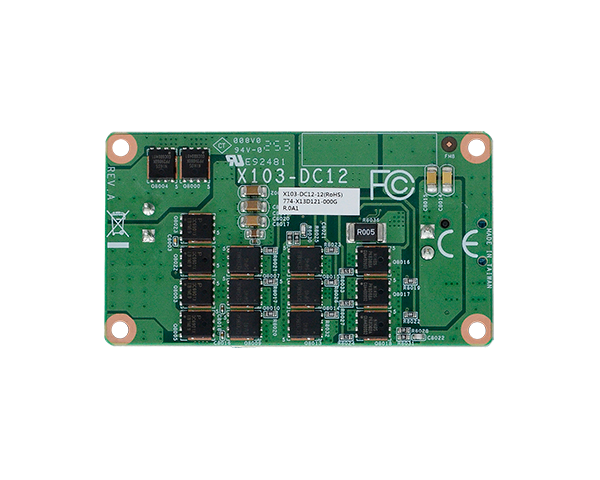

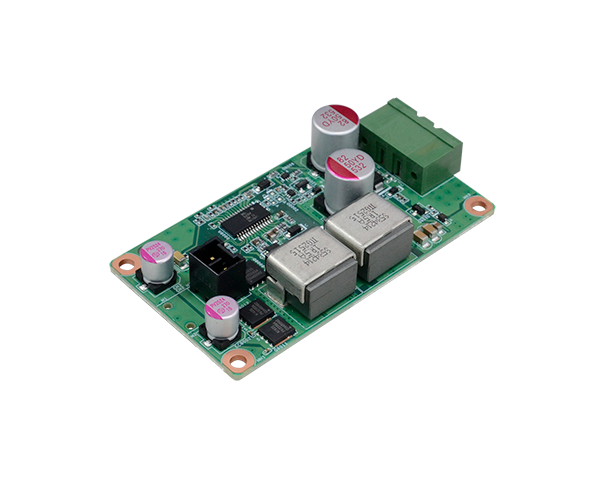

X103-DC12
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Motherboards Peripherals X103-DC12
  • 9V - 36V DC to DC Converters
  • Input: 9V - 36V, Output: 12V/80W
  • Dimensions: 72mm x 40mm

Status : Preliminary QUOTE NOW

Wide-temp: -40°C~85°C
Wide Voltage: 9~36V DC-in
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW

X103-DC12 Related Tags

#9~36V DC-in
X103-DC12｜Industrial Motherboards｜DFI
X103-DC12｜Industrial Motherboards｜DFI
X103-DC12｜Industrial Motherboards｜DFI

Related Products:

Select All - Clear
Packing List
Packing List
·1 X103-DC12 power board
·1 power output cable, compatible with 2-pin terminal or 4-pin ATX connector (Length: 100mm).
Specifications
Features
· POWER INPUT: 9V ~ 36V
· MECHANICAL DESIGN: 72mm x 40mm (2.83" × 1.57")
· MAXIMUM OUTPUT: 80 watts (Peak: 120 watts)
· CONNECTORS:
　－Input power connector: one 2-pin terminal block, ME050-50002(DECA)
　－Output power connector:　
　　> Default: one 2-pin wire-to-board connector, vertical, DF63M-2P-3.96DSA(01)
　　> Option: one 2-pin wire-to-board connector, horizontal, DF63M-2P-3.96DS
· OPERATING TEMPERATURE: -40~85°C / -40~185°F
· RELATIVE HUMIDITY: Operating: 5% to 90%
· OUTPUT VOLTAGE: 12V
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Technical Documents
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    X103- DC12-12     Part Number :
     770-X13D121-000G     Description :
    9~36Vdc In, 12Vdc Out Power Board (compatible with 2-pin terminal)
  • Model Name :
    X103- DC12-12     Part Number :
     770-X13D121-100G     Description :
    9~36Vdc In, 12Vdc Out Power Board (compatible with 4-pin ATX)
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Power input cable, DC JACK to 2-pin terminal     Part Number :
     A81-004464-016G     Description :
    Length: 100mm
  • Item Name :
    Power output cable, 2-pin HIROSE to 2-pin wafer     Part Number :
     A81-004466-016G     Description :
    ASL051, opt. Length: 100mm
