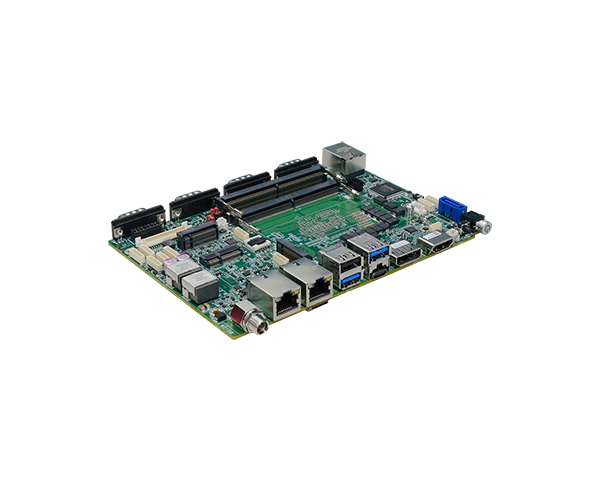

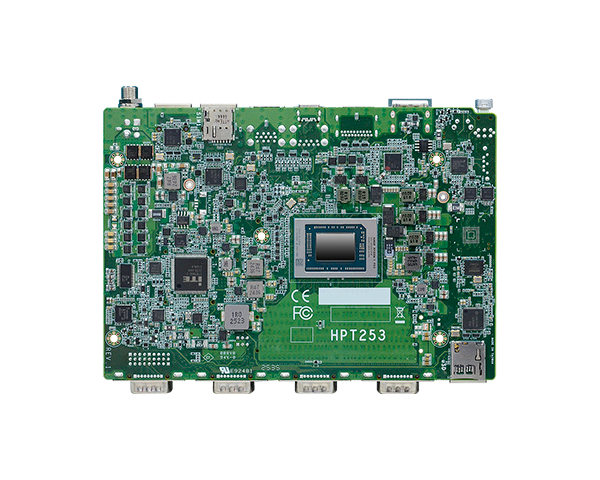

HPT253｜AMD®｜Industrial Motherboards｜DFI

HPT253
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Motherboards 4" SBC HPT253
  • AMD® Ryzen™ Embedded 8000 Processor
  • Dual DDR5-5600 SODIMM up to 96GB
  • Quad Displays: HDMI + LVDS + DP + DP Type C Alt mode
  • Multiple Expansion: 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key
  • Rich I/O: 2 2.5GbE, 1 GbE, 2 USB 3.2, 1 USB-C, 3 COM, 1 COM/DIO
  • Support OOB

Status : Preliminary QUOTE NOW

Wide Voltage: 9~36V DC-in
Multiple Expansion
Quad Independent Display
DDR5
Rich I/O
Out-of-band (OOB)
Wide-temp: 0~60°C
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

HPT253 Related Tags

#DDR5#LVDS#eDP#USB Type-C DP#M.2#AMD® Ryzen™ Embedded 8000 Series#OOB#Out-Of-Band (OOB)#Windows 11#AMD#4K2K Display#Windows#Linux#DP#Multiple Expansion#RoHS Certification#CE Certification#FCC Certification#2.5G Ethernet
HPT253｜AMD®｜Industrial Motherboards｜DFI
HPT253｜AMD®｜Industrial Motherboards｜DFI
HPT253｜AMD®｜Industrial Motherboards｜DFI
HPT253｜AMD®｜Industrial Motherboards｜DFI
HPT253｜AMD®｜Industrial Motherboards｜DFI

Related Products:

Select All - Clear
System
Processor
AMD® Ryzen™Embedded 8000 Processors, TDP upto45W
AMD® Ryzen™Embedded 8845HS Processors, 8C, 16M Cache, 3.8GHz (5.0GHz)
AMD® Ryzen™Embedded 8640U Processors, 6C, 16M Cache, 3.5GHz (4.9GHz)
Memory
Dual DDR5-5600 SODIMM Up to 96GB
BIOS
AMI SPI 256Mbit
Graphics
Controller
AMD® Radeon RDNA3 Graphics
Display
1 x HDMI 2.0
1 x LVDS/eDP
1 x DP1.4
1 x DP Type C Alt mode
HDMI: resolution up to 4096x2160@60Hz
LVDS: dual channel 24-bit, resolution up to 1920x1200@60Hz
DP: resolution up to 4096x2160@60Hz
Quad Displays
HDMI + LVDS + DP + DP Type C Alt mode
Expansion
Interface
1 x M.2 M key 2280 (PCIe Gen4 x4)
1 x M.2 B key 3052 (USB 3.0/2.0), 1 x SIM slot for 4G/5G
1 x M.2 E key 2230 (USB 2.0/PCIe x1)
Ethernet
Controller
2 x Intel® I226V (10/100/1000/2500Mbps)

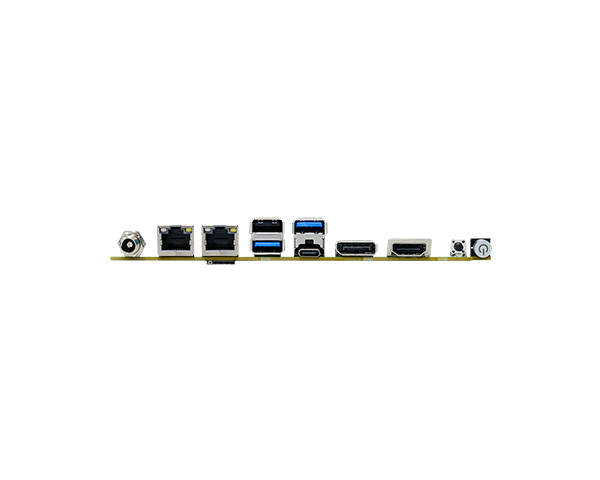

Front I/O
Ethernet
2 x 2.5GbE (RJ-45)
USB
2 x USB 3.2
1 x USB 2.0
1 x USB Type C (USB 3.2 only)
Display
HDMI + LVDS + DP + DP Type C Alt mode
Audio
1 x Front audio (Line-out, Line-in, Mic-in)
Buttons
1 x Power Button
1 x Reset Button

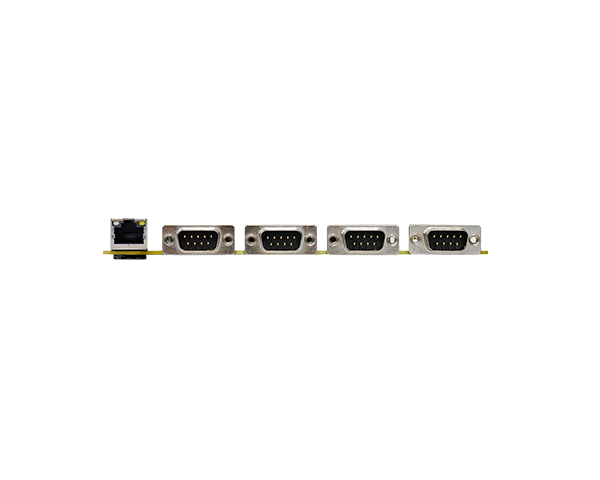

Rear I/O
Ethernet
1 x GbE(RJ-45), Intel® i210AT (10/100/1000Mbps) (support OOB available upon request)
Serial
COM 1: RS-232/422/485
COM 2/3: RS-232
COM 4: RS-232/422/485 or 8-bit DIO by jumper setting
Internal I/O
USB
2 x USB 2.0 (1.0mm pitch)
SATA
1 x SATA 3.0
Fan
1 x Smart FAN
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
TPM 2.0
Power
Type
9~36V DC
Connector
DC-in Jack
Right Angle Connector (4-pin, available upon request)
RTC Battery
CR2032 Coin Cell (Cable type)
OS Support
Microsoft
Windows 11 IoT Enterprise 64-bit
Linux
Linux
Environment
Temperature
Operating: 0 to 60°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
TBD
Mechanism
Dimensions
4" SBC Form Factor
165mm (6.49") x 115mm (4.53")
Height
PCB: 1.6mm
Standards and Certifications
Certifications
CE, FCC, RoHS
Packing List
Packing List
• 1 HPT253 motherboard
• 1 Cooler, TBD
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    HPT253-BCN-8845HS     Part Number :
     TBD     Description :
    AMD® Ryzen™ Embedded 8845HS, 8 cores, 45W, HDMI + LVDS + DP + DP Type C Alt mode, 3 LAN, 4 COM, 2 USB 3.2, 9~36 VDC, 0~60°C
  • Model Name :
    HPT253-BCN-8640U     Part Number :
     TBD     Description :
    AMD® Ryzen™ Embedded 8640U, 6 cores,28W, HDMI + LVDS + DP + DP Type C Alt mode, 3 LAN, 4 COM, 2 USB 3.2, 9~36 VDC, 0~60°C
