ARS101/ARS103｜Intel®｜Industrial Motherboards｜DFI

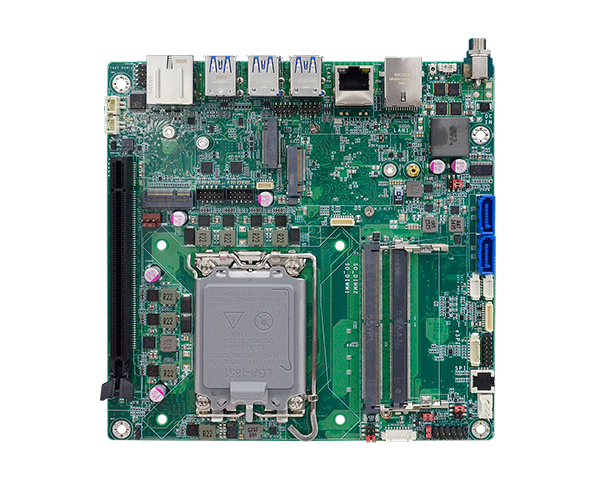

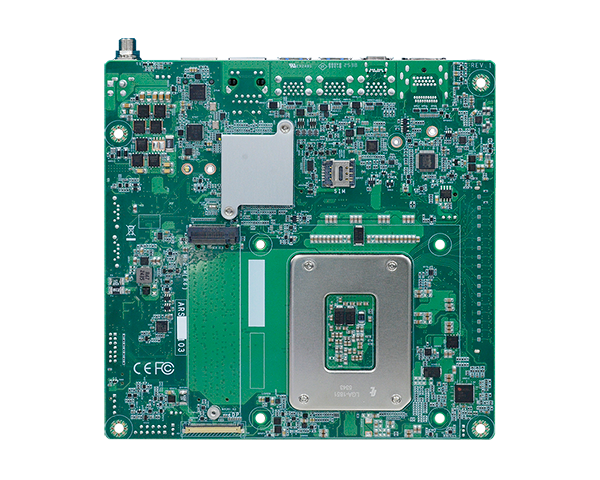

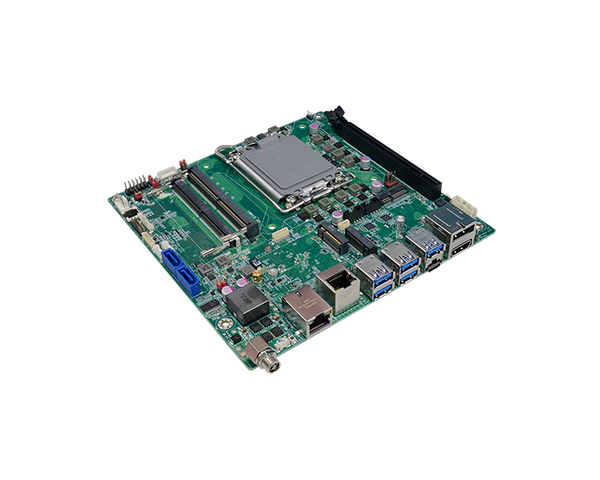

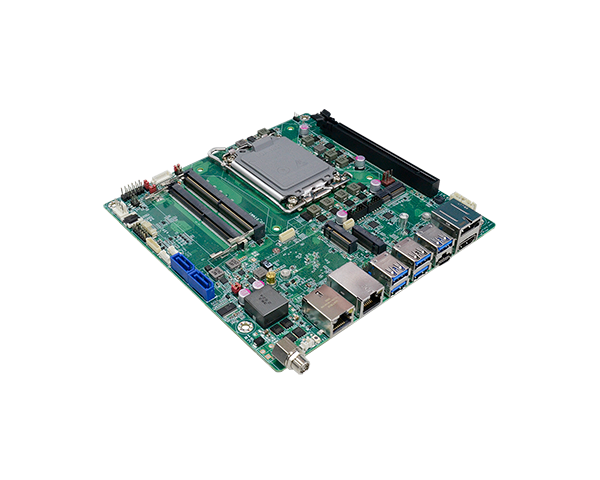

ARS101/ARS103
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Motherboards Mini-ITX ARS101/ARS103
  • Intel Arrow Lake S processor, TDP up to 65W
  • Support Intel 800 Series chipset
  • 2 DDR5 5600/6400MHz SODIMM up to 96GB
  • 4 independent displays: 1 DP++, 1 HDMI 1.4b, 1 USB Type C, 1 eDP, 1 M2A-Display extension port (eDP/LVDS/HDMI/DVI/VGA/DP/ available)
  • Multiple expansion: 1 PCIe Gen 5 x16, 1 M.2 M Key, 1 M.2 B Key wi SIM, 1 M.2 E Key, 1 M.2 A Key
  • Rich I/O: Support up to 2 Intel 2.5GbE, 2 COM, 6 USB 3.2 Gen 2 Type A, 1 USB Type C (DP alt/USB3 Gen2x2 /PD 15W), 4 USB 2.0 header, 2 SATA 3.0, Audio L/R 3W speaker
  • Support EXT-OOB (Full) , optional internal RJ45, CNVi, vPro
  • Typically supports 5-Year CPU Life Cycle Until Q1’30 (Based on Intel Roadmap)

Status : Preliminary QUOTE NOW

Multiple Expansion
Quad Independent Display
DDR5
Rich I/O
2.5G Ethernet
Out-of-band (OOB)
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UKCA Certification

ARS101/ARS103 Related Tags

#DDR5#M.2#EXT-OOB (Full)#Intel® Arrow Lake H/U Processors#Out-Of-Band (OOB)#IoT#Intel#SIM Slot#4K2K Display#PCIe x16#Windows#Linux#VGA#DP#Multiple Expansion#RoHS Certification#CE Certification#FCC Certification#2.5G Ethernet#UKCA Certification
ARS101/ARS103｜Intel®｜Industrial Motherboards｜DFI
ARS101/ARS103｜Intel®｜Industrial Motherboards｜DFI
ARS101/ARS103｜Intel®｜Industrial Motherboards｜DFI
ARS101/ARS103｜Intel®｜Industrial Motherboards｜DFI
ARS101/ARS103｜Intel®｜Industrial Motherboards｜DFI
ARS101/ARS103｜Intel®｜Industrial Motherboards｜DFI
ARS101/ARS103｜Intel®｜Industrial Motherboards｜DFI
ARS101/ARS103｜Intel®｜Industrial Motherboards｜DFI
ARS101/ARS103｜Intel®｜Industrial Motherboards｜DFI
ARS101/ARS103｜Intel®｜Industrial Motherboards｜DFI

Related Products:

Select All - Clear
System
Processor
Intel® Core™ Ultra LGA 1851 Socket Processors, support up to TDP 65W
Intel® Core™ Ultra 9 285 (24 Cores, 36M Cache, up to 5.6 GHz); 65W
Intel® Core™ Ultra 9 285T (24 Cores, 36M Cache, up to 5.4 GHz); 35W
Intel® Core™ Ultra 7 265 (20 Cores, 30M Cache, up to 5.3 GHz); 65W
Intel® Core™ Ultra 7 265T (20 Cores, 30M Cache, up to 5.3 GHz); 35W
Intel® Core™ Ultra 5 245 (14 Cores, 24M Cache, up to 5.1 GHz); 65W
Intel® Core™ Ultra 5 245T (14 Cores, 24M Cache, up to 5.1 GHz); 35W
Intel® Core™ Ultra 5 225 (10 Cores, 20M Cache, up to 4.9 GHz); 65W
Intel® Core™ Ultra 5 225T (10 Cores, 20M Cache, up to 4.9 GHz); 35W
Chipset
[ARS101/ARS103-W880] Intel® W880 Chipset
[ARS101/ARS103-Q870] Intel® Q870 Chipset
[ARS101/ARS103-H810] Intel® H810 Chipset
Memory
[ARS101/ARS103-W880] Two 262-pin SODIMM up to 96GB (ECC/Non-ECC)
[ARS101/ARS103-W880] Dual Channel DDR5 5600MHz (Ultra 5) / CSO-DIMM DDR5 6400MHz(Ultra7,9)
[ARS101/ARS103-W880] *ECC memory supported by W880 only

[ARS101/ARS103-Q870] Two 262-pin SODIMM up to 96GB (Non-ECC)
[ARS101/ARS103-Q870] Dual Channel DDR5 5600MHz (Ultra 5) / CSO-DIMM DDR5 6400MHz(Ultra7,9)

[ARS101/ARS103-H810] Two 262-pin SODIMM up to 96GB (Non-ECC)
[ARS101/ARS103-H810] Dual Channel DDR5 5600MHz (Ultra 5) / CSO-DIMM DDR5 6400MHz(Ultra7,9)
BIOS
AMI SPI 256Mbit
Graphics
Controller
Intel® UHD Graphics 700 series
Feature
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display

[ARS101/ARS103-W880] 1 x HDMI 1.4b
[ARS101/ARS103-W880] 1 x DP++ 1.2
[ARS101/ARS103-W880] 1 x USB Type-C
[ARS101/ARS103-W880] 1 x eDP
[ARS101/ARS103-W880] 1 x M.2 A key (eDP/LVDS/DP/HDMI2.0/DVI/VGA) (Option)

[ARS101/ARS103-Q870] 1 x HDMI 1.4b
[ARS101/ARS103-Q870] 1 x DP++ 1.2
[ARS101/ARS103-Q870] 1 x USB Type-C
[ARS101/ARS103-Q870] 1 x eDP
[ARS101/ARS103-Q870] 1 x M.2 A key (eDP/LVDS/DP/HDMI2.0/DVI/VGA) (Option)

[ARS101/ARS103-H810] 1 x HDMI 1.4b
[ARS101/ARS103-H810] 1 x DP++ 1.2
[ARS101/ARS103-H810] 1 x eDP
[ARS101/ARS103-H810] 1 x M.2 A key (eDP/LVDS/DP/HDMI2.0/DVI/VGA) (Option)

Note: onboard eDP panel & backlight power jumper select share with M2A-eDP/M2A-LVDS

HDMI: resolution up to 4096x2160 @ 30Hz
DP++: resolution up to 4096x2304 @ 60Hz
USB Type C: resolution up to 4096x2304 @ 60Hz
eDP: resolution up to 4096x2160 @ 60Hz
Quad Displays
[ARS101/ARS103-W880] DP++ + HDMI + eDP + USB Type C + M2A-Display
[ARS101/ARS103-Q870] DP++ + HDMI + eDP + USB Type C + M2A-Display
[ARS101/ARS103-H810] DP++ + HDMI + eDP + M2A-Display
Expansion
Interface

[ARS101/ARS103-W880] PCIe x16 (1x16, 2x8, 1x8+2x4) switch by both GPIO (BIOS control), and jumper
[ARS101/ARS103-Q870] PCIe x16 (1x16, 2x8, 1x8+2x4) switch by both GPIO (BIOS control), and jumper
[ARS101/ARS103-H810] PCIe x16 (1x16)
M.2
[ARS101/ARS103-W880] 1 x M.2 2280 M Key (PCIe Gen4 x4 or SATA 3.0 x1)
[ARS101/ARS103-W880] 1 x M.2 2242/3042/3052 B Key (PCIe Gen3 x1 / SATA 3.0 x1 / USB 3.2 Gen2 x1 / USB 2.0 x1)
[ARS101/ARS103-W880] 1 x M.2 2230 E Key (PCIE Gen3 x1 / USB 2.0 x1 / CNVi x1)
[ARS101/ARS103-W880] 1 x M.2 3030 A Key (DP x1 / PCIE Gen3 x1/ USB 3.2 Gen1 x1 / USB 2.0 x1)

[ARS101/ARS103-Q870] 1 x M.2 2280 M Key (PCIe Gen4 x4 or SATA 3.0 x1)
[ARS101/ARS103-Q870] 1 x M.2 2242/3042/3052 B Key (PCIe Gen3 x1 / SATA 3.0 x1 / USB 3.2 Gen2 x1 / USB 2.0 x1)
[ARS101/ARS103-Q870] 1 x M.2 2230 E Key (PCIE Gen3 x1 / USB 2.0 x1 / CNVi x1)
[ARS101/ARS103-Q870] 1 x M.2 3030 A Key (DP x1 / PCIE Gen3 x1/ USB 3.2 Gen1 x1 / USB 2.0 x1)

[ARS101/ARS103-H810] 1 x M.2 2280 M Key (PCIe Gen4 x1 or SATA 3.0 x1)
[ARS101/ARS103-H810] 1 x M.2 2242/3042/3052 B Key (PCIe Gen3 x1 / SATA 3.0 x1 / USB 3.2 Gen1 x1 / USB 2.0 x1)
[ARS101/ARS103-H810] 1 x M.2 2230 E Key (PCIE Gen3 x1 / USB 2.0 x1 / CNVi x1)
[ARS101/ARS103-H810] 1 x M.2 3030 A Key (DP x1 / PCIE Gen3 x1)
Audio
Audio Codec
Realtek ALC888
Ethernet
Controller
[ARS101/ARS103-W880] 1 x Intel® I226-LM (Core Ultra 9/7/5 support iAMT)
[ARS101/ARS103-W880] 1 x Intel® I226-V

[ARS101/ARS103-Q870] 1 x Intel® I226-LM (Core Ultra 9/7/5 support iAMT)
[ARS101/ARS103-Q870] 1 x Intel® I226-V

[ARS101/ARS103-H810] 2 x Intel® I226-V

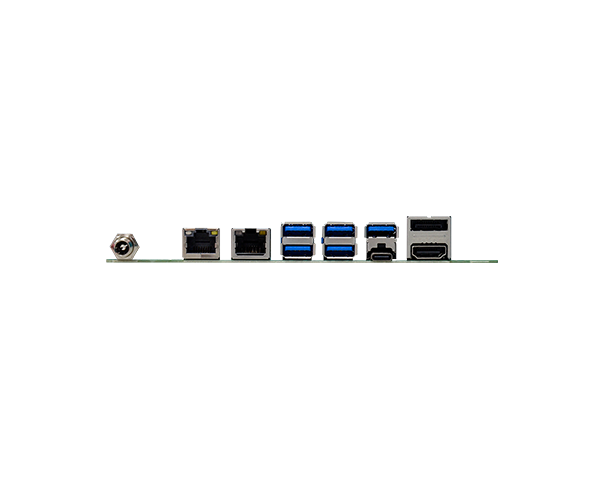

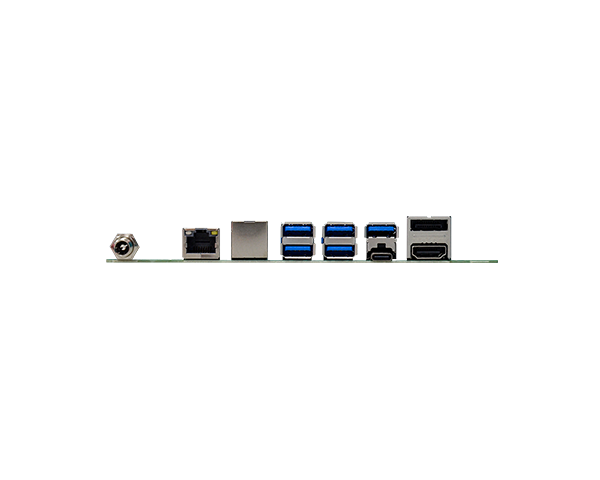

Rear I/O
Ethernet
2 x 2.5GbE (RJ-45)
USB
[ARS101/ARS103-W880] 6 x USB 3.2 Gen2 Type A or
[ARS101/ARS103-W880] 5 x USB 3.2 Gen2 Type A + 1 x USB 3.2 Gen2x2 Type C

[ARS101/ARS103-Q870] 6 x USB 3.2 Gen2 Type A or
[ARS101/ARS103-Q870] 5 x USB 3.2 Gen2 Type A + 1 x USB 3.2 Gen2x2 Type C

[ARS101/ARS103-H810] 2 x USB 3.2 Gen2 Type A +
[ARS101/ARS103-H810] 1 x USB 3.2 Gen1 + 3 x USB 2.0 Type A
Display

[ARS101/ARS103-W880] 1 x HDMI 1.4b
[ARS101/ARS103-W880] 1 x DP++ 1.2
[ARS101/ARS103-W880] 1 x USB Type-C

[ARS101/ARS103-Q870] 1 x HDMI 1.4b
[ARS101/ARS103-Q870] 1 x DP++ 1.2
[ARS101/ARS103-Q870] 1 x USB Type-C

[ARS101/ARS103-H810] 1 x HDMI 1.4b
[ARS101/ARS103-H810] 1 x DP++ 1.2
Internal I/O
Serial
2 x RS-232/422/485 (w/o Power)
Box header (2.0mm pitch)
USB
[ARS101/ARS103-W880] 4 x USB 2.0 header
[ARS101/ARS103-Q870] 4 x USB 2.0 header
[ARS101/ARS103-H810] 2 x USB 2.0 header
Display
1 x eDP
1 x M2A-Display (eDP/LVDS/DP/HDMI2.0 opt DVI with cable/VGA)
Audio
1 x Front Audio Header (1 x Line-out, 1 x Mic-in)
3W L/R speaker connector
SATA
2 x SATA 3.0 (up to 6Gb/s)
2 x SATA Power
RAID 0/1/5/10 (w/ M.2 Key-M/B slot + 2 SATA Conn.)
DIO
1 x 8-bit DIO
SMBus
1 x SMBus
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Nuvoton TPM 2.0
Power
Type
ARS101: Single 12V +/-5% DC
ARS103: Wide Range 12~28V
Connector
DC-in Jack
Right Angle Connector (4-pin) (available upon request)
Straight Type Connector (4-pin) (available upon request)
Consumption
TBD
RTC Battery
CR2032 Coin Cell
OS Support
Microsoft
Windows 10 IoT Enterprise LTSC (64-bit)
Windows 11 IoT Enterprise LTSC (64-bit)
Linux
Ubuntu 24.04
Environment
Temperature
Operating: -5°C ~ 65°C
Storage: -40°C ~ 85°C
Humidity
Operating: 5% ~ 90% RH
Storage: 5% ~ 90% RH
MTBF
TBD
Mechanism
Dimensions
Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")
Height
Top Side: TBD mm
Bottom Side: TBD mm
Standards and Certifications
Certifications
CE, FCC Class B, RoHS, UKCA
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    ARS101-W880     Part Number :
     770-ARS1011-000G     Description :
    ARS101-W880, 2 DDR5, Rear I/O( 1DP, 1 HDMI, 2 LAN, 5 USB 3.2 Gen2, 1 USB Type C), Internal I/O (eDP/ M.2-M/B/E/A Key, 4 USB 2.0, w/TPM), DC-Jack, Normal Temp -5 to 65°C
  • Model Name :
    ARS101-Q870     Part Number :
     770-ARS1011-100G     Description :
    ARS101-Q870, 2 DDR5, Rear I/O( 1DP, 1 HDMI, 2 LAN, 6 USB 3.2 Gen2), Internal I/O (eDP/ M.2-M/B/E/A Key, 4 USB 2.0, w/TPM), DC-Jack, Normal Temp -5 to 65°C
  • Model Name :
    ARS101-H810     Part Number :
     770-ARS1011-200G     Description :
    ARS101-H810, 2 DDR5, Rear I/O( 1DP, 1 HDMI, 2 LAN, 3 USB 3.2 Gen1, 3 USB2.0), Internal I/O (eDP/ M.2-M/B/E/A Key, 2 USB 2.0, w/TPM), DC-Jack, Normal Temp -5 to 65°C
  • Model Name :
    ARS101-W880     Part Number :
     770-ARS1031-000G     Description :
    ARS103-W880, 2 DDR5, Rear I/O( 1DP, 1 HDMI, 2 LAN, 6 USB 3.2 Gen2), Internal I/O (eDP/ M.2-M/B/E/A Key, 4 USB 2.0, w/TPM), DC-Jack, Normal Temp -5 to 65°C
  • Model Name :
    ARS101-Q870     Part Number :
     770-ARS1031-100G     Description :
    ARS103-Q870, 2 DDR5, Rear I/O( 1DP, 1 HDMI, 2 LAN, 5 USB 3.2 Gen2, 1 USB Type C), Internal I/O (eDP/ M.2-M/B/E/A Key, 4 USB 2.0, w/TPM), DC-Jack, Normal Temp -5 to 65°C
  • Model Name :
    ARS101-H810     Part Number :
     770- ARS1031 -200G     Description :
    ARS103-H810, 2 DDR5, Rear I/O( 1DP, 1 HDMI, 2 LAN, 3 USB 3.2 Gen2, 3 USB2.0), Internal I/O (eDP/ M.2-M/B/E/A Key, 2 USB 2.0, w/TPM), DC-Jack, Normal Temp -5 to 65°C
