X6a-AGX｜NVIDIA®｜Industrial Computers｜DFI

X6a-AGX
Overview
Overview
Specification
Download
QUOTE
2
COMPARE
Home Industrial Computers AI Inference/Training System X6a-AGX
  • NVIDIA Edge AI engine: NVIDIA® Jetson Orin AGX™ module (max. 275 TOPs)
  • Rich I/O: 1 10GLAN, 1G LAN, 2 USB 3.2 Gen1, 1 USB type B, 1 HDMI, 1 MicroSD, 1 CAN bus
  • Ruggedized fanless design with -20 ~ 60°C operating temperature
  • Optional Wireless Expansions: WiFi 6E, 4G/5G
  • Optional Video Capture: 1 x SDI, 1 x HDMI
  • Optional OOB (out-of-band) support

Status : Preliminary QUOTE NOW

Wide-temp: -20~60°C
Rich I/O
WiFi 6
AI
Out-of-band (OOB)
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

X6a-AGX Related Tags

#Wifi 6E#NVIDIA AI#Out-Of-Band (OOB)#5G#CAN-Bus#1G Ethernet#Linux#10G Ethernet#RoHS Certification#CE Certification#FCC Certification
X6a-AGX｜NVIDIA®｜Industrial Computers｜DFI
X6a-AGX｜NVIDIA®｜Industrial Computers｜DFI
X6a-AGX｜NVIDIA®｜Industrial Computers｜DFI
X6a-AGX｜NVIDIA®｜Industrial Computers｜DFI
X6a-AGX｜NVIDIA®｜Industrial Computers｜DFI

Related Products:

Select All - Clear
System
Processor
8/12-core Arm® Cortex®-A78AE v8.2 64-bit CPU
Memory
64/32GB 256-bit LPDDR5
SOM
NVIDIA® Jetson Orin AGX™ Industrial
NVIDIA® Jetson Orin AGX™ 64GB
NVIDIA® Jetson Orin AGX™ 32GB
GPU
2048-core NVIDIA Ampere architecture GPU with 64 Tensor Cores
1792-core NVIDIA Ampere c GPU with 56 Tensor Cores
Graphics
Display
HDMI
Storage
Internal
M.2 2242/2280 M key (NVMe)
micro-SD card slot
Expansion
On board
1 x M.2 Key E 2230 slot (USB 2 +PCIex1 signal) for Wi-Fi 6E
1 x M.2 Key B 3042/3052 slot (USB3 signal) for 5G/LTE with Nano SIM
Ethernet
Controller
1x GbE RJ-45
1x 10G RJ-45
LED
Indicators
1 x Power

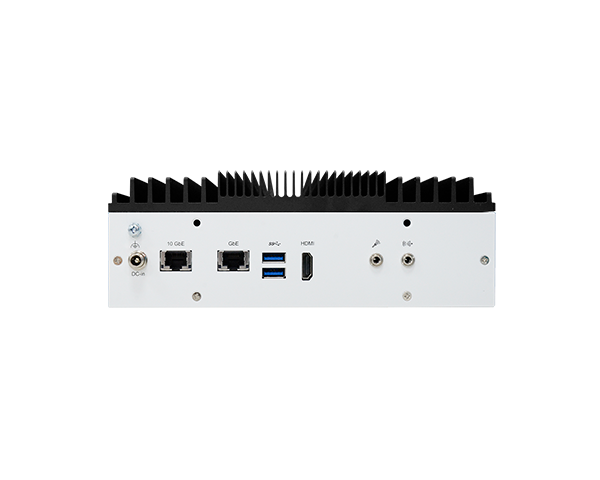

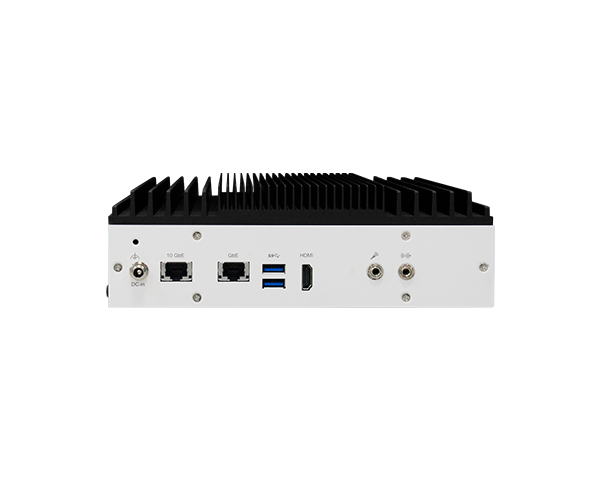

Front I/O
Ethernet
1 x RJ45 GbE connector
1 x RJ45 10G ethernet connector
USB
2 x USB 3.2 Gen1
Display
1 x HDMI
DC in
1 x 2-pin power terminal block

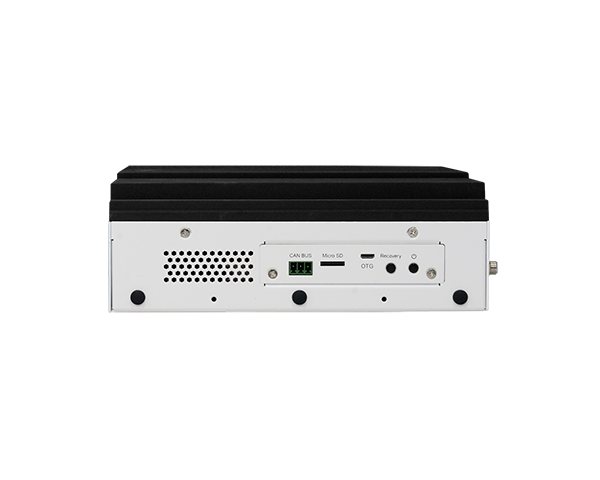

Side I/O
USB
USB type B for OTG recovery
Buttons
1 x Power, 1 x recovery
SD
1 x MicroSD
CAN bus
3-pin terminal block with transceiver
Watchdog Timer
Output & Interval
Built-in NVIDIA® Jetson Orin™
Antenna
Antenna
6 x antenna holes
Power
Type
12~54V DC
Connector
1x DC Jack with lock
RTC Battery
Yes
OS Support
Linux
Jetpack 6.2
Environment
Operating Temperature
-20°C to 60°C
Storage Temperature
-40°C to 85°C
Relative Humidity
5 to 95% RH (non-condensing)
Mechanism
Mounting
Wall mount (mounting brackets and screws)
Dimensions (W x H x D)
Approx. 221mm x L: 200mm x H: 75mm
Weight
4.2kg
Standards and Certifications
Shock
· Operation:
IEC 60068-2-27 Test Ea: Shock test
Half-sine, 3G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
· Non- Operation:
IEC 60068-2-27 Test Ea: Shock test
Half-sine, 5G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
Vibration
· Operation:
IEC 60068-2-64 Test Fh: Vibration board-band random test
Random,2Grms @ 5~500 Hz, 30min.
· Non- Operation:
IEC 60068-2-6 Test Fc: Vibration Sinusoidal Test
Sweep sine, 3Grms @ 10~500Hz, 30min.
Certifications
CE, FCC Class A, RoHS
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals

Working with DFI

DFI’s Customization Services (DCS) comes with full support and industry expertise from a dedicated team to provide you exclusive services in design, production, warranty, repairs, and life cycle management. In order to make the project as easy as possible for you, DFI will closely work with you to learn your design requirements and offer real-time technical support as you develop the solution to reduce your development cost and effort.
