V6Xa-ORN｜NVIDIA®｜Industrial Computers｜DFI

V6Xa-ORN
Overview
Overview
Specification
Download
QUOTE
2
COMPARE
Home Industrial Computers AI Inference/Training System V6Xa-ORN
  • NVIDIA Edge AI engine: NVIDIA® Jetson Orin Nano™ or NX
  • In-Vehicle Design 9-36VDC input with ignition control eMark certification
  • Waterproof & Dustproof design conforming to IP67
  • Ruggedized fanless design with -20 ~ 70°C (Optional -40°C ~ 70°C) operating temperature
  • Optional Wireless Expansions: WiFi 6E, 4G LTE / 5G
  • Camera Connectivity: 2x USB 3.0, 8x GMSL2 or 6 x PoE (max.)
  • Optional OOB (out-of-band) support

Status : Preliminary QUOTE NOW

Wide-temp: -20~70°C
WiFi 6
PoE LAN
AI
Out-of-band (OOB)
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
E-Mark (E13) Certification

V6Xa-ORN Related Tags

#NVIDIA AI#Out-Of-Band (OOB)#5G#PoE#E-Mark (E13) Certification#RoHS Certification#CE Certification#FCC Certification
X6Xa-ORN｜NVIDIA®｜Industrial Computers｜DFI
X6Xa-ORN｜NVIDIA®｜Industrial Computers｜DFI
X6Xa-ORN｜NVIDIA®｜Industrial Computers｜DFI
X6Xa-ORN｜NVIDIA®｜Industrial Computers｜DFI
X6Xa-ORN｜NVIDIA®｜Industrial Computers｜DFI
X6Xa-ORN｜NVIDIA®｜Industrial Computers｜DFI

Related Products:

Select All - Clear
System
Processor
6/8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
Memory
8GB 128-bit LPDDR5 68 GB/s for Orin Nano™ 8GB
4GB 64-bit LPDDR5 34 GB/s for Orin Nano™ 4GB

16GB 128-bit LPDDR5 102.4GB/s for Orin NX 16GB
8GB 128-bit LPDDR5 102.4GB for Orin NX 8GB
SOM
NVIDIA® Jetson Orin Nano™ 4GB, 7-10W
NVIDIA® Jetson Orin Nano™ 8GB, 7-15W
NVIDIA® Jetson Orin NX 8GB, 10-20W
NVIDIA® Jetson Orin NX 16GB, 10-25W
GPU
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores for Jetson Orin Nano™ 8GB and Orin NX 8/16GB
512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores for Jetson Orin Nano™ 4GB
Graphics
Display
1 x HDMI, M20
Storage
Internal
M.2 2242/2280 M key (NVMe)
Expansion
On board
1 x M.2 Key E 2230 slot (USB 2 +PCIex1 signal) for Wi-Fi 6E
1 x M.2 Key B slot for 5G/LTE with Nano SIM
Ethernet
Controller
2x RJ45 GbE ports from Intel i210
Supports 2x 15W PoE ports
LED
Indicators
1 x Power

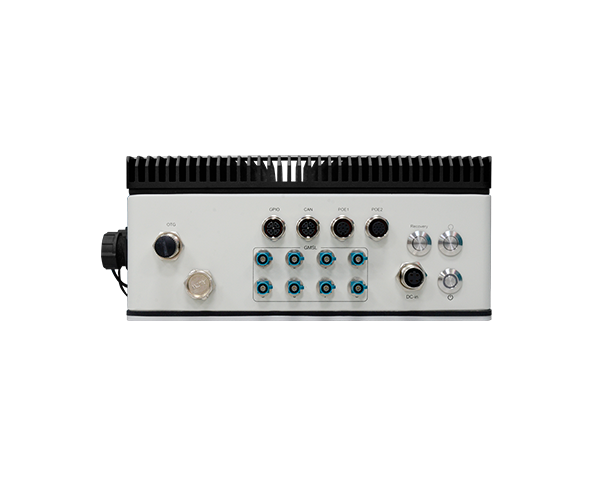

Front I/O
Ethernet
2 x GbE M12 X code 8pin with PoE 802.3af
USB
1 x USB 2.0 M20 (type A for recovery)
DC in
1 x M12 B Code 5pin Power Input
CAN bus / COM
1 x M12 A Code (Isolated CAN BUS 2.0 Port With Transceiver x 2)
GPIO
1 x M12 GPIO / RS485 (4x GPI & 2x GPO & 1x RS485)
Camera Interface
4 x GbE M12 X code 8pin PoE 802.3af)
Or
8 x GMSL2 (FAKRA SMB Plug Z code)

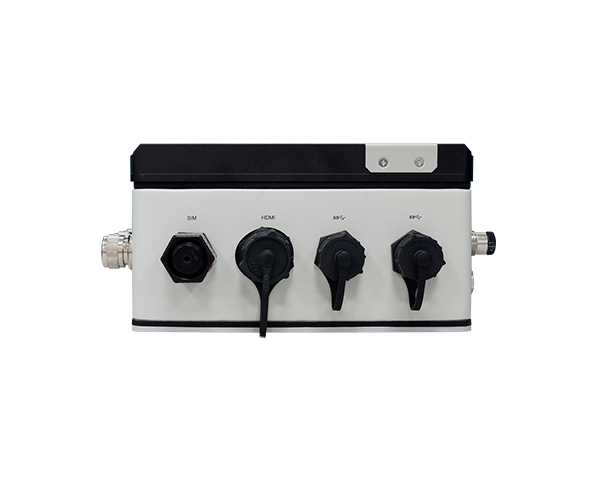

Side I/O
Display
1 x HDMI M20
SIM
1 x SIM card slot M20
USB
2 x USB 3.0 M20 (type A)
Watchdog Timer
Output & Interval
Built-in NVIDIA® Jetson Orin™
Antenna
Antenna
6 x antenna holes
Power
Type
9-36V DC with power ignition control
Connector
1 x M12 B Code 5pin Power Input
RTC Battery
Yes
OS Support
Linux
Jetpack 6.2
Environment
Operating Temperature
-20 ~ 70°C (Optional -40°C~70°C)
Storage Temperature
-40°C ~ 85°C
Relative Humidity
5 ~ 95% RH (non-condensing)
Mechanism
Mounting
Wall mount (mounting brackets and screws)
Dimensions (W x H x D)
237mm x L: 194mm x H: 105.3mm
Weight
5.2kg
Standards and Certifications
Shock
Operation shock test:
IEC-60068-2-27
MIL-STD-810H 514.8C-5
Vibration
Operation Vibration test:
IEC 60068-2-64
MIL-STD-810H 514.8C-5
Certifications
CE, FCC, eMark, RoHS
IP Rating
IP67 enclosure
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
