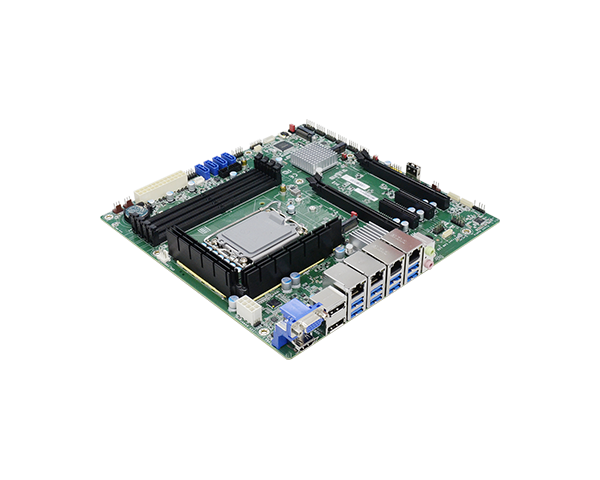

ARS310-W880/Q870｜Intel®｜Industrial Motherboards｜DFI

ARS310-W880/Q870
Overview
Overview
Specification
Download
QUOTE
2
COMPARE
Home Industrial Motherboards microATX ARS310-W880/Q870
  • Intel® Core™ Ultra Processors with Intel® W880/Q870 Chipset
  • 4 DDR5 UDIMM up to 192GB
  • Supports 4 independent displays: VGA, 2 DP++, HDMI
  • Supports 4K resolution
  • Multiple expansion: 2 PCIe x16, 2 PCIe x4, 1 M.2 E key, 2 M.2 M key, 4 SATA 3.0
  • Rich I/O: 2 2.5GbE + 2 10GbE, 6 COM, 8 USB 3.2 Gen2, 2 USB 3.2 Gen1, 3 USB 2.0
  • Typically supports 10-Year CPU Life Cycle Until Q1’32 (Based on Intel IOTG Roadmap)
  • EXT-OOB (Full)

Status : Preliminary QUOTE NOW

4K2K Display
Multiple Expansion
Quad Independent Display
DDR5
Rich I/O
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

ARS310-W880/Q870 Related Tags

#DDR5#Windows 10#Edge AI Computing#EXT-OOB (Full)#Intel® Core™ Ultra processors #IoT#Windows 11#Intel#4K2K Display#PCIe x16#Windows#Linux#VGA#DP#Multiple Expansion#10G Ethernet#RoHS Certification#CE Certification#FCC Certification#2.5G Ethernet
ARS310-W880/Q870｜Intel®｜Industrial Motherboards｜DFI
ARS310-W880/Q870｜Intel®｜Industrial Motherboards｜DFI
ARS310-W880/Q870｜Intel®｜Industrial Motherboards｜DFI
ARS310-W880/Q870｜Intel®｜Industrial Motherboards｜DFI

Related Products:

Select All - Clear
System
Processor
Intel® Core™ Ultra LGA 1851 Socket Processors, support up to TDP
Intel® Core™ Ultra 9 285 (24 Cores, 36M Cache, up to 5.6 GHz); 65W
Intel® Core™ Ultra 9 285T (24 Cores, 36M Cache, up to 5.4 GHz); 35W
Intel® Core™ Ultra 7 265 (20 Cores, 30M Cache, up to 5.3 GHz); 65W
Intel® Core™ Ultra 7 265T (20 Cores, 30M Cache, up to 5.3 GHz); 35W
Intel® Core™ Ultra 5 245 (14 Cores, 24M Cache, up to 5.1 GHz); 65W
Intel® Core™ Ultra 5 245T (14 Cores, 24M Cache, up to 5.1 GHz); 35W
Intel® Core™ Ultra 5 225 (10 Cores, 20M Cache, up to 4.9 GHz); 65W
Intel® Core™ Ultra 5 225T (10 Cores, 20M Cache, up to 4.9 GHz); 35W
Chipset
[ARS310-W880] Intel® W880 Chipset
[ARS310-Q870] Intel® Q870 Chipset
Memory
[ARS310-W880] Four 288-pin UDIMM up to 192GB (ECC/Non-ECC)
[ARS310-W880] Dual Channel DDR5 up to 5600 MHz
[ARS310-W880] *Speed support list follow User’s Manual

[ARS310-Q870] Four 288-pin UDIMM up to 192GB (Non-ECC)
[ARS310-Q870] Dual Channel DDR5 up to 5600 MHz
[ARS310-Q870] *Speed support list follow User’s Manual
BIOS
AMI SPI 256Mbit
Graphics
Controller
Intel® UHD Graphics 700 series
Feature
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
1 x VGA
2 x DP++
1 x HDMI 2.0a

VGA: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2304 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz
Quad Displays
VGA + 2 DP++ + HDMI
Expansion
Interface
2 x PCIe x16 (Gen 5, 16 or 8+8)
－Support PCIE1/PCIE4 : single at x16(PCIE1)
－Support PCIE1/PCIE4 : dual at x8(PCIE1)/x8(PCIE4)
－Support PCIE1 : Riser card x16 or x8/x8 selected by Jumper
2 x PCIe x4 (Gen 4)
M.2
1 x M.2 2242/2260/2280 M key (PCIe x4 Gen5 NVMe support)
1 x M.2 2242/2260/2280 M key (PCIe x4 Gen4 NVMe/SATA support)
1 x M.2 2230 E key (PCIe/USB 2.0/Intel CNVi support) (Discrete Wifi 6E support)
Audio
Audio Codec
Realtek ALC888
Ethernet
Controller
[ARS310-W880] 1 x Intel® I226-LM
[ARS310-W880] 1 x Intel® I226-V
[ARS310-W880] 2 x Intel® E610-XAT2

[ARS310-Q870] 1 x Intel® I226-LM
[ARS310-Q870] 1 x Intel® I226-V

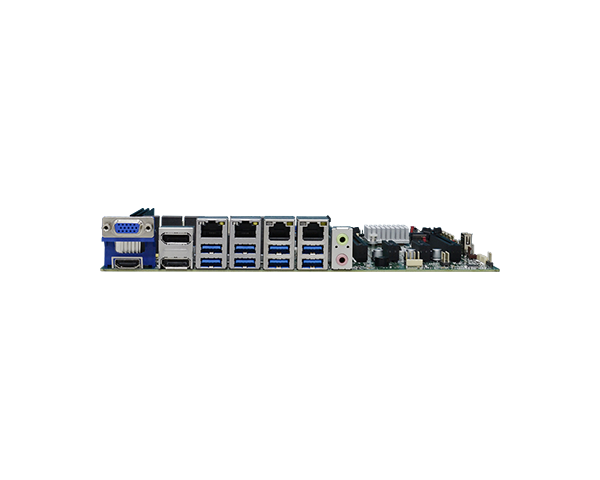

Rear I/O
Ethernet
[ARS310-W880] 2 x 2.5GbE + 2 x 10GbE (RJ-45)(Default)
[ARS310-W880] or 2 x 2.5GbE (RJ-45)(Optional, LAN3/4)

[ARS310-Q870] 2 x 2.5GbE (RJ-45)(Default, LAN3/4)
USB
8 x USB 3.2 Gen 2
Display
2 x DP++
1 x HDMI 2.0a
1 x VGA
Audio
1 x Line-out
1 x Mic-in
1 x Line-in (opt. by request, MOQ required)
Internal I/O
Serial
2 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
4 x RS-232 (2.54mm pitch)
USB
2 x USB 3.2 Gen1
3 x USB 2.0 (2.54mm pitch) (1 x USB 2.0 colay vertical Type A)
Audio
1 x Front Audio Header
1 x S/PDIF
SATA
4 x SATA 3.0 (up to 6Gb/s)
RAID 0/1/5/10
DIO
4-IN / 8-OUT DIO
SMBus
1 x SMBus
PS/2
1 x PS/2 (2.54mm pitch)
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
TPM2.0
Power
Type
ATX
Connector
8-pin ATX 12V power
24-pin ATX power
Consumption
TBD
RTC Battery
CR2032 Coin Cell
OS Support
Microsoft
Windows 10 IoT Enterprise 64-bit
Windows 11 LTSC
Linux
Linux
Environment
Temperature
Operating: -5 to 65°C
Storage: -20 to 70°C with RTC Battery; -40 to 85°C without RTC Battery
Humidity
Operating: 5 to 95% RH
Storage: 5 to 95% RH
MTBF
TBD
Mechanism
Dimensions
microATX Form Factor
244mm (9.6") x 244mm (9.6")
Height
PCB: 1.6mm
Top Side: TBD
Bottom Side: TBD
Standards and Certifications
Certifications
CE, FCC Class B, RoHS
Packing List
Packing List
· 1 APS310-W880/Q870 motherboard
· 1 COM port cables (Length: 300mm, 2 x COM ports)
· 1 Serial ATA data cable (Length: 500mm)
· 1 I/O shield
· 1 M.2 screw/standoff
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
