PTH171/PTH173｜Intel®｜Industrial Motherboards｜DFI

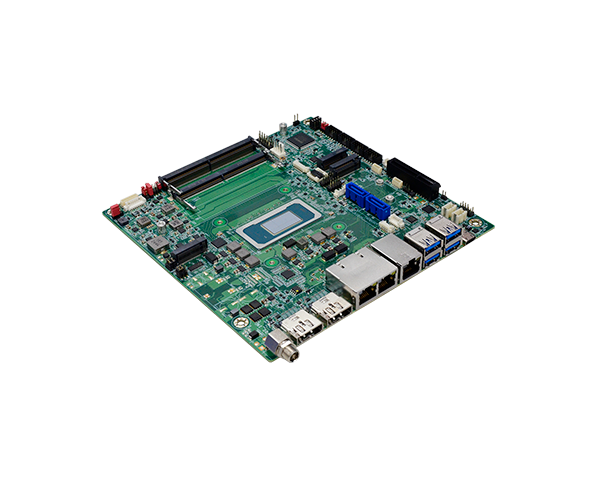

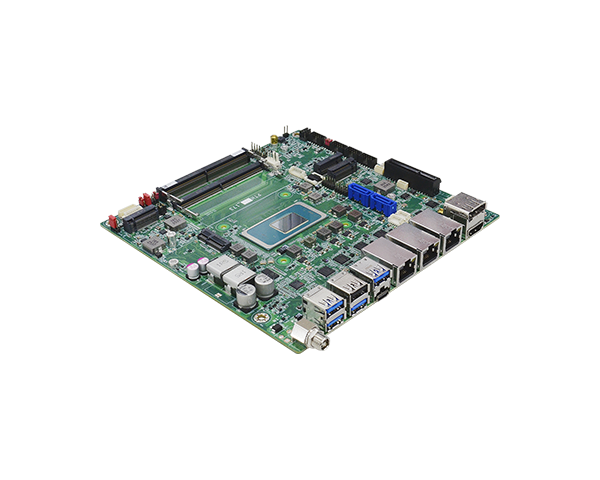

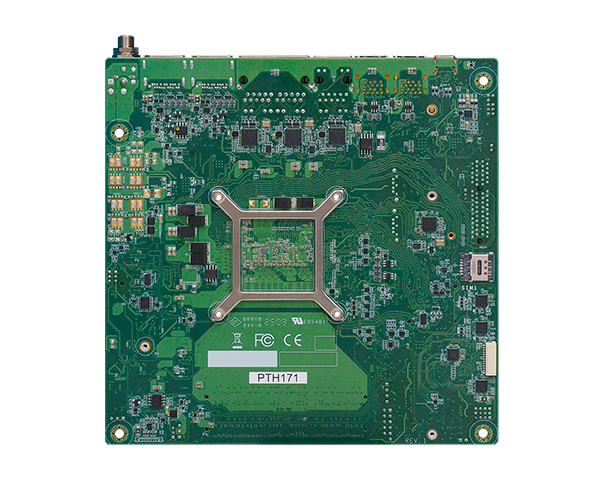

PTH171/PTH173
Overview
Overview
Specification
Download
QUOTE
2
COMPARE
Home Industrial Motherboards Mini-ITX PTH171/PTH173
  • Intel Panther Lake H processor, TDP up to 25W
  • 2 DDR5 6400/7200MHz, up to 128 GB
  • Quad Display: 1 DP++, 1 HDMI 2.0, 1 USB Type C, 1 M2A-Display extension port (eDP/LVDS/HDMI/DVI/VGA/DP/ available)
  • Multiple Expansion: 1 PCIe Gen 5 x4, 1 M.2 M Key (NVMe), 1 M.2 B Key (4G/5G) with SIM slot, 1 M.2 E Key (WIFI/BT), 1 M.2 A Key (M2A-Display & USB Expansion)
  • Rich I/O: Support up to 3 Intel 2.5GbE, 4 COM, 4 USB 3.2 Gen2 Type A, 1 USB Type C (DP alt/USB3 Gen2/PD 15W), 5 USB 2.0 header, 2 SATA 3.0, Audio L/R 3W speaker
  • Support EXT-OOB (Full) , optional internal RJ45, CNVi, vPro

Status : Preliminary QUOTE NOW

Multiple Expansion
Quad Independent Display
DDR5
Rich I/O
2.5G Ethernet
Out-of-band (OOB)
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UKCA Certification

PTH171/PTH173 Related Tags

#DDR5#USB Type-C DP#EXT-OOB (Full)#Intel Panther Lake H processor#Windows 11#Intel#SIM Slot#Windows#Linux#HDMI#DP#Multiple Expansion#RoHS Certification#CE Certification#FCC Certification#2.5G Ethernet#UKCA Certification
PTH171/PTH173｜Intel®｜Industrial Motherboards｜DFI
PTH171/PTH173｜Intel®｜Industrial Motherboards｜DFI
PTH171/PTH173｜Intel®｜Industrial Motherboards｜DFI
PTH171/PTH173｜Intel®｜Industrial Motherboards｜DFI
PTH171/PTH173｜Intel®｜Industrial Motherboards｜DFI
PTH171/PTH173｜Intel®｜Industrial Motherboards｜DFI

Related Products:

Select All - Clear
System
Processor
Inter Panther Lake H processor, TDP up to 25W
Intel® Core™ Ultra 9 388H (H484-12XeET, vPro)
Intel® Core™ Ultra 7 368H (H484-12XeET, vPro)
Intel® Core™ Ultra 7 358H (H484-12XeET)
Intel® Core™ Ultra 5 338H (H484-12XeET, vPro)
Intel® Core™ Ultra 9 386H (H484-4XeET, vPro)
Intel® Core™ Ultra 7 366H (H484-4XeET, vPro)
Intel® Core™ Ultra 7 356H (484-4XeET)
Intel® Core™ Ultra 5 336H (444-4XeET, vPro)
Intel® Core™ Ultra 7 365 (404-4XeET, vPro)
Intel® Core™ Ultra 7 355 (404-4XeET)
Intel® Core™ Ultra 5 335 (404-4XeET, vPro)
Intel® Core™ Ultra 5 325 (404-4XeET)
Memory
2x 262-pin SODIMM up to 128GB
Dual-channel SODIMM DDR5 up to 6400 MHz (H404)/ 7200 MHz (H484)
BIOS
AMI SPI 256Mbit
Graphics
Controller
Intel® Arc Xe3
Display
1 x HDMI
1 x DP++
HDMI: resolution up to 4096x2160 @60Hz
DP: resolution up to 4096x2304 @60Hz
USB Type C (DP alt-mode/USB3.2 Gen2/PD 15W): resolution up to 4096x2304 @60Hz (HBR2)
Quad Displays
HDMI + DP + USB Type C (DP alt-mode/USB3.2 Gen2/PD 15W) + M2A-Display (optional)
Expansion
Interface
1 x PCIe Gen5 x4 slot
1 x M.2 2242/2280 M Key (PCIE Gen4 x4, SATA 3 opt. selected by BIOS, support NVMe)
1 x M.2 2242/3042/3052 B Key (PCIE Gen4 x1 shared with M.2 A key by request, USB3.2 Gen2, USB 2.0, SIM)
1 x M.2 2230 E Key (PCIE Gen4 x1 and USB 2.0, support Intel® CNVi, WIFI7)
1 x M.2 3042/3060 A Key (Standoff 3030)
- Support M2A Display solution (eDP/LVDS/VGA/DP/HDMI or DVI via optional cable)
- Support M2A-M21 expansion solution (PCIE x1,USB3/USB2, SIM)
Audio
Audio Codec
Realtek ALC888S
Ethernet
Controller
LAN1/2: i226V/IT (10/100/1000/2.5G speeds)
LAN3(vPro): i226LM/IT (10/100/1000/2.5G speeds)

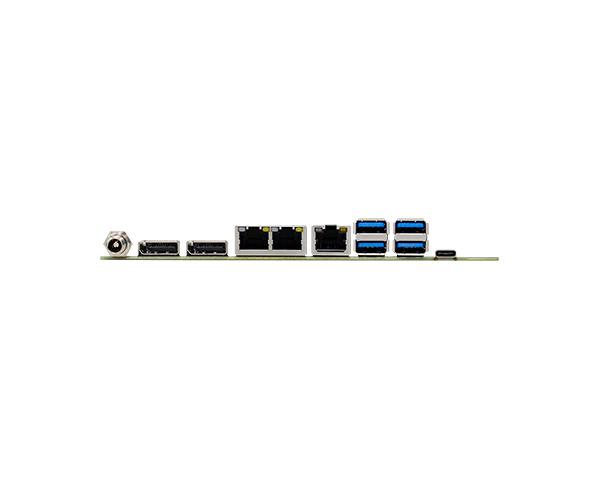

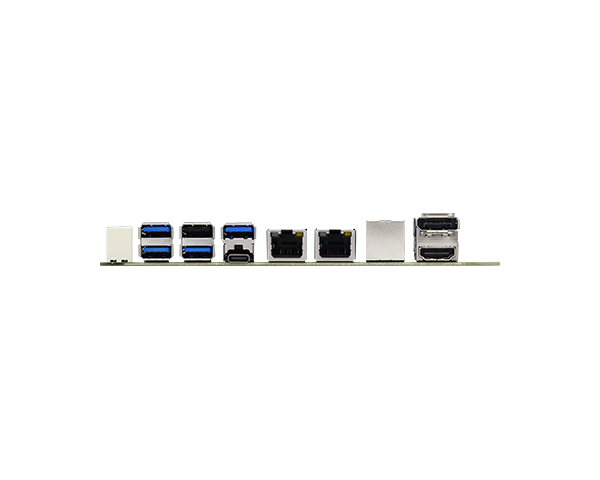

Rear I/O
Ethernet
Up to 3 x 2.5GHz RJ45 (LAN 3 colayout with internal vertical RJ45 by option)
USB
4 x USB 3.2 Gen2 Type A
1 x USB 2.0 Type A
1 x USB 3.2 Gen 2 Type C (DP alt-mode/USB3.2 Gen 2/PD 15W)
Display
1 x HDMI 2.0
1 x DP++
Internal I/O
Serial
2 x RS-232/422/485 (2.0mm pitch)
1 x RS-232 with power (2.0mm pitch)
1 x RS-232 (2.0mm pitch) colay with DIO-4bit or PS/2 (Option)
USB
4 x USB 2.0 (2.0mm pitch)
1 x M.2 A key with M2A-M21 supports up to 2 USB3 Gen1 and 4 USB2.0 (Option)
Display
1 x M.2 A key, support M2A-Display ( eDP / LVDS / VGA / DP / HDMI or DVI via optional cable)
Audio
1 x Line-out/Mic-in
2 x 3W speaker header (L/R)
SATA
2 x SATA 3.0
H484 RAID 0,1,5 supported by Intel VMD
H404 RAID 0,1 (shared with M.2 M key)
DIO
1 x 8-bit DIO
SMBus
1 x SMBus
Case Open
1 x case open header
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
dTPM (default)
fTPM (option)
Power
Type
[PTH171] Single 12VDC
[PTH173] Wide Range 12~28VDC
Connector

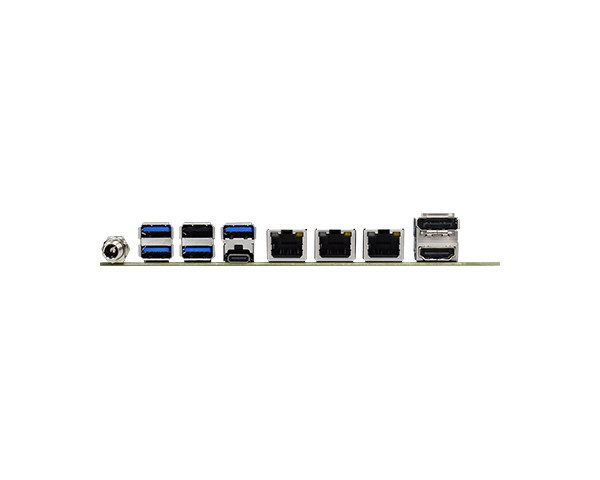

DC-in Jack

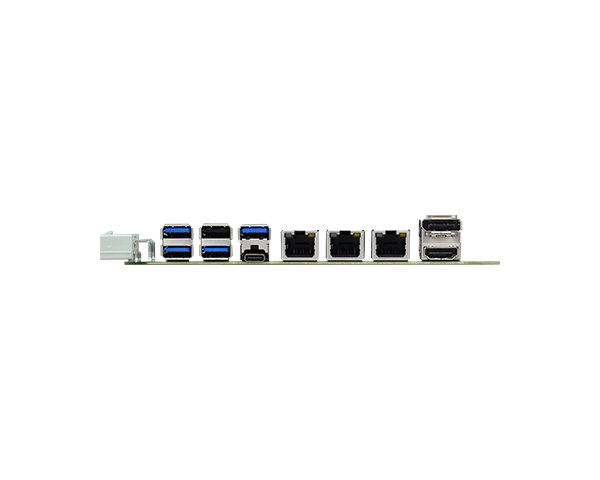

Right Angle Connector (4-pin) (Option)
Straightl Type Connector (4-pin) (Option)
Consumption
Idle: TBD
Max: TBD
RTC Battery
CR2032 Coin Cell
OS Support
Microsoft
Windows 11 24H2 LTSC 64-bit
Linux
Ubuntu 24.04
Environment
Temperature
Operating: -5 to 65°C, -20 to 70°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 95% RH
Storage: 5 to 95% RH
MTBF
TBD
Mechanism
Dimensions
Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")
Height
PCB: TBDmm
Top Side: TBDmm
Bottom Side: TBDmm
Standards and Certifications
Certifications
CE, FCC, RoHS, UKCA
Packing List
Packing List
• 1 PTH171/PTH173 motherboard
• 1 COM port cable with bracket (Length: 250mm, 1 x COM ports), A81-015115-018G
• 1 Serial ATA data with power cable (Length: 300mm), A81-002144-018G
• 4 M.2 screw/standoff
• 1 I/O Shield
　- (2 LAN, Regular type)(For Sample), TBD
　- (3 LAN, Regular type)(For Sample), TBD
　- (2 LAN, Thin type)(For Sample), TBD
　- (3 LAN, Thin type)(For Sample), TBD
• 1 Cooler
　- (Wide/Normal Temp. -Cooler for 25W), TBD (Default)
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
