ECX700-ASL｜Intel®｜Industrial Computers｜DFI

ECX700-ASL
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Computers Ruggedized Embedded System ECX700-ASL
  • Waterproof and dustproof design certified to IP67 and IP69K
  • Ruggedized design with vibration/shock resistance and wide operating temperature -40°C to 70°C
  • Intel® Atom® Processor X7433RE/X7835RE Amston Lake CPU
  • 8GB/16GB LPDDR5 4800 Memory down
  • Rich waterproof I/O including 2x 2.5GbE, 2x USB 3.2, 1x HDMI, 4x antenna, 1x Combo port, and 1x IP67 vent
  • Multiple expansion slots for Wifi/BT, 4G/LTE/5G cellular, NVMe SSD and function modules
  • Wide voltage: 9V~36V DC-IN
  • Long-term Promise of 15-Year CPU Life Cycle Until Q4' 31 (Based on Intel IOTG Roadmap)

Status : Preliminary QUOTE NOW

Wide Voltage: 9~36V DC-in
15 Years CPU Life Cycle Support
Wide-temp: -40~70°C
Rugged Design
LPDDR5
IP67
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

ECX700-ASL Related Tags

#9~36V DC-in#Edge AI Computing#IP69K#M.2#eMMC#IP67#Intel® Processor Industrial RE Series#IoT#AI#Windows 11#Intel#Compact PC#5G#CAN-Bus#Fanless Design#Windows#Linux#RoHS Certification#CE Certification#FCC Certification#2.5G Ethernet
ECX700-ASL｜Intel®｜Industrial Computers｜DFI
ECX700-ASL｜Intel®｜Industrial Computers｜DFI
ECX700-ASL｜Intel®｜Industrial Computers｜DFI
ECX700-ASL｜Intel®｜Industrial Computers｜DFI

Related Products:

Select All - Clear
System
Processor
Intel® Atom® X7213RE 2 Cores, 2.0GHz to 3.4GHz
Intel® Atom® X7835RE 8 Cores, 1.3GHz to 3.6GHz
Memory
8GB/16GB LPDDR5 4800 Memory down
BIOS
AMI SPI 256Mbit (supports UEFI boot only)
Graphics
Controller
Intel® UHD Graphics
Feature
Execution Units: Up to 32 EUs
3D API: Open GL 4.6, DirectX12, Vulkan 1.2 (Windows) Mesa 3D, OpenGL 4.6, Vulkan 1.2 (Linux)
Precision: FP32, FP16, INT8 Compute: OpenCL 3.0
Display
1 x HDMI
Storage
eMMC
64GB / 128GB Available
Expansion
Interface
1 x M.2 2230 E key (USB 2.0/PCIe, support CNVi)
1 x M.2 3042/3052 B key: USB3.0/USB2.0/PCIe with SIM
1 x M.2 2242/2280 M key (*PCIe/SATA)
Ethernet
Controller
2 x Intel Ethernet controller i226 2.5GbE
LED
Indicators
1 x Power Status LED

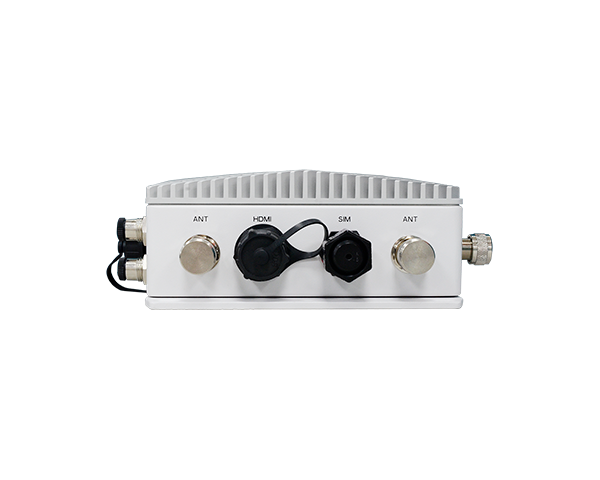

Front I/O
Display
1 x HDMI
Antenna
2 x Antenna (WiFi)
SIM
1 x SIM card slot

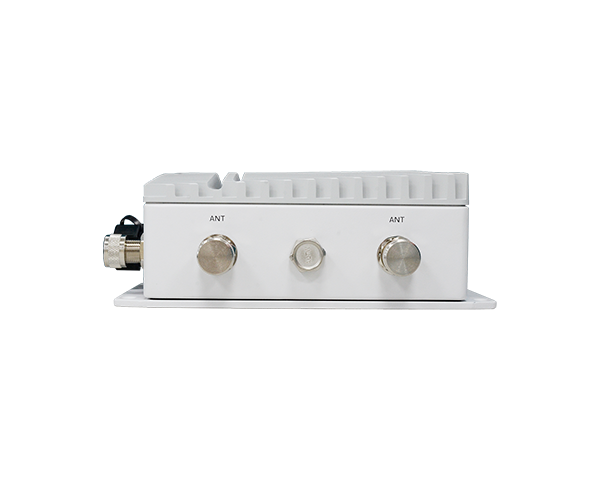

Top I/O
Antenna Connectors
2 x Antenna (LTE)
Vent
1 x Vent

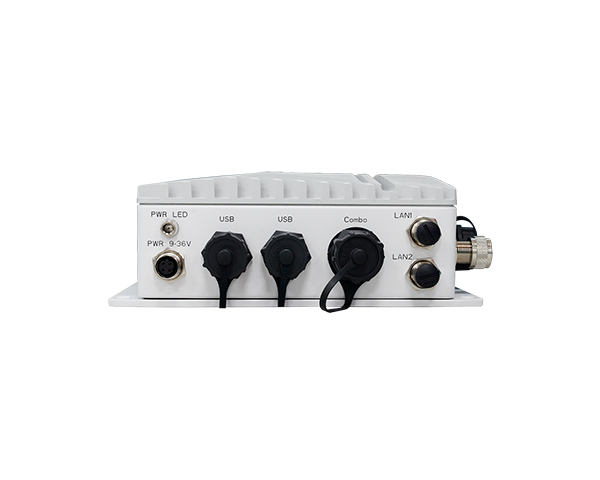

Bottom I/O
Ethernet
2 x 2.5GbE
USB
2 x USB 3.2
Combo Port
2 x RS232 and 2 x Can bus protocol
(4 x Can bus protocol by project support)
Power
1 x DC-Input
Power
Type
DC-in 9~36V
Connector
M12 D-code
OS Support
Microsoft
Windows® 11 IoT Enterprise
Linux
Linux
Environment
Operating Temperature
-40 to 70°C
Storage Temperature
-40 to 85°C
Relative Humidity
5 to 95% RH (non-condensing)
Mechanism
Mounting
Wall mount
Dimensions (W x H x D)
TBD
Weight
TBD
Standards and Certifications
Shock
Operation shock test:
IEC-60068-2-27
MIL-STD-810G 514.8C-5
Vibration
Operation Vibration test:
IEC 60068-2-64
MIL-STD-810G 514.8C-5
Certifications
CE, FCC class A, ROHS
Construction
IP67/ IP69K enclosure
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    ECX700-ASL2020A-X33     Part Number :
     750-ECX7000-000G     Description :
    ECX700-ASL2020A-X33, IP67 Box PC, ATOM X7433RE, 64GB eMMC, 16GB memory down, 2 COM, 2 CAN, 4 USB, 1 HDMI, 2 LAN, AC9260, LE910C4-AP, DC9~36V, TPM2.0, F/G SYSTEM RoHS
  • Model Name :
    ECX700-ASL2020A-X35     Part Number :
     750-ECX7000-100G     Description :
    ECX700-ASL2020A-X35, IP67 Box PC, ATOM X7835RE, 64GB eMMC, 16GB memory down, 2 COM, 2 CAN, 4 USB, 1 HDMI, 2 LAN, AC9260, LE910C4-AP, DC9~36V, TPM2.0, F/G SYSTEM RoHS
Optional Items
  • Item Name Part Number Description
  • Item Name :
    External USB cable     Part Number :
     A81-001129-068G     Description :
    IP67 USB Plug to USB Plug, 300mm
  • Item Name :
    External HDMI cable     Part Number :
     A81-026004-068G     Description :
    IP67 HDMI Plug to HDMI Plug, 300mm
  • Item Name :
    LTE IPEX cable     Part Number :
     A81-099125-027G     Description :
    ANTENNA CABLE, IPEX MHF4L to N JACK IP67/8, L=220mm, Ø1.13, FOR ECX700-ASL, BTC061-20-MHF470B220(ARISTOTLE)RoHS *Note: Designed to resist corrosion under high temperature, humidity, and salt-spray exposure.
  • Item Name :
    WiFi IPEX cable     Part Number :
     A81-099124-027G     Description :
    ANTENNA CABLE, IPEX MHF1 to N JACK IP67/8, L=220mm, Ø1.13, FOR ECX700-ASL, BTC061-20-70B-220(ARISTOTLE)RoHS *Note: Designed to resist corrosion under high temperature, humidity, and salt-spray exposure.
  • Item Name :
    WiFi / LTE Rod type Antenna     Part Number :
     612-139917-000G     Description :
    Omni-S Thimble IP68 LTE ANTENNA, 1710-7125MHz, REVISE N TYPE, L= 55mm,1399.17.0224 (HUBER+SUHNER) RoHS *Note: Designed for high vibration environments such as mining and construction vehicles.
  • Item Name :
    WiFi Cabled type Antenna     Part Number :
     612-RFA25T-100G     Description :
    ANTENNA, 2400-2500MHz, 5150-5925MHz, REVISE N TYPE, L= 53mm, RFA-25-T288-41-1M-N (ARISTOTLE) RoHS *Note: Designed to resist corrosion under high temperature, humidity, and salt-spray exposure.
  • Item Name :
    LTE Cabled type Antenna     Part Number :
     612-RFALTE-200G     Description :
    ANTENNA, 698-960MHz, 1710-2170MHz, 2300-2700MHz, REVISE N TYPE, L= 53mm, RFA-LTE-T288-41-1M-N (ARISTOTLE) RoHS *Note: Designed to resist corrosion under high temperature, humidity, and salt-spray exposure.
