HPT193｜AMD®｜Industrial Motherboards｜DFI

HPT193
Overview
Overview
Specification
Download
QUOTE
2
COMPARE
Home Industrial Motherboards Mini-ITX HPT193
  • AMD® Ryzen™ Embedded 8000 Series Processors
  • 2 DDR5 5600MHz SODIMM up to 64GB
  • Quad display: 4 DP++
  • Multiple expansion: 1 PCIE Gen4 x16 Slot (x8 Signal), 1 M.2 M key (PCIE/SATA)
  • Rich IO :2 2.5GbE RJ45, 2 USB 3 Type- A, 2 USB2.0 Type A, 2 COM D-Sub,1 Audio Jack Line-IN/Line-OUT/Mic-IN, 4 RS232(ccTalk/TTL), 4 USB2.0 headers, Gaming I/O(PCIE,UART/USB2.0,Audio)
  • Support EXT-OOB (Full)

Status : Preliminary QUOTE NOW

DP
Multiple Expansion
12V DC-in
Quad Independent Display
DDR5
Rich I/O
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

HPT193 Related Tags

#DDR5#M.2#AMD® Ryzen™ Embedded 8000 Series#EXT-OOB (Full)#12~24V DC-in#Windows 11#AMD#4K2K Display#PCIe x16#Windows#Linux#DP#Multiple Expansion#RoHS Certification#CE Certification#FCC Certification#Gaming#2.5G Ethernet
HPT193｜AMD®｜Industrial Motherboards｜DFI
HPT193｜AMD®｜Industrial Motherboards｜DFI
HPT193｜AMD®｜Industrial Motherboards｜DFI
HPT193｜AMD®｜Industrial Motherboards｜DFI

Related Products:

Select All - Clear
System
Processor
AMD® Ryzen™ Embedded 8000 Series Processors, TDP up to 54W
AMD® Ryzen™ Embedded 8845HS, 8C/16T, 8MB Cache, 3.8GHz (5.1GHz), 45W (35-54W)
AMD® Ryzen™ Embedded 8645HS, 6C/12T, 6MB Cache, 4.3GHz (5.0GHz), 45W (35-54W)
AMD® Ryzen™ Embedded 8840U, 8C/16T, 8MB Cache, 3.3GHz (5.1GHz), 28W (15-30W)
AMD® Ryzen™ Embedded 8640U, 6C/12T, 6MB Cache, 3.5GHz (4.9GHz), 28W (15-30W)
Memory
2 x 262-pin dual-channel SODIMM DDR5 5600/5200/4800MHz with ECC/non-ECC support up to 96GB (48GB per Dimm)
BIOS
AMI SPI 256Mbit
Graphics
Controller
RDNA3 graphics with up to 6 WGPs (Work Group processors)
Display
4 x DP++ display
DP1.2: resolution up to 3840x2160@60Hz
Quad Displays
4 x DP++ display
Expansion
M.2
1 x M.2 M Key 2280 slot (PCIE Gen4 x4 or SATA3)
PCIe
1 x PCIE Gen4 x16 slot (x8 Signal)
Gaming I/O
GIO1 (UART, USB2, AUDIO R/L)
GIO2 (PCIE x1)
Audio
Audio Codec
1 x Realtek ALC888S
Ethernet
Controller
2 x Intel I226-V (10/100/1000/2500 Mbps)

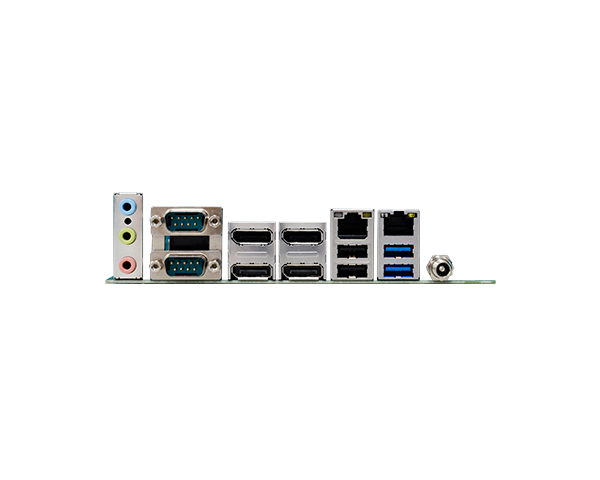

Rear I/O
Ethernet
2 x 2.5GbE (RJ-45)
Serial
1 x Full RS232
1 x RS232/RS422/RS485
USB
2 x USB 3.2 Gen2
2 x USB 2.0
Display
4 x DP++ display
Audio
1 x Front audio (Line-out, Line-in, Mic-in)
Internal I/O
Serial
2 x RS232 / TTL header
2 x RS232 / ccTalk header
USB
4 x USB 2.0 port (pitch 2.0mm)
1 x USB 2.0 vertical Type A
Audio
1 x S/PDIF (audio in & out) (Signal from ALC888S)
SATA
2 x SATA3 (6Gb/s) (one signal shared with M.2 M key, selected by BIOS)
2 x SATA Power
DIO
1 x 8-bit header with power
SMBus/ I2C
2 x I2C
1 x SPI
Case Open
1 1x2p header
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
dTPM 2.0(Default), fTPM (Option)
Power
Type
Single 12~24V +/-5% DC
Connector
DC-in Jack (Request)
Straight Type Connector (4-pin) (Default)
Consumption
TBD
RTC Battery
CR2032 coin cell
OS Support
Microsoft
Windows 11 22H2 GAC
Windows 11 LTSC
Linux
Ubuntu 22.04
Environment
Temperature
Operating: -5 to 65°C
Storage: -40 to 85°C
Humidity
10 to 90% RH
MTBF
TBD
Mechanism
Dimensions
Mini-ITX Form Factor
195mm (7.7") x 170mm (6.7")
Height
PCB: 1.6mm
Top Side: TBD
Bottom Side: TBD
Standards and Certifications
Certifications
CE, FCC, RoHS
Packing List
Packing List
• 1 HPT193 motherboard
• 1 I/O shield, TBD
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
