EC70A-MTH｜Intel®｜Industrial Computers｜DFI

EC70A-MTH
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Computers Ultra Compact Fanless PC EC70A-MTH
  • Intel® Core™ Ultra 7/ Ultra 5 Processor
  • Dual Displays: HDMI (4K@24Hz) + USB-C DP Alt. mode
  • Dual Channel LPDDR5 6400MHz memory down Up to 32GB
  • Support M.2 B key 3042/3052 5G-NR module
  • Rich I/O: 3 LAN, 5 USB 3.2 (or 4 USB 3.2 + 1 USB 2.0), 1 USB Type-C, 4 COM, 1 HDMI

Status : Preliminary QUOTE NOW

5G
Dual Display
Rich I/O
2.5G Ethernet
LPDDR5
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UKCA Certification

EC70A-MTH Related Tags

#Windows 10#9~36V DC-in#USB Type-C DP#LPDDR5#M.2#Out-Of-Band (OOB)#Intel® Core™ Ultra processors #IoT#Windows 11#Intel#SIM Slot#Compact PC#5G#Fanless Design#Compact Size#4K2K Display#1G Ethernet#Windows#Linux#Multiple Expansion#Low Power Consumption#RoHS Certification#CE Certification#FCC Certification#AGV#AMR#Material Handling#2.5G Ethernet#UKCA Certification
EC70A-MTH｜Intel®｜Industrial Computers｜DFI
EC70A-MTH｜Intel®｜Industrial Computers｜DFI
EC70A-MTH｜Intel®｜Industrial Computers｜DFI
EC70A-MTH｜Intel®｜Industrial Computers｜DFI

Related Products:

Select All - Clear
System
Processor
Intel® Core™ Ultra 7/ Ultra 5 Processors
Intel® Core™ Ultra 7 155U, 12C, 12M Cache, 1.7GHz (4.9GHz)
Intel® Core™ Ultra 5 125U, 12C, 12M Cache, 1.3GHz (4.3GHz)
(TDP 15W for Fanless, TDP 28W for w/ Fan)
Memory
Dual Channel LPDDR5 6400MHz memory down 16GB (up to 32GB by request)
BIOS
AMI SPI 256Mbit
Graphics
Controller
Intel® Arc™ Graphics
Feature
DirectX 12, Open GL 4.6, Vulkan 1.2
Display
1 x HDMI
1 x DP
HDMI: resolution up to 4096x2160 @24Hz
DP: resolution up to 4096x2304 @60Hz
Multiple Displays
HDMI + Type-C DP Alt. Mode
Storage
Internal
1 x M.2 2280 M key (PCIe x4/SATA)
Expansion
Interface
1 x M.2 M Key 2280 (PCIex4/SATA)
1 x M.2 B key 3052 (USB 3.0/2.0, PCIe x1, SATA), 1 x SIM slot for 4G/5G
1 x M.2 E Key 2230 (PCIex1/USB2.0)
Ethernet
Controller
2 x Intel® I226IT (10/100/1000/2500Mbps)
1 x Intel® I210IT (10/100/1000Mbps)
LED
Indicators
1 x Power LED
1 x HDD LED

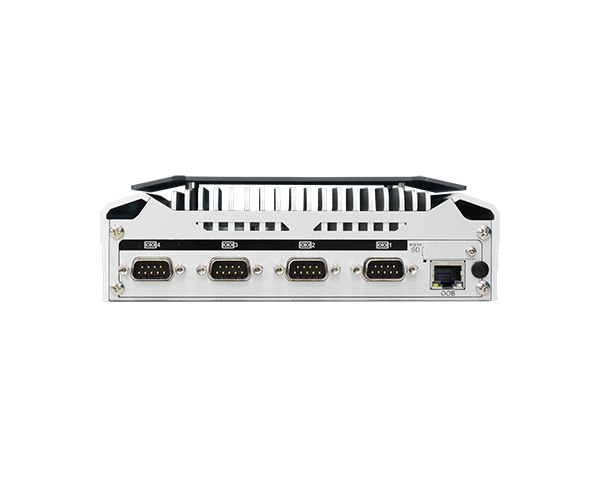

Front I/O
Ethernet
1 x GbE (RJ-45), Intel® i210AT (10/100/1000Mbps) (support OOB)
Serial
COM 1: RS-232/422/485
COM 2/3: RS-232
COM 4: RS-232/422/485 or 8-bit DIO by jumper setting

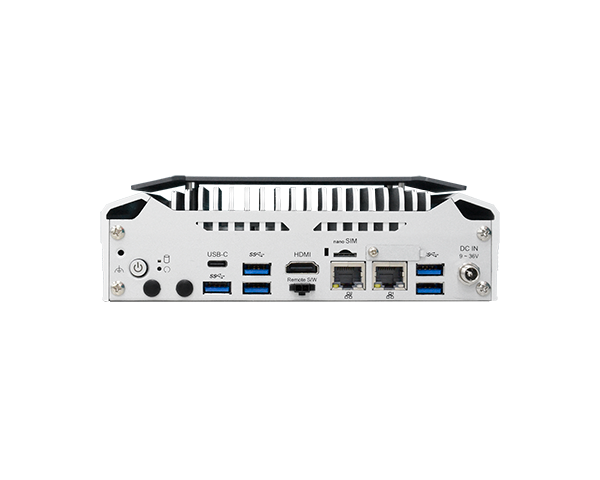

Rear I/O
Ethernet
2 x 2.5GHz (RJ-45)
USB
5 x USB 3.2 + 1 x USB Type C
or 4 x USB 3.2 + 1 x USB 2.0 (by BIOS setting) + 1 x USB Type C
Display
1 x HDMI
1 x USB-C DP Alt. Mode
Buttons
1 x Power button
1 x Reset button
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
TPM 2.0
Power
Type
Wide range 9~36V
Connector
DC Jack
OS Support
Microsoft
Windows 10 IoT Enterprise 64-bit
Windows 11 IoT Enterprise LTSC 2024
OS Support (UEFI Only)
Linux
Environment
Operating Temperature
· Fanless(CPU TDP 15W): -20 to 60°C (wide-temp SSD)
· W/Fan(CPU TDP 28W): -20 to 70°C (wide-temp SSD)
Storage Temperature
-20 to 85°C
Relative Humidity
5 to 95% RH (non-condensing)
Mechanism
Construction
Aluminum + Metal Aluminum
Mounting
Wall/VESA/DIN rail mount
Dimensions (W x H x D)
181.6mm x 57mm x 118.4mm
Weight
TBD
Standards and Certifications
Shock
·Operating:
IEC 60068-2-27 Test Ea: Shock Test
Half-Sine, 3G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
Vibration
· Operating:
IEC 60068-2-64 Test Fh: Vibration Board-Band Random Test
Random, 1Grms @ 5~500 Hz, 30min
· Non-Operating:
IEC 60068-2-6 Test Fc: Vibration Sinusoidal Test
Sweep Sine, 3Grms @ 10~500Hz, 30min
Certifications
CE, FCC Class A, RoHS, UKCA
Packing List
Packing List
· 1 EC70A-MTH system
· 3 M.2 slot slot screws
· 4 Foot screws & Rubber Foot
· 1 Grounding screw
· 1 Remote switch cable
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    EC70A-MTH4051TC3-125U     Part Number :
     750-EC70A5-000G     Description :
    Ultra 5 125U, 16GB memory, 1 HDMI, 1 USB-C DP Alt. mode, 4 COM, 5 USB 3.2, 1 USB Type-C, 3 LAN, TPM 2.0, Fanless, DC 9~36V input
  • Model Name :
    EC70A-MTH4051TC3-125U     Part Number :
     750-EC70A5-100G     Description :
    Ultra 5 125U, 16GB memory, 1 HDMI, 1 USB-C DP Alt. mode, 4 COM, 5 USB 3.2, 1 USB Type-C, 3 LAN, TPM 2.0, w/ Fan, DC 9~36V input
  • Model Name :
    EC70A-MTH4051TC3-155U     Part Number :
     750-EC70A5-200G     Description :
    Ultra 7 155U, 16GB memory, 1 HDMI, 1 USB-C DP Alt. mode, 4 COM, 5 USB 3.2, 1 USB Type-C, 3 LAN, TPM 2.0, w/ Fan, DC 9~36V input
  • Model Name :
    EC70A-MTH4051TC3-155U     Part Number :
     750-EC70A5-300G     Description :
    Ultra 7 155U, 16GB memory, 1 HDMI, 1 USB-C DP Alt. mode, 4 COM, 5 USB 3.2, 1 USB Type-C, 3 LAN, TPM 2.0, Fanless, DC 9~36V input
