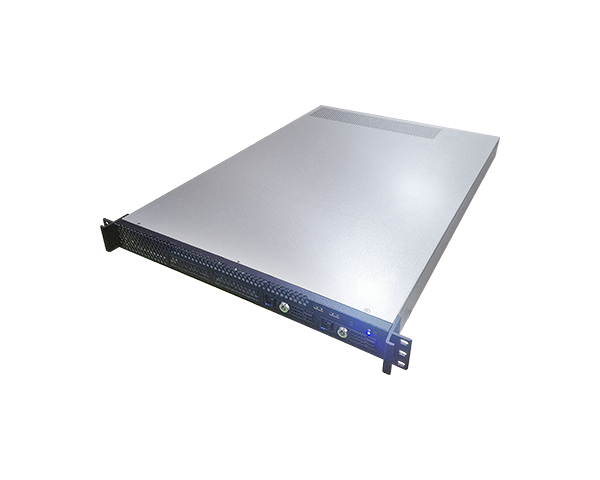

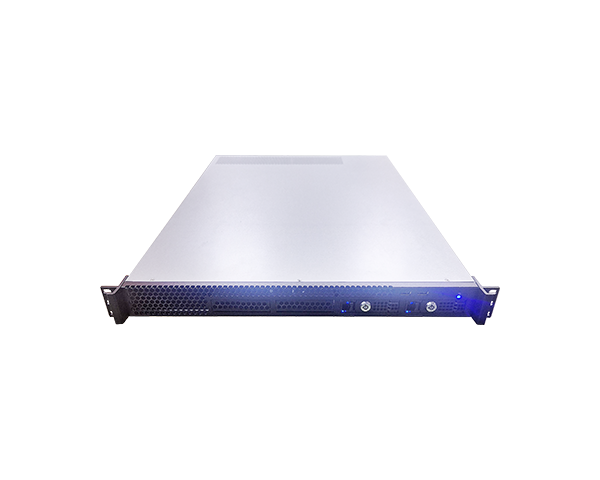

RM810-ERX810｜Intel®｜Industrial Computers｜DFI

RM810-ERX810
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Computers Mini-ITX/microATX/ATX Systems RM810-ERX810
  • Equipped with dual 4th/5th Gen Intel® Xeon® Scalable processors for exceptional processing power.
  • Supports single-slot GPU/IO card for enhanced graphics and I/O capabilities.
  • Features four hot-swappable drive bays (3.5"/2.5”) for reliable, high-availability storage.
  • Versatile I/O options: 4 GbE, 1 IPMI LAN, 4 USB 3.2, 1 DisplayPort, 1 M.2 2280 M-Key, and 1 COM.
  • IPMI-based out-of-band management for seamless remote monitoring and control.

Status : Preliminary QUOTE NOW

DP
Rich I/O
Multiple Storage
Out-of-band (OOB)
Rackmount Chassis
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RM810-ERX810 Embedded Solution Powered by:
ERX810-C741

ERX810-C741

ERX810-C741｜Intel®｜Industrial Motherboards｜DFI

5th/4th Gen Intel® Xeon® Scalable Family, 16 DDR5, 4 PCIe x16, 2 PCIe x8, 1 M.2 M Key, 4 Intel® GbE, 2 COM, 4 SATA 3.0, 6 USB 3.2 Gen1, 2 USB 2.0, 1 Vertical USB 2.0, 1 DP, Intel® C741 Chipset

RM810-ERX810 Related Tags

#DDR5#Edge AI Computing#M.2#4th Gen Intel Xeon Scalable Family#5th Gen Intel Xeon Scalable Family#OOB#Out-Of-Band (OOB)#Intel#1G Ethernet#PCIe x16#DP
RM810-ERX810｜Intel®｜Industrial Computers｜DFI
RM810-ERX810｜Intel®｜Industrial Computers｜DFI

Related Products:

Select All - Clear
System
Processor
5th Generation Intel® Xeon® Scalable Processor Family, LGA 4677 Socket:
Intel® Xeon® Gold 5515+ Processor (8 Cores, 22.5 MB Cache, up to 4.1 GHz); 165W
Intel® Xeon® Silver 4514Y Processor (16 Cores, 30 MB Cache, up to 3.4 GHz); 150W
Intel® Xeon® Silver 4510 Processor (12 Cores, 30 MB Cache, up to 4.1 GHz); 150W
Intel® Xeon® Silver 4510T Processor (12 Cores, 30 MB Cache, up to 3.7 GHz); 115W
Intel® Xeon® Silver 4509Y Processor (8 Cores, 22.5 MB Cache, up to 4.1 GHz); 125W

4th Generation Intel® Xeon® Scalable Processor Family, LGA 4677 Socket:
Intel® Xeon® Gold 5418N Processor (24 Cores, 45 MB Cache, up to 3.80 GHz); 165W
Intel® Xeon® Gold 5415+ Processor (8 Cores, 22.5 MB Cache, up to 4.10 GHz); 150W
Intel® Xeon® Silver 4416+ Processor (20 Cores, 37.5 MB Cache, up to 3.90 GHz); 165W
Intel® Xeon® Silver 4410T Processor (10 Cores, 26.25 MB Cache, up to 4.00 GHz); 150W
Intel® Xeon® Silver 4410Y Processor (12 Cores, 30 MB Cache, up to 3.90 GHz); 150W
Chipset
Intel® C741 Chipset
Memory
16 x ECC-RDIMM up to 1024GB
DDR5 Max. 5600MHz
BIOS
Insyde
Graphics
Controller
BMC AST2600
Display
1 x DP
Storage
External
4 SATA 3.0 (RAID 0/1/5/10)
Internal
1 M.2 2280 M key
Expansion
Interface
1 x PCIe x16
Audio
Audio Codec
ALC888S
Ethernet
Controller
4 x Intel® I210
IPMI: RTL8211F
Front I/O
Ethernet
4 x GbE
1 x Dedicated IPMI LAN
Serial
1 x RS-232/422/485 (DB-9)
USB
4 x USB 3.2 Gen1
Display
1 x DP
LED Indicators
1 x Power LED
1 x Storage LED
Button
Buttons
1 x Power Button
Cooling
Fan
4 CM Fan x 6
Security
TPM
TPM 2.0
Power
Supply
1U redundant PSU
Environment
Operating Temperature
0 to 35°C
Storage Temperature
-30 to 60°C with RTC Battery
-40 to 85°C without RTC Battery
Relative Humidity
5 to 90% RH (non-condensing)
Mechanism
Construction
Heavy Industrial Steel
Mounting
Flexible hold down bar
Dimensions (W x H x D)
431.8 x 650.8 x 44 mm
Weight
TBD
Color
Black
Standards and Certifications
Certifications
TBD
Packing List
Packing List
• 1 RM810-ERX810 System Unit
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    RM810-ERX810     Part Number :
     TBD     Description :
    TBD
