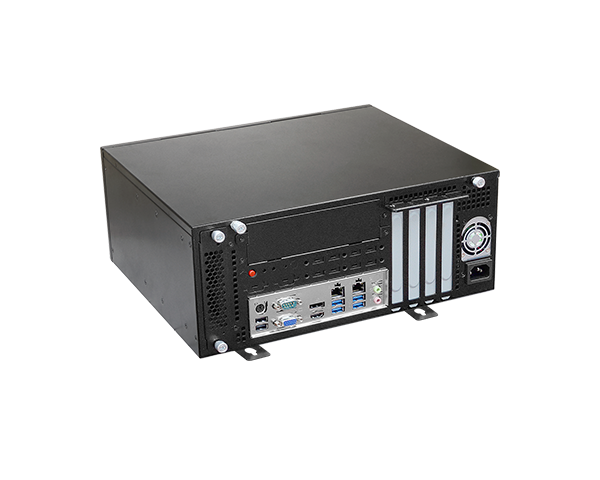

WM343-RPS｜Intel®｜Industrial Computers｜DFI

14th Generation Intel® LGA 1700 Socket Processors,
Intel® Core™ I9-14901E (8 Cores, 36M Cache, up to 5.6 GHz); 65W
Intel® Core™ I5-14401E (6 Cores, 24M Cache, up to 4.7 GHz); 65W
Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 5.8 GHz); 65W
Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W
Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 5.4 GHz); 65W
Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 5.2 GHz); 35W
Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 5 GHz); 65W
Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 4.8 GHz); 35W
Intel® Core™ I5-14400 (10 Cores, 20M Cache, up to 4.7 GHz); 65W
Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 4.5 GHz); 35W
Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 4.7 GHz); 60W
Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 4.4 GHz); 35W
Intel® 300 (2 Cores, 6M Cache, up to 3.9 GHz); 46W
Intel® 300T (2 Cores, 6M Cache, up to 3.4 GHz); 35W

13th Generation Intel® LGA 1700 Socket Processors,
Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W
Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W
Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W
Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W
Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W
Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W
Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W
Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W
Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 4.4 GHz); 65W
Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W
Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W

12th Generation Intel® LGA 1700 Socket Processors,
Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W
Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W
Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W
Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W
Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W
Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W
Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Pentium® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W
Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
Intel® Celeron® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W
Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W

*i9-12900E/ i9-12900TE: 5-Year CPU Lifecycle Support Until Q1' 27
*Other CPUs: 10-Year CPU Lifecycle Support Until Q1' 32

[Q670E] Intel® Q670E Chipset
[H610E] Intel® H610E Chipset

Four 288-pin UDIMM up to 192GB (Non-ECC)
Dual Channel DDR5 up to 4400 MHz
*Speed support list follow User’s Manual

AMI SPI 256Mbit

Intel® UHD Graphics 700 series

OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Decode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

1 x VGA
1 x DP++
1 x HDMI 2.0a

VGA: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2304 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz

VGA, DP++, HDMI

1 or 2 x 3.5"/2.5" SATA 3.0 drive bays (1 x 3.5" SATA drive bay, by default)
1 x 5.25" Optical drive bay

[Q670E] 1 x M.2 2242/2260/2280 M key (PCIe x2 NVMe/SATA/Intel RST support)
[Q670E] 1 x M.2 2242/2260/2280 M key (PCIe x4 NVMe/Intel RST support) (co-lay PCIE x4 slot, function selected by BIOS.)
[Q670E] 1 x M.2 2230 E key (PCIe/USB 2.0/Intel CNVi support) (Discrete Wifi 6E support)

[H610E] 1 x M.2 2242/2260/2280 M key (PCIe x2 NVMe/SATA/Intel RST support)
[H610E] 1 x M.2 2242/2260/2280 M key (PCIe x4 NVMe/Intel RST support) (co-lay PCIE x4 slot, function selected by BIOS.)

1 x PCIe x16 (Gen 5)
1 x PCIe x4 (Gen 3) (co-lay M.2 M-key, function selected by BIOS.)
2 x PCI

Realtek ALC888

1 x Line-out
1 x Mic-in
1 x Line-in (opt., MOQ required)

[Q670E] 1 x Intel® I226-LM (Core i9/i7/i5 support iAMT, co-lay I219-LM)
[Q670E] 1 x Intel® I226-V


[H610E] 1 x Intel® I219-V
[H610E] 1 x Intel® I226-V

1 x Power LED
1 x HDD LED

[Q670E] 2 x 2.5GbE (RJ-45)
[Q670E] or 1 x 2.5GbE + 1 x GbE (RJ-45)

[H610E] 1 x 2.5GbE + 1 x GbE (RJ-45)

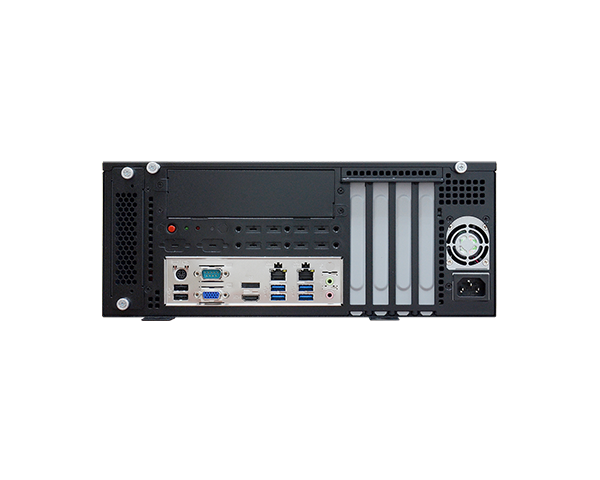

1 x RS-232/422/485 (RS-232 w/ power) (DB-9)

[Q670E] 4 x USB 3.2 Gen2
[Q670E] 2 x USB 2.0

[H610E] 2 x USB 3.2 Gen2
[H610E] 2 x USB 3.2 Gen1
[H610E] 2 x USB 2.0

1 x PS/2 (mini-DIN-6)

1 x DP++
1 x HDMI 2.0a
1 x VGA

1 x Line-out
1 x Mic-in
1 x Line-in (opt., MOQ required)

1 x Power button
1 x Reset button

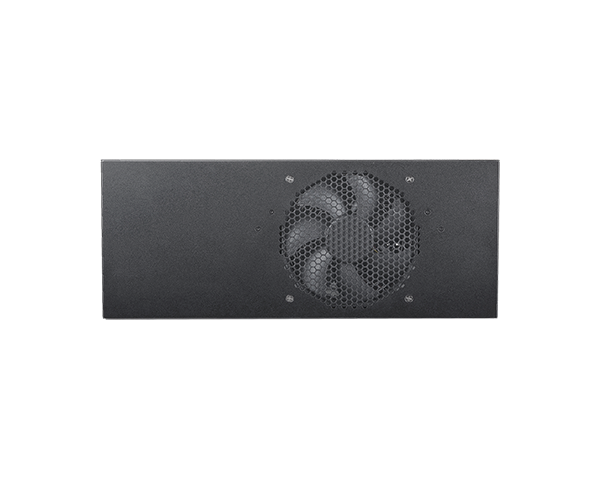

1 x 12cm System Fan

System Reset, Programmable via Software from 1 to 255 Seconds

Nuvoton TPM 2.0

FlexATX 400W/650W

Windows 10 IoT Enterprise 64-bit
Windows 11 LTSC

Linux (by project support)

0 to 45°C

-20 to 60°C

5 to 95% RH (non-condensing)

Sheet metal

Wall mount

349mm x 140.2mm x 290.9mm (13.74" x 5.52" x 11.45")

TBD

no coating or black coating

Operating: 3G
Non-operating: 5G

Operating: Random 5~500Hz 0.5G
Non-operating: Sine 10~500Hz 1.5G

ISTA Project 1A

CE, FCC Class A, RoHS, UKCA

• 1 WM343-RPS System Unit
• 4 HDD Screws
• 1 System Fan

Taiwan (TAA Compliant Country)
