COM336｜System-On-Modules｜DFI

COM336
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE

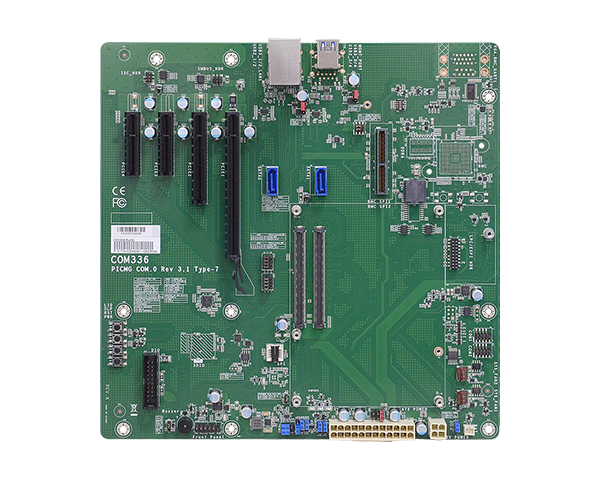

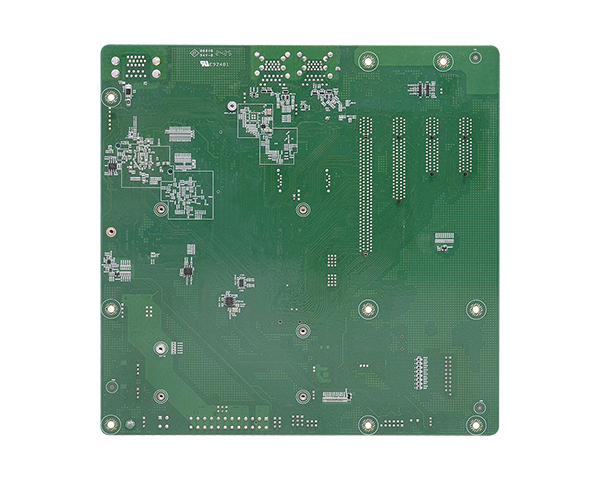

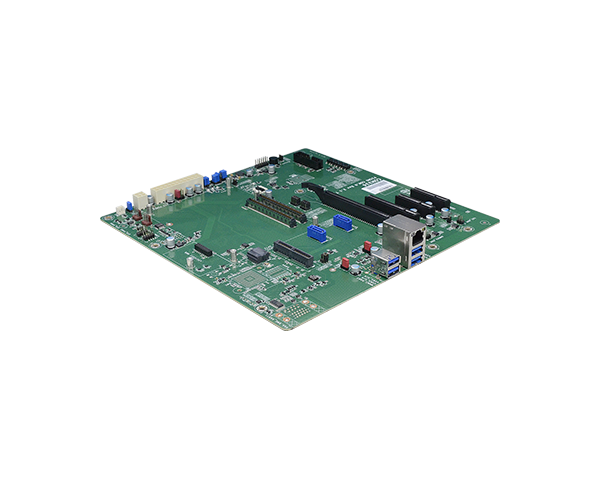

Home System-On-Modules Carrier Board COM336
  • PICMG COM Express® R3.1, Type 7 basic & compact modules
  • 1 CEI 10Gb LAN Mini MEZZ slot, support 10GBASE-KR Ethernet MAC Speed
  • Multiple Expansion: 1 PCIe x8, 2 PCIe x4, 1 PCIe x16, 1 SDIO

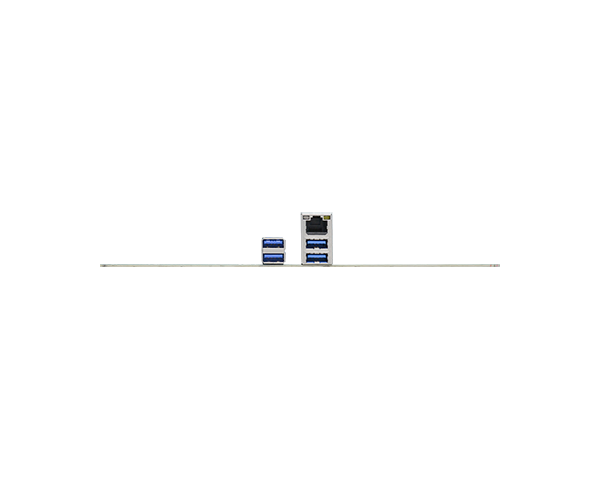

  • Rich I/O: 1 10G LAN, 2 1G LAN, 4 USB 3.2 type A, 4 USB 2.0, 2 SATA 3.0

Status : Preliminary QUOTE NOW

Wide-temp: -20~70°C
Multiple Expansion
10G Ethernet
Rich I/O
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

COM336 Related Tags

#PCIe x16#VGA#Multiple Expansion#10G Ethernet#RoHS Certification#CE Certification#FCC Certification
COM336｜System-On-Modules｜DFI
COM336｜System-On-Modules｜DFI
COM336｜System-On-Modules｜DFI
COM336｜System-On-Modules｜DFI

Related Products:

Select All - Clear
Expansion
Interface
1 x PCIe x8
2 x PCIe x4
1 x PCIe x16
1 x SDIO
I/O
Ethernet
1 x CEI 10Gb LAN Mini MEZZ slot, support 10GBASE-KR Ethernet MAC Speed
2 x 1GbE LAN (RJ-45) (one from module; another from BMC for remote management)
USB
4 x USB 3.2 type A
4 x USB 2.0
Internal I/O
Serial
1 x Serial Interface Connector (TX/RX)
Display
1 x VGA from BMC
SATA
2 x SATA 3.0
DIO
1 x 8-bit DIO
LPC
1 x LPC
SMBus
1 x SMBus
I2C
1 x I2C
Power
Type
12V, 5VSB, VCC_RTC (ATX mode)
12V, VCC_RTC (AT mode)
Connector
4-pin ATX 12V power
24-pin ATX power
RTC Battery
CR2032 Coin Cell
Environment
Temperature
Operating: -20 to 70°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
TBD
Mechanism
Dimensions
microATX Form Factor
244mm (9.6") x 244mm (9.6")
Compliance
PICMG COM Express® R3.1, Type 7 basic & compact modules
Standards and Certifications
Certifications
CE, FCC, RoHS
Packing List
Packing List
• 1 COM336 board
• 1 Serial ATA data cable (Length: 500mm), 332-553001-005G
• Standoff (M2.5*12), A33-525019-A20G
BMC
Processor
AST2500 (non-BMC sku optional by request)
SDRAM
8Gb memory down
DDR4 2400 512M x16 SDRAM
Display
Through BMC to convert VGA signal
VGA display resolution up to 1920x1200
Ethernet
RTL8211F LAN PHY
Support 10/100/1000M Ethernet MAC Speed
RJ45 x1
UART
COM port protocol: RS232
Connector type: DB9
SMBus
(for slave) From COMe BTB connector reserve pin
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Technical Documents
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    COM336     Part Number :
     770-CM3361-000G     Description :
    BMC, 10G LAN, 2 GbE, 4 USB 3.2, 4 USB 2.0, ATX/AT Power, Active thermal, -20 to 70°C
  • Model Name :
    COM336     Part Number :
     770-CM3361-100G     Description :
    10G LAN, 2 GbE, 4 USB 3.2, 4 USB 2.0, ATX/AT Power, Active thermal, -40 to 85°C
  • Model Name :
    MMZ10G-X5574     Part Number :
     770-MMZ10G1-000G     Description :
    X557-AT4 LAN PHY, LAN connector: RJ45 x4
  • Model Name :
    MMZ10G-NSFP     Part Number :
     770-MMZ10G1-200G     Description :
    Native SFP+ from module LAN PHY, LAN connector: SFP+ x4
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Serial ATA data cable     Part Number :
     332-553001-005G     Description :
    Length: 500mm
  • Item Name :
    LPC EXT-RS232 module     Part Number :
     770-EXTRS1-000G     Description :
    4 x RS232 ports
