VC70B-MTH｜Intel®｜Industrial Computers｜DFI

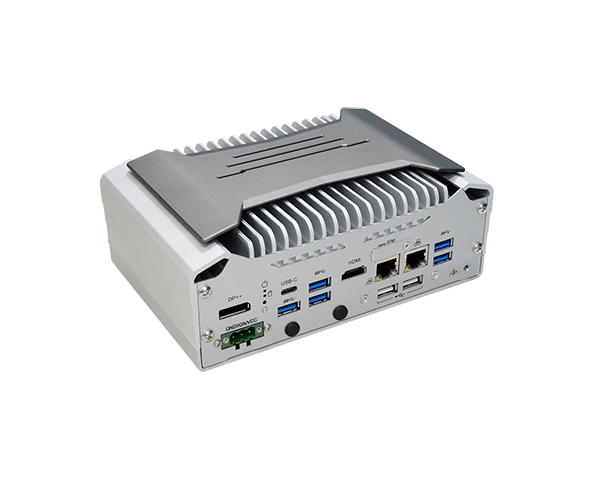

VC70B-MTH
Overview
Overview
Specification
Download
QUOTE
2
COMPARE
Home Application-Specific System In-vehicle System VC70B-MTH
  • High Performance Compact in-vehicle system
  • Intel® Core™ Ultra processor with LPDDR5-6400 soldered memory
  • Remote Management: Supports Out of band control
  • Triple Displays: 1 HDMI, 1 DP, 1 USB-C DP Alt. mode
  • Multiple Expansion: 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key
  • Rich I/O: 2 2.5GbE, 1 GbE, 5 USB 3.2, 1 USB-C, 4 COM

Status : Preliminary QUOTE NOW

Wide-temp: -20~70°C
Wide Voltage: 9~36V DC-in
Multiple Expansion
Triple Independent Display
Rich I/O
Out-of-band (OOB)
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
E-Mark (E13) Certification

VC70B-MTH Related Tags

#Windows 10#9~36V DC-in#USB Type-C DP#M.2#Out-Of-Band (OOB)#Intel® Core™ Ultra processors #IoT#Windows 11#Intel#SIM Slot#Compact PC#Compact Size#4K2K Display#1G Ethernet#Windows#Linux#HDMI#DP#Multiple Expansion#E-Mark (E13) Certification#RoHS Certification#CE Certification#FCC Certification#In-Vehicle#High-Performance#2.5G Ethernet
VC70B-MTH｜Intel®｜Industrial Computers｜DFI

Related Products:

Select All - Clear
System
Processor
Intel® Core™ Ultra 7/5 Processors, TDP up to 28W
Intel® Core™ Ultra 7 165H, 16C, 24M Cache, 1.4GHz (5.0GHz)
Intel® Core™ Ultra 5 135H, 14C, 18M Cache, 1.7GHz (4.6GHz)
Intel® Core™ Ultra 7 155U, 12C, 12M Cache, 1.7GHz (4.8GHz)
Intel® Core™ Ultra 5 125U, 12C, 12M Cache, 1.3GHz (4.3GHz)
Memory
Dual Channel LPDDR5/x 6400MHz memory down Up to 32GB (64GB per request)
BIOS
AMI SPI 256Mbit
Graphics
Controller
Intel® Arc™ Graphics
Feature
OpenGL 4.6, Direct X 12.2, OpenCL 3.0
HW Decode: HEVC, VP9, AV1, AVC
HW Encode: HEVC, VP9,AV1, AVC
Display
1 x HDMI 1.4b
1 x DP(from eDP)
1 x USB-C DP Alt. mode
HDMI: resolution up to 4096x2160@24Hz
USB-C DP: resolution up to 4096x2304@60Hz
Triple Displays
HDMI + DP + USB-C DP Alt. mode
Expansion
Interface
1 x M.2 M key 2280 (PCIe Gen4 x4)
1 x M.2 B key 3052 (USB 3.0/2.0, PCIe x1, SATA), 1 x SIM slot for 4G/5G
1 x M.2 E key 2230 (USB 2.0/PCIe x1)
Audio
Audio Codec
Realtek ALC888S
Ethernet
Controller
2 x Intel® I226V (10/100/1000/2500Mbps)
LED
Indicators
1 x Power LED
1 x HDD LED

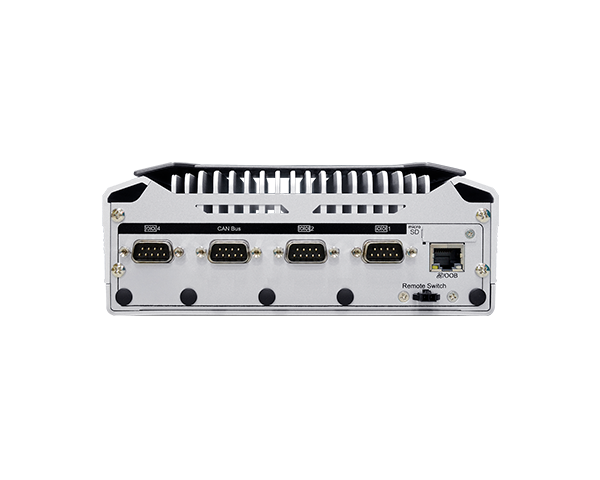

Front I/O
Ethernet
1 x GbE (RJ-45), Intel® i210AT (10/100/1000Mbps) (support OOB)
Serial
COM 1: RS-232/422/485
COM 2/3: RS-232
COM 4: RS-232/422/485 or 8-bit DIO by jumper setting
Display
1 x DP(from eDP)

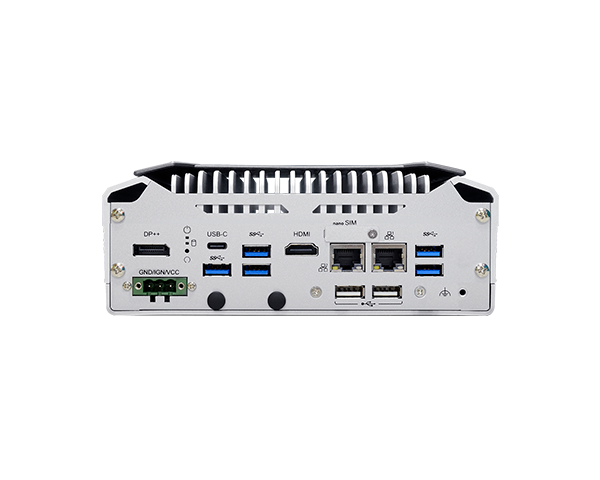

Rear I/O
Ethernet
2 x GbE @ RJ45 connectors
USB
5 x USB 3.2
1 x USB Type C
2 x USB 2.0 type A
Display
1 x HDMI
1 x USB-C DP Alt. Mode
Buttons
1 x Power Button
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
TPM 2.0
Power
Type
9~36V DC
Connector
3-pin terminal block (VCC/ACC/GND)
RTC Battery
CR2032 Coin Cell (Cable type)
Power Management
1. Ignition On/Off control
2. System On delay time
3. OS Protection Time
4. System Off delay time
5. Car Battery Voltage Monitoring
6. Battery Low Voltage Protect
OS Support
Microsoft
Windows 11 & 10 IoT Enterprise 64-bit
Linux
Linux
Environment
Temperature
Operating: -20 to 70°C fanless (15W CPU only)
Storage: -40 to 85°C
Humidity
Operating: 5 to 95% RH
Storage: 5 to 95% RH
MTBF
TBD
Mechanism
Dimensions
181.6mm (W) x 73mm (H) x 118.4mm (D)
Mounting
Wall mount
Weight
< 3KG
Standards and Certifications
Shock
Operating/non-operating: MIL-STD-810G Method 516.6, Procedure 1
Vibration
Operating/non-operating: MIL-STD-810G Method 514.6, Category 4
Certifications
CE, FCC Class B, eMark, RoHS
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
