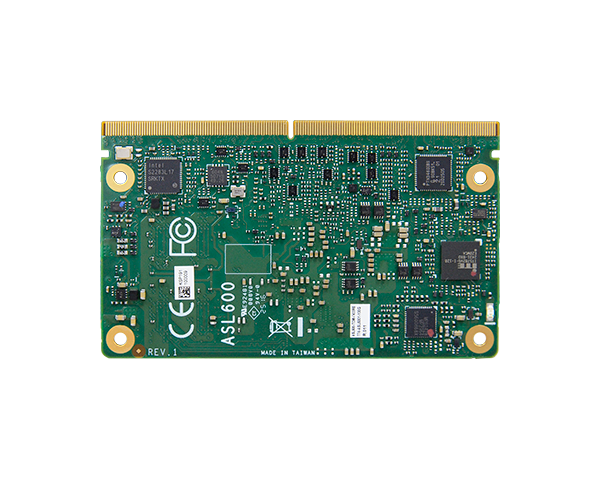

ASL600｜Intel®｜System-On-Modules｜DFI

ASL600
Overview
Overview
Specification
Download
QUOTE
2
COMPARE
Home System-On-Modules SMARC ASL600
  • Intel® Atom x7000RE series processors (Code Name: Amston Lake)
  • Onboard LPDDR5 4800MHz up to 16GB
  • Supports 4K/2K resolution
  • Triple Displays: 1 LVDS/eDP, 1 HDMI, 1 DDI
  • Multiple Expansion: Up to 4 PCIe x1 (Gen3)
  • Rich I/O: 2 2.5GbE, 2 USB 3.2, 4 USB 2.0, 1 SATA 3.0

Status : Preliminary QUOTE NOW

4K2K Display
Multiple Expansion
Triple Independent Display
Rich I/O
LPDDR5
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

ASL600 Related Tags

#LVDS#eDP#LPDDR5#eMMC#Intel Atom® Amston Lake Processors#4K2K Display#Windows#Linux#HDMI#DP#Multiple Expansion#RoHS Certification#CE Certification#FCC Certification#2.5G Ethernet
ASL600｜Intel®｜System-On-Modules｜DFI
ASL600｜Intel®｜System-On-Modules｜DFI

Related Products:

Select All - Clear
System
Processor
Intel® Atom x7000RE series processors (Code Name: Amston Lake)
Intel® Atom Processor x7835RE, 8 Cores, 1.3~3.6GHz, 12W
Intel® Atom Processor x7433RE, 4 Cores, 1.5~3.4GHz, 9W
Intel® Atom Processor x7211RE, 2 Cores, 1.0~3.2GHz, 6W
Memory
Onboard LPDDR5 4800MHz up to 16GB
BIOS
AMI SPI 256MHz
Graphics
Controller
Intel® UHD
Feature
DX12, Open GL 4.6, Vulkan 1.2
HW Decode: 4K60 10b 4:2:0, 4:4:4 HEVC/VP9/SCC, 4K60 10b 4:2:0 AV1
HW Encode: 4K60 10b 4:2:0, 4:4:4 HEVC/VP9/SCC
Display
1 x LVDS/eDP
1 x HDMI/DDI1
1 x DDI

LVDS: dual channel 1920x1200 @60Hz
eDP: 4096x2160 @60Hz
HDMI 1.4b: 4096x2160 @30Hz
DP: 4096x2160 @60Hz
Triple Displays
LVDS/eDP + HDMI + DDI
Expansion
Interface
Up to 4x PCIex1 (Gen3)
2 x I2C
2 x CANBus
1 x SPI, 1 x eSPI/QSPI
2 x 4-wire UART; 2 x 2-wire UART
1 x 4-lane MIPI-CSI; 1 x 2-lane MIPI-CSI
Audio
Interface
HD Audio
Ethernet
Controller
2 x Intel® I226 series (10/100/1000/2500Mbps)
I/O
USB
2 x USB 3.2
4 x USB 2.0
SATA
1 x SATA 3.0 (up to 6Gb/s)
eMMC
1 x 64GB eMMC 5.1
GPIO
1 x 14-pin GPIO
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
TPM 2.0
Power
Type
5Vdc, +/-5%
Consumption
TBD
OS Support
Microsoft
Windows 11/10 IoT Enterprise 64-bit
Linux
Linux
Environment
Temperature
Operating: -40 ~ 85°C
Storage: -40 ~ 85°C
Humidity
Operating: 10 ~ 90% RH
Storage: 10 ~ 90% RH
MTBF
TBD
Mechanism
Dimensions
SMARC V2.2
82mm (3.22") x 50mm (1.96")
Compliance
SGET SMARC Specifications 2.2
Standards and Certifications
Certifications
CE, FCC, RoHS
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
