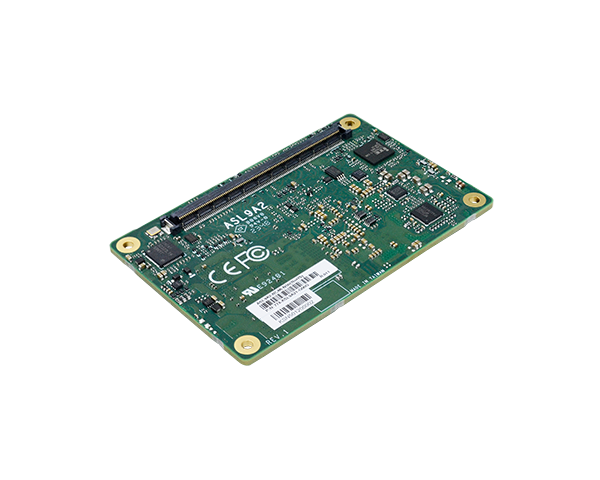

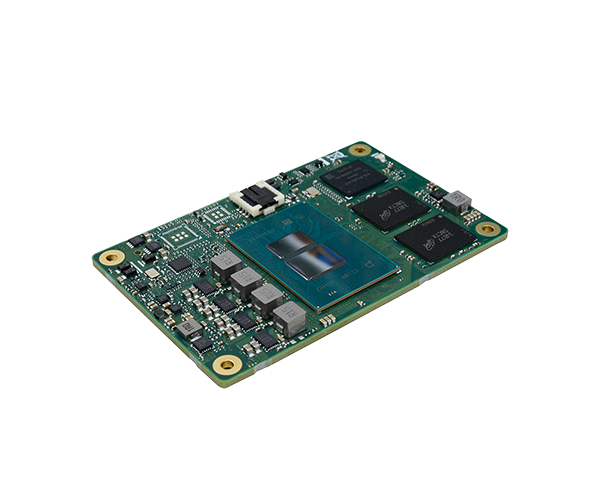

ADN9A2|Intel®|System-On-Modules|DFI

ADN9A2
Home System-On-Modules COM Express Mini ADN9A2
  • Intel® Atom® Processor Alder Lake-N Series
  • Dual Channel LPDDR5 4800MHz up to 16GB
  • 1 LVDS/eDP, 1 DDI (HDMI/DP++);Supports dual displays: DDI + LVDS/eDP
  • Multiple expansions: 4 PCIe x1, 1 SMBus, 1 I2C, 1 eMMC
  • Rich I/O: 2 USB 3.2, 8 USB 2.0
  • High Speed Ethernet: Supports 100M/1000M/2.5Gbps

Status : Launched QUOTE NOW

Fanless Design
4K2K Display
Multiple Expansion
Dual Display
Rich I/O
2.5G Ethernet
LPDDR5
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
CE Certification
FCC Certification

ADN9A2 Related Tags

#Windows 10#LVDS#Edge AI Computing#Intel® Atom® Alder Lake-N Processors#eDP#LPDDR5#SMBus#I2C#LPC#UART#Slim Bootloader#Fast Resume & Low Power Standby#IoT#Windows 11#Intel#Fanless Design#4K2K Display#Windows#Linux#HDMI#DP#Low Power Consumption#CE Certification#FCC Certification#2.5G Ethernet
ADN9A2|Intel®|System-On-Modules|DFI
ADN9A2|Intel®|System-On-Modules|DFI
ADN9A2|Intel®|System-On-Modules|DFI
ADN9A2|Intel®|System-On-Modules|DFI
System
Processor
Intel® Atom x7000E / Core-i / Pentium / Celeron series processors (Code Name : Alder Lake-N)
Intel® Atom Processor x7425E, 4 Cores, 1.5~3.4GHz, 12W
Intel® Atom Processor x7213E, 2 Cores, 1.7~3.2GHz, 10W
Intel® Atom Processor x7211E, 2 Cores, 1.0~3.2GHz, 6W
Intel® Processor Core i3-N305, 8 Cores, 1.0/1.8~3.8GHz, 9/15W
Intel® Processor N200, 4 Cores, 1.0~3.7GHz, 6W
Intel® Processor N97, 4 Cores, 2.0~3.6GHz, 12W
Intel® Processor N50, 2 Cores, 1.0~3.4GHz, 6W
Memory
LPDDR5 up to 16GB
Dual Channel LPDDR5 4800MHz
8GB/16GB supported by project basis.
In-band ECC (IBECC) Supported by all CPU SKUs
BIOS
AMI SPI 256Mbit
Graphics
Controller
Intel® UHD
Feature
Open GL 4.6, DirectX 12.1 Vulkan 1.2 (Windows)
Mesa 3D, Open GL 4.6, Vulkan 1.2 (Linux)
HW Decode: 4K60 10b 4:2:0, 4:4:4 HEVC/VP9/SCC, 4K60 10b 4:2:0 AV1
HW Encode: 4K60 10b 4:2:0, 4:4:4 HEVC/VP9/SCC
Display
1 x DDI
1 x LVDS/eDP

LVDS: single channel 24-bit, resolution up to 1920x1200 @ 60Hz
eDP: resolution up to 4096x2160 @ 60Hz
HDMI: resolution up to 4096x2160 @ 30Hz
DP++: resolution up to 4096x2160 @ 60Hz, 3840x2160 @60Hz
Dual Displays
DDI + LVDS/eDP
Expansion
Interface
4 x PCIe x1 (Gen 3)
1 x I2C
1 x SMBus
1 x LPC
1 x SNDW (available upon request)
1 x GSPI
2 x UART (TX/RX)
Audio
Interface
HD Audio
Ethernet
Controller
1 x Intel® I226-IT / I226-LM (10/100/1000Mbps/2.5Gbps)
I/O
USB
2 x USB 3.2 Gen2
8 x USB 2.0
SATA
2 x SATA 3.0 (up to 6Gb/s)
eMMC
1 x 8GB/16GB/32GB/64GB/128GB eMMC 5.1 (available upon request)
DIO
1 x 8-bit DIO
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
dTPM or fTPM (Optional)
Power
Type
4.75V~20V, 5VSB, VCC_RTC (ATX mode)
4.75V~20V, VCC_RTC (AT mode)
Consumption
TBD
OS Support
OS Support (UEFI Only)
Windows 11/10 IoT Enterprise 64-bit
Linux
Environment
Temperature
Operating: -5 to 65°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
TBD
Mechanism
Dimensions
COM Express® Mini
84mm (3.3") x 55mm (2.16")
Compliance
PICMG COM Express® R3.1, Type 10
Standards and Certifications
Certifications
CE, FCC
Packing List
Packing List
· Heat Sink, A71-008356-000G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    ADN9A2-BC16-7425E
    Part Number :
    770-ADN9A21-100G
    Description :
    Intel® Atom Processor x7425E, 4 Cores, 12W, 16GB LPDDR5, 64GB eMMC, LVDS, Thermal Heat Sink, 0 to 60°C
  • Model Name :
    ADN9A2-BC86-N305
    Part Number :
    770-ADN9A21-300G
    Description :
    Intel® Core i3 Processor N305, 8 Cores, 9/15W, 8GB LPDDR5, 64GB eMMC, LVDS, Thermal Heat Sink, 0 to 60°C
  • Model Name :
    ADN9A2-BC86-N50
    Part Number :
    770-ADN9A21-600G
    Description :
    Intel® Processor N200, 2 Cores, 6W, 8GB LPDDR5, 64GB eMMC, eDP, Thermal Heat Sink, 0 to 60°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Heat Spreader
    Part Number :
    A71-808364-000G
    Description :
  • Item Name :
    COM335 Carrier Board Kit
    Part Number :
    770-CM3351-000G
    Description :
