ASL253｜Intel®｜Industrial Motherboards｜DFI

ASL253
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Motherboards 4" SBC ASL253

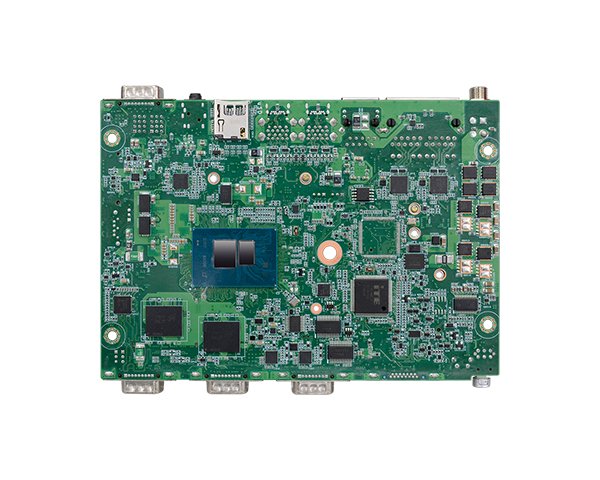

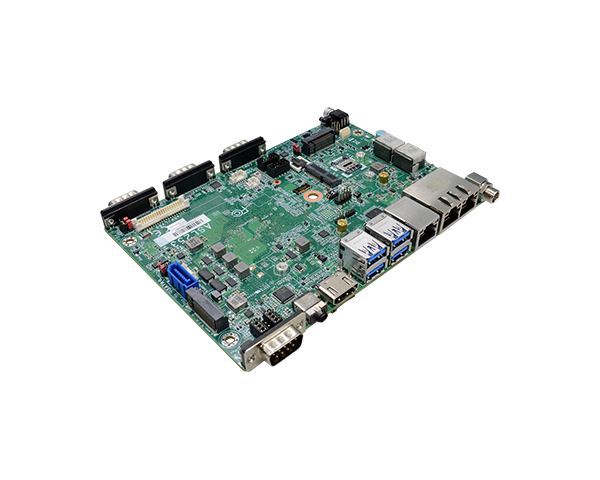

  • Intel® Atom® Processor Amston Lake Series
  • On Board OOB built-in (Opt.)
  • Rich I/O: 2 2.5GbE, 1 GbE, 4 USB 3.2, 3 COM, 1 COM/DIO, Internal: 1 USB 2.0, 2 COM
  • High speed LPDDR5 4800 memory down
  • Up to Quad Display Support via HDMI/USB-C/eDP, Quad display support by Dev
  • On Board eMMC /SATA III/ M.2 Storage solution
  • Intel TCC within the system

Status : Preliminary QUOTE NOW

Quad Independent Display
eMMC
Rich I/O
2.5G Ethernet
LPDDR5
Out-of-band (OOB)
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
CE Certification
FCC Certification

ASL253 Related Tags

#9~36V DC-in#LVDS#eDP#LPDDR5#M.2#eMMC#Out-Of-Band (OOB)#Intel Atom® Amston Lake Processors#IoT#Windows 11#Fanless Design#1G Ethernet#Windows#Linux#HDMI#2.5G Ethernet#TSN
ASL253｜Intel®｜Industrial Motherboards｜DFI
ASL253｜Intel®｜Industrial Motherboards｜DFI
ASL253｜Intel®｜Industrial Motherboards｜DFI
ASL253｜Intel®｜Industrial Motherboards｜DFI

Related Products:

Select All - Clear
System
Processor
Intel Atom® RE Series
Intel® Atom® X7211RE 2 Cores, 1.0GHz to 3.2 GHz
Intel® Atom® X7213RE 2 Cores, 2.0GHz to 3.4 GHz
Intel® Atom® X7433RE 4 Cores, 1.5GHz to 3.4 GHz
Intel® Atom® X7835RE 8 Cores, 1.3GHz to 3.6 GHz
Memory
8GB/16GB LPDDR5 4800 Memory down
BIOS
AMI SPI 256Mbit (supports UEFI boot only)
Graphics
Controller
Intel® UHD Graphics
Feature
Execution Units: Up to 32 EUs
3D API: Open GL 4.6, DirectX12, Vulkan 1.2 (Windows)
Mesa 3D, OpenGL 4.6, Vulkan 1.2 (Linux)
Precision: FP32, FP16, INT8
Compute: OpenCL 3.0
Display
1 x eDP(Default)/LVDS
1 x HDMI 1.4
1 x USB-C Alt. Mode, one more USB-C(opt.)
Storage
Internal
1 x M.2 2242/2280 M key (SATA/PCIe)
1 x SATA III
eMMC
eMMC 32GB/64GB (Opt.)
Expansion
Interface
1 x M.2 2242/2280 M key: PCIex1/SATA
1 x M.2 2230 E Key: USB2.0/PCIe
1 x M.2 3042/3052 B key: USB3.0/USB2.0/PCIe
Audio
Audio Codec
ALC888S
Ethernet
Controller
2 x Intel Ethernet controller i226 2.5GbE (TSN project support)
1 x Intel Ethernet controller i210 GbE

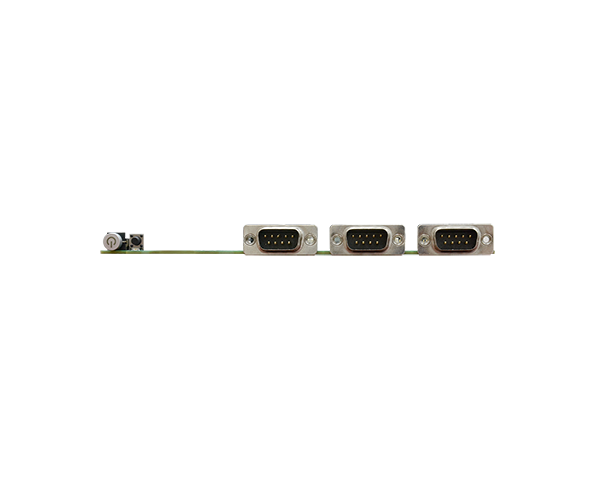

Front I/O
Serial
3 x RS232/422/485 DB9 connector

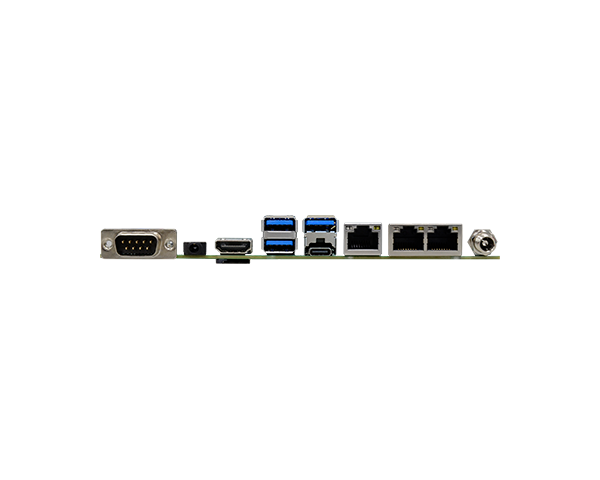

Rear I/O
Ethernet
2 x 2.5GbE RJ45
1 x GbE RJ45
Serial
1 x COM/DIO port
USB
3 x USB 3.2 type A
1 x USB-C 3.2
DIO
1 x HDMI
Audio
1 x 3.5mm Line out/Mic In
Storage
1 x MicroSD
Internal I/O
Serial
2 x RS232
Display
1 x 40 pin LVDS/eDP (Default eDP)
SATA
1 x SATA 3.0
1 x 5V SATA Power (support SATA HDD LED via front panel)
SMBus
1 x SMBus
Front Panel
1 x front panel
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
TPM 2.0 (Available Upon Request)
Power
Type
Wide Range 9~36VDC
Connector
DC Jack (or vertical type 4pin connector)
RTC Battery
CR2032 Coin Cell
OS Support
Microsoft
Windows 11 IoT Enterprise
Linux
Ubuntu 22.04
Environment
Temperature
Operating: -40 to 85°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
Mechanism
Dimensions
4" SBC Form Factor
165mm (6.5") x 115mm (4.53")
Standards and Certifications
Certifications
CE, FCC ClassA
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    ASL253     Part Number :
     770-ASL2531-000G     Description :
    Intel® Atom® X7835RE, 16GB Memory down, -40 to 85°C, I/O (3 USB-A + 1 USB-C, DFI OOB(Opt.), 2 2.5GbE + 1 1GbE, 3 RS232/422/485 via DB9, 1 RS232/422/485/DIO via DB9, 2 RS232 via Pin header), Display (1 HDMI, 1 eDP(Def.)/LVDS, 1 DP 1.2 Alt. Mode via USB-C), Expansion (M.2 M key: PCIe/SATA, M.2 B Key: USB3.0/USB2.0/PCIe, M.2 E Key: USB2.0/PCIe)
