QRB812｜Qualcomm｜System-On-Modules｜DFI

QRB812
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home System-On-Modules Open Standard Module (OSM) QRB812
  • Qualcomm QRB5165 Processor, 8x Kryo 585 2.84Ghz
  • 8GB LPDDR5 memory down
  • Dual Displays: 1 4-lane MIPI-DSI, 1 USB-C DP
  • Multiple Expansion: 2 PCIe x2 (Gen3), 1 PCIe x1 (Gen3), 2 USB 3.1 Gen2, 6 MIPI-CSI
  • Application: For Automation AMR, Robotic or Drone

Status : Preliminary QUOTE NOW

Multiple Expansion
Dual Display
LPDDR5
AMR
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

QRB812 Related Tags

#Qualcomm® QRB5165#USB Type-C DP#LPDDR5#UART#Robot#Drone#MIPI-DSI#Qualcomm®#Linux#Multiple Expansion#RoHS Certification#CE Certification#FCC Certification#AMR

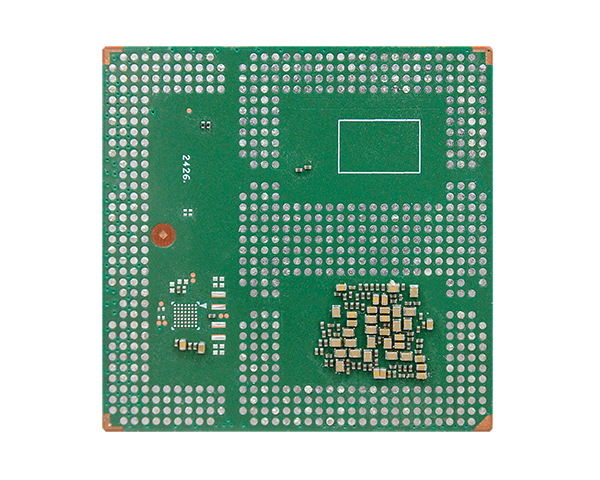

QRB812｜Qualcomm｜System-On-Modules｜DFI

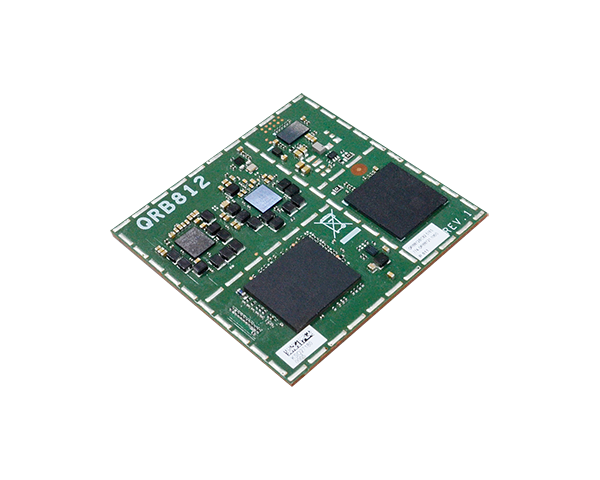

QRB812｜Qualcomm｜System-On-Modules｜DFI
QRB812｜Qualcomm｜System-On-Modules｜DFI

Related Products:

Select All - Clear
System
Processor
QRB5165, Kryo 585 2.84Ghz
- Quad high-performance Kryo Gold cores
　• Three Kryo Gold cores with a 256 KB L2 cache per core, Fmax at 2.419 GHz
　• One Kryo Gold prime core with a 512 KB L2 cache, Fmax at 2.842 GHz
- Quad low-power Kryo Silver cores with a 128 KB L2 cache per core, Fmax at 1.805 GHz
Memory
PoP LPDDR5, 8GB memory down
Graphics
Controller
Adreno 650 GPU
Feature
Open GL ES 3.2, Vulkan 1.1, DX12 FL 12_1, OpenCL 2.0
Display
1 x 4-lane MIPI-DSI (to HDMI on carrier board)
1 x DP 1.4 (thru USB Type-C on carrier board)
Storage
UFS
128GB UFS 3.1
I/O
Interface
2 x PCIe x2 (Gen3)
1 x PCIe x1 (Gen3)
2 x I2C
2 x SPI
4 x PWM
2 x UART(TX/RX/RTS/CTS)
2 x UART(TX/RX)
1 x UART(console)
1 x 4-bit SDIO
6 x 4-lane MIPI-CSI
2 x USB 3.1 Gen 2 (USB0 for Download or USB Type-C)
16 x GPIO
Security
TEE
Qualcomm® Trusted Execution Environment v5
Power
Type
5VDC
Consumption
TBD
OS Support
Linux
Ubuntu
Environment
Temperature
Operating: -5°C~65°C
Storage: -40°C~85°C
Humidity
Operating: 10%~90% RH
Storage: 10%~90% RH
MTBF
TBD
Mechanism
Dimensions
45 mm (1.77") x 45 mm (1.77")
Compliance
OSM 1.1
(*Please be advised that certain pins do not adhere OSM standards. For further details, kindly refer to the user manual.)
Standards and Certifications
Certifications
CE, FCC, RoHS
Packing List
Packing List
1 QRB812 module
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    QRB812BC82-5165     Part Number :
     TBD     Description :
    Qualcomm QRB5165, 8GB memory down, 128GB UFS 3.1, MIPI- DSI + USB-C DP, 5VDC, -5°C~65°C
