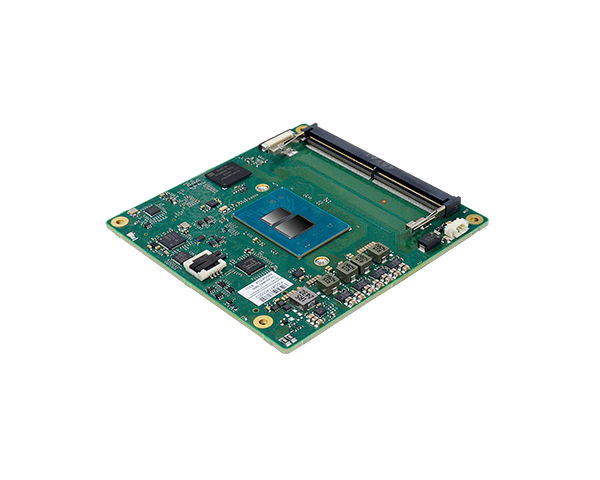

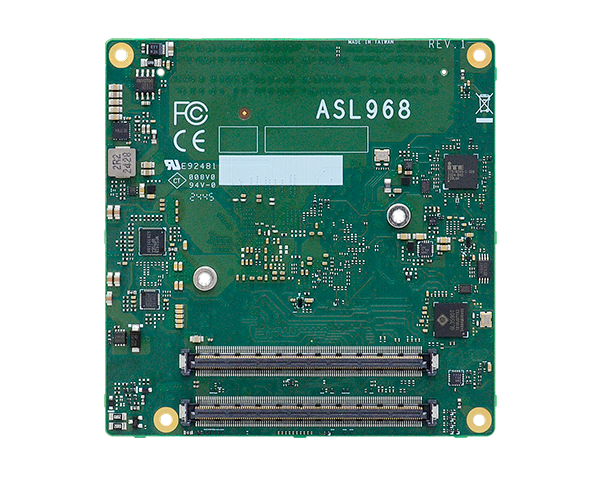

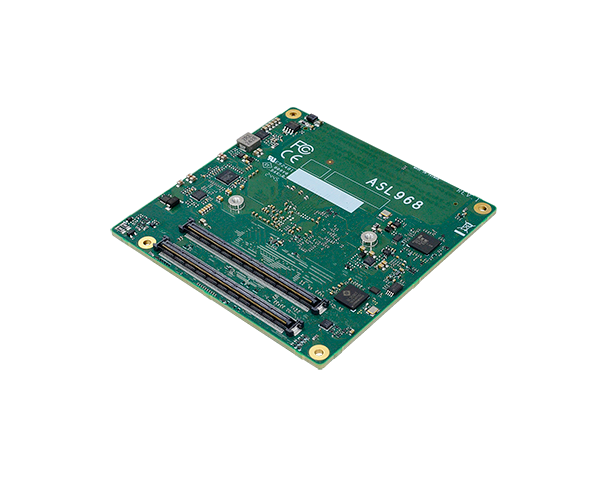

ASL968｜Intel®｜System-On-Modules｜DFI

ASL968
Overview
Overview
Specification
Download
QUOTE
2
COMPARE
Home System-On-Modules COM Express Compact ASL968
  • Intel® Atom® Processor Amston Lake Series
  • Single Channel DDR5 4800MHz SODIMM up to 16GB
  • Triple Displays: LVDS/eDP + 2 DDI
  • Supports 4K / 2K resolution
  • Multiple Expansion: Up to 7 PCIe x1
  • Rich I/O: 1 Intel 2.5GbE, up to 4 USB 3.2, 2 SATA 3.0

Status : Preliminary QUOTE NOW

4K2K Display
Multiple Expansion
Triple Independent Display
DDR5
Rich I/O
2.5G Ethernet
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

ASL968 Related Tags

#DDR5#Windows 10#LVDS#eDP#SMBus#I2C#LPC#UART#USB 4.0#eMMC#Intel Atom® Amston Lake Processors#IoT#Windows 11#Intel#4K2K Display#Windows#Linux#Multiple Expansion#RoHS Certification#CE Certification#FCC Certification#2.5G Ethernet
ASL968｜Intel®｜System-On-Modules｜DFI

Related Products:

Select All - Clear
System
Processor
Intel® Atom x7000RE series processors (Code Name: Amston Lake)
Intel® Atom Processor x7835RE, 8 Cores, 1.3~3.6GHz, 12W
Intel® Atom Processor x7433RE, 4 Cores, 1.5~3.4GHz, 9W
Intel® Atom Processor x7211RE, 2 Cores, 1.0~3.2GHz, 6W
Memory
One 262-pin SODIMM up to 16GB
Single Channel DDR5 4800MHz
In-band ECC (IBECC) supported
BIOS
AMI SPI 256MHz
Graphics
Controller
Intel® UHD
Feature
DX12, Open GL 4.6, Vulkan 1.2
HW Decode: 4K60 10b 4:2:0, 4:4:4
HEVC/VP9/SCC, 4K60 10b 4:2:0 AV1
HW Encode: 4K60 10b 4:2:0, 4:4:4 HEVC/VP9/SCC
Display
1 x LVDS/eDP
2 x DDI

LVDS: dual channel 1920x1200 @60Hz
eDP: 4096x2160 @60Hz
Triple Displays
LVDS/eDP + 2 DDI
Expansion
Interface
Up to 7x PCIe x1 (Gen3)(3x PCIe x1 co-layout w/Ethernet and SATA, available upon request)
1 x I2C
1 x SMBus
1 x LPC/eSPI
2 x UART
1 x CAN (co-layout with UART)
Audio
Interface
HD Audio
Ethernet
Controller
1 x Intel® I226 series (10/100/1000/2500Mbps), co-lay 1 x PCIe x1 (available upon request)
I/O
USB
2 x USB 3.2 Gen2 (option to 4 ports by USB hub)
8 x USB 2.0
SATA
2 x SATA 3.0 (up to 6Gb/s), co-lay 2 x PCIe x1 (available upon request)
eMMC
1 x 64GB eMMC 5.1
DIO
1 x 8-bit DIO
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
TPM 2.0 (Option: fTPM)
Power
Type
8.5~20V, 5VSB, VCC_RTC (ATX mode)
8.5~12V, VCC_RTC (AT mode)
Consumption
TBD
OS Support
Microsoft
Windows 11/10 IoT Enterprise 64-bit
Linux
Linux
Environment
Temperature
Operating: -40°C~85°C
Storage: -40°C~85°C
Humidity
Operating: 10%~90% RH
Storage: 10%~90% RH
MTBF
TBD
Mechanism
Dimensions
COM Express® Compact
95mm (3.74") x 95mm (3.74")
Compliance
PICMG COM Express® R3.1, Type 6
Standards and Certifications
Certifications
CE, FCC, RoHS
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
