KIT-ADN Series｜Intel®｜Industrial Panel PCs & Displays｜DFI

KIT-ADN Series
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Panel PCs & Displays Open Frame Panel PC KIT-ADN Series

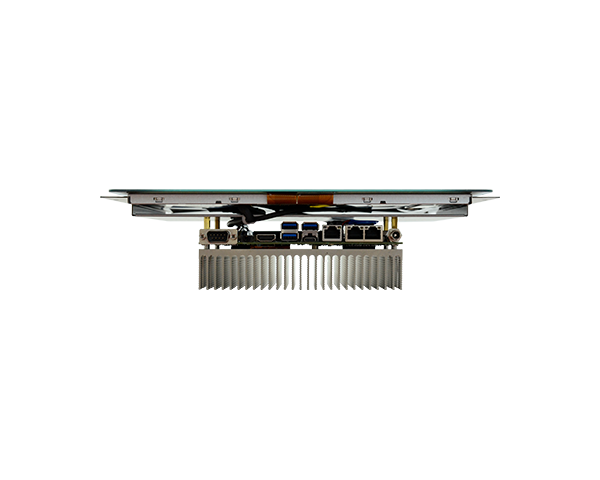

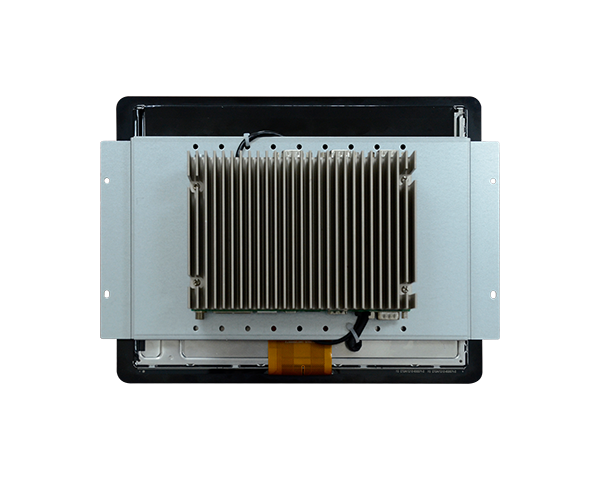

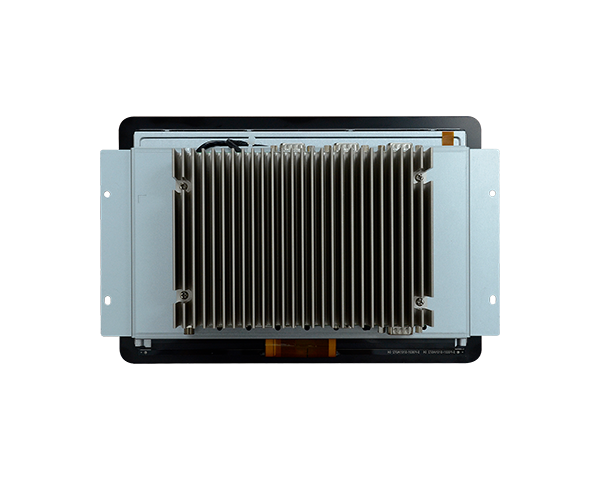

  • Industrial Open Frame Panel PC
  • Touch Screen: P-Capacitive Touch supports 10 points
  • LPDDR5 4800 MHz memory down
  • Up to Quad Display Support via HDMI/USB-C/LVDS
  • Easy Integration: Easy installation and maintenance
  • On Board OOB built-in (Opt.)

Status : Preliminary QUOTE NOW

Fanless Design
Quad Independent Display
Rich I/O
Projected Capacitive Touch
LPDDR5
Out-of-band (OOB)
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
KIT-ADN Series Embedded Solution Powered by:
ADN253

ADN253

ADN253｜Intel®｜Industrial Motherboards｜DFI

4" SBC, Intel® Atom® Processor X Series, LPDDR5 Memory Down, eMMC, 1 M.2 B+M Key, 1 M.2 A+E Key, HDMI/USB-C/eDP, 1 GbE, 2 2.5 GbE, 4 USB 3.2, 3 COM, 1 COM/DIO, Internal: 2 USB 2.0 + 2 COM

KIT-ADN Series Related Tags

#9~36V DC-in#LVDS#Intel® Atom® Alder Lake-N Processors#eDP#LPDDR5#M.2#eMMC#Out-Of-Band (OOB)#IoT#Windows 11#Intel#Fanless Design#1G Ethernet#Windows#Linux#HDMI#Multiple Expansion#RoHS Certification#CE Certification#FCC Certification#TSN
KIT-ADN Series｜Intel®｜Industrial Panel PCs & Displays｜DFI
KIT-ADN Series｜Intel®｜Industrial Panel PCs & Displays｜DFI
KIT-ADN Series｜Intel®｜Industrial Panel PCs & Displays｜DFI
KIT-ADN Series｜Intel®｜Industrial Panel PCs & Displays｜DFI

Related Products:

Select All - Clear
System
Processor
Intel Alder Lake-N Series
Intel PC Client Series
Intel® Processor N50 2 Cores, 1.0GHz to 3.4 GHz
Intel® Processor N97 4 Cores, 2.0GHz to 2.9 GHz
Intel® Processor N200 4 Cores, 1.0GHz to 3.2 GHz
Intel® Core™ i3-N305 8 Cores, 1.0GHz to 3.0 GHz
Intel® Embedded Series
Intel® Atom® X7211E 2 Cores, 1.0GHz to 2.9 GHz
Intel® Atom® X7213E 2 Cores, 1.7GHz to 2.9 GHz
Intel® Atom® X7425E 4 Cores, 1.5GHz to 2.7 GHz
Memory
8GB/16GB LPDDR5 4800 Memory down
BIOS
AMI SPI 256Mbit (supports UEFI boot only)
Display and Touch Screen
Brightness
500 cd/m²
Backlight Lifetime
[KIT070P-ADN] 40,000 hours
[KIT101P-ADN] 50,000 hours
[KIT121P-ADN] 30,000 hours
Max. Resolution
[KIT070P-ADN] 800 x 480
[KIT101P-ADN] 1280 x 800
[KIT121P-ADN] 1024 x 768
Touch Type
Projected Capacitive
Size/Type
[KIT070P-ADN] 7" TFT LCD
[KIT101P-ADN] 10.1" TFT LCD
[KIT121P-ADN] 12.1" TFT LCD
Aspect Ratio
[KIT070P-ADN] 16:9
[KIT101P-ADN] 16:10
[KIT121P-ADN] 4:3
Graphics
Controller
Intel® UHD Graphics
Feature
Execution Units: Up to 32 EUs
3D API: Open GL 4.6, DirectX12, Vulkan 1.2 (Windows)
Mesa 3D, OpenGL 4.6, Vulkan 1.2 (Linux)
Precision: FP32, FP16, INT8
Compute: OpenCL 3.0
Display
1 x eDP/LVDS(Default)
1 x HDMI 1.4
1 x USB-C Alt. Mode, one more USB-C(opt.)
Storage
Internal
1 x M.2 2242/2280 M key (SATA/PCIe)
1 x SATA III
eMMC
eMMC 32GB/64GB (Opt.)
Expansion
Interface
1 x M.2 2242/2280 M key: PCIex1/SATA
1 x M.2 2230 E Key: USB2.0/PCIe
1 x M.2 3042/3052 B key: USB3.0/USB2.0/PCIe
Audio
Audio Codec
ALC888S
Ethernet
Controller
2 x Intel Ethernet controller i226 2.5GbE (support TSN)
1 x Intel Ethernet controller i210 GbE
Front I/O
Serial
3 x RS232/422/485 DB9 connector
Rear I/O
Ethernet
2 x 2.5GbE RJ45
1 x GbE RJ45
Serial
1 x COM/DIO port
USB
3 x USB 3.2 type A
1 x USB-C 3.2
Display
1 x HDMI
Audio
1 x 3.5mm Line out/Mic In
Storage
1 x MicroSD
Internal I/O
Serial
2 x RS232
Display
1 x 40 pin LVDS/eDP (Default LVDS)
SATA
1 x SATA 3.0
1 x 5V SATA Power (support SATA HDD LED via front panel)
SMBus
1 x SMBus
Front Panel
1 x front panel
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
TPM 2.0 (Available Upon Request)
Power
Type
Wide Range 9~36VDC
Connector
DC Jack (or vertical type 4pin connector)
RTC Battery
CR2032 Coin Cell
OS Support
Microsoft
Windows 11 IoT Enterprise
Linux
Ubuntu 22.04
Environment
Operating Temperature
0~50°C with 0.6m/s air flow
Storage Temperature
-30~80°C
Relative Humidity
5 to 90% RH (non-condensing)
Mechanism
Dimensions (W x H x D)
[KIT070P-ADN] 203 x 118 x TBD
[KIT101P-ADN] 279.1 x 172.95 x TBD
[KIT121P-ADN] 312.9 x 226.25 x TBD
Weight
[KIT070P-ADN] TBD
[KIT101P-ADN] TBD
[KIT121P-ADN] TBD
Standards and Certifications
Certifications
CE / FCC Class A / RoHS
Packing List
Packing List
• 1 x Single Box
• 1 x 2-pin Terminal Block Connector
• 2 x M2 Screw
• 1 x Terminal block for RS485
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    KIT070P-ADN     Part Number :
     750-KIT0701-000G     Description :
    KIT070P-ADN: 7" TFT WVGA Open frame with Projected Capacitive Touch, Intel® ATOM® x7211E, 8GB Memory, DC Input 9-36V DC jack
  • Model Name :
    KIT070P-ADN     Part Number :
     750-KIT0701-100G     Description :
    KIT070P-ADN: 7" TFT WVGA Open frame with Projected Capacitive Touch, Intel® ATOM® x7425E,16GB Memory DC Input 9-36V DC jack
  • Model Name :
    KIT101P-ADN     Part Number :
     750-KIT1011-000G     Description :
    KIT101P-ADN: 10.1" TFT WXGA Open frame with Projected Capacitive Touch, Intel® ATOM® x7211E, 8GB Memory, DC Input 9-36V DC jack
  • Model Name :
    KIT101P-ADN     Part Number :
     750-KIT1011-100G     Description :
    KIT101P-ADN: 10.1" TFT WXGA Open frame with Projected Capacitive Touch, Intel® ATOM® x7425E,16GB Memory DC Input 9-36V DC jack
  • Model Name :
    KIT121P-ADN     Part Number :
     750-KIT1211-000G     Description :
    KIT121P-ADN: 12.1" TFT XGA Open frame with Projected Capacitive Touch, Intel® ATOM® x7211E, 8GB Memory, DC Input 9-36V DC jack
  • Model Name :
    KIT121P-ADN     Part Number :
     750-KIT1211-100G     Description :
    KIT121P-ADN: 12.1" TFT XGA Open frame with Projected Capacitive Touch, Intel® ATOM® x7425E,16GB Memory DC Input 9-36V DC jack

Related Materials

    Related Products

    Working with DFI
