EC900-QCS｜Qualcomm®｜Industrial Computers｜DFI

EC900-QCS
Overview
Overview
Specification
Download
QUOTE
2
COMPARE
Home Industrial Computers Ultra Compact Fanless PC EC900-QCS
  • Qualcomm QCS6490 high-level platform- 8 cores, up to 2.7 GHz, 12 TOPS
  • High-speed LPDDR5x memory with up to 8 GB on board
  • Multiple Expansions: 1 M.2 E key 2230, 1 M.2 B key 3052 for Wi-Fi/BT, LTE application
  • Rich I/O: 2 USB 3.1,1 GbE LAN, 1 HDMI,1 Audio Jack, 1 COM, 8 bit DIO/1 CAN FD
  • Autonomous Mobile Robot and box PC applications support

Status : Preliminary QUOTE NOW

Wide-temp: -20~60°C
Multiple Expansion
Rich I/O
LPDDR5x
AMR
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UKCA Certification

EC900-QCS Related Tags

#Edge AI Computing#M.2#LPDDR5x#Qualcomm® QCS6490#AI#Qualcomm®#SIM Slot#Fanless Design#1G Ethernet#Linux#HDMI#Multiple Expansion#RoHS Certification#CE Certification#FCC Certification#AMR#UKCA Certification
EC900-QCS｜Qualcomm®｜Industrial Computers｜DFI
EC900-QCS｜Qualcomm®｜Industrial Computers｜DFI
EC900-QCS｜Qualcomm®｜Industrial Computers｜DFI
EC900-QCS｜Qualcomm®｜Industrial Computers｜DFI
EC900-QCS｜Qualcomm®｜Industrial Computers｜DFI

Related Products:

Select All - Clear
System
Processor
QCS6490
Qualcomm® Kryo™ 670, 8 cores, up to 2.7 GHz, 12 TOPS (INT8)
Memory
LPDDR5x, 4/8GB
Graphics
Display
1 x HDMI Type A, w/audio. 1080P support on Linux.
Single Display
HDMI
Storage
External/Internal
Support UFS 3.1, default 128GB
1 x uSD3.0 card
Expansion
Interface
1 x M.2 B key 3052 (USB 3.1/ Opt. USB 2.0)
1 x M.2 E key 2230 (PCIe x1)
1 x Nano SIM slot
Ethernet
Controller
AX88179A USB3 to GbE controller
LED
Indicators
1 x Status LED
I/O
Ethernet
1 x GbE (RJ-45)
Serial
1 x RS-232
USB
2 x USB 3.1 Gen1 Type A
Display
1 x HDMI 1.4
DIO

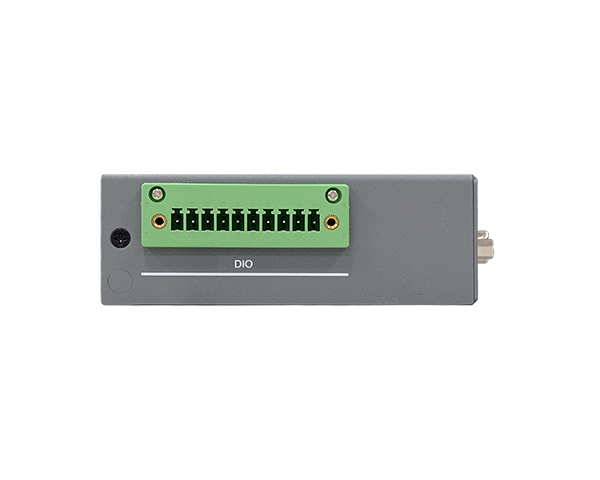

8 bit DIO (Via Terminal block, Default 6 DIO)
WiFi/LTE Antenna
3 x Antenna Holes
Internal I/O
Serial
2 x RS-232
USB
3 x USB 2.0 (UBJ1/2/4, 1x4P/1.25mm), UBJ4 could option to M.2 B key1 x USB Type C (Download only)
Power
Type
5VDC
Connector
2 pin Power Jack
Consumption
Typical: QCS6490: 5V @ 0.6A (3.0Watt)
Max.: QCS6490: 5V @ 1.45A (7.25Watt)
OS Support
OS Support
Ubuntu 20.04 (Linux Kernel 5.4.233)
Environment
Operating Temperature
-20~60°C
Storage Temperature
-40 to 85°C
Relative Humidity
10 to 95% RH (non-condensing)
Mechanism
Construction
Sheet Metal
Mounting
DIN Rail Mount
Dimensions (W x H x D)
145mm x 34mm x 96mm
Weight
TBD
Standards and Certifications
Shock
Operating: 3G, 11ms
Non-Operating: 5G, 11ms
Vibration
Operating: Random 5~500Hz, IEC68-2-64 (3G)
Non-Operating: Sine 10~500Hz, IEC68-2-6 (3G)
Certifications
CE, FCC Class A, UKCA, RoHS
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
