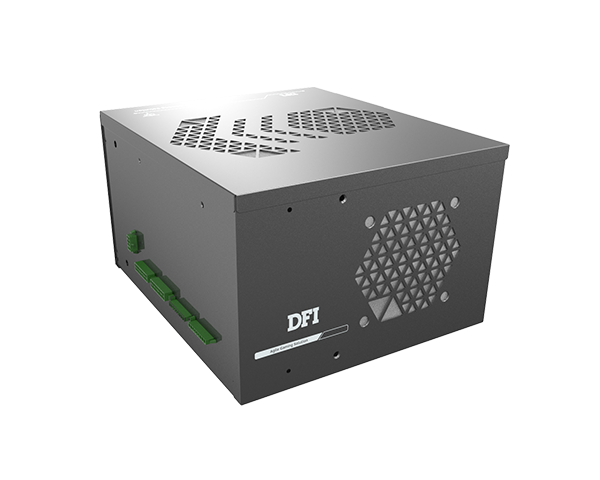

GM840-RNF｜AMD®｜Industrial Computers｜DFI

GM840-RNF
Overview
Overview
Specification
Download
QUOTE
2
COMPARE
Home Application-Specific System Agile Gaming Solutions GM840-RNF
  • AMD® Ryzen™ V2000 Series up to 4.25GHz
  • Four independent displays: DP++ + DP++ + DP++ + DP++
  • Reliable Data Security (Secure Boot、Secure Content、TPM 2.0)
  • NVRAM up to 16MB and retain data at least 5 Years during AC off
  • Rich I/O: 2 GbE, 6 COM (2 ccTalk),2 USB 3.1, 6 USB 2.0, 1 Audio Tower (Mic-in/Line-in/ Line-out )

Status : Preliminary QUOTE NOW

DP
12V DC-in
Quad Independent Display
Rich I/O
Powerful Processor
High Security
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
CE Certification
FCC Certification

GM840-RNF Related Tags

#Windows 10#M.2#M.2 A display#AMD#4K2K Display#1G Ethernet#Windows#Linux#DP#12V DC-in#DDR4#Gaming
GM840-RNF｜AMD®｜Industrial Computers｜DFI
GM840-RNF｜AMD®｜Industrial Computers｜DFI

Related Products:

Select All - Clear
System
Processor
AMD® Ryzen™ V2000 Series Processors, BGA V2748
AMD® Ryzen™ V2748, 8C/16T, 4MB Cache, 7 CU, 2.9GHz (4.25GHz),45W
AMD® Ryzen™ V2546, 6C/12T, 3MB Cache, 6 CU, 3.0GHz (3.95GHz),45W
AMD® Ryzen™ V2718, 8C/16T, 4MB Cache, 7 CU, 1.7GHz (4.15GHz),15W
AMD® Ryzen™ V2516, 6C/12T, 3MB Cache, 6 CU, 2.1GHz (3.95GHz),15W
Memory
Two 260-pin SODIMM up to 64GB
Dual channel DDR4 up to 3200MHz (ECC/ non ECC support)
BIOS
AMI BIOS
Graphics
Controller
AMD® RadeonTM VEGA7 Graphics
Feature
OpenGL 4.6, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
4 x DP++
DP++: resolution up to 4096x2160 @ 60Hz
Quad Displays
4 x DP++
Storage
Interface
2 x SATA 3.0
1 x 2.5” SSD Bay
Expansion
Interface
1 x M.2 2280 M Key (SATA 3.0/ PCIe x4) (support 2242 by BOM opt.)
Audio
Audio Codec
Realtek ALC888S-VD2-GR
Ethernet
Controller
2 x Realtek RTL8119-CG (10/100/1000Mbps)
LED
Indicators
1 x Power LED
1 x HDD LED
I/O
Ethernet
2 x GbE (RJ-45)
Serial
1 x RS-232/422/485 (DB-9)
1 x Full RS-232 (DB-9)
4 x RS-232 (TX,RX) (DB-9)
2 x RS-232 (TX,RX)/ccTalk (Microfit)
USB
2 x USB 3.1 Gen1
6 x USB 2.0
Display
4 x DP++
Audio
1 Audio Jack ( Line-in/Line-out/Mic-in)
S/PDIF Out (internal header)
Cooling
1 x 8cm System Fan, with replaceable air filter
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
TPM 2.0
Gaming
Intrusion Detection
8 x Intrusion detection
Operates With and Without AC Power
Logs Date/ Time of latest 64 events
Coin Battery backup to Retain Data for 5 years during AC off
NVRAM
Supports up to 16Mbyte
Coin Battery backup to Retain Data for 5 years during AC off
Support Battery voltage monitoring & Warning
DI/DO
32-bit Digital Input
32-bit OC output (29-bit x 500mA, disconnect detection up to 8 meters; 3-bit x 3A)
iButton
Support iButton 1-wire protocol
Power
Type
12V DC IN
Connector
DC-in Jack or Right Angle Connector (4-pin)
OS Support
Microsoft
Windows IoT Enterprise 10 LTSB
Linux
Linux Ubuntu 20.04
Software
Supplied with gaming function SDK
Environment
Operating Temperature
0~45°C
Storage Temperature
-20~85°C
Relative Humidity
5%~90%
Mechanism
Mounting
Wall Mount
Dimensions (W x H x D)
220 x 125 x 200 mm
Weight
2.9 kg
Standards and Certifications
Shock
· Operation:
　IEC 60068-2-27 Test Ea: Shock test
　Half-sine, 3G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
· Non-Operation:
　IEC 60068-2-27 Test Ea: Shock test
　Half-sine, 5G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
Vibration
· Operation:
　IEC 60068-2-64 Test Fh: Vibration Board-Band Random Test
　Random,1Grms @ 5~500 Hz, 30min.
· Non-Operation:
　IEC 60068-2-6 Test Fc: Vibration Sinusoidal Test
　Sweep sine, 2Grms @ 10~500Hz, 30min.
Certifications
CE, FCC class A (ongoing)
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
