HPT171｜AMD®｜Industrial Motherboards｜DFI

HPT171
Overview
Overview
Specification
Download
QUOTE
2
COMPARE
Home Industrial Motherboards Mini-ITX HPT171

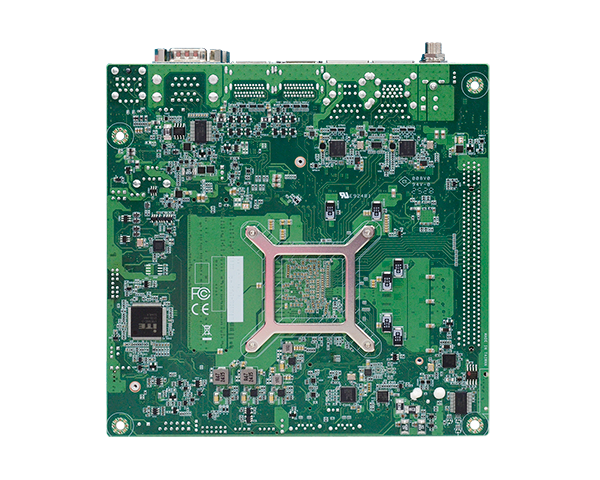

  • AMD® Ryzen™ Embedded 8000 Series Processors
  • 2 DDR5 5600MHz SODIMM up to 64GB

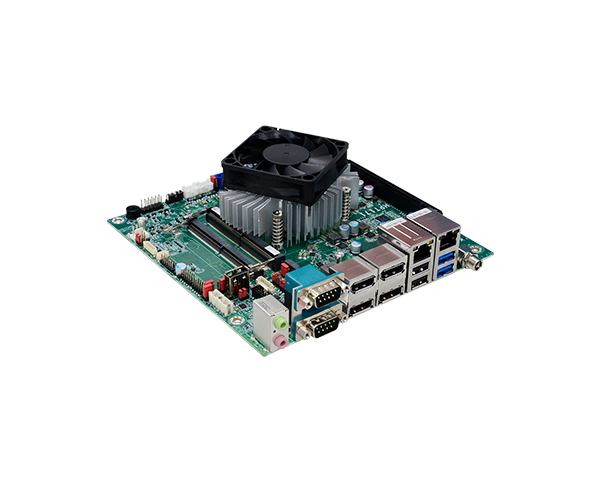

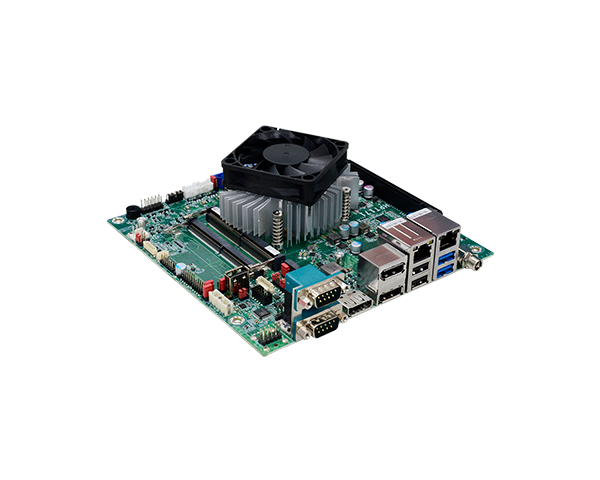

  • Quad display: 4 DP++ or 3 DP+M2A
  • Multiple expansion: 1 PCIE Gen4 x16 Slot (x8 Signal), 1 M.2 M key (PCIE/SATA), 1 M.2 A key (LVDS/eDP/HDMI/DP/VGA) and M21(PCIE/SIM/USB3/USB2) module support, 1 DFI eMMC modular port
  • Rich IO :2 2.5GbE RJ45, 2 USB 3 Type- A, 2 USB2.0 Type A, 2 COM D-Sub,1 Audio Jack Line-IN/Line-OUT/Mic-IN, 4 RS232(ccTalk/TTL), 4 USB2.0 headers, Gaming I/O(PCIE,UART/USB2.0,Audio)

Status : Preliminary QUOTE NOW

DP
Multiple Expansion
12V DC-in
Quad Independent Display
DDR5
Rich I/O
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

HPT171 Related Tags

#DDR5#Windows 10#LVDS#eDP#USB Type-C DP#M.2#eMMC#AMD® Ryzen™ Embedded 8000 Series#IoT#Windows 11#AMD#4K2K Display#PCIe x16#Windows#Linux#HDMI#VGA#DP#Multiple Expansion#12V DC-in#RoHS Certification#CE Certification#FCC Certification#Gaming#2.5G Ethernet
HPT171｜AMD®｜Industrial Motherboards｜DFI

Related Products:

Select All - Clear
System
Processor
AMD® Ryzen™ Embedded 8000 Series Processors, TDP up to 54W
AMD® Ryzen™ Embedded 8845HS, 8C/16T, 8MB Cache, 3.8GHz (5.1GHz), 45W (35-54W)
AMD® Ryzen™ Embedded 8645HS, 6C/12T, 6MB Cache, 4.3GHz (5.0GHz), 45W (35-54W)
AMD® Ryzen™ Embedded 8840U, 8C/16T, 8MB Cache, 3.3GHz (5.1GHz), 28W (15-30W)
AMD® Ryzen™ Embedded 8640U, 6C/12T, 6MB Cache, 3.5GHz (4.9GHz), 28W (15-30W)
Memory
2 x 262-pin dual-channel SODIMM DDR5 5600/5200/4800MHz with ECC/non-ECC support up to 96GB (48GB per Dimm)
BIOS
AMI SPI 256Mbit
Graphics
Controller
RDNA3 graphics with up to 6 WGPs (Work Group processors)
Display
4 x DP++ or 3 x DP++ + 1 x M.2 A display
DP1.2: resolution up to 4096x2304 @ 60Hz
Quad Displays
4 x DP++ or 3 x DP++ + 1 x M.2 A display
Expansion
eMMC
1 x eMMC B2B header, Support DFI eMMC module
M.2
1 x M.2 M Key 2280 slot (PCIE Gen4 x4 or SATA3)
1 x M.2 A Key, Standoff at 3030 (DP, PCIE, USB 2.0)

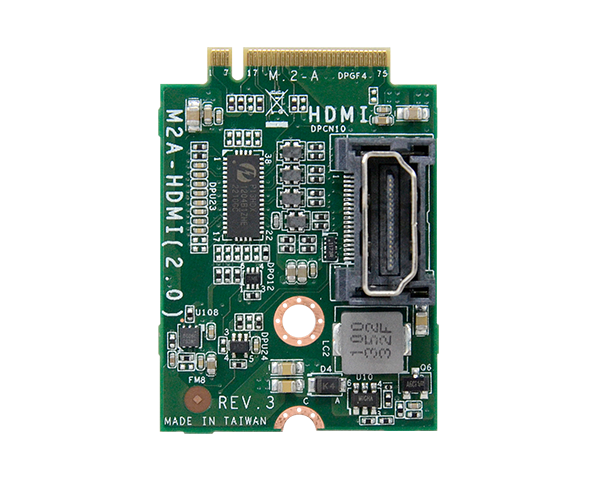

　Support M2A-display 3042 module (LVDS, eDP, HDMI, DP, VGA)
　Support M2A-M21 3060 (PCIE/USB/B key with SIM)
PCIe
1 x PCIE Gen4 x16 slot (x8 Signal)
Gaming I/O
GIO1 (UART, USB2, AUDIO R/L)
GIO2 (PCIE x1)
Audio
Audio Codec
1 x Realtek ALC888S
1 x Realtek ALC105(3W)
Ethernet
Interface
2 x Intel I226-V (10/100/1000/2500 Mbps)

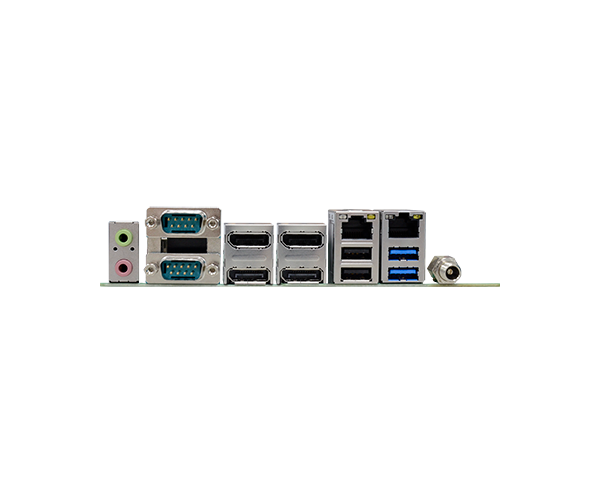

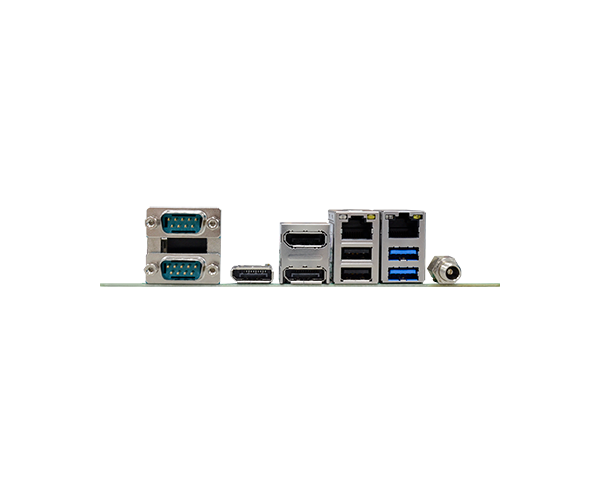

Rear I/O
Ethernet
2 x 2.5GbE (RJ-45)
Serial
1 x Full RS232
1 x RS232/RS422/RS485
USB
1 x USB 3.0 Gen2
1 x USB Type
2 x USB2.0
Display
4 x DP++
1 x USB Type C (DP Alt-mode)
Audio
1 x Front audio (Line-out, Line-in, Mic-in)
Internal I/O
Serial
2 x RS232 / TTL header
2 x RS232 / ccTalk header
USB
4 x USB 2.0 port (pitch 2.0mm)
1 x USB 2.0 vertical Type A
Audio
1 x 3W Speaker L/R header (Amp controller: ALC105)
1 x S/PDIF (audio in & out) (Signal from ALC888S)
SATA
2 x SATA3 (6Gb/s) support RAID 0,1 (one signal shared with M.2 M key, selected by BIOS)
2 x SATA Power
DIO
1 x 8-bit header with power
SMBus/ I2C
2 x I2C
1 x SPI
Case Open
1 1x2p header
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
dTPM 2.0(Default), fTPM (Option)
Connector
DC-in Jack (Default)
Straight Type Connector (4-pin) (available upon request)
Consumption
TBD
RTC Battery
CR2032 coin cell
OS Support
Microsoft
Windows 10 IoT Enterprise LTSC(64-bit)
Windows 11 22H2 GAC
Linux
Ubuntu 22.04
Environment
Temperature
Operating: -5 to 65°C
Storage: -40 to 85°C
Humidity
10 to 90% RH
MTBF
TBD
Mechanism
Dimensions
Mini-ITX Form Factor
195mm (7.7") x 170mm (6.7")
Height
PCB: 1.6mm
Top Side: TBD
Bottom Side: TBD
Standards and Certifications
Certifications
CE, FCC, RoHS
Packing List
Packing List
• 1 HPT171 motherboard
• 1 I/O shield, TBD
• 1 Cooler, TBD
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals

Related Materials

    Related Products

    Working with DFI

    DFI’s Customization Services (DCS) comes with full support and industry expertise from a dedicated team to provide you exclusive services in design, production, warranty, repairs, and life cycle management. In order to make the project as easy as possible for you, DFI will closely work with you to learn your design requirements and offer real-time technical support as you develop the solution to reduce your development cost and effort.

    Get Started
