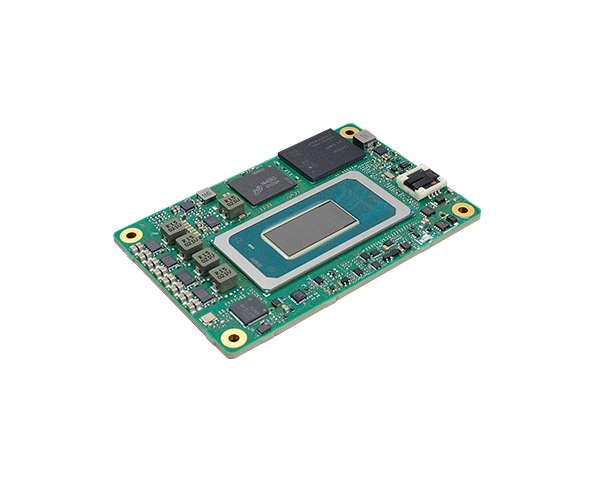

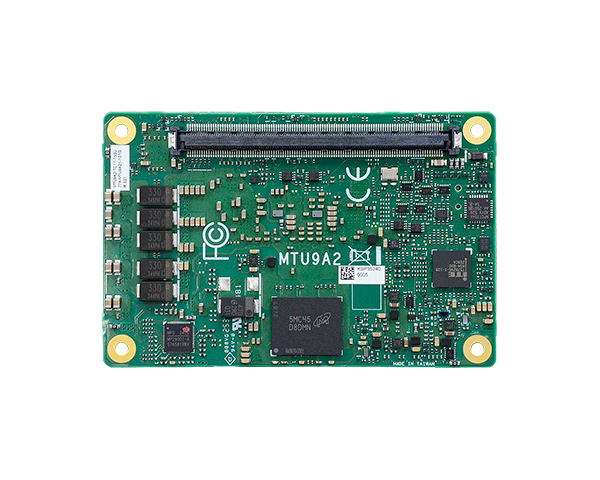

MTU9A2|Intel®|System-On-Modules|DFI

MTU9A2
Home System-On-Modules COM Express Mini MTU9A2
  • Intel® Core™ Ultra Processor (Meteor Lake: U-series)
  • Single Channel LPDDR5 7467MHz up to 16GB
  • Dual Displays: 1 DDI + 1 LVDS/eDP
  • Supports 4K / 2K resolution
  • Multiple Expansion: 4 PCIe x1, 1 I2C, 1 SMBus, 1 x LPC/eSPI, 2 x UART
  • Rich I/O: 1 Intel 2.5GbE, 2 USB 3.2, 8 USB 2.0, 2 SATA 3.0

Status : Preliminary QUOTE NOW

Fanless Design
4K2K Display
Multiple Expansion
Dual Display
Rich I/O
2.5G Ethernet
LPDDR5
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
CE Certification
FCC Certification

MTU9A2 Related Tags

#Windows 10#LVDS#Edge AI Computing#eDP#LPDDR5#SMBus#I2C#Intel® Core™ Ultra processors #Windows 11#Fanless Design#4K2K Display#Windows#Linux#HDMI#DP#CE Certification#FCC Certification#2.5G Ethernet
MTU9A2|Intel®|System-On-Modules|DFI
System
Processor
Intel Core Ultra U-series processors (Code Name : Meteor Lake U)
Intel Core Ultra 7 Processor 165U (2 P-Cores x 1.7 GHz, 8 E-Cores x 1.2 GHz, 12MB cache,15W)
Intel Core Ultra 7 Processor 155U (2 P-Cores x 1.7 GHz, 8 E-Cores x 1.2 GHz, 12MB cache,15W)
Intel Core Ultra 5 Processor 135U (2 P-Cores x 1.6 GHz, 8 E-Cores x 1.1 GHz, 12MB cache,15W)
Intel Core Ultra 5 Processor 125U (2 P-Cores x 1.3 GHz, 8 E-Cores x 0.8 GHz, 12MB cache,15W)
Memory
LPDDR5 up to 16GB
Single Channel LPDDR5 7467MHz
8GB/16GB supported by project basis.
In-band ECC (IBECC) Supported by Ubuntu
BIOS
AMI SPI 256Mbit
Graphics
Controller
Intel® UHD
Feature
DX12, Open GL 4.6, Vulkan 1.2 (Windows)
Mesa 3D, Open GL 4.6, Vulkan 1.2 (Linux)
HW Decode : 4K60 8b 4:2:0 AVC
HW Encode : 4K60 10b 4:4:4 HEVC/VP9/SCC 4K60 8b 4:2:0 AVC
Display
1 x DDI
1 x LVDS/eDP

LVDS: single channel 24-bit, resolution up to 1920x1200 @ 60Hz
eDP: resolution up to 4096x2160 @ 60Hz
HDMI: resolution up to 4096x2160 @ 30Hz
DP++: resolution up to 4096x2160 @ 60Hz, 3840x2160 @60Hz
Dual Displays
DDI + LVDS/eDP
Expansion
Interface
4 x PCIe x1 (Gen 3)
1 x I2C
1 x SMBus
1 x LPC/eSPI
1 x SNDW (available upon request)
1 x GSPI
2 x UART (TX/RX)
Audio
Interface
HD Audio
Ethernet
Controller
1 x Intel® I226-IT (10/100/1000Mbps/2.5Gbps)
I/O
USB
2 x USB 3.2 Gen2
8 x USB 2.0
SATA
2 x SATA 3.0 (up to 6Gb/s)
DIO
1 x 8-bit DIO
NVMe SSD
1 x 64GB/128GB/256GB/512GB/1024GB on board SSD (available upon request)
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
dTPM or fTPM (Optional)
Power
Type
4.75V~20V, 5VSB, VCC_RTC (ATX mode)
4.75V~20V, VCC_RTC (AT mode)
Consumption
TBD
OS Support
OS Support (UEFI Only)
Windows 10 IoT Enterprise 64-bit
Windows 11
Linux
Environment
Temperature
Operating: -5 to 65°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
TBD
Mechanism
Dimensions
COM Express® Mini
84mm (3.3") x 55mm (2.16")
Compliance
PICMG COM Express® R3.1, Type 10
Standards and Certifications
Certifications
CE, FCC
Packing List
Packing List
· Cooler, TBD
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Heat Spreader
    Part Number :
    TBD
    Description :
  • Item Name :
    COM335 Carrier Board Kit
    Part Number :
    770-CM3351-000G
    Description :
