EC622-RPS|Intel®|Industrial Computers|DFI

EC622-RPS
Home Industrial Computers Embedded Fanless PC EC622-RPS
  • 14th/13th/12th Generation Intel® Core™ with Intel® R680E
  • Supports DDR5 SODIMM up to 64GB
  • Rich I/O connectivity: 2 2.5GbE, 4 GbE, 5 USB3.2 Gen2, 1 USB type-C, 1 VGA, 1 HDMI, 1 DP++, 9 com port
  • Multiple Expansion: 5 M.2 slots, 1 mini-PCIe slot (full size)
  • Support 5G Communication
  • Operating Temperature: -20 to 70°C
  • 15-Year CPU Life Cycle Support Until Q4' 36 (Based on Intel IOTG Roadmap)

Status : Preliminary QUOTE NOW

Wide-temp: -20~70°C
Multiple Expansion
15 Years CPU Life Cycle Support
5G
DDR5
Rich I/O
Out-of-band (OOB)
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
CE Certification
FCC Certification

EC622-RPS Related Tags

#12th Gen Intel® Core™ Processor#DDR5#13th Gen Intel® Core™ Processor#Windows 10#9~36V DC-in#Edge AI Computing#M.2#Out-Of-Band (OOB)#14th Gen Intel® Core™ Processor#IoT#Windows 11#Intel#SIM Slot#5G#Mini PCIe#4K2K Display#1G Ethernet#PCIe x16#Windows#Linux#HDMI#VGA#DP#Multiple Expansion#CE Certification#FCC Certification#2.5G Ethernet
EC622-RPS|Intel®|Industrial Computers|DFI
EC622-RPS|Intel®|Industrial Computers|DFI
EC622-RPS|Intel®|Industrial Computers|DFI
EC622-RPS|Intel®|Industrial Computers|DFI
EC622-RPS|Intel®|Industrial Computers|DFI
System
Processor
14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 2.0 GHz); 65W
Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 1.1 GHz); 35W
Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 2.1 GHz); 65W
Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 1.3 GHz); 35W
Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 2.6 GHz); 65W
Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 1.7 GHz); 35W
Intel® Core™ I5-14400 (10 Cores, 20M Cache, up to 2.5 GHz); 65W
Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 1.5 GHz); 35W
Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 3.5 GHz); 60W
Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 2.7 GHz); 35W

13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W
Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W
Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W
Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W
Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W
Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W
Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W
Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W
Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 3.3 GHz); 60W
Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W
Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W

12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W
Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W
Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W
Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W
Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W
Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W
Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Pentium® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W
Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
Intel® Celeron® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W
Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W
Chipset
Intel® R680E Chipset
Memory
2x 262-pin SODIMM up to 64GB
Dual Channel DDR5 4800MHz
BIOS
AMI SPI 256Mbit
Graphics
Controller
Intel® HD Gen 9 Graphics
Feature
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
1 x VGA
1 x HDMI
1 x DP++

VGA: resolution up to 1920x1200 @ 60Hz
HDMI: resolution up to 4096x2160 @ 30Hz
DP++: resolution up to 4096x2304 @ 60Hz
Storage
Internal
2 x M.2 2280 M key
support RAID 0/1
Expansion
Interface
1 M.2 2280 M key (SATA/PCIe x4)
1 M.2 2280 M key (PCIe x4)
1 M.2 3042/3052 B key (SATA/PCIex1/USB3, w/ Nano SIM slot)
1 M.2 2230 E key (PCIe x1/ USB2.0)
1 M.2 3042 A key(for support DFI OOB module)
1 miniPCIe full size (PCIe x1/ USB2.0, w/ Nano SIM slot)
1 PCIe x16 (PCIe x16 slot)
1 PCIe x4 (PCIe x8 slot)
Ethernet
Interface
2 x Intel® I226IT (10/100/1000/2500Mbps)
1 x Intel® I219LM (10/100/1000Mbps)
3 x Intel® I210IT (10/100/1000Mbps)
LED
Indicators
1 x Status LED
1 x HDD LED

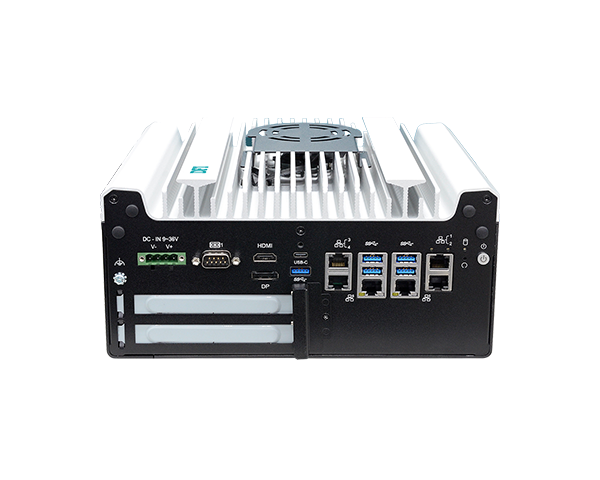

Front I/O
Ethernet
2 x 2.5 GbE (RJ-45)
4 x GbE (RJ-45), optional 2 x GbE & 2 x PoE
Serial
1 x RS232/422/485 (selectable by BIOS, also support DIO selectable by jumper setting)
USB
5 x USB 3.2 (Gen2x1)
1 x USB Type-C (Alt. mode)
Display
1 x HDMI
1 x DP++
DIO
8 bit (DB-9, share with COM1)

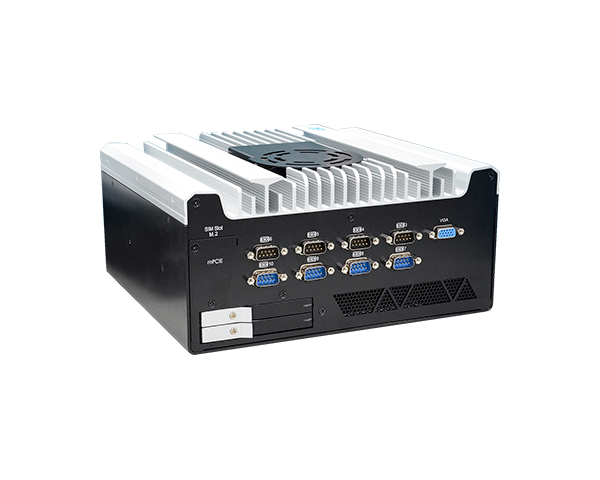

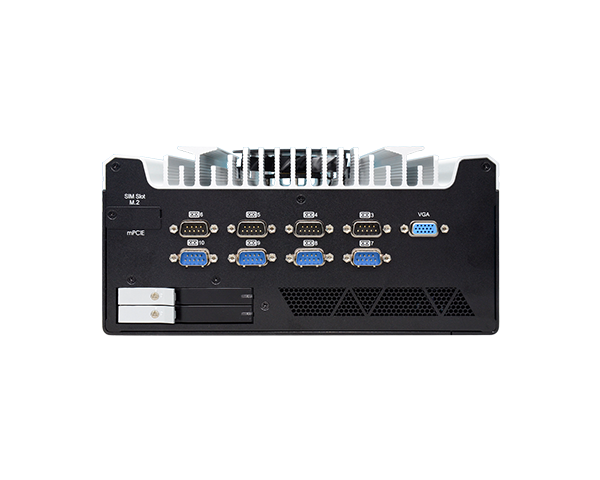

Rear I/O
Serial
8 x RS232 (DB-9)
Display
1 x VGA
Buttons
1 x Power button
1 x Reset button
Antenna
4 x Antenna hole
SIM
2 x Nano SIM slot (external)
Watchdog Timer
Output & Interval
System reset, programmable via software from 1 to 255 seconds
Security
TPM
TPM 2.0
Power
Type
Wide range 9~36V
Connector
4-pole terminal block
OS Support
Microsoft
Windows 10 IoT Enterprise 2021 LTSC
Windows 11
Linux
Linux (available upon request)
Environment
Operating Temperature
TDP 35W CPU: -20 to 70°C (wide temperature M.2 SSD storage & airstream 0.7m/sec)
TDP 65W CPU: -20 to 50°C (wide temperature M.2 SSD storage & airstream 0.7m/sec)
Storage Temperature
-20 to 85°C
Relative Humidity
5 to 95% RH (non-condensing)
Mechanism
Construction
Metal + Aluminum
Mounting
Wall Mount
Dimensions (W x H x D)
249.5 x 120 x 223mm
Weight
4.5 kg
Standards and Certifications
Shock
Half sine wave 3G, 11ms, 3 shock per axis
Vibration
IEC68-2-64
Certifications
CE, FCC Class A
Packing List
Packing List
1 EC622-RPS system unit
1 M.2 & miniPCIe slot screws set
1 Terminal block 4 pole for DC input
1 Cable with 4 wire stripped and tinned to mini-DIMM
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    EC622-RPS906C6-R
    Part Number :
    750-EC62200-000G
    Description :
    w/Fan, R680E, i7-14700T, 1 VGA, 1 HDMI, 1 DP, 1 USB-C, 5 USB 3.2(Gen2x1), 9 COM, 6 LAN, 2 SIM Slot, TPM 2.0
  • Model Name :
    EC622-RPS906C6E-R
    Part Number :
    750-EC62200-100G
    Description :
    w/Fan, R680E, i7-14700T, 1 VGA, 1 HDMI, 1 DP, 1 USB-C, 5 USB 3.2(Gen2x1), 9 COM, 4 LAN, 2 PoE, 2 SIM Slot, TPM 2.0
  • Model Name :
    EC622-RPS906C6-R
    Part Number :
    750-EC62200-200G
    Description :
    w/Fan, R680E, i7-14700T, 1 VGA, 1 HDMI, 1 DP, 1 USB-C, 5 USB 3.2(Gen2x1), 9 COM, 6 LAN, 1 GPU card power, 2 SIM Slot, TPM 2.0
  • Model Name :
    EC622-RPS906C6-R
    Part Number :
    750-EC62200-300G
    Description :
    w/Fan, R680E, i5-14700T, 1 VGA, 1 HDMI, 1 DP, 1 USB-C, 5 USB 3.2(Gen2x1), 9 COM, 6 LAN, 2 SIM Slot, TPM 2.0
  • Model Name :
    EC622-RPS906C6E-R
    Part Number :
    750-EC62200-400G
    Description :
    w/Fan, R680E, i5-14700T, 1 VGA, 1 HDMI, 1 DP, 1 USB-C, 5 USB 3.2(Gen2x1), 9 COM, 4 LAN, 2 PoE, 2 SIM Slot, TPM 2.0
  • Model Name :
    EC622-RPS906C6-R
    Part Number :
    750-EC62200-500G
    Description :
    w/Fan, R680E, i5-14700T, 1 VGA, 1 HDMI, 1 DP, 1 USB-C, 5 USB 3.2(Gen2x1), 9 COM, 6 LAN, 1 GPU card power, 2 SIM Slot, TPM 2.0
