EB100-MTU

Overview

Home Industrial Computers Ultra Compact Fanless PC EB100-MTU

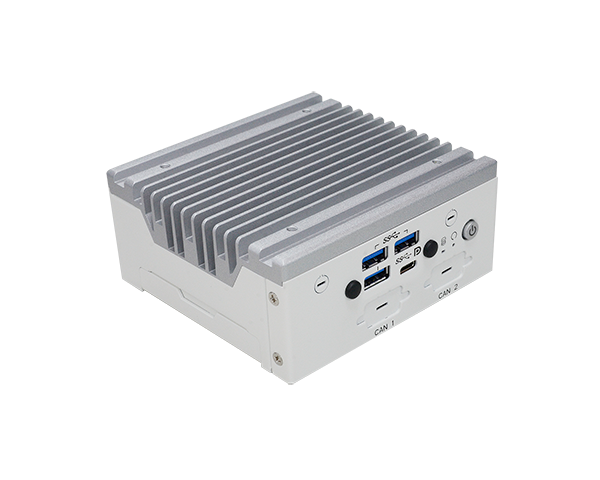

Industrial NUC compact system

14th Generation Intel® Ultra 5/ Ultra 7 CPU (12W)

Two DDR5 SODIMM, up to 64GB

Up to -20°C~50°C operation with passive cooling, optional fan cooling 12VDC power in

Ultra compact size (W x H x D): 111 x 51.1 x 106 mm

Supports M.2 2230 E-Key/M.2 2280 M-Key, Storage: M.2 2280 M-key (NVME)

I/O: 2 2.5GbE (TSN/TCC), 2 USB 3.2, 2 Type-C, 2 HDMI, 1 DB9 (RS232/422/485), 1 DB9 (RS232/DIO)

Supports M.2 Hailo AI accelerator card(M.2 E key, optional)

Status : Preliminary QUOTE NOW

+Compare +Quotation

Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW

Quotation
You have ,Up to 3 items.
QUOTE NOW

EB100-MTU Related Tags

#DDR5#Windows 10#Edge AI Computing#Intel® Core™ Ultra processors #AI#Windows 11#Intel#Compact PC#Compact Size#Windows#HDMI#12V DC-in#RoHS Certification#CE Certification#FCC Certification#2.5G Ethernet

EB100-MTU｜Intel®｜Industrial Computers｜DFI

System

Processor

Intel® Core™ Ultra Processor (Meteor Lake: U-series)

[Fanless]Intel® Core™ Ultra 7 155U (2 P-Cores x 1.7 GHz, 8 E-Cores x 1.2 GHz, 12 MB cache, 12W)
[Fanless]Intel® Core™ Ultra 5 125U (2 P-Cores x 1.3 GHz, 8 E-Cores x 0.8 GHz, 12 MB cache, 12W)

[W/Fan]Intel® Core™ Ultra 7 155U (2 P-Cores x 1.7 GHz, 8 E-Cores x 1.2 GHz, 12 MB cache, 28W)
[W/Fan]Intel® Core™ Ultra 5 125U (2 P-Cores x 1.3 GHz, 8 E-Cores x 0.8 GHz, 12 MB cache, 28W)

Memory

2x 262-pin SODIMM up to 64GB
Dual Channel DDR5 4800MHz

BIOS

AMI SPI 256Mbit

Graphics

Controller

Intel® Graphics (Xe-core)

Feature

DX12, Open GL 4.6, Vulkan 1.2 (Windows)
Mesa 3D, Open GL 4.6, Vulkan 1.2 (Linux)
HW Decode : 4K60 8b 4:2:0 AVC
HW Encode : 4K60 10b 4:4:4 HEVC/VP9/SCC 4K60 8b 4:2:0 AVC

Display

1 x HDMI1.4b
1 x HDMI2.1

Resolution:
HDMI1.4b: up to 4096x2160@24Hz
HDMI2.1: up to 4060x2160@120Hz or 7680x4320@60Hz

Dual Displays

2 HDMI

Storage

Internal

1 x M.2 2280 M key (PCIe x4)

Expansion

Interface

1 x M.2 2230 E Key (PCIe/USB2.0)

Ethernet

Controller

2 x Intel® I226IT

LED

Indicators

1 x Power LED
1 x Storage LED

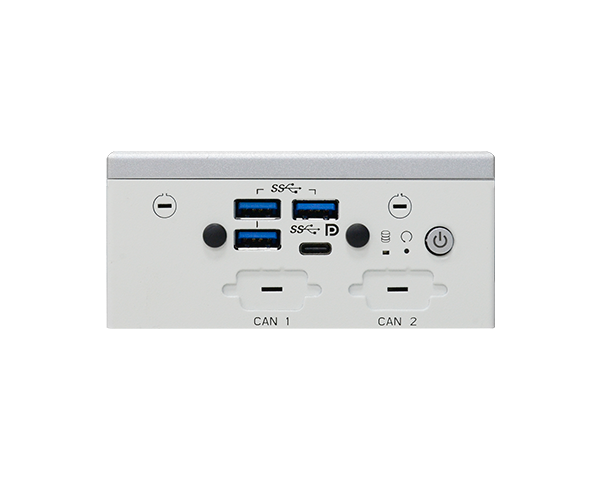

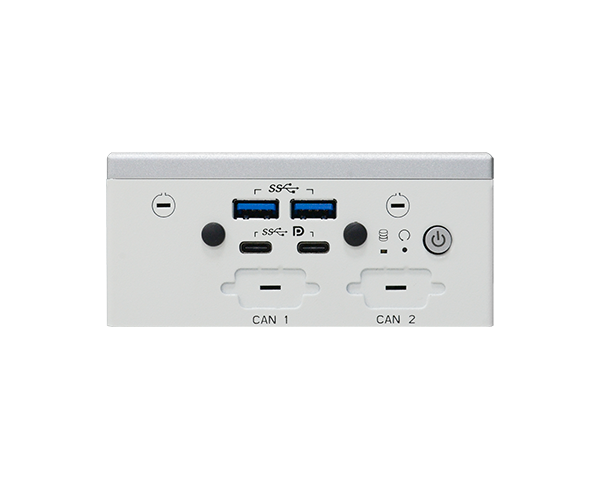

Front I/O

USB

4 x USB3.2(Gen2x1) or
2 x USB3.2(Gen2x1) & 2 x USB-C(support DP Alt. Mode)

Buttons

1 x Power button
1 x Reset button

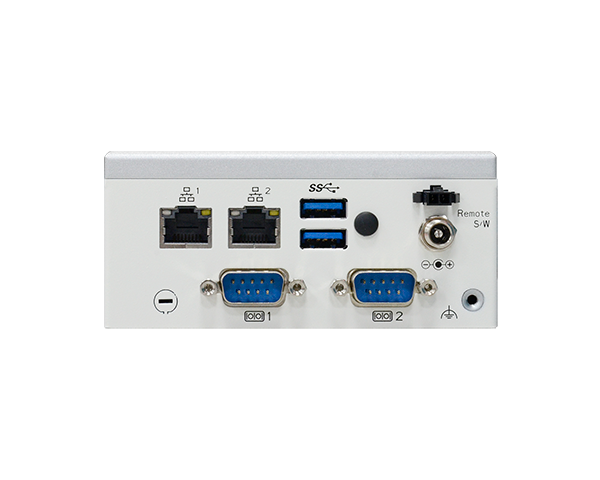

Rear I/O

Ethernet

2 x Intel® I226IT (10/100/1000/2500Mbps)

Serial

1 x RS232/422/485 (default RS232, BIOS selectable)
1 x RS232/8bit DIO (default RS232, BIOS selectable)

Display

1 x HDMI1.4b
1 x HDMI2.1

Watchdog Timer

Output & Interval

System Reset, Programmable via Software from 1 to 255 Seconds

Power

Connector

DC Jack (5.5 x 2.5 mm)

Voltage

DC 12V

OS Support

Windows 10 IoT Enterprise 64-bit
Windows 11

Environment

Operating Temperature

[Fanless](CPU TDP 12): -20 to 50°C (wide-temp M.2 SSD)
[W/Fan](CPU TDP 28W): -20 to 70°C (wide-temp M.2 SSD)

Storage Temperature

-20 to 85°C

Relative Humidity

5 to 95% RH (non-condensing)

Mechanism

Construction

Aluminum + Metal Aluminum

Mounting

Wall/VESA rail mount

Dimensions (W x H x D)

[Fanless]111mm x 49.5mm x 106mm
[W/Fan]111mm x 51.1mm x 106mm

Weight

TBD

Standards and Certifications

Shock

Operating:
IEC 60068-2-27 Test Ea: Shock Test
Half-Sine, 3G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)

Vibration

Operating:
IEC 60068-2-64 Test Fh: Vibration Board-Band Random Test
Random, 1Grms @ 5~500 Hz, 30min
Non-Operating:
IEC 60068-2-6 Test Fc: Vibration Sinusoidal Test
Sweep Sine, 3Grms @ 10~500Hz, 30min

Certifications

CE, FCC Class A, RoHS

Country of Origin

Taiwan (TAA Compliant Country)

Product Collaterals

EB100-MTU Datasheet (PDF) 861.63KB 2024/08/12

Brochure of application-AI (PDF) 13.24MB 2024/09/25
