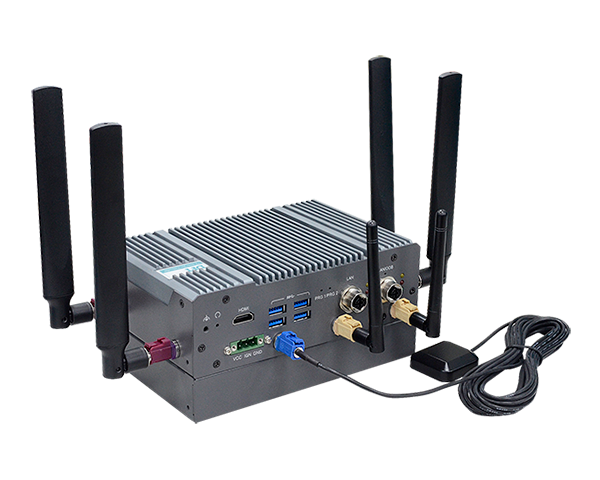

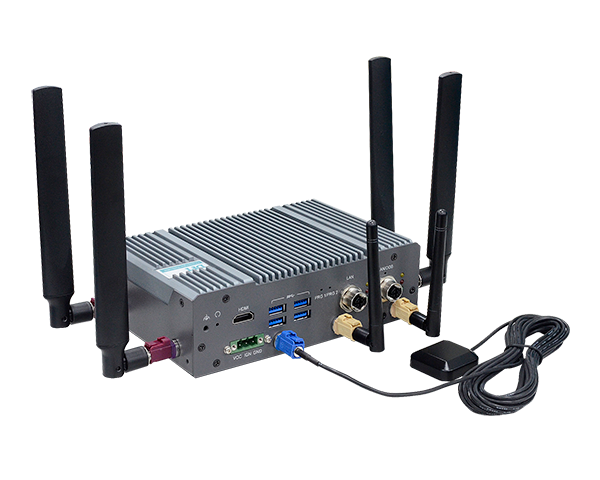

VC700-ASL

Overview

Home Application-Specific System In-vehicle System VC700-ASL

Intel Atom® Amston Lake x7835RE 8-core 1.3GHz/3.6GHz 12W processor

ITxPT certified in vehicle computing system with compact and fanless design

Build-in OOB to support remote management

Build-in 9 axis sensor for driver detection within fleet management

2 x Mini-PCIe and 3 M.2 sockets for CAN bus/GPS/LTE/5G/WiFi/Storage modules

Build-in Audio Amp to driver 10W speaker

2.5KV Isolated 8bits DIO ports

Wide voltage: 9~36V vehicle power input with ACC/IGN function

Status : Preliminary QUOTE NOW

+Compare +Quotation

Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW

Quotation
You have ,Up to 3 items.
QUOTE NOW

VC700-ASL｜Intel®｜Industrial Computers｜DFI

System

Processor

Intel® Atom x7000E processors (Code Name : Amston Lake)
Intel® Atom Processor x7835RE, 8 Cores, 1.3~3.6GHz, 12W
Intel® Atom Processor x7433RE, 4 Cores, 1.5~3.4GHz, 9W
Intel® Atom Processor x7211RE, 2 Cores, 1.0~3.2GHz, 6W

Memory

4GB/8GB LPDDR5 5200 Memory down

BIOS

AMI SPI 64Mbit

Graphics

Controller

Intel® HD Graphics

Feature

Execution Units: Up to 32 Eus
3D API: Open GL 4.6, DirectX12, Vulkan 1.2 (Windows) / Mesa 3D,OpenGL 4.6, Vulkan 1.2 (Linux)
Precision: FP32, FP16, INT8
Compute: OpenCL 3.0

Display

1 x HDMI 1.4b (resolution up to 4096x2160 @ 24Hz)
1 x VGA (resolution up to 1920x1200 @ 60Hz)

Storage

External

2 x swappable 2.5" SATA drive bays (option)

Internal

eMMC 64GB (Removeable)

Expansion

Interface

1 x M.2 2230 A+E key (USB 2.0/PCIe)
1 x M.2 3042/3052 B key (USB 3.0/PCIe) with SIM
1 x M.2 2242/2280 B+M key (PCIe/SATA)
2 x Mini-PCIe (1 Half; 1 Full) (USB 2.0)

Ethernet

Controller

2 x Intel Ethernet controller i210 GbE

Interface

2 x RJ45 GbE ports

GNSS

Support GPS, QZSS, Gallileo, GLONASS, BeiDou by u-blox NEO-M9N
Dead reckoning support upon request

LED

Indicators

1 x Power LED
1 x Storage LED
2 x Programmable LED (Green, Blue)

Sensor

SENSOR Sensor 9 axis IMU (3 Accelerometer + 3 Gyroscope + 3 Magnetometer)

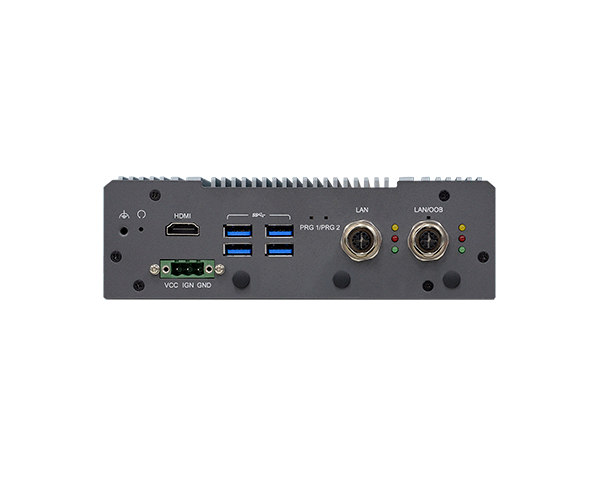

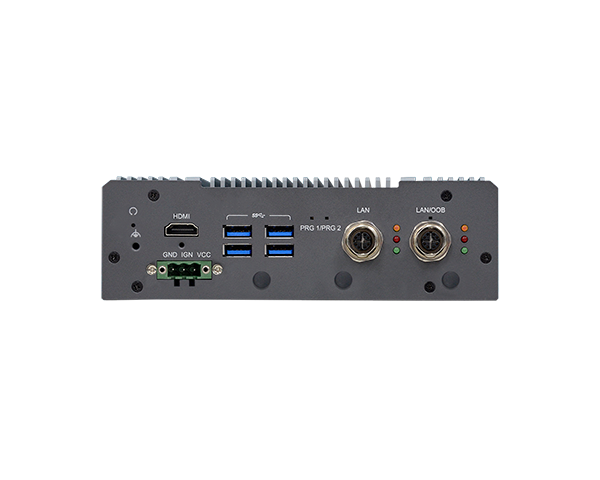

Front I/O

Ethernet

2 x GbE (M12 X-code)
1 share with OOB

USB

4 x USB 3.2 type A

Display

1 x HDMI

Buttons

1 x Reset button

Antenna

3 x Fakra antenna holes

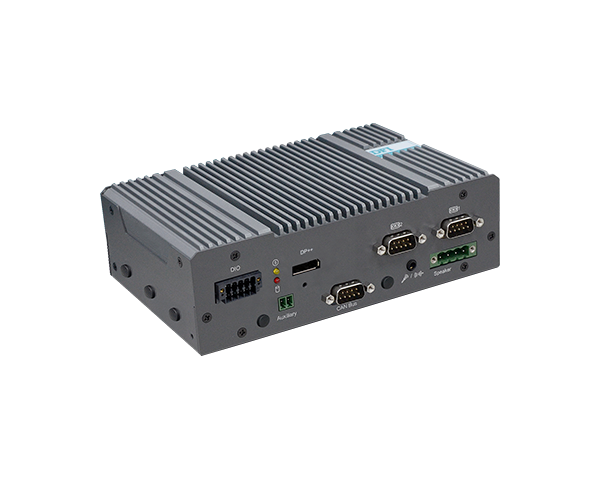

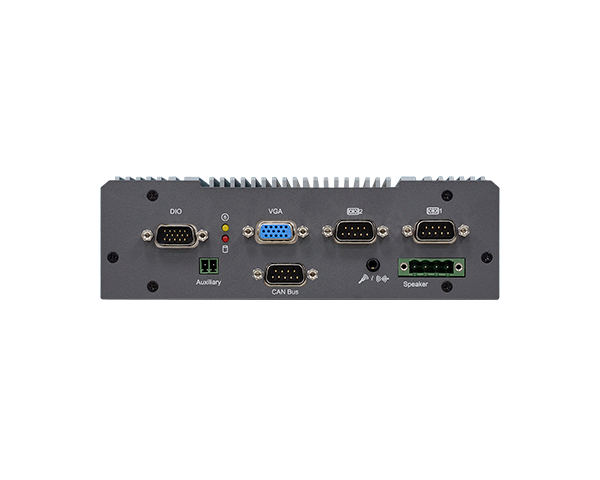

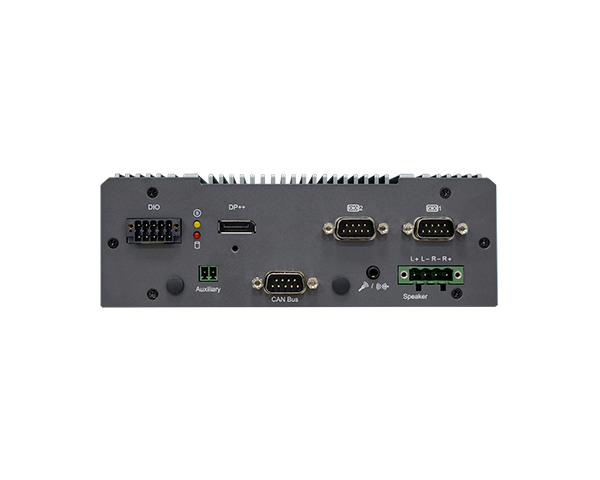

Rear I/O

Serial

2 x RS-232/422/485 (DB9-M)

DIO

Isolated 8 bits DIO with 2.5KV isolation (DB15-M)
Input voltage: 0 to 30VDC
Output current: 50mA pre pin and Max. 200mA total
On-state voltage: 12VDC nominal, open collector to 30VDC.

Display

1 x VGA

Audio

Stereo speaker with Amplifier to drive 10W speaker (4 pin Terminal)
1 x 3.5mm Line out/Mic In

CANBus

2 x CAN 2.0B (DB9-M)
Support J1939

Flank I/O

Antenna Hole

2 x Fakra antenna holes
2 x Fakra antenna holes

Watchdog Timer

Output & Interval

System reset, programmable via software from 1 to 255 seconds

Security

TPM

TPM 2.0 (NUVOTON)

Power

Type

Wide range 9~36V with ignition control

Connector

3-pole terminal block

OS Support

Microsoft

Windows 10/11

Linux

Linux Ubuntu 22.04

Environment

Temperature

Operating: -40 to 70°C
Storage: -40 to 85°C

Mechanism

Construction

Aluminum + SPGC Metal

Mounting

Wall mount

Dimensions (W x H x D)

182.4mm x 56.5mm x 118.4mm (W x H x D)
182.4mm x 87.5mm x 118.4mm (W x H x D) (2.5" SATA drive bays)

Weight

TBD

Color

Black

Standards and Certifications

Shock

Operating/non-operating: MIL-STD-810G Method 516.6, Procedure 1

Vibration

Operating/non-operating: MIL-STD-810G Method 514.6, Category 4

Certifications

CE, FCC, E-Mark (E24), ITxPT, RoHS, UKCA (To be updated)

Country of Origin

Taiwan (TAA Compliant Country)

Product Collaterals

VC700-ASL Datasheet (PDF) 1.02MB 2024/09/05

Brochure of application-Smart Transportation (PDF) 9.35MB 2024/09/25

Working with DFI

DFI’s Customization Services (DCS) comes with full support and industry expertise from a dedicated team to provide you exclusive services in design, production, warranty, repairs, and life cycle management. In order to make the project as easy as possible for you, DFI will closely work with you to learn your design requirements and offer real-time technical support as you develop the solution to reduce your development cost and effort.

Get Started

VC700-ASL｜Intel®｜Industrial Computers｜DFI

VC700-ASL Overview

Intel Atom® Amston Lake x7835RE 8-core 1.3GHz/3.6GHz 12W processor

ITxPT certified in vehicle computing system with compact and fanless design

Build-in OOB to support remote management

Build-in 9 axis sensor for driver detection within fleet management

2 x Mini-PCIe and 3 M.2 sockets for CAN bus/GPS/LTE/5G/WiFi/Storage modules

Build-in Audio Amp to driver 10W speaker

2.5KV Isolated 8bits DIO ports

Wide voltage: 9~36V vehicle power input with ACC/IGN function

VC700-ASL Feature

Wide Voltage: 9~36V DC-in

Fanless Design

Compact Size

Wide-temp: -40~70°C

Rich I/O

Out-of-band (OOB)

9-axis IMU Sensor

VC700-ASL Certifications

RoHS Certification

CE Certification

FCC Certification

UKCA Certification

E-Mark (E24) Certification

ITxPT Certification
