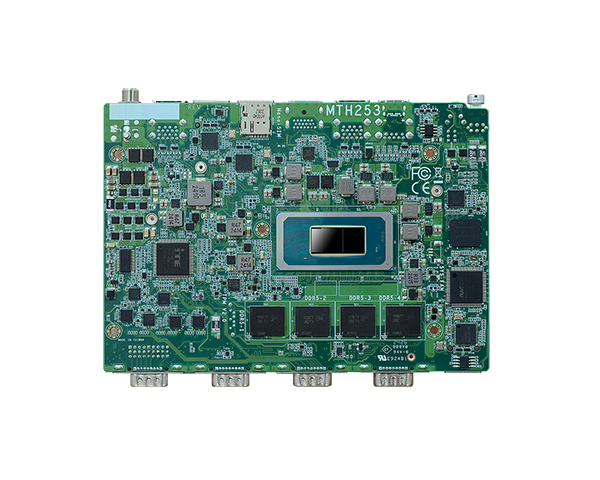

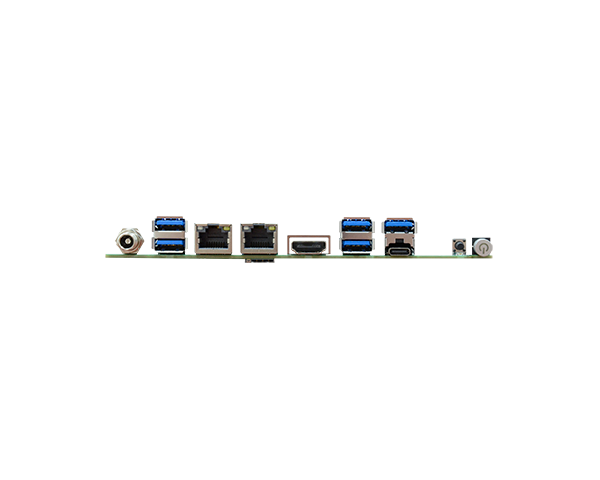

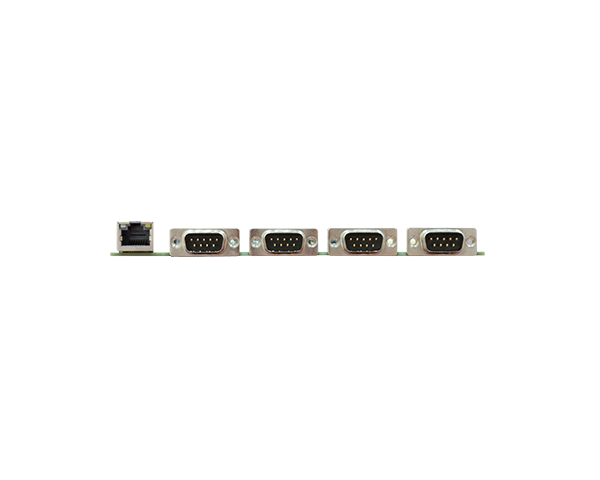

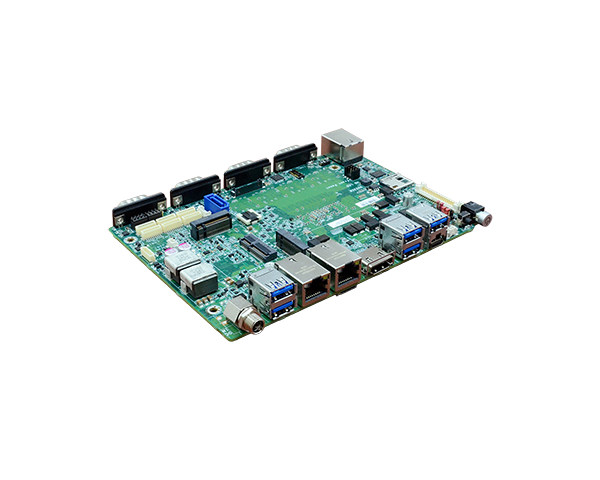

MTH253｜Intel®｜Industrial Motherboards｜DFI

MTH253
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Motherboards 4" SBC MTH253
  • Intel® Core™ Ultra Processor
  • On Board OOB built-in (Opt.)
  • LPDDR5x-6400 memory down
  • Triple Displays: 1 HDMI, 1 dual channel LVDS, 1 Type-C DP Alt. Mode
  • Multiple Expansion: 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key
  • Rich I/O: 2 Intel 2.5GbE, 1 Intel GbE, 4 USB 3.2, 1 USB Type-C, 5 COM, 1 COM/DIO

Status : Preliminary QUOTE NOW

4K2K Display
Multiple Expansion
Triple Independent Display
Rich I/O
LPDDR5
Out-of-band (OOB)
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
CE Certification
FCC Certification

MTH253 Related Tags

#Windows 10#9~36V DC-in#LVDS#Edge AI Computing#USB Type-C DP#LPDDR5#M.2#Out-Of-Band (OOB)#Intel® Core™ Ultra processors #IoT#Windows 11#Intel#4K2K Display#1G Ethernet#Windows#Linux#HDMI#Multiple Expansion#CE Certification#FCC Certification#2.5G Ethernet
MTH253｜Intel®｜Industrial Motherboards｜DFI
MTH253｜Intel®｜Industrial Motherboards｜DFI
MTH253｜Intel®｜Industrial Motherboards｜DFI
MTH253｜Intel®｜Industrial Motherboards｜DFI
MTH253｜Intel®｜Industrial Motherboards｜DFI

Related Products:

Select All - Clear
System
Processor
Intel® Core™ Ultra 7/5 Processors, TDP up to 28W
Intel® Core™ Ultra 7 165H, 16C, 24M Cache, 1.4GHz (5.0GHz)
Intel® Core™ Ultra 5 135H, 14C, 18M Cache, 1.7GHz (4.6GHz)
Intel® Core™ Ultra 7 155U, 12C, 12M Cache, 1.7GHz (4.8GHz)
Intel® Core™ Ultra 5 125U, 12C, 12M Cache, 1.3GHz (4.3GHz)
Memory
Dual Channel LPDDR5/x 6400MHz memory down Up to 32GB
BIOS
AMI SPI 256Mbit
Graphics
Controller
Intel® Arc™ Graphics
Feature
OpenGL 4.6, Direct X 12.2, OpenCL 3.0
HW Decode: HEVC, VP9, AV1, AVC
HW Encode: HEVC, VP9,AV1, AVC
Display
1 x HDMI 1.4b
1 x LVDS
1 x USB-C DP Alt. mode

HDMI: resolution up to 4096x2160@24Hz LVDS: dual channel 24-bit, resolution up to 1920x1200@60Hz
DP: resolution up to 4096x2304@60Hz
Triple Displays
HDMI + LVDS + USB-C DP Alt. mode
Expansion
Interface
1 x M.2 M key 2280 (PCIe Gen4 x4)
1 x M.2 B key 3052 (USB 3.0/2.0, PCIe x1, SATA), 1 x SIM slot for 4G/5G
1 x M.2 E key 2230 (USB 2.0/PCIe x1)
Audio
Audio Codec
Realtek ALC888S
Ethernet
Controller
2 x Intel® I226V (10/100/1000/2500Mbps)
Front I/O
Ethernet
1 x GbE (RJ-45), Intel® i210AT (10/100/1000Mbps) (support OOB)
Serial
COM 1: RS-232/422/485
COM 2/3: RS-232
COM 4: RS-232/422/485 or 8-bit DIO by jumper setting
Rear I/O
Ethernet
2 x 2.5GbE (RJ-45)
USB
5 x USB 3.2 or 4 x USB 3.2 + 1 x USB 2.0 (by BIOS setting)
1 x USB Type C
Display
1 x HDMI
1 x USB-C DP Alt. Mode
Buttons
1 x Power Button
1 x Reset Button
Internal I/O
Serial
2 x RS-232 (1.0mm pitch)
USB
1 x USB 2.0 (1.0mm pitch)
SATA
1 x SATA 3.0
Fan
1 x Smart FAN
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
TPM 2.0
Power
Type
9~36V DC
Connector
Right Angle Connector (4-pin)
DC-in Jack (available upon request)
RTC Battery
CR2032 Coin Cell (Cable type)
OS Support
Microsoft
Windows 11 & 10 IoT Enterprise 64-bit
Linux
Linux
Environment
Temperature
Operating: -5 to 65°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
TBD
Mechanism
Dimensions
4" SBC Form Factor
165mm (6.49") x 115mm (4.53")
Height
PCB: 1.6mm
Standards and Certifications
Certifications
CE, FCC Class B, RoHS
Packing List
Packing List
• 1 MTH253 board
• 1 Heatsink for 15W CPU or 1 Cooler for 28W CPU, TBD
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    MTH253-BN-32U7165H     Part Number :
     TBD     Description :
    Intel® Core™ Ultra 7 165H, 16 cores, 28W, 32GB memory down, HDMI + LVDS + USB-C DP, 2 2.5GbE, 1 GbE, 6 COM, 4 USB 3.2, 9~36 VDC, -5~65°C
  • Model Name :
    MTH253-BN-16U5125U     Part Number :
     TBD     Description :
    Intel® Core™ Ultra 5 125U, 12 cores, 15W, 16GB memory down, HDMI + LVDS + USB-C DP, 2 2.5GbE, 1 GbE, 6 COM, 4 USB 3.2, 9~36 VDC, -5~65°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Heat spreader     Part Number :
     TBD     Description :

Related Materials
