KS170-ADN|Intel®|Industrial Panel PCs & Displays|DFI

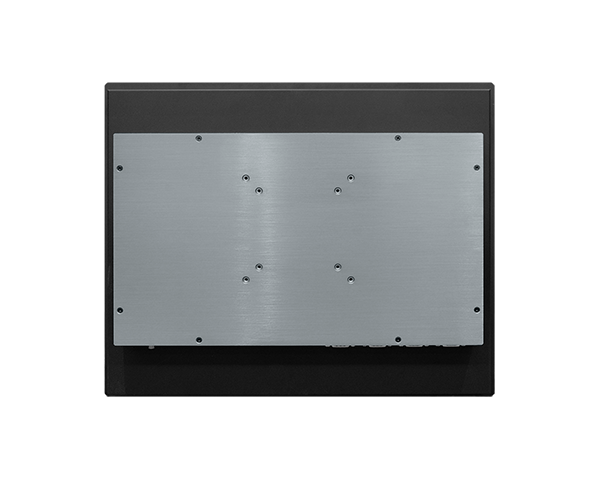

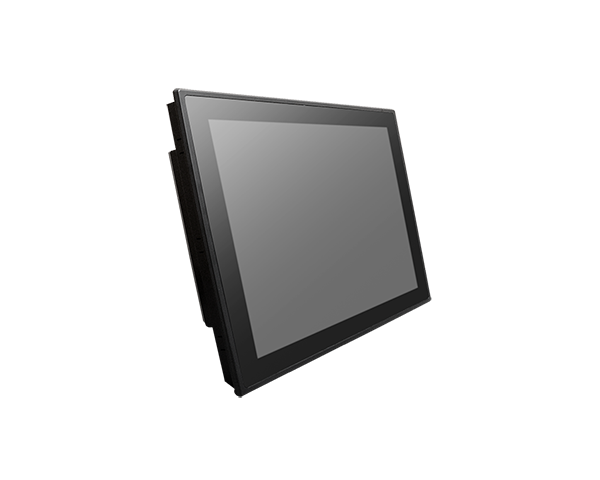

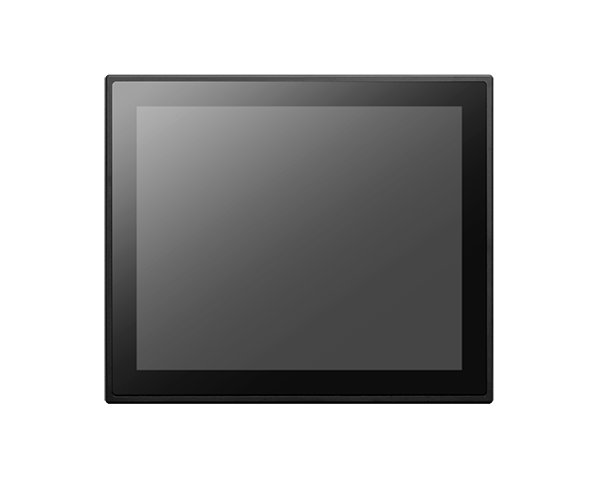

KS170-ADN
Home Industrial Panel PCs & Displays Fanless Touch Panel PC KS170-ADN
  • Intel® Atom® Alder Lake-N Processors
  • Touch Type: Projected Capacitive Touch & Resistive Touch
  • Dual Display: HDMI & DP++
  • Multiple Expansions: 1 M.2 2242/3042/3052 B Key ; 1 M.2 2230 E Key
  • Wide Voltage: 9-36V input

Status : Preliminary QUOTE NOW

Wide Voltage: 9~36V DC-in
Fanless Design
Multiple Expansion
Dual Display
Projected Capacitive Touch
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
CE Certification
FCC Certification

KS170-ADN Related Tags

#9~36V DC-in#Intel® Atom® Alder Lake-N Processors#M.2#IoT#Intel#Fanless Design#Windows#Linux#HDMI#DP#Multiple Expansion#CE Certification#FCC Certification#2.5G Ethernet
KS170-ADN|Intel®|Industrial Panel PCs & Displays|DFI
KS170-ADN|Intel®|Industrial Panel PCs & Displays|DFI
KS170-ADN|Intel®|Industrial Panel PCs & Displays|DFI
KS170-ADN|Intel®|Industrial Panel PCs & Displays|DFI
KS170-ADN|Intel®|Industrial Panel PCs & Displays|DFI
System
Processor
Intel® Atom® x7425E, Quad Core, 6M Cache,1.5GHz (3.4GHz), 12W
Intel® Atom® x7213E, Dual Core, 6M Cache,1.7GHz (3.2GHz), 10W
Memory
One 262-pin SODIMM up to 16GB, Single Channel DDR5 4800MHz
BIOS
AMI SPI 256Mbit
Display and Touch Screen
Display
17" TFT LCD Panel
Brightness
350 (cd/m²)
Contrast
4 : 3
Backlight Lifetime
50,000 (hours)
Max. Resolution
1280 x 1024
Touch Type
Projected Capacitive / 5-Wire Resistive Touch
Graphics
Controller
Intel® UHD Graphics
Feature
OpenGL 4.6, Direct X 12.1, OpenCL 3.0
HW Decode: HEVC, VP9, AV1, AVC
HW Encode: HEVC, VP9, AVC
Display
1 x DP++
1 x HDMI 2.0
DP++: resolution up to 3840x2160 @ 60Hz
HDMI: resolution up to 3840x2160 @ 24Hz
Dual Displays
DP++ + HDMI
Storage
External
1 x 2.5" SATA 3.0 Drive Bay
Expansion
Interface
1 x M.2 2242/3042/3052 B Key (PCIE Gen3x1 or SATA3 and USB 2.0)
1 x M.2 2240 E Key (PCIE Gen3x1 and USB 2.0, support Inte® CNVi)

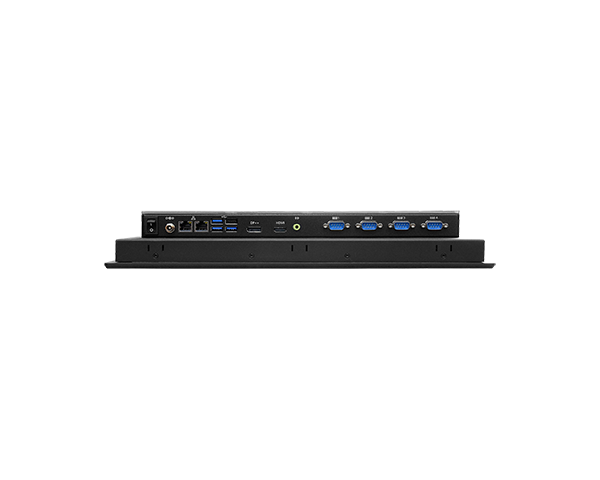

I/O
Ethernet
2 x 2.5GbE
Serial
2 x RS-232/422/485
2 x RS-232
USB
3 x USB 3.2 Gen2
1 x USB 2.0
Display
1 x DP++
1 x HDMI
Buttons
1 x Power Button
Audio
1 x line-out
Power
Type
DC 9-36V
Connector
DC Jack
Consumption
TBD
OS Support
Microsoft
Windows 10 IoT Enterprise 64bit
Linux
Linux
Environment
Operating Temperature
0 ~ 50°C
Storage Temperature
-30 ~ 80°C
Relative Humidity
10 to 95% @ 40°C, non-condensing
Mechanism
Construction
Aluminum Front Bezel + Sheet Metal
IP Rating
IP65 Front Panel Protection
Mounting
VESA mount 100 x 100
Dimensions (W x H x D)
TBD
Weight
TBD
Standards and Certifications
Shock
OP: Half-sine, 3G @ 11ms Non-OP: Half-sine, 5G @ 11ms
MIL-STD-810G Standard
Vibration
OP: Random, 1Grms @ 5~500Hz, 30min Non-OP: Sweep sine, 3Grms @ 10~500Hz, 30min
MIL-STD-810G Standard
Certifications
CE/FCC Class A
Packing List
Packing List
· 1 KS170-ADN Touch Panel PC
· 1 Poron foam
· 1 Quick Installation Guide
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    KS170P-ADNW36-X13
    Part Number :
    TBD
    Description :
    KS170P-ADNW36, 17" TFT SXGA Fan-less Panel PC with Projected Capacitive Touch, Intel® ATOM® x7213E, DC Input 9-36V DC jack, F/G SYSTEM RoHS
  • Model Name :
    KS170R-ADNW36-X13
    Part Number :
    TBD
    Description :
    KS170R-ADNW36, 17" TFT SXGA Fan-less Panel PC with 5-Wire Resistive Touch, Intel® ATOM® x7213E, DC Input 9-36V DC jack, F/G SYSTEM RoHS
  • Model Name :
    KS170P-ADNW36-X25
    Part Number :
    TBD
    Description :
    KS170P-ADNW36, 17" TFT SXGA Fan-less Panel PC with Projected Capacitive Touch, Intel® ATOM® x7425E, DC Input 9-36V DC jack, F/G SYSTEM RoHS
  • Model Name :
    KS170R-ADNW36-X25
    Part Number :
    TBD
    Description :
    KS170R-ADNW36, 17" TFT SXGA Fan-less Panel PC with 5-Wire Resistive Touch, Intel® ATOM® x7425E, DC Input 9-36V DC jack, F/G SYSTEM RoHS
