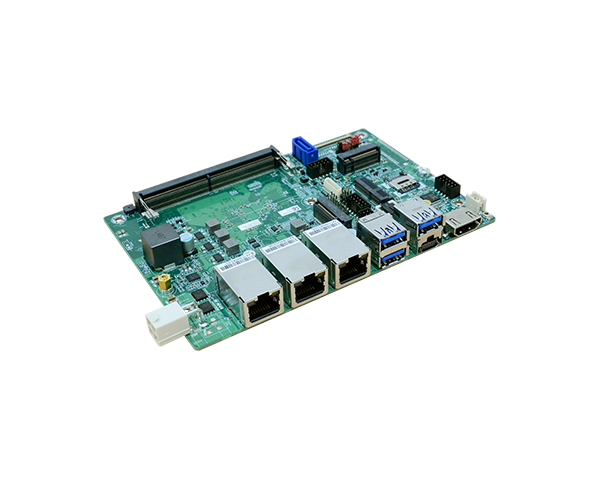

ADN553|Intel®|Industrial Motherboards|DFI

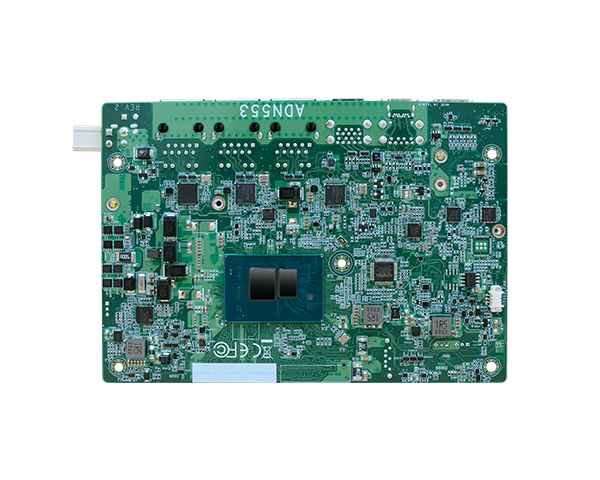

ADN553
Home Industrial Motherboards 3.5" SBC ADN553
  • Intel® Atom® Alder Lake-N Processors 3.5" SBC
  • 1 DDR5 SO-DIMM
  • 4K High Resolution: Supports 4K/ 2K resolution
  • Triple Display: 1 HDMI, 1 Type-C DP Alt. Mode, 1 LVDS/eDP
  • Rich I/O Connectivity: 3 2.5GbE LAN, 4 USB 3.2, 2 USB 2.0, 1 SATA
  • Multiple Expansion: 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key
  • Typically supports 10-Year CPU Life Cycle Until Q1’ 33 (Based on Intel IOTG Roadmap), and available for an additional 5 years support under SPS Process.

Status : Launched QUOTE NOW

4K2K Display
Multiple Expansion
Triple Independent Display
DDR5
Rich I/O
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UKCA Certification

ADN553 Related Tags

#DDR5#Windows 10#9~36V DC-in#LVDS#Edge AI Computing#Intel® Atom® Alder Lake-N Processors#eDP#IoT#Windows 11#Intel#HMI#5G#Fanless Design#4K2K Display#Windows#Linux#HDMI#Multiple Expansion#RoHS Certification#CE Certification#FCC Certification#2.5G Ethernet#UKCA Certification
ADN553
ADN553
ADN553
ADN553
System
Processor
Intel® Atom® Alder Lake-N Processors, TDP up to 15W
· Embedded
Intel Atom® x7425E, 4 cores, 6M Cache, up to 3.40 GHz, 12W
Intel Atom® x7213E, 2 cores, 6M Cache, up to 3.20 GHz, 10W
Intel Atom® x7211E, 2 cores, 6M Cache, up to 3.20 GHz, 6W
· PC Client
Intel® Core™ i3-N305, 8 cores, 6M Cache, up to 3.80 GHz, 15W
Intel® Processor N200, 4 cores, 6M Cache, up to 3.70 GHz, 6W
Intel® Processor N97, 4 cores, 6M Cache, up to 3.60 GHz, 12W
Intel® Processor N50, 2 cores, 6M Cache, up to 3.40 GHz, 6W
Memory
One 262-pin SODIMM up to 16GB
Single Channel DDR5 4800MHz
BIOS
AMI SPI 256Mbit
Graphics
Controller
Intel® UHD Graphics
Feature
OpenGL 4.6, Direct X 12.1, OpenCL 3.0
HW Decode: HEVC, VP9, AV1, AVC
HW Encode: HEVC, VP9, AVC
Display
1 x HDMI
1 x Type-C DP Alt. Mode
1 x LVDS/eDP

HDMI: resolution up to 4096x2160@24Hz
DP: resolution up to 3840x2160 @60Hz
LVDS: dual channel 24-bit, resolution up to 1920x1200@60Hz
eDP: resolution up to 4096x2160 @60Hz
Triple Displays
HDMI + Type-C DP Alt. Mode + LVDS/eDP
Expansion
Interface
1 x M.2 M key 2280/2242 (PCIe Gen3 x1/SATA3.0)
1 x M.2 B key 3052/3042 (USB3.0/USB2.0, optional PCIe x1), 1 x SIM slot for 4G/5G
1 x M.2 E key 2230 (USB/PCIe x1, support CNVi)
Audio
Audio Codec
Realtek ALC888S
Ethernet
Controller
3 x Intel® I226V/IT(10/100/1000/2500Mbps). LAN3 option with M.2 3052 PCIe x1.

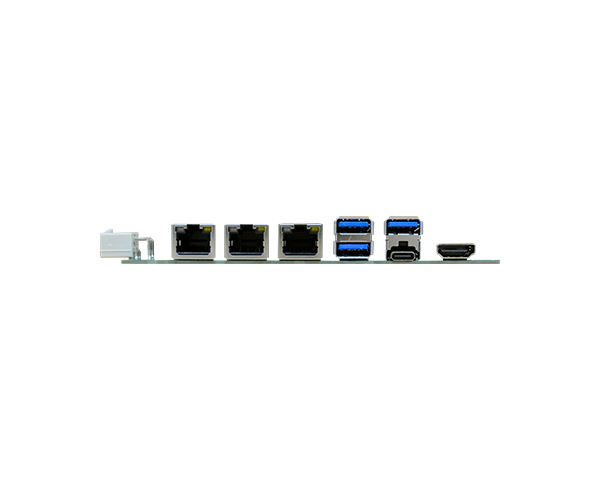

Rear I/O
Ethernet
3 x 2.5GbE (RJ-45)
USB
4 x USB 3.2
Display
1 x HDMI
1 x Type-C DP Alt. Mode
1 x LVDS/eDP
Internal I/O
Serial
1 x RS-232/422/485 (2.0mm pitch)
USB
2 x USB 2.0 (2.0mm pitch)
Display
1 x LVDS LCD Panel Connector
1 x LCD/Inverter Power
Audio
1 x Audio (Line-out/Mic-in)
SATA
1 x SATA 3.0 (up to 6Gb/s)
1 x SATA Power
DIO
1 x 8-bit DIO
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
dTPM2.0
Power
Type
Wide Range 9~36V DC
Connector
Right Angle Connector (4-pin)
DC-in Jack (available upon request)
Vertical Type Connector (4-pin) (available upon request)
Consumption
Typical: i3-N305, 19V @ 0.45A (8.55W)
Max: i3-N305, 19V @ 2.7A (51.3W)
RTC Battery
CR2032 Coin Cell
OS Support
OS Support (UEFI Only)
Windows 10 IoT Enterprise (64-bit)
Windows 11
Linux
Environment
Temperature
Operating: -5 to 65C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
593,096 hrs @ 25°C; 398,330 hrs @ 45°C; 276,293 hrs @ 60°C
Calculation Model: Telcordia Issue 4
Environment: GB, GC - Ground Benign, Controlled
Mechanism
Dimensions
3.5" SBC Form Factor
146mm (5.75") x 102mm (4.02")
Height
PCB: 1.6mm
Top Side: 15.0mm
Bottom Side: 4.0mm
Standards and Certifications
Certifications
CE, FCC Class B, RoHS, UKCA
Packing List
Packing List
• 1 ADN553 board
• 1 COM port cable(Length: 250mm, 1x COM port), A81-015115-018G
• 1 SATA DATA/Power cable (Length : 300mm), A81-002144-018G
• 1 Heat sink (Height: 29 mm), A71-008353-000G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    ADN553-BN-x7425E
    Part Number :
    770-ADN5531-000G
    Description :
    Intel Atom® x7425E, 4C, 12W. 1 DDR5 SO-DIMM, HDMI + Type-C DP Alt. Mode + LVDS, 3 2.5G LAN, 1 RS232/422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -5 to 65°C
  • Model Name :
    ADN553-BN-x7211E
    Part Number :
    770-ADN5531-100G
    Description :
    Intel Atom® x7211E, 2C, 6W. 1 DDR5 SO-DIMM, HDMI + Type-C DP Alt. Mode + eDP, 3 2.5G LAN, 1 RS232/422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -5 to 65°C
  • Model Name :
    ADN553-BN-N305
    Part Number :
    770-ADN5531-200G
    Description :
    Intel® Core™ i3-N305, 8 cores, 15W. 1 DDR5 SO-DIMM, HDMI + Type-C DP Alt. Mode + eDP, 3 2.5G LAN, 1 RS232/422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -5 to 65°C
  • Model Name :
    ADN553-BN-N200
    Part Number :
    770-ADN5531-300G
    Description :
    Intel® Processor N200, 4 cores, 6W. 1 DDR5 SO-DIMM, HDMI + Type-C DP Alt. Mode + LVDS, 3 2.5G LAN, 1 RS232/422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -5 to 65°C
  • Model Name :
    ADN553-BN-N97
    Part Number :
    770-ADN5531-400G
    Description :
    Intel® Processor N97, 4C, 12W. 1 DDR5 SO-DIMM, HDMI + Type-C DP Alt. Mode + eDP, 3 2.5G LAN, 1 RS232/422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -5 to 65°C
  • Model Name :
    ADN553-BN-N50
    Part Number :
    770-ADN5531-500G
    Description :
    Intel® Processor N50, 2 cores, 6W. 1 DDR5 SO-DIMM, HDMI + Type-C DP Alt. Mode + eDP, 3 2.5G LAN, 1 RS232/422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -5 to 65°C
  • Model Name :
    ADN553-BN-x7213E
    Part Number :
    770-ADN5531-600G
    Description :
    Intel Atom® x7213E, 2C, 10W. 1 DDR5 SO-DIMM, HDMI + Type-C DP Alt. Mode + LVDS, 3 2.5G LAN, 1 RS232/422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -5 to 65°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Power adapter
    Part Number :
    671-106012-000G
    Description :
    60W, 12V
  • Item Name :
    USB 2.0 cable
    Part Number :
    A81-001163-018G
    Description :
    Length: 200mm, 2 USB ports
  • Item Name :
    Front panel cable
    Part Number :
    A81-009678-018G
    Description :
    Length: 250mm
  • Item Name :
    Audio cable
    Part Number :
    A81-022007-016G
    Description :
    Length: 160mm
  • Item Name :
    Heat spreader
    Part Number :
    A71-808356-000G
    Description :
    Height: 11mm
  • Item Name :
    4-pin power to DC jack cable
    Part Number :
    A81-004051-016G
    Description :
    Length: 100mm
