QRB551|Qualcomm®|Industrial Motherboards|DFI

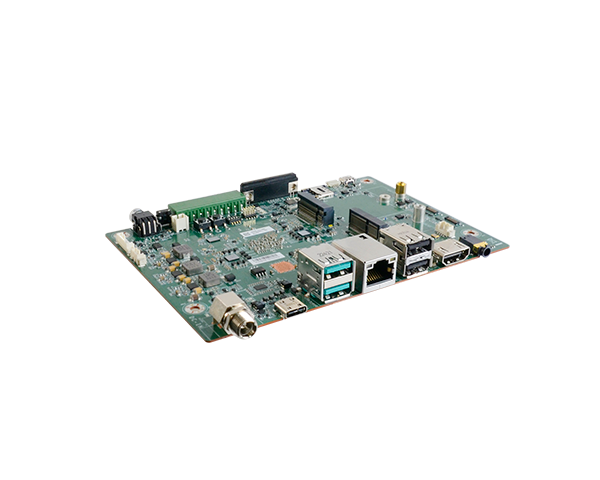

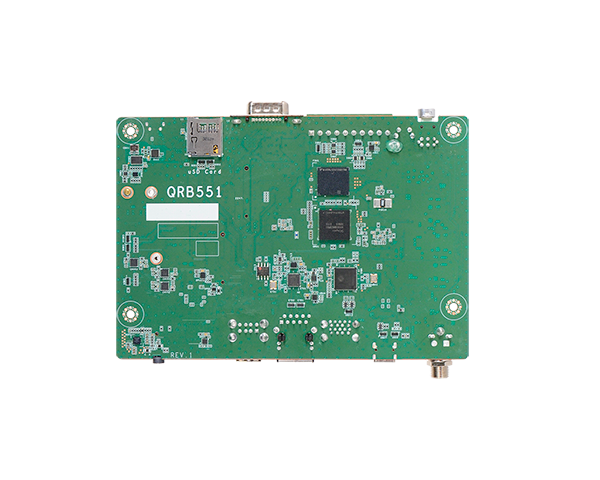

QRB551
Home Industrial Motherboards 3.5" SBC QRB551
  • Qualcomm QRB5165
  • For Automation
  • 1 GbE LAN: For automation application
  • CAN bus: For automation equipments integration
  • 2 M.2 Expansions: 1 M.2 E key 2230, 1 M.2 B key 3052/2242
  • Supports CPU Life Cycle Until 2035

Status : Preliminary QUOTE NOW

1G Ethernet
Linux
HDMI
12V DC-in
CAN Bus
M.2 Expansions
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UKCA Certification

QRB551 Related Tags

#Qualcomm® QRB5165#M.2#Qualcomm®#CAN-Bus#1G Ethernet#Linux#HDMI#12V DC-in#RoHS Certification#CE Certification#FCC Certification#UKCA Certification
QRB551|Qualcomm®|Industrial Motherboards|DFI
QRB551|Qualcomm®|Industrial Motherboards|DFI
QRB551|Qualcomm®|Industrial Motherboards|DFI
QRB551|Qualcomm®|Industrial Motherboards|DFI
QRB551|Qualcomm®|Industrial Motherboards|DFI
System
Processor
QRB5165, 8x Kryo 585 2.84Ghz
Memory
POP LPDDR5, 8GB
Graphics
Controller
Adreno 650 GPU
Feature
OpenGL ES 3.2
Display
1 x HDMI Type A, w/o audio. 1080P support on Linux.
Single Display
HDMI
Storage
UFS
Support UFS 3.1, default 128GB
Expansion
Interface
1 x M.2 B key 3052/2242 (USB3.1, reserve PCIex1) reference RM502G Quectel
1 x M.2 E key 2230 (PCIe x1) reference QCA6391 Wifi module
1 x Nano SIM slot
Audio
Audio Codec
Audio codec WCD9385
Ethernet
Controller
AX88179A USB3 to GbE controller

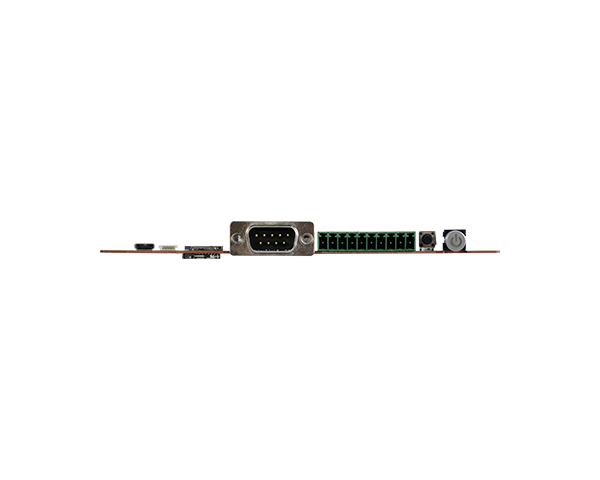

Rear I/O
Ethernet
1 x GbE (RJ-45) (optional from rear USB2)
Serial
1 x RS232/422/485 (DB9)
USB
2 x USB 3.1 Gen1 Type A , 1 x USB 2 Type A
1 x USB 3.1 Type C (device mode only)
DIO
1 x 8-bit DIO terminal block
Display
1 x HDMI 1.4
Audio
1 x Line out/Mic in audio jack
*This function will be available on the next version.
Debug
1 x Micro USB debug UART
Internal I/O
SD
1 x uSD3.0 card
CANBus
1 x CAN bus 2.0b
Fan
1 x FAN 12V PWM control
Camera
2 x MIPI-CSI2 for 4-lanes camera, CMJ1: reference to OV9282 / CMJ2: reference to IMX577
Watchdog Timer
Output & Interval
TBD
Power
Type
12VDC
Connector
Default DC jack , co-lay 2-pole terminal block
Consumption
TBD
RTC Battery
CR2032 Coin Cell
OS Support
Linux
Ubuntu 20.04 (Linux Kernel 5.4.2)
Environment
Temperature
Operating: 0 to 60C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
TBD
Mechanism
Dimensions
3.5" SBC Form Factor
146mm (5.75") x 102mm (4.02")
Height
PCB: 1mm
Top Side: TBD
Bottom Side: TBD
Standards and Certifications
Certifications
CE, FCC, RoHS, UKCA
Packing List
Packing List
1 QRB551 board
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
