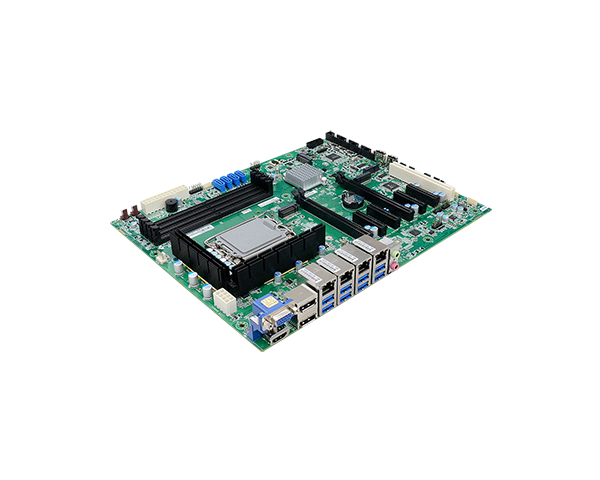

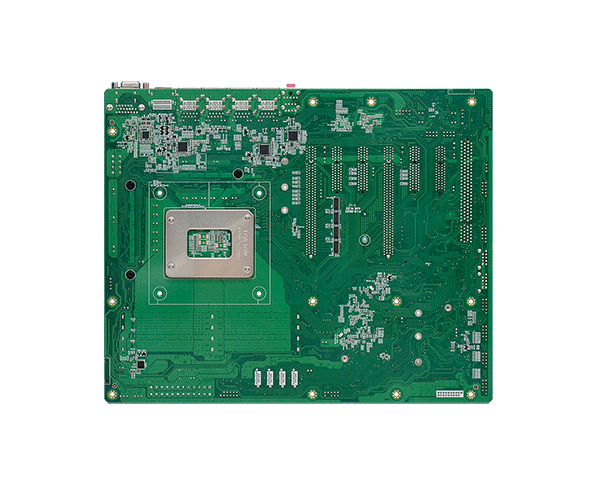

RPS630-R680E/Q670E
Home Industrial Motherboards ATX RPS630-R680E/Q670E
  • 14th/13th/12th Gen Intel® Core Processors
  • 4 DDR5 UDIMM up to 192GB
  • Quad Displays: VGA, 2 DP++, HDMI
  • Supports 4K resolution
  • Multiple Expansion: 2 PCIe x16, 4 PCIe x4, 1 PCI, 2 M.2 M key, 1 M.2 E Key, 1 M.2 A Key
  • Rich I/O: 4 Intel 2.5GbE, 6 COM, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0
  • Typically supports 10-Year CPU Life Cycle Until Q1’34 (Based on Intel IOTG Roadmap)

Status : Launched QUOTE NOW

4K2K Display
PCIe x16
Windows
Multiple Expansion
Quad Independent Display
2.5G Ethernet
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
KC Certification
UKCA Certification

RPS630-R680E/Q670E Related Tags

#12th Gen Intel® Core™ Processor#DDR5#13th Gen Intel® Core™ Processor#Windows 10#Edge AI Computing#14th Gen Intel® Core™ Processor#Windows 11#Intel#4K2K Display#1G Ethernet#PCIe x16#Windows#Linux#HDMI#VGA#DP#Multiple Expansion#RoHS Certification#KC Certification#2.5G Ethernet#UKCA Certification
RPS630-R680E/Q670E|Intel®|Industrial Motherboards|DFI
RPS630-R680E/Q670E|Intel®|Industrial Motherboards|DFI
RPS630-R680E/Q670E|Intel®|Industrial Motherboards|DFI
RPS630-R680E/Q670E|Intel®|Industrial Motherboards|DFI
System
Processor
14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W
Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 5.8 GHz); 65W
Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W
Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 5.4 GHz); 65W
Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 5.2 GHz); 35W
Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 5 GHz); 65W
Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 4.8 GHz); 35W
Intel® Core™ I5-14400 (10 Cores, 20M Cache, up to 4.7 GHz); 65W
Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 4.5 GHz); 35W
Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 4.7 GHz); 60W
Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 4.4 GHz); 35W
Intel® 300 (2 Cores, 6M Cache, up to 3.9 GHz); 46W
Intel® 300T (2 Cores, 6M Cache, up to 3.4 GHz); 35W

13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W
Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W
Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W
Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W
Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W
Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W
Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W
Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W
Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W
Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 4.4 GHz); 65W
Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W
Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W

12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W
Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W
Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W
Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W
Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W
Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W
Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W
Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Pentium® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W
Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
Intel® Celeron® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W
Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W
Chipset
[RPS630-R680E] Intel® R680E Chipset
[RPS630-Q670E] Intel® Q670E Chipset
Memory
[RPS630-R680E] Four 288-pin UDIMM up to 192GB (ECC/Non-ECC)
[RPS630-R680E] Dual Channel DDR5 up to 4400 MHz
[RPS630-R680E] *Speed support list follow User’s Manual

[RPS630-Q670E] Four 288-pin UDIMM up to 192GB (Non-ECC)
[RPS630-Q670E] Dual Channel DDR5 up to 4400 MHz
[RPS630-Q670E] *Speed support list follow User’s Manual
BIOS
AMI SPI 256Mbit
Graphics
Controller
Intel® UHD Graphics 700 series
Feature
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
1 x VGA
2 x DP++
1 x HDMI 2.0a

VGA: resolution up to 1920x1200 @ 60Hz
DP++: resolution up to 4096x2304 @60Hz
HDMI: resolution up to 4096x2160 @ 24Hz
Quad Displays
VGA + 2 x DP++ + HDMI
Expansion
Interface
2 x PCIe x16 (Gen 4, 16 or 8+8)
3 x PCIe x4 (Gen 4, open edge)
1 x PCIe x4 (Gen 3, open edge, co-lay M.2-M2, function selected by BIOS.)
1 x PCI
M.2
[RPS630-R680E] 1 x M.2 E key
[RPS630-R680E] 1 x M.2 A key for M2-OOB
[RPS630-R680E] 1 x M.2 M key (PCIe x4 Gen4 NVMe, SATA)
[RPS630-R680E] 1 x M.2 M key (opt. co-lay PCIe x4 Gen3 slot #6, function selected by BIOS.)

[RPS630-Q670E] 1 x M.2 E key
[RPS630-Q670E] 1 x M.2 M key (PCIe x4 Gen4 NVMe, SATA)
[RPS630-Q670E] 1 x M.2 M key (opt. co-lay PCIe x4 Gen3 slot #6, function selected by BIOS.)
Audio
Audio Codec
Realtek ALC888S
Ethernet
Controller
[RPS630-R680E] 1 x Intel® I226-LM (Core i9/i7/i5 support iAMT)
[RPS630-R680E] 1 x Intel® I210-AT (co-lay I226-V)
[RPS630-R680E] 2 x Intel® I226-V

[RPS630-Q670E] 1 x Intel® I226-LM (Core i9/i7/i5 support iAMT)
[RPS630-Q670E] 1 x Intel® I226-V
Rear I/O
Ethernet
[RPS630-R680E] 3 x 2.5GbE (RJ-45)
[RPS630-R680E] 1 x 1GbE (RJ-45, opt. 2.5GbE)

[RPS630-Q670E] 2 x 2.5GbE (RJ-45)
USB
4 x USB 3.2 Gen 2
4 x USB 3.2 Gen 1
Display
1 x VGA
2 x DP++
1 x HDMI
Audio
1 x Line-out
1 x Mic-in
1 x Line-in (opt.)
Internal I/O
Serial
2 x RS-232/422/485
4 x RS-232
USB
[RPS630-R680E] 2 x USB 3.2 Gen1
[RPS630-R680E] 2 x USB 2.0 Vertical Type A

[RPS630-Q670E] 2 x USB 3.2 Gen1
[RPS630-Q670E] 1 x USB 2.0 Vertical Type A
[RPS630-Q670E] 2 x USB 2.0 (2.54mm pitch, Colay vertical Type A, opt.: MOQ required)
Audio
1 x Front Audio
1 x S/PDIF
SATA
4 x SATA 3.0 (up to 6Gb/s)
RAID 0/1/5/10
DIO
4-IN / 8-OUT DIO
SMBus
1 x SMBus
Other I/O
1 x eSPI
PS/2
1 x PS/2 (2.54mm pitch)
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
TPM2.0
Power
Type
ATX
Connector
8-pin ATX 12V power
24-pin ATX power
Consumption
Typical: i9-14900K: 3.3V @ 0.69A (2.28W); 5V @ 0.95A (4.75W); 12V @ 1.26A (15.12W)
Max.: i9-14900K: 3.3V @ 1.2A (3.96W); 5V @ 3.6A (18W); 12V @ 29.02A (348.24W)
RTC Battery
CR2032 Coin Cell
OS Support
Microsoft
Windows 10 IoT Enterprise 64-bit
Windows 11 Enterprise
Linux
Linux
Environment
Temperature
Operating: -5 to 65°C
Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery
Humidity
Operating: 5 to 95% RH
Storage: 5 to 95% RH
MTBF
TBD
Mechanism
Dimensions
ATX Form Factor
305mm (12") x 244mm (9.6")
Height
PCB: 1.6mm
Top Side: 33.3mm, Bottom Side: 4mm
Standards and Certifications
Certifications
CE, FCC Class B, RoHS, UKCA, KC
Packing List
Packing List
1 RPS630 motherboard
1 COM port cables (Length: 300mm, 2 x COM ports)
1 Serial ATA data cable (Length: 500mm)
1 I/O shield A49-RPS310-000G
1 M.2 screw/standoff
Country of Origin
Country of Origin
China
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    RPS630-Q670E
    Part Number :
    770-RPS6301-000G
    Description :
    4 DDR5 UDIMM, 2 2.5GbE, 2 RS-232/422/485, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0, TPM 2.0 (dTPM), Power 24-pin ATX/8-pin ATX 12V, -5 to 65°C
  • Model Name :
    RPS630-R680E
    Part Number :
    770-RPS6301-100G
    Description :
    4 DDR5 UDIMM, 3 2.5GbE, 1 1GbE, 2 RS-232/422/485, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 2 USB 2.0, TPM 2.0 (dTPM), Power 24-pin ATX/8-pin ATX 12V, -5 to 65°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB 2.0 port cable
    Part Number :
    A81-001066-016G
    Description :
    Length: 350/398mm
  • Item Name :
    USB 3.2 Gen1 port cable
    Part Number :
    A81-001052-023G
    Description :
    Length: 320mm
  • Item Name :
    USB 3.2 Gen2 port cable
    Part Number :
    A81-001075-017G
    Description :
    Length: 300mm
  • Item Name :
    COM port cable
    Part Number :
    A81-015026-023G
    Description :
    Length: 300mm, 2 x COM ports
  • Item Name :
    Serial ATA data cable
    Part Number :
    332-553001-005G
    Description :
    Length: 500mm, W/LOCK
  • Item Name :
    Serial ATA data cable
    Part Number :
    A81-002128-017G
    Description :
    Length: 500mm, W/LOCK, 90D
  • Item Name :
    Thermal solution
    Part Number :
    A71-101136-000G
    A71-101137-000G
    A71-101145-000G
    Description :
    For 35W, Height: 29.39mm
    For 65W, Height: 46mm
    For 95W/125W, Height: 110mm
  • Item Name :
    DP to HDMI Dongle
    Part Number :
    612-D2H13M-000G
    Description :
  • Item Name :
    M.2-COM4
    Part Number :
    770-M2COM1-000G
    Description :
    M.2 serial port module
  • Item Name :
    M.2-2LAN
    Part Number :
    770-M22LN2-000G
    Description :
    M.2 LAN port module
  • Item Name :
    M.2-2PSE
    Part Number :
    770-M22PS2-000G
    Description :
    M.2 PSE module
