ADP253|Intel®|Industrial Motherboards|DFI

ADP253
Home Industrial Motherboards 4" SBC ADP253
  • 12th Gen Intel® Core™ Processors
  • On board memory and 1 DDR4 SO-DIMM
  • Multiple Displays: 1 HDMI, 1 VGA/DP, 2 Type-C DP Alt. Mode
  • Supports 4K/2K resolution
  • Multiple Expansion: 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key
  • Rich I/O: 1 Intel 2.5GbE, 2 Intel GbE, 6 COM, 4 USB 3.2, 2 USB 2.0, 1 SATA 3.0
  • Typically supports 10-Year CPU Life Cycle Until Q1’ 32 (Based on Intel IOTG Roadmap), and available for an additional 5 years support under SPS Process.

Status : Launched QUOTE NOW

Fanless Design
4K2K Display
Multiple Expansion
DDR4
Quad Independent Display
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UKCA Certification

ADP253 Related Tags

#12th Gen Intel® Core™ Processor#Windows 10#ADP Series#Windows 11#Fanless Design#4K2K Display#Windows#Linux#HDMI#VGA#DP#Multiple Expansion#DDR4#RoHS Certification#CE Certification#FCC Certification#2.5G Ethernet#UKCA Certification

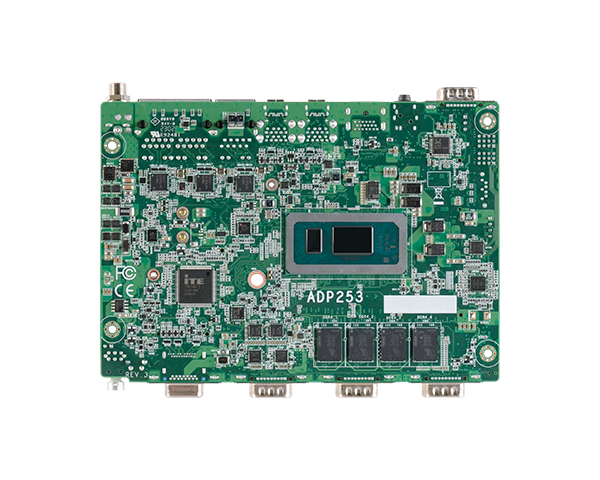

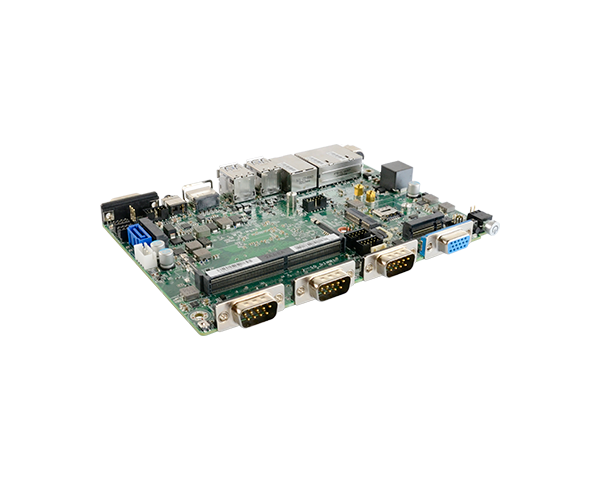

ADP253
ADP253
ADP253
ADP253
ADP253
System
Processor
12th Gen Intel® Core™ Processors, BGA 1744 (Alder Lake-P, 15W)
Intel® Core™ i7-1265UE Processor, 10C12T, 12M Cache, 1.7GHz (4.7GHz)
Intel® Core™ i5-1245UE Processor, 10C12T, 12M Cache, 1.5GHz (4.4GHz)
Intel® Core™ i3-1215UE Processor, 6C8T, 10M Cache, 1.2GHz (4.4GHz)
Intel® Celeron® 7305E Processor, 5C5T, 8M Cache, 1.0GHz
Memory
8GB On-board memory & one SO-DIMM DDR4 up to 32GB
Dual Channel DDR4 3200MHz
BIOS
AMI SPI 256Mbit (Supports UEFI boot only)
Graphics
Controller
Intel® Iris® Xe Graphics
Intel® UHD Graphics
Feature
DirectX 12, Open GL 4.6, Vulkan 1.2
HW Decode: AV1, AVC/H.264, MJPEG, HEVC/H.265, VP9, SCC
HW Encode: MJPEG, AVC/H.264, HEVC/H.265, VP9, SCC
Display
1 x HDMI
1 x VGA/DP (Opt.)
2 x Type-C DP Alt. Mode
HDMI: Resolution up to 4096x2160 @60Hz
VGA: Resolution up to 1920x1200 @60Hz
DP: Resolution up to 4096x2304 @60Hz
Multiple Displays
HDMI + VGA/DP (Opt.) + Type-C DP Alt. Mode + Type-C DP Alt. Mode
Expansion
Interface
1 x M.2 M Key 2280 (PCIex4/SATA)
1 x M.2 B Key 3042/3052 (USB3.0/USB2.0/PCIex1), 1 x SIM slot for 4G/5G
1 x M.2 E Key 2230 (CNVi/PCIex1/USB2.0)
Audio
Audio Codec
Realtek ALC888S
Ethernet
Controller
1 x Intel® I225LM/IT (10/100/1000/2500Mbps)
2 x Intel® I225LM/IT (10/100/1000Mbps)
(Only Core i7/i5 supports iAMT)

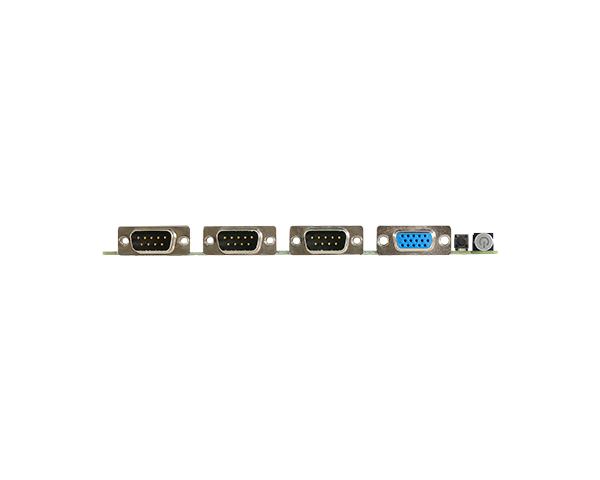

Front I/O
Serial
COM 1 / COM 2: 2 x RS-232/422/485
COM 4: 1 x RS-232
Display
1 x VGA/DP (Opt.)
Buttons
1 x Power Button
1 x Reset Button

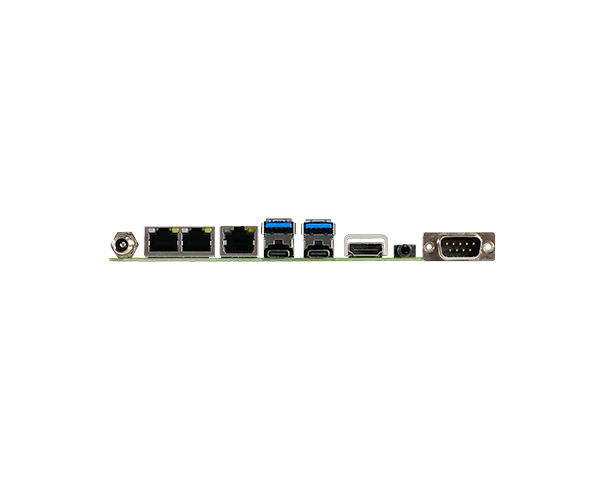

Rear I/O
Ethernet
1 x 2.5GHz (RJ-45) + 2 x GbE (RJ-45)
Serial
COM 3: 1 x RS232 (also supports an optional 8-bit DIO)
USB
4 x USB 3.2
Default: 2 x Type C + 2 x Type A connector
Option: 4 x Type A connector
Display
1 x HDMI
2 x Type-C DP Alt. Mode
Audio
1 x Audio Combo Phone Jack (Line-out/Mic-in)
Internal I/O
Serial
COM 5 / COM 6: 2 x RS-232 (2.0mm pitch, box header)
USB
2 x USB 2.0 (2.0mm pitch, box header)
Audio
1 x Front Audio (Line-out/Mic-in, 2.0mm pitch, box header)
SATA
1 x SATA 3.0 (up to 6Gb/s)
1 x SATA Power (5V/12V)
Other I/O
1 x Front Panel
1 x System Fan Connector (Opt.)
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Discrete TPM 2.0
Power
Type
9~36 VDC input
Connector
One power jack with lock. (Default)
Co-lay 2x2 pin power connector straight type and right angle type
Consumption
TBD
RTC Battery
CR2032 Coin Cell, link mother board with cable
OS Support
Microsoft
Windows 10 IoT Enterprise 64-bit
Windows 11
Linux
Linux
Environment
Temperature
Operating: -5 to 65°C / -30 to 80°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
TBD
Mechanism
Dimensions
4" SBC Form Factor
165mm (6.49") x 115mm (4.53")
Height
PCB: 1.6mm Top Side: 16.34mm, Bottom Side: 3mm
Standards and Certifications
Certifications
CE, FCC, RoHS, UKCA
Packing List
Packing List
• 1 ADP253 board
• 1 Heat sink (Height: 37mm) A71-008349-010G
• 1 Serial ATA data with power cable A81-002008-000G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    ADP253-BCI-80I765UE
    Part Number :
    770-ADP2531-000G
    Description :
    i7-1265UE, 8GB Memory, HDMI + VGA + 2 Type C DP Alt. Mode, 1 2.5GbE, 2 GbE, 6 RS232, 2 RS422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -5~65°C
  • Model Name :
    ADP253-BCI-80I545UE
    Part Number :
    770-ADP2531-100G
    Description :
    I5-1245UE, 8GB Memory, HDMI + VGA + 2 Type C DP Alt. Mode, 1 2.5GbE, 2 GbE, 6 RS232, 2 RS422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -5~65°C
  • Model Name :
    ADP253-BCI-80I315UE
    Part Number :
    770-ADP2531-200G
    Description :
    I3-1215UE, 8GB Memory, HDMI + VGA + 2 Type C DP Alt. Mode, 1 2.5GbE, 2 GbE, 6 RS232, 2 RS422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -5~65°C
  • Model Name :
    ADP253-BCI-80CR05E
    Part Number :
    770-ADP2531-300G
    Description :
    Celeron-7305E, 8GB Memory, HDMI + VGA + 2 Type C DP Alt. Mode, 1 2.5GbE, 2 GbE, 6 RS232, 2 RS422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -5~65°C
  • Model Name :
    ADP253-ECI-80I765UE
    Part Number :
    770-ADP2531-400G
    Description :
    I7-1265UE, 8GB Memory, HDMI + VGA + 2 Type C DP Alt. Mode, 1 2.5GbE, 2 GbE, 6 RS232, 2 RS422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -30~80°C
  • Model Name :
    ADP253-ECI-80I545UE
    Part Number :
    770-ADP2531-500G
    Description :
    I5-1245UE, 8GB Memory, HDMI + VGA + 2 Type C DP Alt. Mode, 1 2.5GbE, 2 GbE, 6 RS232, 2 RS422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -30~80°C
  • Model Name :
    ADP253-ECI-80I315UE
    Part Number :
    770-ADP2531-600G
    Description :
    I3-1215UE, 8GB Memory, HDMI + VGA + 2 Type C DP Alt. Mode, 1 2.5GbE, 2 GbE, 6 RS232, 2 RS422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -30~80°C
  • Model Name :
    ADP253-ECI-80CR05E
    Part Number :
    770-ADP2531-700G
    Description :
    Celeron-7305E, 8GB Memory, HDMI + VGA + 2 Type C DP Alt. Mode, 1 2.5GbE, 2 GbE, 6 RS232, 2 RS422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -30~80°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Power adapter
    Part Number :
    671-112009-100G
    671-106012-000G
    Description :
    120W, 19V
    60W, 12V
  • Item Name :
    USB 2.0 cable
    Part Number :
    A81-001163-018G
    Description :
    Length: 200mm, 2 USB ports
  • Item Name :
    COM cable
    Part Number :
    A81-015115-018G
    Description :
    Length: 250mm, 1 COM por
  • Item Name :
    Front panel cable
    Part Number :
    A81-009307-001G
    Description :
    Length: 250mm
  • Item Name :
    Audio cable
    Part Number :
    A81-022007-016G
    Description :
    Length: 160mm
  • Item Name :
    Heat spreader
    Part Number :
    TBD
    Description :
    Height: 11mm
