ADP968|Intel®|System-On-Modules|DFI

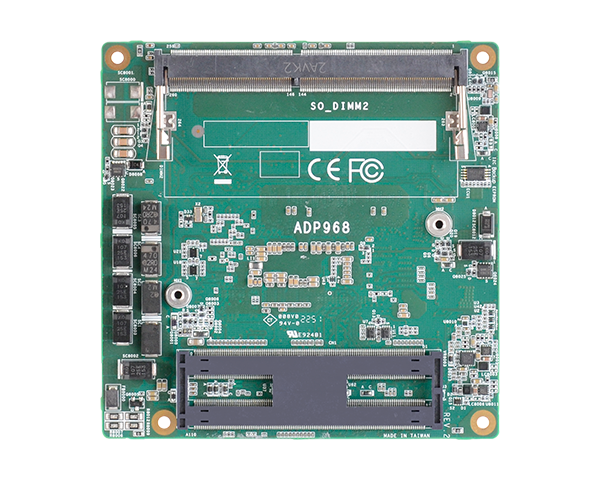

ADP968
Home System-On-Modules COM Express Compact ADP968
  • 12th Generation Intel® Processor COM Express® Compact
  • DDR4 3200MHz SODIMM up to 64GB
  • VGA/DDI + LVDS/eDP + DDI
  • DP++ supports 4K x 2K resolution
  • Multiple expansion: 8 PCIe x1, 1 I2C, 1 SMBus
  • Rich I/O: 1 Intel 2.5GbE, 4 USB 3.2, 8 USB 2.0
  • 15-Year CPU Life Cycle Support Until Q3' 35 (Based on Intel IOTG Roadmap)

Status : Launched QUOTE NOW

Low Power Consumption
Wide-temp: -40°C~85°C
4K2K Display
Multiple Expansion
DDR4
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

ADP968 Related Tags

#12th Gen Intel® Core™ Processor#Edge AI Computing#Slim Bootloader#IoT#Intel#4K2K Display#Windows#Linux#HDMI#VGA#DP#DDR4#RoHS Certification#CE Certification#FCC Certification#2.5G Ethernet
ADP968
ADP968
System
Processor
Intel® Core™ i7-1270PE (4 P-Cores x 1.8 GHz, 8 E-Cores x 1.2 GHz, 18 MB cache, 28W)
Intel® Core™ i5-1250PE (4 P-Cores x 1.7 GHz, 8 E-Cores x 1.2 GHz, 12 MB cache, 28W)
Intel® Core™ i3-1220PE (4 P-Cores x 1.5 GHz, 4 E-Cores x 1.1 GHz, 12 MB cache, 28W)
Intel® Core™ i7-1265UE (2 P-Cores x 1.7 GHz, 8 E-Cores x 1.8 GHz, 12 MB cache, 15W)
Intel® Core™ i5-1245UE (2 P-Cores x 1.5 GHz, 8 E-Cores x 1.1 GHz, 12 MB cache, 15W)
Intel® Core™ i3-1215UE (2 P-Cores x 1.2 GHz, 4 E-Cores x 0.9 GHz, 10 MB cache, 15W)
Intel® Celeron® 7305E (1 P-Core x 1.0 GHz, 4 E-Cores x 0.9 GHz, 8 MB cache, 15W)
Memory
Two 260-Pin SO-DIMM up to 64GB,
Dual Channel DDR4 3200MHz
BIOS
AMI BIOS
Graphics
Controller
Intel® Iris® Xe graphics
Feature
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: WMV9, AVC/H264, JPEG/MJPEG, HEVC/H265, VP9, AV1
HW Encode: AVC/H264,JPEG, HEVC/H265, VP9
Display
1 x VGA
1 x LVDS/eDP (eDP available upon request)
3 x DDI
VGA: resolution up to 1920x1200 @ 60Hz
LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz
eDP: resolution up to 4096x2304 @ 60Hz
HDMI: resolution up to 4096x2160 @ 30Hz
DP++: resolution up to 4096x2304 @ 60Hz
Triple Displays
VGA + LVDS + DDI
DDI + eDP + DDI (available upon request)
Expansion
Interface
2 x PCIe x4 (Gen4 PCH)
5 x PCIex1 (Gen3) (8 x PCIex1 available upon request)
1 x I2C
1 x SMBus
1 x SPI
2 x UART (TX/RX)
Audio
Interface
HD Audio
Ethernet
Controller
1 x Intel® I225 series (10/100/1000Mbps/2.5G)
co-lay PCIe x1 (available upon request)
I/O
USB
4 x USB 3.2 Gen.2
8 x USB 2.0
SATA
2 x SATA 3.0 (up to 6Gb/s)
co-lay PCIe x1 (available upon request)
SSD
1 x 64GB/128GB/256GB/512GB/1024GB on board SSD (available upon request)
DIO
1 x 8-bit DIO
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Available Upon Request
Power
Type
8.5~20V, 5VSB, VCC_RTC (ATX mode)
8.5~20V, VCC_RTC (AT mode)
Consumption
Boot up: Celeron 7305E: 12V @ 1.73A (20.76W);
Idle: Celeron 7305E: 12V @ 1.42A (17.04W);
Max.: Celeron 7305E: 12V @ 2.25A (27W)
OS Support
Microsoft
Windows 10 IoT Enterprise 64-bit
Linux
Linux
Environment
Temperature
Operating: 0 to 60°C, -40 to 85°C
Storage: -40 to 85°C
Humidity
Operating: 10 to 90% RH
Storage: 10 to 90% RH
MTBF
285,252 hrs @ 25°C;
147,603 hrs @ 45°C;
83,116 hrs @ 60°C;
56,825 hrs @ 70°C;
41,232 hrs @ 85°C
Mechanism
Dimensions
COM Express® Compact 95mm (3.74") x 95mm (3.74")
Compliance
PICMG COM Express® R3.1, Type 6
Standards and Certifications
Certifications
CE, FCC, RoHS
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    ADP968-TC06-1265UE
    Part Number :
    770-ADP9681-000G
    Description :
    I7-1265UE, 2 SODIMM, LVDS, LAN, SATA, 4 USB3.2 Gen2, 8 USB 2.0, NVMe 64GB, ATX/AT, Cooler, -40 to 85°C
  • Model Name :
    ADP968-TC00-1245UE
    Part Number :
    770-ADP9681-100G
    Description :
    I5-1245UE, 2 SODIMM, LVDS, LAN, SATA, 4 USB3.2 Gen2, 8 USB 2.0, ATX/AT, Cooler, -40 to 85°C
  • Model Name :
    ADP968-TC00-1215UE
    Part Number :
    770-ADP9681-200G
    Description :
    I3-1215UE, 2 SODIMM, LVDS, LAN, SATA, 4 USB3.2 Gen2, 8 USB 2.0, ATX/AT, Cooler, -40 to 85°C
  • Model Name :
    ADP968-BC00-7305E
    Part Number :
    770-ADP9681-300G
    Description :
    Celeron 7305E, 2 SODIMM eDP, LAN, SATA, 4 USB3.2 Gen2, 8 USB 2.0, ATX/AT, Heatsink, 0 to 60°C

* Remark: The SKU availability is subject to change without notice in advance.

Optional Items
  • Item Name Part Number Description
  • Item Name :
    Heat Spreader
    Part Number :
    A71-808343-000G
    Description :
  • Item Name :
    COM335 Carrier Board Kit
    Part Number :
    770-CM3351-000G
    Description :
