BMAL ｜Intel®｜Industrial Computers｜DFI

BMAL
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Computers Ultra Compact Fanless PC BMAL
  • Support Adaptive Display Platform
  • Supports 24V / 9~48V Power Board Module
  • Accessible 2.5" SATA Drive Bay
  • 12V/24V/48V Ignition Power Control
  • Wide Operating Temperature: -40 to 70°C

Status : Launched QUOTE NOW

Fanless Design
Compact Size
DVI-D
VGA
DP
Wide-temp: -40~70°C
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

BMAL Related Tags

#Mini PCIe#Fanless Design#Compact Size#Windows#Linux#VGA#DP#DDR3L#RoHS Certification#CE Certification#FCC Certification#In-Vehicle
BMAL
BMAL
BMAL

Related Products:

Select All - Clear
System
Processor
Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W
Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W
Memory
One 204-pin SODIMM
up to 8GB Single Channel DDR3L 1866MHz
BIOS
Insyde SPI 128Mbit (supports UEFI boot only)
Graphics
Controller
Intel® HD Graphics
Feature
OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0
HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4
HW Encode: H.264, MPEG2, MPEG4
Display
1 x DP++
1 x VGA or DVI-D (DVI-D available upon request)
DP++: resolution up to 4096x2160 @ 60Hz
VGA: resolution up to 2560x1600 @ 60Hz
DVI-D: resolution up to 1920x1200 @ 60Hz
Triple Displays
Panel Module, DP++, VGA or DVI-D
Storage
External
1 x 2.5" SATA 3.0 Drive Bay (accessible)
1 x mSATA (shared by Half-size Mini-PCIe Socket)
Expansion
Interface
1 x Full-size Mini PCIe (USB/PCIe)
1 x Half-size Mini PCIe (USB/PCIe/mSATA)
1 x SIM Slot
Audio
Audio Codec
Realtek ALC262
Ethernet
Controller
2 x Intel® I210IT PCIe (10/100/1000Mbps)
LED
Indicators
1 x Power LED
1 x HDD LED

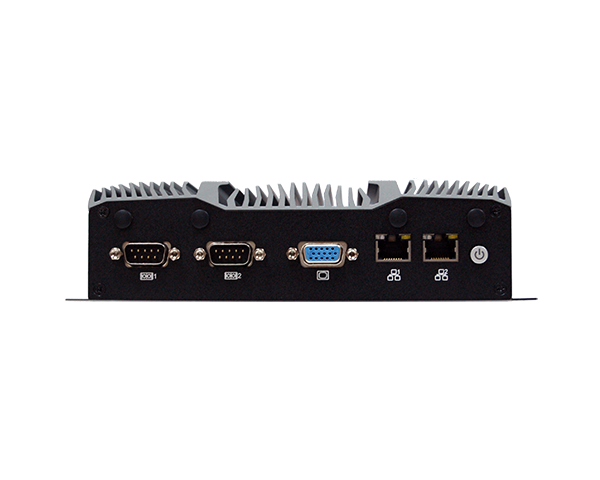

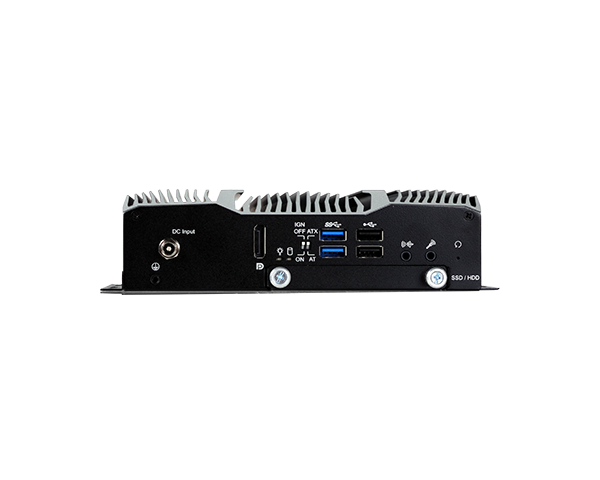

I/O
Ethernet
2 x GbE (RJ-45) (10/100/1000Mbps)
Support Jumbo Frame, IEEE1588v2, WOL, PXE
802.3 af PoE (PSE), Individual Port 15.4W (available upon request)
Serial
2 x RS-232/422/485 (DB9) Support 5V/12V Power
2 x RS-232/422/485 (available upon request)
USB
2 x USB 3.0 (type A)
2 x USB 2.0 (available upon request)
2 x USB 2.0 (type A)
Display
1 x DP++
1 x VGA or DVI-D (DVI-D available upon request)
DIO
4 x DI / 4 x DO (10-pin terminal block) (available upon request)
Buttons
1 x Power Button
1 x Reset Switch
Audio
1 x Line-out 1 x Mic-in
Antennas
4 x Wi-Fi Module Antenna Hole
Power
Remote Power On/Off：
1 x 2-pin Terminal Block
Switch
1 x AT/ATX Switch
1 x Ignition Power On/Off Switch
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
24 VDC Input (available upon request)
9~48 VDC Input (available upon request)
Connector
3-pin Terminal Block
OS Support
OS Support
Windows 10 IoT Enterprise 64-bit
Linux
Environment
Operating Temperature
-40 to 70°C
Standards and Certifications
Certifications
CE / FCC Class A / RoHS
Packing List
Packing List
1 Single box
1 3 pin Terminal Block Connector
1 2 pin Terminal Block Connector
2 Mini PCIe screw
4 SATA screw
Patent
Patent No. (Taiwan)
I670589
Others
Ignition Power On/Off
Auto Detect Boot-up & Shut-down Voltage for Low Power Protection
Support 12V/24V/48V DC Input
7-level Delay Time On/Off Configuration
I/O Switch Selectable Ignition Power On/Off
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Technical Documents
Certifications
Optional Items
  • Item Name Part Number Description
  • Item Name :
    HDD     Part Number :
     785-H25500G
    785-H25320G
    785-S25512G
    785-S25256G
    785-S25128G
    785-S25064G
    785-S25032G     Description :
    2.5" SATA HDD, 500GB, RoHS
    2.5" SATA HDD, 320GB, RoHS
    2.5" SATA SSD, 512GB MLC, RoHS
    2.5" SATA SSD, 256GB MLC, RoHS
    2.5" SATA SSD, 128GB MLC, RoHS
    2.5" SATA SSD, 64GB MLC, RoHS
    2.5" SATA SSD, 32GB MLC, RoHS
  • Item Name :
    mSATA     Part Number :
     785-MS128GMF
    785-MS64GMF
    785-MS32GMF
    785-MS16GMF     Description :
    mSATA mini, 128GB MLC, RoHS
    mSATA mini, 64GB MLC, RoHS
    mSATA mini, 32GB MLC, RoHS
    mSATA mini, 16GB MLC, RoHS
  • Item Name :
    Wi-Fi     Part Number :
     761-110091-000G     Description :
    Wi-Fi Kit, RoHS
  • Item Name :
    Power Card     Part Number :
     785-PWRD     Description :
    Power Cord, Standards (USA/EUR/CH), 1.8m, RoHS
  • Item Name :
    Power Adapter     Part Number :
     671-106013-000G
    671-112005-100G     Description :
    60W: 12VDC/5A, DC Cord 5.5*2.5mm, Pitch 5mm, LV6, RoHS
    120W: 24VDC/5A, DC Cord 5.5*2.5mm, Pitch 5mm, LV6, RoHS
  • Item Name :
    VESA Mount     Part Number :
     761-TPC000-000G     Description :
    ACCESSORY WALL MOUNT KITS

* 785-XXX is a group number instead of a unique part number. Please contact your regional sales representative if you need more information.

100% In-house Boards

With in-house production, it eases the control over manufacturing quality and protects from a risk of fraud and confidentiality issues. KSM070-AL/KSM156-AL is developed based on 100% in-house DFI‘s proprietary motherboard, ensuring lower costs of maintenance by all-in-one design and passes through comprehensive process of quality control.

Rugged Design

Adaptive Display Platform provides outstanding reliability and graphic performance featuring the capability of wide voltage 9~48V DC power input and surviving under extended temperature range from -40°C to 70°C with fanless, anti-vibration, cableless design. These products can operate stably 24/7 under challenging environments like transportation, logistics, aviation, and marine sectors.

Convertible Power Module

DFI KSM-AL/BMAL series are patented with convertible power management module for replacing MCU with onboard Embedded Controller which is cost- efficient and space-saving to achieve Power Ignition (IGN) function supported with delay on/off time management for low voltage power protection. In addition, this series are available with wide voltage power modules including 3 options of 12V, 9~48V, 24V power boards to fulfill different demands in in-vehicle, AGV and industrial automation markets.
