VC500-CMS-MXM｜Intel®｜ Industrial Computers ｜DFI

VC500-CMS-MXM
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Application-Specific System In-vehicle System VC500-CMS-MXM
  • High Performance Fan-less Edge AI In-Vehicle System
  • Supports 10th Gen Intel® Xeon/Core™/Pentium/Celeron Processors
  • 4x M12/RJ45 802.11af PoE or 2x 10G SFP+ Ports
  • Supports MXM GPU module with Four Display Ports
  • 1 miniPCIe and 4 M.2 slots for CAN bus/LTE/5G/WiFi/Storage modules
  • Supports M.2 B key 3042/3052 5G-NR module with dual SIM
  • OOB management support upon request
  • 15-Year CPU Life Cycle Support Until Q1' 34 (Based on Intel IOTG Roadmap)

Status : Preliminary QUOTE NOW

Fanless Design
Mini PCIe
Multiple Expansion
15 Years CPU Life Cycle Support
DDR4
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
FCC Certification
E-Mark (E24) Certification

VC500-CMS-MXM Related Tags

#Edge AI Computing#E-Mark (E24) Certification#Out-Of-Band (OOB)#AI#Intel#SIM Slot#5G#PoE#CAN-Bus#Mini PCIe#Fanless Design#Linux#HDMI#DP#Multiple Expansion#DDR4#FCC Certification#In-Vehicle#10th Gen Intel® Comet Lake Processor
VC500-CMS-MXM｜Intel®｜ Industrial Computers ｜DFI
VC500-CMS-MXM｜Intel®｜ Industrial Computers ｜DFI
VC500-CMS-MXM｜Intel®｜ Industrial Computers ｜DFI
VC500-CMS-MXM｜Intel®｜ Industrial Computers ｜DFI
VC500-CMS-MXM｜Intel®｜ Industrial Computers ｜DFI

Related Products:

Select All - Clear
System
Processor
10th Gen Intel® Xeon/Core™/Pentium/Celeron Processors, LGA 1200 Socket
- Intel® Xeon-1270TE (8 Cores, 16M Cache, up to 2.0/4.4 GHz); 35W
- Intel® Core™ i9-10900TE (10 Cores, 20M Cache, up to 1.8/4.5 GHz); 35W
- Intel® Core™ i7-10700TE (8 Cores, 16M Cache, up to 2.0/4.4 GHz); 35W
- Intel® Core™ i5-10500TE (6 Cores, 12M Cache, up to 2.3/3.7 GHz); 35W
- Intel® Core™ i3-10100TE (4 Cores, 6M Cache, to 2.3/3.6 GHz); 35W
Chipset
Intel® Q470E/W480E Chipset
Memory
Dual SO-DIMM slots (horizontal type) with anti-vibration bracket
Dual Channel DDR4 2933/2666/2400/2133 SDRAM, up to 64GB
ECC support for Xeon-1270TE processor only
BIOS
AMI SPI 256Mbit
Graphics
Controller
Intel® processor integrated or Independent MXM module by BIOS selection
Display
4 x Display Ports with lock holes from MXM
1 x HDMI combo port and 2 x DP++ ports from CPU
Compatible MXM
Type A or B MXM modules: RTX A2000, RTX3000, A500, A1000
Storage
External
2 x swappable 2.5" SATA drive bays with lock on rear panel
Supports RAID 0/1
Internal
1 x M.2 2280 M Key slot, supports 2242, 2260 & 2280 devices
PCIe x4 & SATA signal, support boot up function
Interface
SATA
Audio
Audio Codec
ALC 888
Interface
1 x Mic-in
1 x Line-in
Ethernet
Controller
1 x Intel® i219LM with iAMT11.0 support (Core i7/i5 only)
1 x Intel® i210IT
LED
Indicators
1 x Storage Activity (Red)
1 x Power (Green)
2 x Programmable general purpose (Green, Blue)
Front I/O
Ethernet
2 x RJ45 GbE ports
Serial
1 x DB-9 RS232 ports (COM 5)
USB
4 x USB 3.1 Gen2
Audio
1 x Line-out, 1 x Mic-in and 1x Line-in with 3.5mm audio jacks
DIO
2 x Isolated DIO port by 2 x DB-15 female connectors
Supports 8bit DI & 8 bit DO with 2KV isolation
Antenna
2 x antenna holes
DC in
W3 3 pin connector
OOB
Optional RJ45 port for OOB management
PoE/ 10G

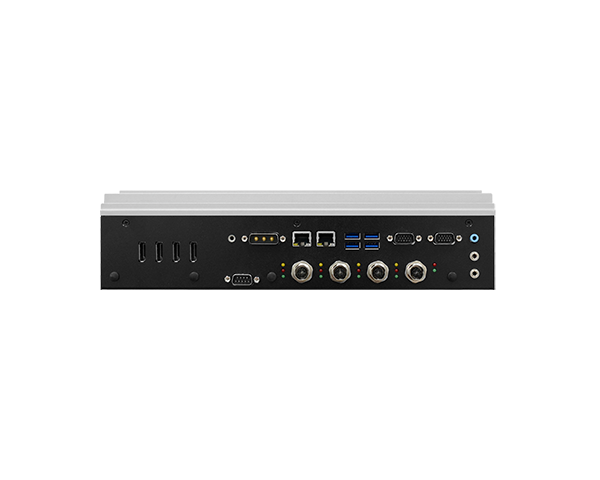

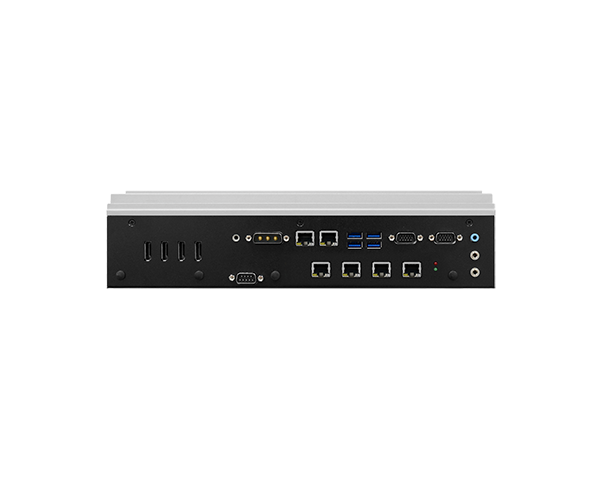

4 x 802.11af PoE ports at RJ45 or M12 X-coded connectors, max 15.4W (PSE side) or

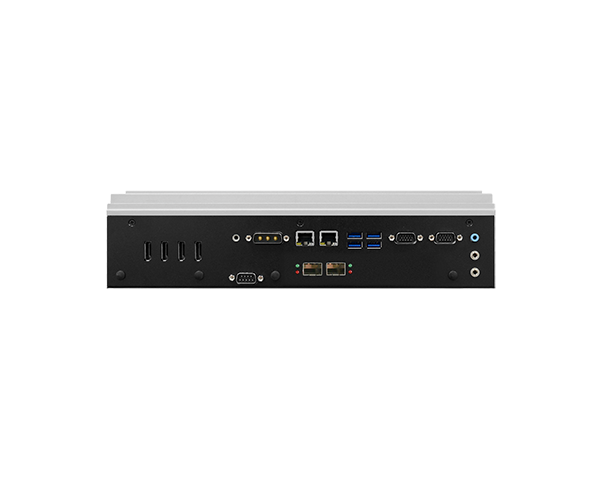

2 x 10G fiber ports at SFP+ cage based on Intel X710-BM2 Ethernet controller

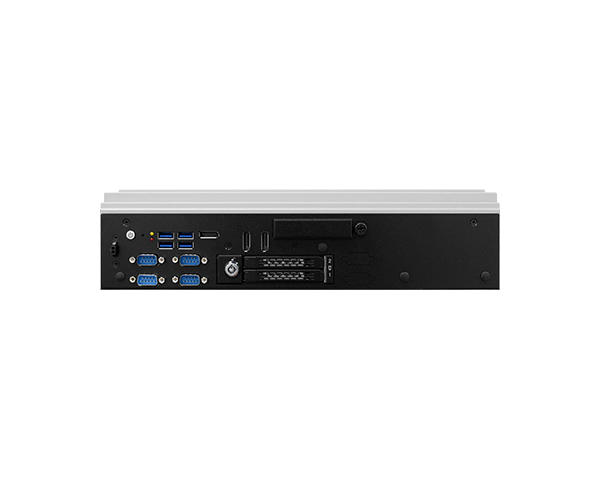

Rear I/O
Serial
4 x DB-9 RS232/422/485 ports by BIOS selection (COM 1/2/3/4)
USB
4 x USB 3.1 Gen2
Display
4 x Display Ports with lock holes from MXM
1 x DP++/HDMI combo port and 2 x DP++ ports from CPU
Buttons
1 x Power Button
1 x Reset Button
Switch
2-pin remote switch
Antenna
2 x antenna holes
SIM
3 x accessible SIM slots with cover bracket
CANBus
2 x DB-9 ports for CAN bus (optional)
Flank I/O
Antenna Hole
2 x antenna holes on right side
2 x antenna holes on left side
Internal I/O
Serial
1 x 2x5 pin block header for RS232
Mini PCIe
1 x mini PCIe slot with SIM holer on faceplate
Supports WiFi/BT/LTE or CAN bus module
M.2
Total 3 x M.2 slots
1 x 2230 E-key slot (PCIe x1 & USB2.0)
1 x 3042/3052 B-Key (USB3.0 & PCIex1) with dual SIM slots on faceplate
1 x 2242/2280 M-Key-slot (PCIe gen3 x4 & SATA) supporting Intel® Optane memory (Both of the M10 and H10) and NVMe
Cooling
Fan
Passive cooling by default
Optional Fan cooling upon request
Security
TPM
Supports dTPM2.0 by default (disabled by BIOS setting)
Optional fTPM2.0 supported
Hardware Monitor
Gravity Sensor
Support 3-axis femto accelerometer
User-selectable ±2g/±4g/±8g/±16g scale
Supports 6D/4D orientation detection, Free-fall detection, Motion detection and leep-towake
and return-to-sleep
Power
Type
3pin 3W3 connector
Supply
Wide Range 9~50VDC with power management (on/off delay) and ignition
OS Support
Microsoft
Windows 10 IoT Enterprise RS5
Windows 11 IoT Enterprise LTSC SW
Linux
Ubuntu Linux 20.04
Environment
Operating Temperature
-20°C to 60°C
without turbo boost and throttling is expected
Storage Temperature
-40°C to 85°C
Relative Humidity
10% to 95% (non-condensing)
Mechanism
Construction
Metal + Aluminum
Mounting
Wall mount
Dimensions (W x H x D)
346mm x 87.55 mm x 221mm
Weight
6.95 Kg
Color
Black and Silver
Standards and Certifications
Shock
MIL-STD-810G Method 516.6, Procedure 1, OP:10G 11ms, Non-OP: 40G 11ms (Test by
SSD, HDD is not support)
Vibration
MIL-STD-810G Method 514.6C-3, Category 4 Composite wheeled vehicle Table 514.6C-VI
Certifications
FCC, E-Mark
Packing List
Packing List
1 VC500-CMS-MXM system unit
1 Power connector
1 Mounting bracket
1 3W3 adaptor cable
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Technical Documents
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    VC500-CMS-MXM-10G-Q     Part Number :
     750-VC50000-400G     Description :
    Intel® Q470E Chipset, 8 USB 3.1, 1 DI, 1 DO, 2 10GLAN, 1 MXM slot, Power: 3pin 3W3 connector
  • Model Name :
    VC500-CMS-MXM-POE-Q     Part Number :
     750-VC50000-500G     Description :
    Intel® Q470E Chipset, 8 USB 3.1, 1 DI, 1 DO, 4 (RJ45) POE, 1 MXM slot, Power: 3pin 3W3 connector
  • Model Name :
    VC500-CMS-A1000-POE-Q-i70     Part Number :
     750-VC50000-510G     Description :
    Intel® Core™ i7-10700TE, Intel® Q470E Chipset, 8 USB 3.1, 1 DI, 1 DO, 4 (RJ45) POE, 1 MXM-A1000 slot, Power: 3pin 3W3 connector
Optional Items
  • Item Name Part Number Description
  • Item Name :
    2.5" SSD     Part Number :
     785-S251TBG
    785-S25512G
    785-S25256G
    785-S25128G     Description :
    2.5" SATA SSD, 1TB MLC, -40 to 85°C, RoHS
    2.5" SATA SSD, 512GB MLC, -40 to 85°C, RoHS
    2.5" SATA SSD, 256GB MLC, -40 to 85°C, RoHS
    2.5" SATA SSD, 128GB MLC, -40 to 85°C, RoHS
  • Item Name :
    M.2 SATA SSD     Part Number :
     785-M2SATA64G
    785-M2SATA128G
    785-M2SATA256G
    785-M2SATA512G     Description :
    64GB, M.2 2280 SSD, SATA3 B+M Key, MLC, Wide Temp.
    128GB, M.2 2280 SSD, SATA3 B+M Key, MLC, Wide Temp.
    256GB, M.2 2280 SSD, SATA3 B+M Key, MLC, Wide Temp.
    512GB, M.2 2280 SSD, SATA3 B+M Key, 3D TLC, PE: 3K, 30u” -20~75°C
  • Item Name :
    Memory     Part Number :
     138-540002-121G
    138-580004-104G     Description :
    4GB DDR4 2666Mhz SO-DIMM, -40 to 85°C
    8GB DDR4 2666Mhz SO-DIMM 1Rx8 IND 1Gx8 CL19 1.2V
  • Item Name :
    WiFi/BT module kit     Part Number :
     761-AP1235-000G     Description :
    WiFi/Bluetooth Module AP12356, antenna *2, 200mm SMA cables*2, Mini PCIe Bracket, screws
  • Item Name :
    LTE module kit     Part Number :
     761-RC3000-001G     Description :
    Quectel EG25GGB CAT4 miniPCIe module, antenna*2, 300mm SMA cables*2
  • Item Name :
    5G module kit     Part Number :
     761-RC3000-100G     Description :
    SIM8202G-M2 M.2 module, antenna*4, 184mm SMA cables *4
  • Item Name :
    M12 Cable     Part Number :
     A81-005038-054G     Description :
    8-pin M12 X-coded to RJ45 PoE cable
  • Item Name :
    CAN bus module     Part Number :
     770-MPEC21-100G     Description :
    MPE-CAN2 MiniPCIe Full CAN Module Card Asssembly
  • Item Name :
    Power Switch Cable     Part Number :
     A81-004363-054G     Description :
    3W3 to terminal block 2*4P/4.2mm, L=250 & 300mm with ignition switch button
  • Item Name :
    Power Adapter     Part Number :
     671-133001-000G     Description :
    330W, GST360A, Input: 85~264V, Output: 12V/27.5A, 220x95x46mm, L=1000mm, C8P, LV6, 62368-1, GST360A12-C8P(MEAN WELL)RoHS
