KIT-M8M Series|NXP|Industrial Panel PCs & Displays|DFI

KIT-M8M Series
Home Industrial Panel PCs & Displays Open Frame Panel PC KIT-M8M Series
  • NXP i.MX 8M Processor
  • Open Frame Designed Panel PC
  • Touch Screen: P-Capacitive Touch supports 10 points
  • LPDDR4-3200 2GB plus 16GB eMMC on board
  • Multiple Expansion: M.2 2230 E Key and 3042/2242 B Key
  • Easy Integration: Easy installation and maintenance
  • ARM-Based System: Support Android9.0 and Yocto4.3

Status : Launched QUOTE NOW

Fanless Design
1G Ethernet
Linux
Android
Multiple Expansion
LPDDR4
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

KIT-M8M Series Related Tags

#LPDDR4#NXP#ARM#Fanless Design#1G Ethernet#Linux#Android#Multiple Expansion#RoHS Certification#CE Certification#FCC Certification#NXP i.MX 8M

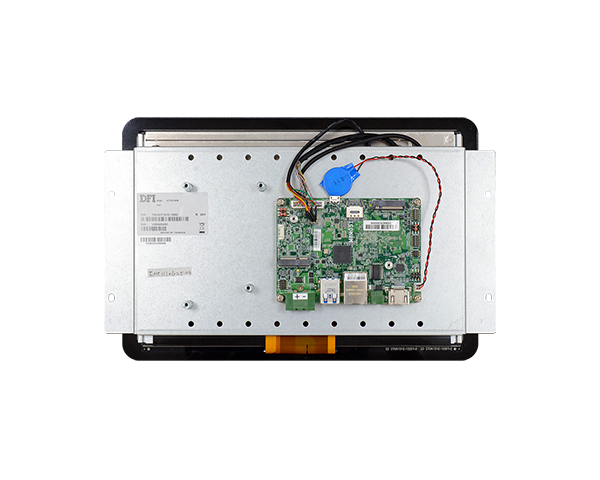

KIT-M8M Series|NXP|Industrial Panel PCs & Displays|DFI

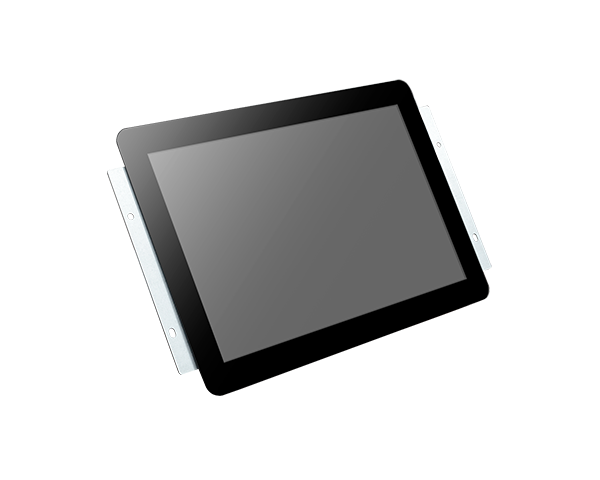

KIT-M8M Series|NXP|Industrial Panel PCs & Displays|DFI

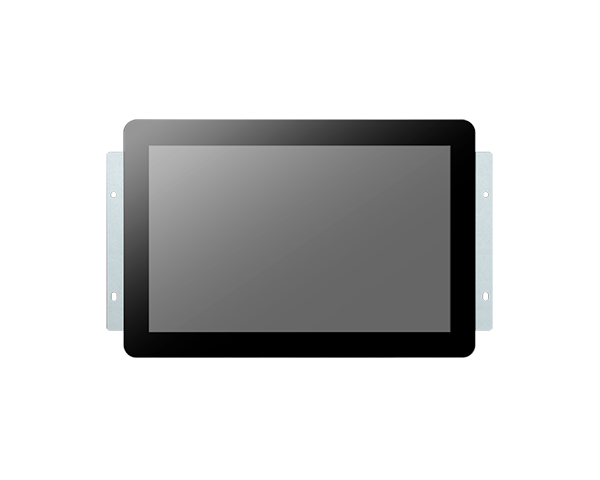

KIT-M8M Series|NXP|Industrial Panel PCs & Displays|DFI
KIT-M8M Series|NXP|Industrial Panel PCs & Displays|DFI
KIT-M8M Series|NXP|Industrial Panel PCs & Displays|DFI

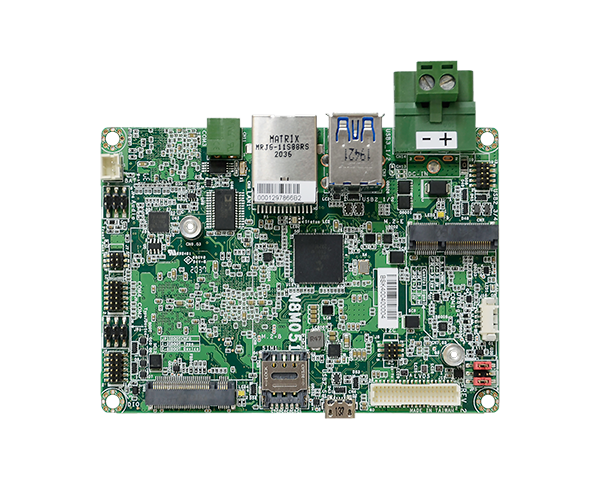

M8M051|NXP|Industrial Motherboards|DFI
M8M051|NXP|Industrial Motherboards|DFI
System
Processor
NXP i.MX 8M Dual/Quad Cortex-A53, 1.5GHz
Memory
2GB Memory on board, Single channel LPDDR4 up to 3200MHz
Display and Touch Screen
Brightness
500 cd/m²
Backlight Lifetime
[KIT070P-M8M]40,000 hours
[KIT101P-M8M]50,000 hours
[KIT121P-M8M]30,000 hours
Max. Resolution
[KIT070P-M8M]800 x 480
[KIT101P-M8M]1280 x 800
[KIT121P-M8M]1024 x 768
Touch Type
Projected Capacitive Touch supports 10 points
Size/Type
[KIT070P-M8M]7" TFT LCD
[KIT101P-M8M]10.1" TFT LCD
[KIT121P-M8M]12.1" TFT LCD
Aspect Ratio
[KIT070P-M8M]16 : 9
[KIT101P-M8M]16 : 10
[KIT121P-M8M]4 : 3
Storage
eMMC
16GB eMMC on board
Expansion
Interface
1 x M.2 B key 3042/2242 (USB3.1 Gen1)
1 x M.2 E key 2240 (PCIex1 / USB2.0)
I/O
Ethernet
1 x GbE RJ45
Serial
1 x RS485
USB
2 x USB3.1 Gen1 Type A
1 x Micro USB2.0
Power
Type
VDC 12V input / VDC 9-48V input (by optional)
Connector
2-poles Terminal Block
OS Support
Linux
Yocto 4.3
Android
Android 9.0
Environment
Operating Temperature
0~50°C with 0.6m/s air flow
Storage Temperature
-30~80°C
Relative Humidity
5 to 90% RH (non-condensing)
Mechanism
Dimensions
[KIT070P-M8M]203 x 118 x 39.09 (mm)
[KIT101P-M8M]279.1 x 172.95 x 43.6 (mm)
[KIT121P-M8M]312.9 x 226.25 x 45.2 (mm)
Weight
[KIT070P-M8M]0.7 Kg
[KIT101P-M8M]1.0 Kg
[KIT121P-M8M]1.1 Kg
Standards and Certifications
Certifications
CE / FCC Class A / RoHS
Packing List
Packing List
1 x Single Box
1 x 2-pin Terminal Block Connector
2 x M2 Screw
1 x Terminal block for RS485
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    KIT070P-M8M
    Part Number :
    750-KIT0700-000G
    Description :
    KIT070P-M8M: 7" TFT WVGA Open frame Panel PC; NXP i.MX 8M Dual Cortex-A53, 2GB LPDDR4, 16GB eMMC, PCAP touch, F/G SYSTEM RoHS
  • Model Name :
    KIT070P-M8M
    Part Number :
    750-KIT0700-100G
    Description :
    KIT070P-M8M: 7" TFT WVGA Open frame Panel PC; NXP i.MX 8M Quad Cortex-A53, 4GB LPDDR4, 16GB eMMC, PCAP touch, F/G SYSTEM RoHS
  • Model Name :
    KIT101P-M8M
    Part Number :
    750-KIT1010-000G
    Description :
    KIT101P-M8M: 10.1" TFT WXGA Open frame Panel PC; NXP i.MX 8M Dual Cortex-A53, 2GB LPDDR4, 16GB eMMC, PCAP touch, F/G SYSTEM RoHS
  • Model Name :
    KIT101P-M8M
    Part Number :
    750-KIT1010-100G
    Description :
    KIT101P-M8M: 10.1" TFT WXGA Open frame Panel PC; NXP i.MX 8M Quad Cortex-A53, 4GB LPDDR4, 16GB eMMC, PCAP touch, F/G SYSTEM RoHS
  • Model Name :
    KIT121P-M8M
    Part Number :
    750-KIT1210-000G
    Description :
    KIT121P-M8M: 12.1" TFT XGA Open frame Panel PC; NXP i.MX 8M Dual Cortex-A53, 2GB LPDDR4, 16GB eMMC, PCAP touch, F/G SYSTEM RoHS
  • Model Name :
    KIT121P-M8M
    Part Number :
    750-KIT1210-100G
    Description :
    KIT121P-M8M: 12.1" TFT WVGA Open frame Panel PC; NXP i.MX 8M Quad Cortex-A53, 4GB LPDDR4, 16GB eMMC, PCAP touch, F/G SYSTEM RoHS
Optional Items

* TBD
