IDP-ME Series|Industrial Panel PCs & Displays|DFI

IDP-ME Series
Home Industrial Panel PCs & Displays Industrial Display & Touch Display IDP-ME Series
  • Touch Type: Projected Capacitive Support 10 points Multi-Touch
  • IP Rating: IP65 Front Panel
  • Support 2 Signal Interfaces: VGA/HDMI
  • Operating Temperature: 0°C ~ 50°C

Status : Preliminary QUOTE NOW

IP65 Front Panel Protection
HDMI
VGA
12V DC-in
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
CE Certification
FCC Certification

IDP-ME Series Related Tags

#IDP Series#IP65 Front Panel Protection#HDMI#VGA#12V DC-in#CE Certification#FCC Certification
IDP170-ME
IDP170-ME
IDP170-ME
IDP170-ME
IDP170-ME
IDP150-ME
IDP150-ME
IDP150-ME
IDP150-ME
IDP150-ME
Display and Touch Screen
Display
[IDP150-RTL]15" TFT LCD
[IDP170-RTL]17" TFT LCD
[IDP190-RTL]19" TFT LCD
Brightness
[IDP150-RTL]300 nits (without Touch screen)
[IDP170-RTL]250 nits (without Touch screen)
[IDP190-RTL]250 nits (without Touch screen)
Contrast
[IDP150-RTL]2500:1
[IDP170-RTL]1000:1
[IDP190-RTL]1000:1
View Angle
[IDP150-RTL]176(H) / 176(V)
[IDP170-RTL]170(H) / 160(V)
[IDP190-RTL]170(H) / 160(V)
Backlight Lifetime
[IDP150-RTL]50,000 Hrs
[IDP170-RTL]30,000 Hrs
[IDP190-RTL]30,000 hrs (Min.)
Max. Resolution
[IDP150-RTL]1024 x 768
[IDP170-RTL]1280 x 1024
[IDP190-RTL]1280 x 1024
Touch Type
Projected Capacitive Support 10 points Multi-Touch
Color Depth
Color Depth: 8 bits
Display Colors: 16.7M
Audio
Speaker
2 x 2W Speakers (option)
I/O
USB
USB Type A
Display
VGA: 1 x VGA
DVI: 1 x DVI (option)
HDMI: 1 x HDMI 1.2
Audio
Audio: 1 x Audio
Input ports
Power Input: 1 x DC Jack
Power
Type
AC Input
12V DC-IN
Consumption
Typical: 30W, normal operation
Environment
Humidity
20% to 80% non-condensing
Operating Temperature
0°C ~ 50°C
Storage Temperature
-10°C ~ 60°C
Mechanism
Construction
Aluminum front Frame
Metal back-cover

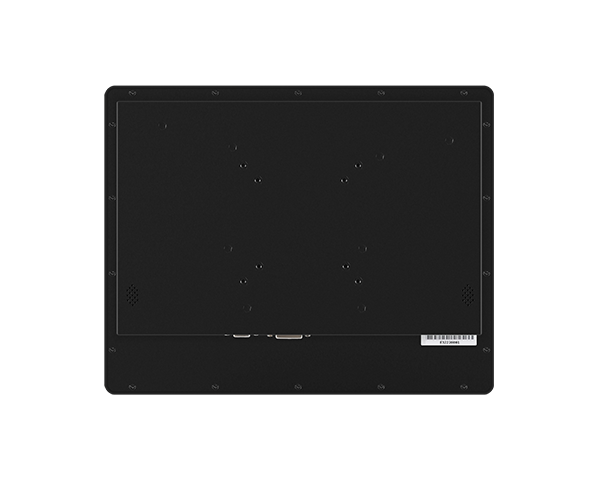

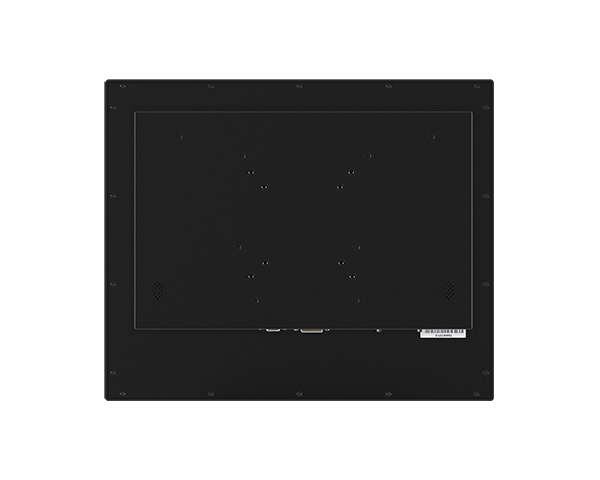

Mounting
VESA mount
75 x 75mm & 100 x100mm
Dimensions (W x H x D)
[IDP150-RTL]358.7 x 281.7 x 55 mm
[IDP170-RTL]399.6 x 331 x 57 mm
[IDP190-RTL]TBD
Weight
[IDP150-RTL]5 kg
[IDP170-RTL]6 kg
[IDP190-RTL]TBD
Color
Black
Standards and Certifications
Certifications
CE / FCC Class A
IP Rating
IP65 Front Panel
Packing List
Packing List
1 VGA cable
1 USB cable
1 Power Adapter
1 Power code
Others

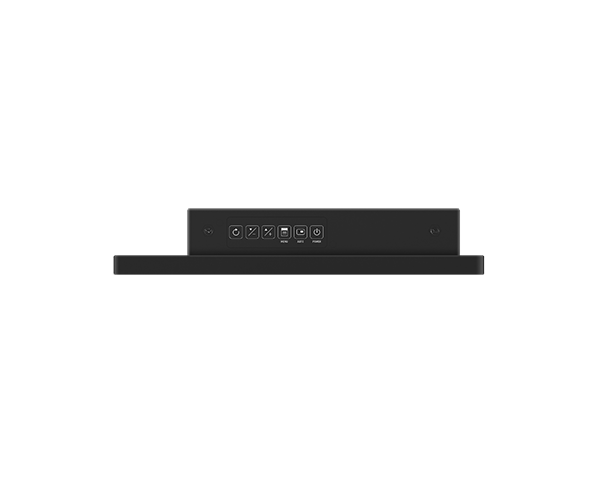

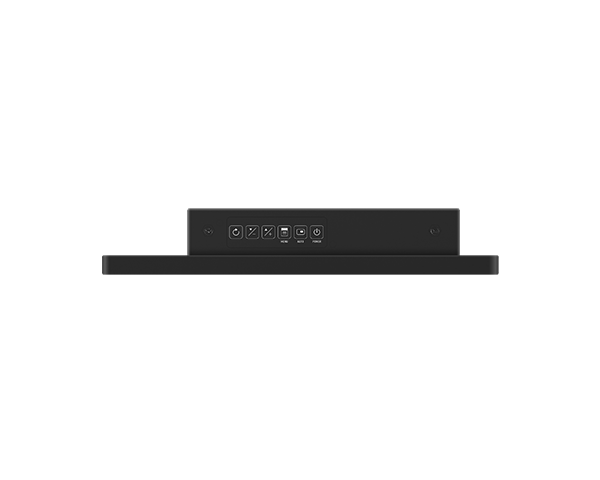

OSD Keypad
5 x Control buttons on the rear side
Power Auto Up Down Menu
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    IDP150-RTL
    Part Number :
    790-IDP150-100G
    Description :
    IDP150-RTL: 15" TFT Monitor with Projected Capacitive Touch, 300nits, VGA/HDMI, DC Jack , F/G RoHS
  • Model Name :
    IDP170-RTL
    Part Number :
    790-IDP170-100G
    Description :
    IDP170-RTL: 17" TFT Monitor with Projected Capacitive Touch, 300nits, VGA/HDMI, DC Jack , F/G RoHS
  • Model Name :
    IDP190-RTL
    Part Number :
    790-IDP190-000G
    Description :
    IDP190-RTL: 19" TFT Monitor with Projected Capacitive Touch, 300nits, VGA/HDMI, DC Jack , F/G RoHS
Optional Items

* TBD
