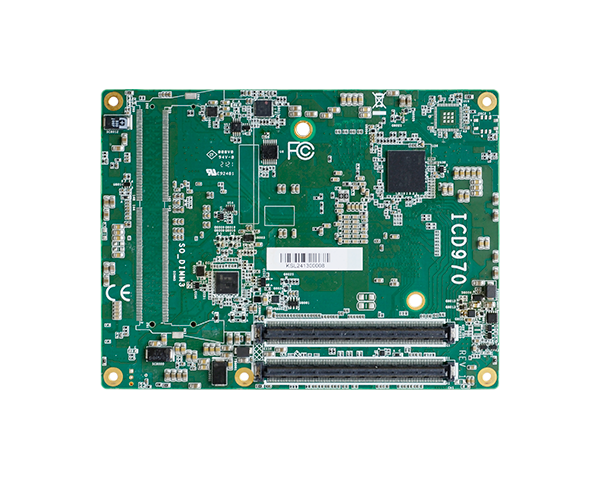

ICD970
Home System-On-Modules COM Express Basic ICD970
  • 3rd Gen Intel® Xeon® Processor D-1700 Family
  • Default 2 260-pin DDR4 2666 SO-DIMM, dual channel mode up to 64GB, 3rd DIMM by request(SDPC mode by request to support DDR4 2933MHz)
  • Support extended operating temperature: -40 to 85°C
  • 10GBASE-KR: Support up to 4 x 10GbE Mac ports
  • Multiple Expansion: 1 PCIe x16 (Gen4), 2 PCIe x8 (Gen3), 1 SMBus, 1 I2C, 1 LPC, 2 UART (TX/RX)
  • Rich I/O: 2 Intel GbE, 4 USB 3.0, 4 USB 2.0, 2 SATA 3.0
  • 15-Year CPU Life Cycle Support Until Q1' 37 (Based on Intel IOTG Roadmap)

Status : Launched QUOTE NOW

Wide-temp: -40°C~85°C
PCIe x16
ECC Memory
Multiple Expansion
10G Ethernet
DDR4
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

ICD970 Related Tags

#Edge AI Computing#Slim Bootloader#IoT#Intel#5G#Fanless Design#PCIe x16#Windows#Linux#Multiple Expansion#10G Ethernet#DDR4#RoHS Certification#CE Certification#FCC Certification#High-Performance#Medical#Intel® 3rd Gen Xeon Ice Lake-SP Processor
ICD970
ICD970
System
Processor
3rd Gen Intel® Xeon® Scalable Processors D-1700 Family
Intel® Xeon® D-1746TER Processor, 10 Cores, 15MB Cache, 2.0GHz, 67W
Intel® Xeon® D-1735TR Processor, 8 Cores, 15MB Cache, 2.2GHz, 59W
Intel® Xeon® D-1732TE Processor, 8 Cores, 15MB Cache, 1.9GHz, 52W
Intel® Xeon® D-1715TER Processor, 4 Cores, 10MB Cache, 2.4GHz, 50W
Intel® Xeon® D-1712TR Processor, 4 Cores, 10MB Cache, 2.0GHz, 40W
Memory
Default 2 260-pin DDR4 2666 SO-DIMM, dual channel mode up to 64GB
3rd DIMM by request
(SDPC mode by request to support DDR4 2933MHz)
BIOS
Insyde SPI 512Mbit
Expansion
Interface
Default:
B1: 1 x PCIe x8 or 2 x PCIe x4 or 4x PCIe x2 (Gen 3)
B2: 1 x PCIe x8 or 2 x PCIe x4 or 4x PCIe x2 (Gen 3)
B3/B4: 1 x PCIe x16 or 2 x PCIe x8 or 4x PCIe x4 (Gen 4)
1 x LPC
1 x I2C
1 x SMBus
2 x UART (TX/RX)
Ethernet
Controller
Supports up to 4 x 10GBASE-KR interfaces and max up to 4 x 10GbE MAC ports (maximum bandwidth 40Gb by activating the 4 x 10GbE at the same time)
1 x Intel® I210AT (10/100/1000Mbps) (0 to 60°C) or
1 x Intel® I210IT (10/100/1000Mbps) (-40 to 85°C)
I/O
USB
4 x USB 3.0
4 x USB 2.0
SATA
2 x SATA 3.0 (up to 6Gb/s)
DIO
1 x 8-bit DIO (4 in, 4 out)
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Default TPM2.0, fTPM by request
Power
Type
12V, 5VSB, VCC_RTC (ATX mode)
12V, VCC_RTC (AT mode)
Consumption
Typical: 71.36W
Max: 72.36W
OS Support
Microsoft
Windows Server 2019, 2022
Linux
Ubuntu 20.04, CentOS 7.5
Environment
Temperature
Operating: 0 to 60°C, -40 to 85°C
Storage: -40 to 85°C
Humidity
Operating: 5 to 90% RH
Storage: 5 to 90% RH
MTBF
277,731hrs @25°C; 144,676hrs @45°C; 81,589hrs @60°C; 55,811hrs @70°C; 37,526 @85°C
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled
Mechanism
Dimensions
COM Express® Basic
95mm (3.74") x 125mm (4.9")
Compliance
PICMG COM Express® R3.0, Type 7
Standards and Certifications
Certifications
CE, FCC, RoHS
Packing List
Packing List
1 ICD970 board
1 Cooler (Height: 47.80 mm) 0 to 60°C: TBD / -40 to 85°C: TBD
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    ICD970-TS-1746
    Part Number :
    770-ICD9701-000G
    Description :
    Intel® Xeon® D-1746TER (67W), eMMC 16GB, TPM 2.0, Termal: Cooler, Operating temp.: -40~85°C
  • Model Name :
    ICD970-BS-1712
    Part Number :
    770-ICD9701-100G
    Description :
    Intel® Xeon® D-1712TR (40W), eMMC 16GB, TPM 2.0, Termal: Cooler, Operating temp.: 0~60°C
  • Model Name :
    ICD970-TS-1715
    Part Number :
    770-ICD9701-200G
    Description :
    Intel® Xeon® D-1715TER (50W), eMMC 16GB, TPM 2.0, Thermal: Cooler, Operating temp.: -40~85°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    COM336 carrier board kit
    Part Number :
    770-COM3361-000G
    Description :
  • Item Name :
    Heat spreader
    Part Number :
    A71-808352-000G
    Description :

Working with DFI

DFI’s Customization Services (DCS) comes with full support and industry expertise from a dedicated team to provide you exclusive services in design, production, warranty, repairs, and life cycle management. In order to make the project as easy as possible for you, DFI will closely work with you to learn your design requirements and offer real-time technical support as you develop the solution to reduce your development cost and effort.

Get Started
