DT200-CS|Intel®|Industrial Computers|DFI

DT200-CS
Home Industrial Computers AI Inference/Training System DT200-CS
  • 8th/9th Generation Intel® Core™ Processors
  • Multiple displays: 4 DP (from MXM), 1 HDMI (auto-detection)
  • AI accelerated: up to 115W GPU MXM module supported
  • Support M.2 B key 3052 5G cellular module
  • Rich I/O connectivity: 4 LAN, 4 USB 3.1, 6 USB 2.0, 2 COM
  • 15-Year CPU Life Cycle Support Until Q2' 34 (Based on Intel IOTG Roadmap)

Status : Launched QUOTE NOW

4K2K Display
Windows
Linux
Multiple Expansion
19V DC-in
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification

DT200-CS Related Tags

#Edge AI Computing#MXM#Intel#5G#4K2K Display#Windows#Linux#HDMI#DP#Multiple Expansion#19V DC-in#DDR4#RoHS Certification#CE Certification#FCC Certification#High-Performance
DT200-CS
DT200-CS
DT200-CS
System
Processor
Intel® Core i7-9700E Processor (Core 8; Max speed 4.4 GHz; TDP 65W)
Intel® Core i7-9700TE Processor (Core 8; Max speed 3.8 GHz; TDP 35W)
Intel® Core i5-9500E Processor (Core 6; Max speed 4.2 GHz; TDP 65W)
Intel® Core i5-9500TE Processor (Core 6; Max speed 3.6 GHz; TDP 35W)
Intel® Core i3-9100E Processor (Core 4; Max speed 3.7 GHz; TDP 65W)
Intel® Core i3-9100TE Processor (Core 4; Max speed 3.2 GHz; TDP 35W)
8th Generation Intel® Core™ Processors, LGA 1151 Socket, TDP up to 65W
Intel® Core™ i7-8700 Processor (Core 6; Max speed 4.6 GHz; TDP 65W)
Intel® Core™ i7-8700T Processor (Core 6; Max speed 4.0 GHz; TDP 35W)
Intel® Core™ i5-8500 Processor (Core 6; Max speed 4.1 GHz; TDP 65W)
Intel® Core™ i5-8500T Processor (Core 6; Max speed 3.5 GHz; TDP 35W)
Intel® Core™ i3-8100 Processor (Core 4; Max speed 3.6 GHz; TDP 65W)
Intel® Core™ i3-8100T Processor (Core 4; Max speed 3.1 GHz; TDP 35W)
Intel® Pentium® G5400 Processor (Core 2; Max speed 3.7 GHz; TDP 58W)
Intel® Celeron® G4900 Processor (Core 2; Max speed 3.1 GHz; TDP 54W)
Chipset
Intel® H310/Q370 Chipset
Memory
DDR4 2400/2666MHz up to 64GB
BIOS
AMI SPI 128Mbit (supports UEFI/Legacy mode)
Graphics
Controller
Intel® UHD Graphics 630 (Pentium® G5400 and Celeron® G4900 support Intel® UHD Graphics 610)
Feature
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
Display
4 x DP (from MXM)
1 x HDMI (auto-detection)
DP: resolution up to 4096x2304@60Hz
HDMI: resolution up to 4096x2160@30Hz
AI Accelerator
Interface
1 x MXM 3.1 slot, Type-A/B up to 110W
Storage
External
1 x SATA III connector with 1 x 2.5” SSD tray
(if selecting I.O expansion with 6 USB 2.0, there is only 1 x SSD tray)
Internal
1 x M.2 M key supports 2242/2280 slot (PCIe Gen3 x4/SATA)
Expansion
Interface
1 x M.2 M key supports 2242/2280 slot (PCIe Gen3 x4/SATA)
1 x M.2 B key supports 3052 slot (PCIe x1/USB3.1 Gen1)
1 x M.2 E key supports 2230 slot (PCIe x1/USB2.0)
Audio
Audio Codec
5.1 CH Audio Codec:Realtek ALC888S-VD2-GR
Ethernet
Controller
1 x Intel I219LM for Q370 / I219V for H310
3 x Intel I210AT
LED
Indicators
1 x PWD LED
1 x HDD LED

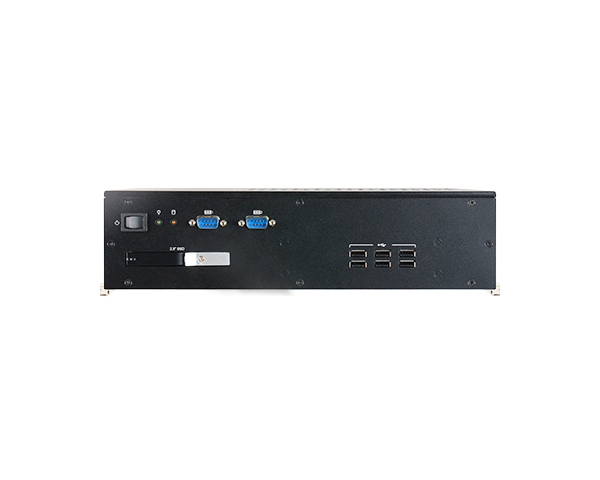

Front I/O
Serial
2 x RS232
USB
6 x USB2.0
Audio
1 x Line-out
1 x Mic-in
Buttons
1 x Power button
Rear I/O
Ethernet
4 x GbE
USB
4 x USB 3.1 Gen2
Display
1 x HDMI (auto-detection)
4 x DP (from MXM)
Antenna
4 x SMA for 5G module
2 x SMA for WiFi module
Cooling
Fan
1x CPU cooler, 1x system fan
(MXM cooler is not included)
Watchdog Timer
Output & Interval
Watchdog timeout programmable via software from 1 to 255 seconds
Security
TPM
dTPM2.0 (default)
Power
Connector
DC-in Jack
Voltage
19V DC-in
OS Support
Microsoft
Windows 10 IoT Enterprise 64-bit
Linux
Linux
Environment
Operating Temperature
0 to 55°C
Storage Temperature
-40 to 85°C
Relative Humidity
5 to 95% RH (non-condensing)uminum extrusion + Metal
Mechanism
Construction
Aluminum + SGCC
Mounting
Wall mount (mounting brackets and screws)
Dimensions (W x H x D)
320 x 220 x 87mm (not include wall mount bracket)
Weight
5 Kg
Standards and Certifications
Certifications
CE, FCC Class A, RoHS
Packing List
Packing List
· 1 DT200-CS system unit
· 3 M.2 slot screws
· 2 MXM Module screws
· Thermal grease(X-23-7783D) injector 1g
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    DT200-CSH310
    Part Number :
    750-DT2000-000G
    Description :
    MB CS181-H310 with 4 DP, 1HDMI , 10 USB, 4 LAN, 2 COM, 6 SMA, 1 Line-out, 1 Mic-in, and MXM slot DC-in 19V
  • Model Name :
    DT200-CSQ370
    Part Number :
    750-DT2000-100G
    Description :
    MB CS181-Q370 with 4 DP, 1HDMI , 10 USB, 4 LAN, 2 COM, 6 SMA, 1 Line-out, 1 Mic-in, and MXM slot DC-in 19V
Optional Items
  • Item Name Part Number Description
  • Item Name :
    CPU cooler
    Part Number :
    A71-103004-000G
    A71-103005-000G
    Description :
    For 35W CPU at height: 37.3mm
    For 65W CPU at height: 45.3mm
  • Item Name :
    MXM Quadro T1000
    Part Number :
    612-M3T100-100G
    Description :
    50W, 896 CUDA Cores, 2.6 TFLOPS, 0~55°C
  • Item Name :
    MXM Quadro RTX3000
    Part Number :
    612-M3T300-000G
    Description :
    80W, 1290 CUDA Cores, 5.4 TFLOPS, 0~55°C
  • Item Name :
    Fan Power Y-cable for MXM RTX3000
    Part Number :
    A81-009614-016G
    Description :
    1*3P/2.5mm to 1*3P/2.54mm to 1*4P/1.25mm, L=50mm
  • Item Name :
    MXM Cooler
    Part Number :
    A71-110100-000G
    TBD
    Description :
    MXM cooler for RTX3000 87x106.35x34mm
    MXM cooler for T1000 73x60x32.1mm
