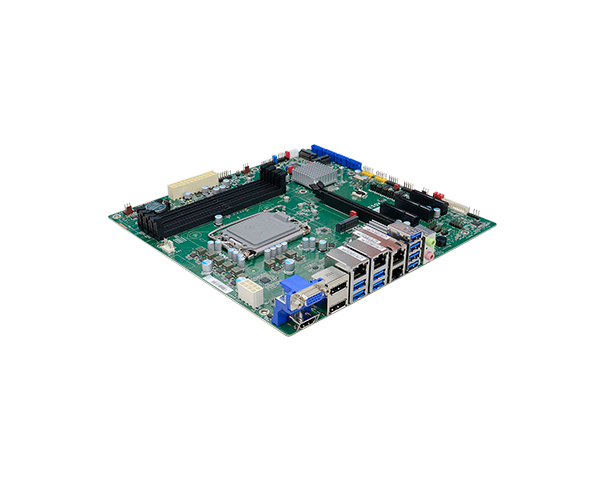

ADS310-R680E/Q670E
Home Industrial Motherboards microATX ADS310-R680E/Q670E
  • 14th/13th/12th Gen Intel® Core™ with Intel® R680E/Q670E chipset
  • 4 DDR4 UDIMM up to 128GB
  • Supports 4 independent displays: VGA, 2 DP++, HDMI 2.0a
  • Supports 4K resolution
  • Multiple expansion: 1 PCIe x16, 3 PCIe x4, 1 M.2 E key, 2 M.2 M key, 4 SATA 3.0
  • Rich I/O: 2 Intel 10GbE, 2 Intel 2.5GbE, 2 COM, 6 USB 3.2 Gen 2, 4 USB 3.2 Gen 1, 3 USB 2.0
  • Typically supports 10-Year CPU Life Cycle Until Q1’34 (Based on Intel IOTG Roadmap)

Status : Launched QUOTE NOW

PCIe x16
ECC Memory
Multiple Expansion
10G Ethernet
Quad Independent Display
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UKCA Certification

ADS310-R680E/Q670E Related Tags

#12th Gen Intel® Core™ Processor#Wifi 6E#ADS Series#13th Gen Intel® Core™ Processor#Edge AI Computing#14th Gen Intel® Core™ Processor#Intel#4K2K Display#PCIe x16#Windows#HDMI#VGA#DP#Multiple Expansion#10G Ethernet#DDR4#RoHS Certification#High-Performance#Medical#Material Handling#Wifi 6#2.5G Ethernet#UKCA Certification

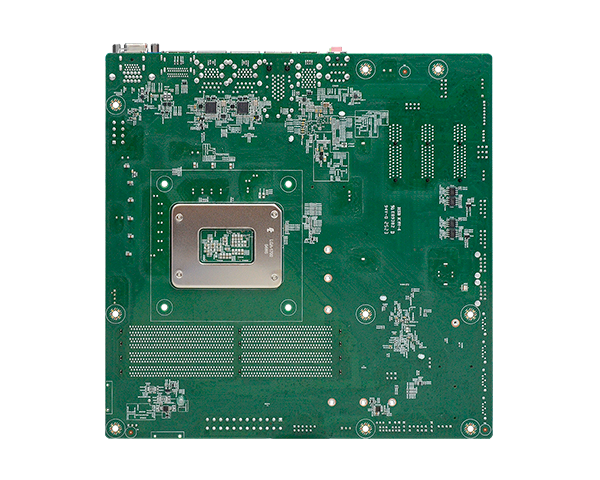

ADS310-R680E/Q670E|Intel®|Industrial Motherboards|DFI
ADS310-R680E/Q670E|Intel®|Industrial Motherboards|DFI
ADS310-R680E/Q670E|Intel®|Industrial Motherboards|DFI
System
Processor
14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W
Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 5.8 GHz); 65W
Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W
Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 5.4 GHz); 65W
Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 5.2 GHz); 35W
Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 5 GHz); 65W
Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 4.8 GHz); 35W
Intel® Core™ I5-14400 (10 Cores, 20M Cache, up to 4.7 GHz); 65W
Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 4.5 GHz); 35W
Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 4.7 GHz); 60W
Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 4.4 GHz); 35W
Intel® 300 (2 Cores, 6M Cache, up to 3.9 GHz); 46W
Intel® 300T (2 Cores, 6M Cache, up to 3.4 GHz); 35W

13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W
Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W
Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W
Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W
Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W
Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W
Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W
Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W
Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W
Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 4.4 GHz); 65W
Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W
Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W

12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W
Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W
Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W
Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W
Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W
Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W
Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W
Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Pentium® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W
Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
Intel® Celeron® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W
Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W
Chipset
[ADS310-R680E] Intel® R680E Chipset
[ADS310-Q670E] Intel® Q670E Chipset
Memory
[ADS310-R680E] Four 288-pin DIMM up to 128GB (ECC/Non-ECC)
[ADS310-R680E] Dual Channel DDR4 3200 MHz

[ADS310-Q670E] Four 288-pin DIMM up to 128GB (Non-ECC)
[ADS310-Q670E] Dual Channel DDR4 3200 MHz
BIOS
AMI SPI 256Mbit
Graphics
Controller
Intel® UHD Graphics 700 series
Feature
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
1 x VGA, resolution up to 1920x1200 @ 60Hz
2 x DP++, resolution up to 4096×2304 @ 60Hz
1 x HDMI 2.0a, resolution up to 4096x2160 @ 24Hz
Quad Displays
VGA + 2 DP++ + HDMI
Expansion
Interface
[ADS310-R680E] 1 x PCIe x16 (Gen 5)
[ADS310-R680E] 2 x PCIe x4 (Gen 4)
[ADS310-R680E] 1 x PCIe x4 (Gen 3) (x4 signal)

[ADS310-Q670E] 1 x PCIe x16 (Gen 5)
[ADS310-Q670E] 2 x PCIe x4 (Gen 4)
[ADS310-Q670E] 1 x PCIe x4 (Gen 3) (x1 signal)
M.2

1 x M.2 2242/2260/2280 M key (PCIe x4 Gen4 NVMe)
1 x M.2 2242/2260/2280 M key (PCIe x4 Gen4 NVMe/SATA)
1 x M.2 2230 E key (PCIe/USB 2.0/Intel CNVi support) (Discrete Wifi 6E support)
Audio
Audio Codec
Realtek ALC888
Ethernet
Controller
1 x Intel® I226-LM PCIe (10M/100M/1000Mbps/2.5G) (only Xeon, Core i9/i7/i5 support iAMT)
1 x Intel® I226-V PCIe (10M/100M/1000Mbps/2.5G)
2 x Intel® x550-AT2 (10 GBASE-T/1 GbE/100 Mbps) (no support WOL)

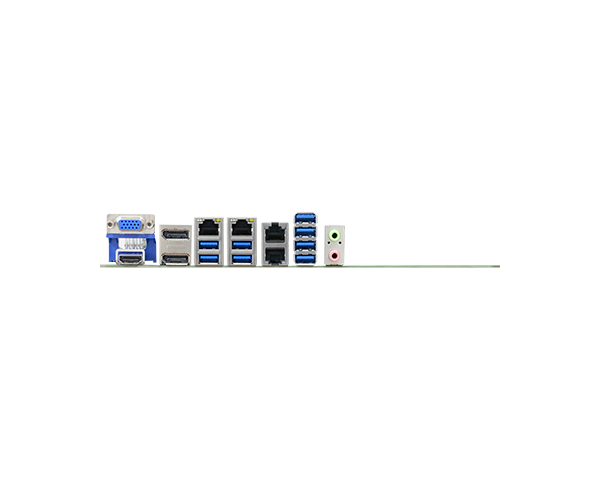

Rear I/O
Ethernet
2 x 2.5GbE
2 x 10GbE
USB
4 x USB 3.2 Gen 2
4 x USB 3.2 Gen 1
Display
1 x VGA
2 x DP++
1 x HDMI 2.0a
Audio
1 x Line-out
1 x Mic-in
1 x Line-in (opt. by request, MOQ required)
Internal I/O
Serial
2 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
USB
[ADS310-R680E] 2 x USB 3.2 Key B box header (Gen2)
[ADS310-R680E] 3 x USB 2.0 (2.54mm pitch) (colay vertical Type A, MOQ required)

[ADS310-Q670E] 2 x USB 3.2 Key B box header (Gen1)
[ADS310-Q670E] 3 x USB 2.0 (2.54mm pitch) (colay vertical Type A, MOQ required)
Audio
1 x Front Audio Header
1 x S/PDIF
SATA
4 x SATA 3.0 (up to 6Gb/s)
RAID 0/1/5/10
DIO
1 x 8-bit DIO
SMBus
1 x SMBus
PS/2
1 x PS/2 (2.54mm pitch)
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Nuvoton TPM 2.0
Power
Type
ATX
Connector
8-pin ATX 12V power
24-pin ATX power
Consumption
Typical: i9-12900E: 3.3V @ 0.090A (0.30W); 5V @ 1.848A (9.24W); 12V @ 1.291A (15.50W)
Max.: i9-12900E: 3.3V @ 0.951A (3.14W); 5V @ 4.220A (21.10W); 12V @ 21.833A (262.00W)

Typical: i5-12500E: 3.3V @ 0.081A (0.27W); 5V @ 1.962A (9.81W); 12V @ 1.250A (15.00W)
Max.: i5-12500E: 3.3V @ 1.021A (3.37W); 5V @ 0.580A (20.90W); 12V @ 13.000A (156.00W)
RTC Battery
CR2032 Coin Cell
OS Support
Microsoft
Windows 10 IoT Enterprise 64-bit
Windows 11 Enterprise
Linux
Linux
Environment
Temperature
Operating: -5°C ~ 65°C
Storage: -30°C ~ 60°C with RTC Battery; -40°C ~ 85°C without RTC Battery
Humidity
Operating: 5% ~ 95% RH
Storage: 5% ~ 95% RH
MTBF
490,119 hrs @ 25°C; 270,102 hrs @ 45°C; 165,635 hrs @ 60°C; 118,767 hrs @ 70°C
Calculation Model: Telcordia Issue 4
Environment: GB, GC - Ground Benign, Controlled
Mechanism
Dimensions
microATX Form Factor
244mm (9.6") x 244mm (9.6")
Height
PCB: 1.6mm
Top Side: TBD
Bottom Side: TBD
Standards and Certifications
Certifications
CE, FCC Class B, RoHS, UKCA
Packing List
Packing List
· 1 ADS310-R680E/Q670E motherboard
· 1 COM port cable (Length: 300mm, 2 x COM ports) A81-015026-023G
· 1 Serial ATA data cable (Length: 500mm) 332-553001-005G
· 1 I/O shield
-2LAN: A49-ADS630-010G
-4LAN: A49-ADS630-000G
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    ADS310-R680EIRM
    Part Number :
    770-ADS3101-000G
    Description :
    4 UDIMM, 2 2.5GbE, 2 RS-232/422/485, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0, 24-pin ATX/8-pin ATX 12V, Active thermal, -5 to 65°C
  • Model Name :
    ADS310-Q670EIRM
    Part Number :
    770-ADS3101-100G
    Description :
    4 UDIMM, 2 2.5GbE, 2 RS-232/422/485, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0, 24-pin ATX/8-pin ATX 12V, Active thermal, -5 to 65°C
  • Model Name :
    ADS310-R680EIRM
    Part Number :
    770-ADS3101-200G
    Description :
    4 UDIMM, 2 2.5GbE, 2 10GbE, 2 RS-232/422/485, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0, 24-pin ATX/8-pin ATX 12V, Active thermal, -5 to 65°C
  • Model Name :
    ADS310-Q670EIRM
    Part Number :
    770-ADS3101-300G
    Description :
    4 UDIMM, 2 2.5GbE, 2 10GbE, 2 RS-232/422/485, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0, 24-pin ATX/8-pin ATX 12V, Active thermal, -5 to 65°C
  • Model Name :
    ADS310-R680EIRM
    Part Number :
    770-ADS3101-400G
    Description :
    4 UDIMM, 2 2.5GbE, 2 RS-232/422/485, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0, TPM 2.0 (dTPM), 24-pin ATX/8-pin ATX 12V, Active thermal, -5 to 65°C
  • Model Name :
    ADS310-Q670EIRM
    Part Number :
    770-ADS3101-500G
    Description :
    4 UDIMM, 2 2.5GbE, 2 RS-232/422/485, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0, TPM 2.0 (dTPM), 24-pin ATX/8-pin ATX 12V, Active thermal, -5 to 65°C
  • Model Name :
    ADS310-R680EIRM
    Part Number :
    770-ADS3101-600G
    Description :
    4 UDIMM, 2 2.5GbE, 2 10GbE, 2 RS-232/422/485, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0, TPM 2.0 (dTPM), 24-pin ATX/8-pin ATX 12V, Active thermal, -5 to 65°C
  • Model Name :
    ADS310-Q670EIRM
    Part Number :
    770-ADS3101-700G
    Description :
    4 UDIMM, 2 2.5GbE, 2 10GbE, 2 RS-232/422/485, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0, TPM 2.0 (dTPM), 24-pin ATX/8-pin ATX 12V, Active thermal, -5 to 65°C
Optional Items
  • Item Name Part Number Description
  • Item Name :
    USB 2.0 port cable
    Part Number :
    A81-001066-016G
    Description :
    Length: 350/398mm
  • Item Name :
    USB 3.2 Gen2 port cable
    Part Number :
    A81-001075-017G
    Description :
    Length: 350mm
  • Item Name :
    COM port cable
    Part Number :
    A81-015026-023G
    Description :
    Length: 300mm, 2 x COM ports
  • Item Name :
    Serial ATA data cable
    Part Number :
    332-553001-005G
    A81-002128-017G
    Description :
    Length: 500mm, W/LOCK
    Length: 500mm, W/LOCK, 90D
  • Item Name :
    Thermal solution
    Part Number :
    A71-101136-000G
    A71-101137-000G
    A71-101145-000G
    A71-100201-000G
    Description :
    For 35W, Height: 29.39mm
    For 65W, Height: 46mm
    For 95W/125W, Height: 110mm
    For 10GbE LAN X550 IC Cooler, Height: 35mm (Standard X550 default have heatsink, only when with 125W CPU, need change heatsink to cooler.)(opt., MOQ required)
  • Item Name :
    DP to HDMI Dongle
    Part Number :
    612-D2H13M-000G
    Description :
  • Item Name :
    M.2-COM4
    Part Number :
    770-M2COM1-000G
    Description :
    M.2 serial port module
  • Item Name :
    M.2-2LAN
    Part Number :
    770-M22LN1-000G
    Description :
    M.2 LAN port module
  • Item Name :
    M.2-2PSE
    Part Number :
    770-M22PS1-000G
    Description :
    M.2 PSE module

Industry-leading, Multiplatform Industrial MicroATX Motherboard

ADS310 is compatible with Intel® 12/13/14th Gen Core™ (Alder Lake-S, Raptor Lake-S, and Raptor Lake-S Refresh) processors, and supports up to 128G of DDR4 with 4x UDIMM Slots. This ensures maximum compatibility with the latest advancements in CPU technology, allowing medical and healthcare professionals to leverage cutting-edge processing power to execute complex medical applications from advanced medical imaging, data analysis, to real-time patient monitoring, enhancing diagnostic accuracy and medical treatment process.

Tailored for Healthcare & Smart Medical Computing

Built with dual 10GbE Ethernet ports, the ADS310 enables lightning-fast data transfer and communication between smart medical systems and medical edge devices. Healthcare professionals can seamlessly access and share patient data, diagnostic reports and medical images including CT Scans, X-rays, MRIs, across networked medical devices, facilitating optimized healthcare workflow and collaboration between emergency rooms or ICUs, ultimately improving patient care and save more lives!

High Performance Power Handling with Upgrade Ability

Built to tackle the most demanding processing workloads, DFI ADS310 boasts the ability to handle high-end Intel Core Processors up to 125W TDP (Thermal Design Power). By offing one of the highest TDP rating industrial microATX motherboard in its class, ADS310 ensures reliable performance even in the demanding medical environments. Health care professionals can trust ADS310’s power to handle intensive computing tasks including medical image processing and machine learning algorithms with efficiency, and system stability in mind.

Multiple Display Outputs with Expansion Slots & I/O Ports

The ADS310 features total of 4 display outputs including VGA, 2 DP++, HDMI 2.0a, allowing medical professionals to connect multiple displays for enhanced medical visualization. With expansion slots of 1x PCIe x16, 3x PCIe x4, 1x M.2 E key, 2x M.2 M key, 4x SATA 3.0, and an array of I/O ports such as 2x Intel 10GbE Ethernet Ports, 2x Intel 2.5GbE Ethernet Ports, 2x COM, 6x USB 3.2 Gen 2, 4x USB 3.2 Gen 1 and 3x USB 2.0, the flexibility and scalability of upgrades on smart medical systems and devices allows healthcare professionals to adapt and meet the evolving medical technology requirements.

Compliance and Certification Ready

Dedicatedly designed for Smart Medical usage, the ADS310 not only has CE and RoHS certifications, but also being the one-and-only within its Medical grade microATX class, FCC and Class B ready as it’s essential for medical devices to ensure electromagnetic compatibility and minimize interference.
