ES220F-CS｜Intel®｜Industrial Computers｜DFI

ES220F-CS
Overview
Overview
Specification
Download
Ordering Information
QUOTE
2
COMPARE
Home Industrial Computers Ultra Compact Fanless PC ES220F-CS
  • 8th/9th Gen Intel® Core™ Processors with Intel® C246/Q370/H310 Chipset
  • Two DDR4 SODIMM up to 64GB
  • Single/Triple storage: 1 x M.2 SSD + 2 x 2.5" SSD (configured option) (with RAID supported)
  • Rich I/O connectivity: 2 Intel GbE, 4 USB 3.1, 2 USB 2.0, 2 COM
  • 2 HDMI 2.0 Support resolution 4K@60Hz
  • 15-Year CPU Life Cycle Support Until Q2' 34 (Based on Intel IOTG Roadmap)

Status : Launched QUOTE NOW

Wide-temp: -20~60°C
Fanless Design
Compact Size
4K2K Display
Windows
Display
DDR4
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UKCA Certification
ES220F-CS Embedded Solution Powered by: DFI Proprietary Motherboard

ES220F-CS Related Tags

#8th Gen Intel® Core™ Processor #Fanless Design#Compact Size#4K2K Display#Windows#DDR4#RoHS Certification#CE Certification#FCC Certification#UKCA Certification

Related Products:

Select All - Clear
System
Processor
9th Gen Intel® Core™ Processors, LGA 1151 Socket
Intel® Core™ i7-9700TE Processor (8C/8T, 12M Cache, 3.6GHz, TDP 35W)
Intel® Core™ i5-9500TE Processor (6C/6T, 9M Cache, 3.6GHz, TDP 35W)
Intel® Core™ i3-9100TE Processor (4C/4T, 6M Cache, 3.2GHz, TDP 35W)
8th Gen Intel® Core™ Processors, LGA 1151 Socket
Intel® Core™ i7-8700T Processor (6C/12T, 12M Cache, 4.0GHz; TDP 35W)
Intel® Core™ i5-8500T Processor (6C/6T, 9M Cache, 3.5GHz; TDP 35W)
Intel® Core™ i3-8100T Processor (4C/4T, 6M Cache, 3.1GHz; TDP 35W)
Intel® Pentium® G5400T Processor (2C/4T, 4M Cache, 3.1GHz; TDP 35W)
Intel® Celeron® G4900T Processor (2C/2T, 2M Cache, 2.9GHz; TDP 35W)
Chipset
Intel® C246/Q370/H310 Chipset
Memory
2 x 260-pin SODIMM up to 64GB Dual Channel DDR4 2666MHz
(ECC : C246 only)
BIOS
AMI SPI 128Mbit
Graphics
Controller
Intel® HD Graphics
Feature
OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
Display
2 x HDMI 2.0
HDMI: resolution up to 4096x2160@60Hz
Dual Displays
2 x HDMI 2.0
Storage
Internal
2 x 2.5" SATA bay (optional)
support RAID 0/1
Expansion
Interface
1 x M.2 2280 M key (PCIe x4/SATA 3.0)
1 x M.2 2230 E key (PCIe x1/USB2.0), WiFi
Ethernet
Controller
2 x Intel® I219/I210IT (10/100/1000Mbps) (Support Intel® iAMT)
Interface
2 x GbE RJ-45
LED
Indicators
1 x Power LED
1 x HDD LED
Front I/O
Ethernet

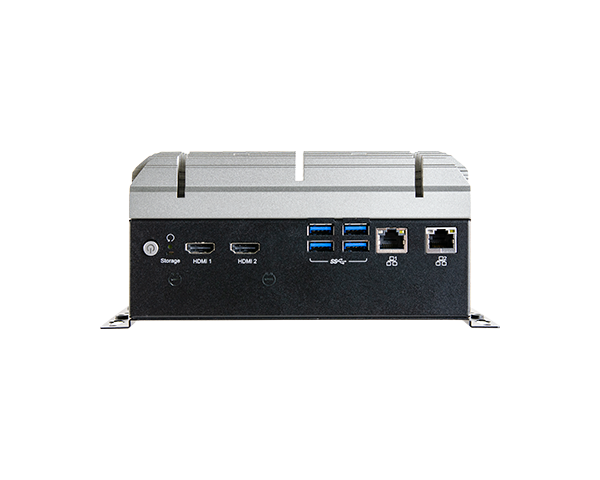

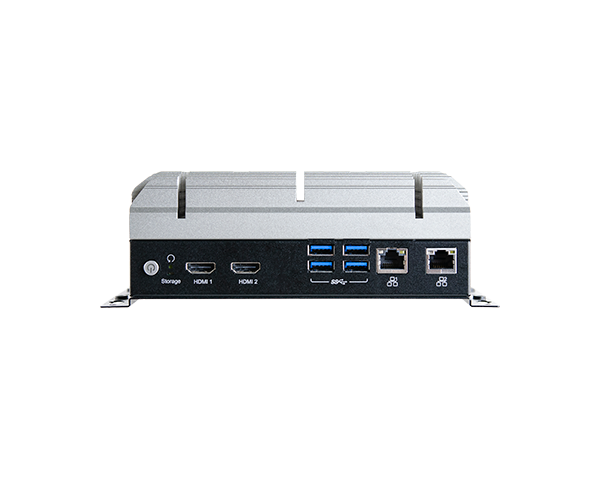

2 x GbE (RJ-45)
USB
4 x USB 3.1 (type A)
Display
2 x HDMI 2.0
Buttons
1 x Power button
1 x Reset button
Rear I/O

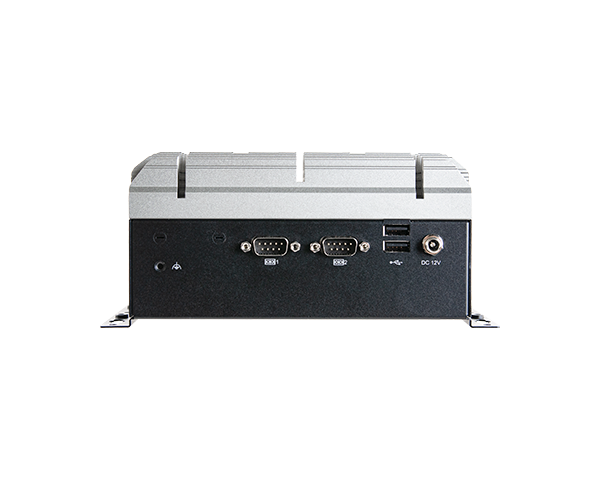

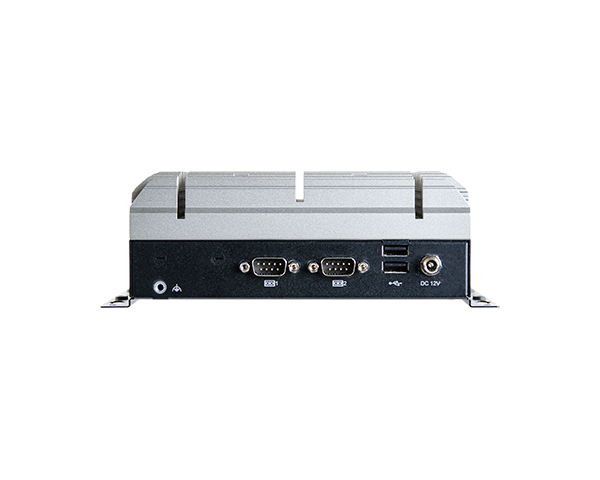

Serial
2 x RS232/RS422/RS485 (DB9) or
1 x RS232/RS422/RS485 (DB9)(COM1) + 1 x 8bit DIO (DB9)
USB
2 x USB 2.0 (type A)
Antenna
2 x Opening Antenna Hole (WiFi)
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
TPM2.0 (option)
Power
Type
12V DC-in jack lockable External power brick
RTC Battery
CR2032 Coin Cell
Supply
AC Power 100-250V, 50/60Hz
OS Support
Microsoft
Windows 10 IoT Enterprise 2019 LTSC + RS5
Windows 10 Professional
Environment
Operating Temperature
CPU power output config. via BIOS:
TDP 35W : -5° C or 45° C
cTPU 15W : -20° to 60° C
Storage Temperature
-20° to 60° C
Relative Humidity
5 to 90% RH
Mechanism
Construction
Metal + Aluminum
Mounting
Wall mount
VESA mount 75x75/10x10cm (optional)
Dimensions (W x H x D)
175 x 69.4 x 120mm (1 Storage: 1 x M.2 SSD)
175 x 90.4 x 120mm (3 Storage: 1 x M.2 SSD + 2 x 2.5” bay)
Weight
3.5 kg (1 Storage: 1 x M.2 SSD)
3.8 kg (3 Storage: 1 x M.2 SSD + 2 x 2.5” bay)
Color
Black
Standards and Certifications
Certifications
FCC, CE Class B, RoHS, WEEE, UKCA
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Product Collaterals
Technical Documents
Certifications
Ordering Information

* TBD

Optional Items

* TBD

Compact Dimension with Powerful Video Processing

ES220F-CS is a high-performance, miniature, and fanless computer designed to improve computing performance while maintaining a compact dimension (17.5 x 6.9 x 12cm). It is equipped with 8th/9th generation Intel® Core™ processors with hardware acceleration of video codes not limited to H.265, and supports up to 8-cores supporting up to 64GB capacity (optional support for ECC to improve reliability) to avoid insufficient memory, fulfill every factor that needs for UHD video processing and output.

Ultra-clarity by Dual HDMI 2.0

No more struggling with high-definition video output. Dual HDMI 2.0 has wider supports for HD displays with resolution up to 4K@60Hz, adaptive for real-time inspection, surveillance, and other detail-oriented applications. Besides the high resolution, the refresh rate in 60Hz also helps video frames go much more smoothly to prevent the common desktop operations suffering delay from insufficient video bandwidth, meanwhile scenarios like production line can also enhance productivity.

Prosperous Storage Capacity in a Small Box

Vibrant visuals need large capacity. ES220F-CS supports one M.2 2280 M Key (PCIe x4 / SATA 3.0) SSD used by the operating system and two optional 2.5-inch SATA SSDs to provide extra storage space. Various types of RAID meet the required level of redundancy and performance, improves the overall storage performance and data reliability. Inside a multi-tasking environment, ES220F-CS can process facial recognition, network-attached storage, and other related applications simultaneously.

Comprehensive I/O Interface

ES220F-CS reaches the max adaptability to very common peripheral devices connected by Intel GbE ports, USB 3.1 Type-A and COM ports, and M.2 2230 E-Key (PCIe x1/USB 2.0) slot for optional WiFi modules including 802.11ac and 802.11ax. Based on massive bandwidth, data transfer including video, network, and other types of packets are like speeding on the highway.
