WM343-CS331
Home Industrial Computers Mini-ITX/ATX System & Chassis WM343-CS331
  • 8th/9th Generation Intel® Core™ Processors
  • Triple Independent Display : HDMI + DVI-D + DP++
  • 4 Expension Slots (3.5"/2.5" SATA + 5.25" optical drive bay)
  • Multiple Expansion : 2 PCIe x16, 2 PCIe x4, 1 Mini-PCIe socket, 1 M.2 M key
  • 15-Year CPU Life Cycle Support Until Q3' 33

Status : Launched QUOTE NOW

Multiple Expansion
15 Years CPU Life Cycle Support
Triple Independent Display
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UKCA Certification

WM343-CS331 Related Tags

#8th Gen Intel® Core™ Processor #9th Gen Intel® Core™ Processor#Intel#4K2K Display#Windows#Linux#HDMI#DVI-D#DP#DDR4#RoHS Certification#CE Certification#FCC Certification#UKCA Certification
System
Processor
8th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket Processors:
Intel® Xeon® E-2176G (6 Cores, 12M Cache, up to 4.7 GHz); 80W (C246 only)
Intel® Xeon® E-2124G (4 Cores, 8M Cache, up to 4.5 GHz); 71W (C246 only)
Intel® Core™ i7-8700K (6 Cores, 12M Cache, up to 4.7 GHz); 95W
Intel® Core™ i7-8700 (6 Cores, 12M Cache, up to 4.6 GHz); 65W
Intel® Core™ i7-8700T (6 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Core™ i5-8500 (6 Cores, 9M Cache, up to 4.1 GHz); 65W
Intel® Core™ i5-8500T (6 Cores, 9M Cache, up to 3.5 GHz); 35W
Intel® Core™ i3-8100 (4 Cores, 6M Cache, 3.6 GHz); 65W
Intel® Core™ i3-8100T (4 Cores, 6M Cache, to 3.1 GHz); 35W
Intel® Pentium® G5400 (2 Cores, 4M Cache, 3.7 GHz); 58W
Intel® Pentium® G5400T (2 Cores, 4M Cache, 3.1 GHz); 35W
Intel® Celeron® G4900 (2 Cores, 2M Cache, 3.1 GHz); 54W
Intel® Celeron® G4900T (2 Cores, 2M Cache, 2.9 GHz); 35W
9th Generation Intel® Core™ LGA 1151 Socket Processors:
Intel® Xeon® E-2278GE (8 Cores, 16M Cache, up to 4.7 GHz); 80W (C246 only)
Intel® Xeon® E-2278GEL (8 Cores, 16M Cache, up to 3.9 GHz); 35W (C246 only)
Intel® Xeon® E-2226GE (6 Cores, 12M Cache, up to 4.6 GHz); 80W (C246 only)
Intel® Core™ i9-9900K (8 Cores, 16M Cache, up to 5.0 GHz); 95W (Non-LTS)
Intel® Core™ i7-9700TE (8 Cores, 12M Cache, up to 3.8 GHz); 35W
Intel® Core™ i5-9500E (6 Cores, 9M Cache, up to 4.2 GHz); 65W
Intel® Core™ i5-9500TE (6 Cores, 9M Cache, up to 3.6 GHz); 35W
Intel® Core™ i3-9100E (4 Cores, 6M Cache, 3.7 GHz); 65W
Intel® Core™ i3-9100TE (4 Cores, 6M Cache, to 3.2 GHz); 35W
Chipset
Intel® Q370/C246
Memory
Q370:
Four 288-pin DIMM up to 128GB
Dual Channel DDR4 2400/2666 MHz
C246:
Two 288-pin DIMM up to 64GB
Dual Channel DDR4 2400/2666 MHz
BIOS
AMI SPI 128Mbit
Graphics
Controller
Intel® HD Gen 9 Graphics
Feature
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
Display
1 x HDMI
1 x DVI-I (DVI-D signal)
1 x DP++
HDMI 1.2: resolution up to 1920x1200@60Hz
HDMI 2.0a: resolution up to 4096x2160@60Hz (opt.)(MOQ required)
DVI-D: resolution up to 1920x1200@60Hz
DP++: resolution up to 4096x2106@60Hz
Triple Displays
DVI-D & HDMI & DP++
Storage
External
1 or 2 x 3.5"/2.5" SATA 3.0 Drive Bays (1 x 3.5" SATA drive bay, by default)
1 x 5.25" Optical Drive Bay
Internal
1 x mSATA
1 x M.2 2280 (PCIe x4/SATA)
Interface
2 x PCIe x16 (Gen 3) (1 x16 signals or 2 x8 signals)
2 x PCIe x4 (Gen 3)
1 x Mini-PCIe (PCIe/mSATA/USB2.0)
1 x M.2 2242/2260/2280 M key (PCIe Gen3 x 4 NVMe)
Audio
Audio Codec
Realtek ALC888
Interface
1 x Line-out
1 x Mic-in
1 x Line-in (opt.)
Ethernet
Controller
1 x Intel® i219LM PCIe (10/100/1000Mbps) with iAMT 12.0 (only Xeon, Core i7/i5 support iAMT)
1 x Intel® i211AT PCIe (10/100/1000Mbps)
LED
Indicators
1 x Power LED
1 x HDD LED

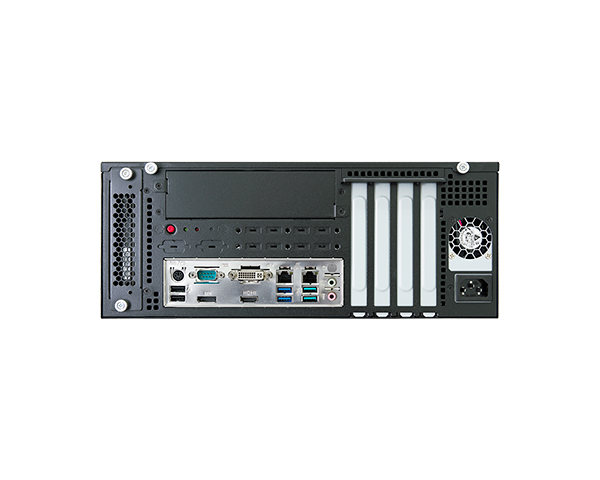

Rear I/O
Ethernet
2 x GbE (RJ-45)
Serial
1 x RS-232/422/485 (RS-232 w/ power) (DB-9)
USB
2 x USB 3.1 Gen 2
2 x USB 3.1 Gen 1
2 x USB 2.0
PS/2
1 x PS/2 (mini-DIN-6)
Display
1 x HDMI
1 x DVI-I (DVI-D signal)
1 x DP++
Audio
1 x Line-out
1 x Mic-in
1 x Line-in (opt.)
Buttons
1 x Power button
1 x Reset button
Cutout
2 x DB-9 Cutout
8 x USB 2.0 Cutout
Cooling
Fan

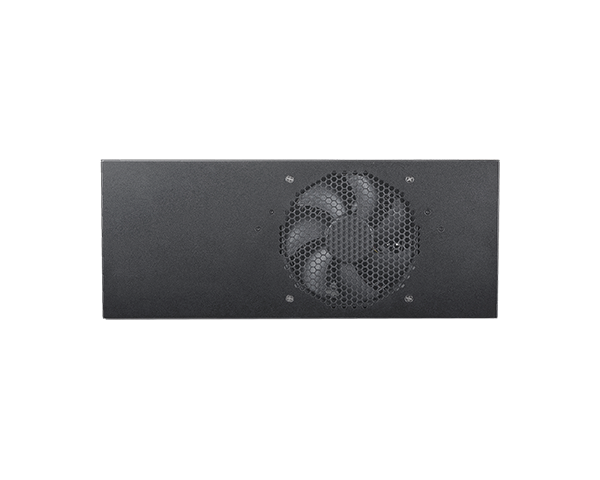

1 x 12cm system fan
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
Infineon TPM1.2/2.0 (optional)
Power
Supply
Flex ATX 150W/250W/350W/400W/500W (250W Default)
OS Support
Microsoft
Windows 10
Linux
Linux
Environment
Operating Temperature
0 to 45°C
Storage Temperature
0 to 60°C
Relative Humidity
5 to 95% RH (non-condensing)
Mechanism
Construction
Sheet Metal
Mounting
Wall mount
Dimensions (W x H x D)
349 x 140.2 x 290.9mm (13.74" x 5.52" x 11.45")
Weight
7.7kg
Color
no coating or black coating
Standards and Certifications
Shock
Operating: 3G Non-operating: 5G
Vibration
Operating: Random 5~500Hz 0.5G Non-operating: Sine 10~500Hz 1.5G
Package Drop
ISTA Project 1A
Certifications
CE, FCC Class A, RoHS, UKCA
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    WM343-CS331
    Part Number :
    750-WM3435-000G
    Description :
    WM343-CS, uATX System, Black, CS331-C246, 250W, F/G SYSTEM RoHS
  • Model Name :
    WM343-CS331
    Part Number :
    750-WM3435-100G
    Description :
    WM343-CS, uATX System, Black, CS330-Q370, 250W, F/G SYSTEM RoHS
Optional Items
  • Item Name Part Number Description
  • Item Name :
    Wall Mount
    Part Number :
    761-WM3410-000G
    Description :
    ACCESSORY WALL MOUNT KITS WM34x Series RoHS
