EC543-CS

Industrial Computers Fanless Embedded System EC543-CS
  • 8th/9th Generation Intel® Core™ with Intel® Q370
  • Supports DDR4 SODIMM up to 64GB
  • Three independent displays: 1 VGA + 2 HDMI/DP++ (auto detection)
  • Support 4 PoE (EC543-CS6G86E-Q configuration)
  • 3 PCIe, 1 PCI, and 3 M.2 slots support NVMe
  • Support 5G communication
  • Operating temperature: -20 to 70°C
  • 15-Year CPU Life Cycle Support Until Q2' 34 (Based on Intel IOTG Roadmap)

Status : Sample Available

Wide-temp: -20~70°C
Wide Voltage: 9~36V DC-in
Fanless Design
Windows
Linux
Multiple Expansion
Triple Independent Display
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
EC543-CS Embedded Solution Powered by: DFI Proprietary Motherboard
EC543-CS
EC543-CS
EC543-CS
System
Processor
8th/9th Generation Intel® CoreTM Processors, LGA 1151
Intel® Core™ i7-9700TE , Octa Cores, 12M Cache, up to 3.8 GHz, 35W
Intel® Core™ i5-9500TE , Hexa Cores, 9M Cache, up to 3.6 GHz), 35W
Intel® Core™ i3-9100TE, Quad Cores, 6M Cache, up to 3.2 GHz, 35W
Intel® Core™ i7-8700T Processor, Hexa Core, 12M Cache, 2.4GHz (4GHz), 35W
Intel® Core™ i5-8500T Processor, Hexa Core, 9M Cache, 2.1GHz (3.5GHz), 35W
Intel® Core™ i3-8100T Processor, Quad Core, 6M Cache, 3.1GHz, 35W
Intel® Pentium® Processor G5400T, Dual Core, 4M Cache, 3.1GHz, 35W
Intel® Celeron® Processor G4900T, Dual Core, 2M Cache, 3.1GHz, 35W
Chipset
Intel® Q370 Chipset
Memory
Two 260-pin DDR4 2400/2666MHz SODIMM up to 64GB
BIOS
AMI SPI 128Mbit
Graphics
Controller
Intel® HD Graphics
Feature
OpenGL up to 5.0, DirectX 11, OpenCL 2.1
HW Decode: HEVC/H.265, H.264, M/JPEG, MPEG2, VC1/WMV9, VP8 (8-bit), VP9 (10-bit)
HW Encode: HEVC/H.265, M/JPEG, MPEG2, VP8
Display
1 x VGA
2 x HDMI/DP++ (auto detection)
VGA: resolution up to 1920x1200 @ 60Hz
HDMI: resolution up to 4096x2160 @ 30Hz
DP++: resolution up to 4096x2304 @ 60Hz
Dual Displays/ Triple Displays
VGA + 2 x HDMI/DP++ (auto detection)
Expansion
Interface
1 x M.2 2230 E key (PCIe/USB 2.0)
1 x M.2 2280 M key (PCIe x4 NVMe/SATA)
1 x M.2 3042/3052 B key (PCIe/USB 3.0)
1 x PCI slot
3 x PCIe
Storage
Interface
2 x 2.5" SATA 3.0 Drive Bay
support RAID 0/1
Audio
Audio Codec
ALC888
Ethernet
Controller
1 x Intel® I210AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
Interface
RJ-45
LED
Indicators
1 x Status LED
1 x HDD LED

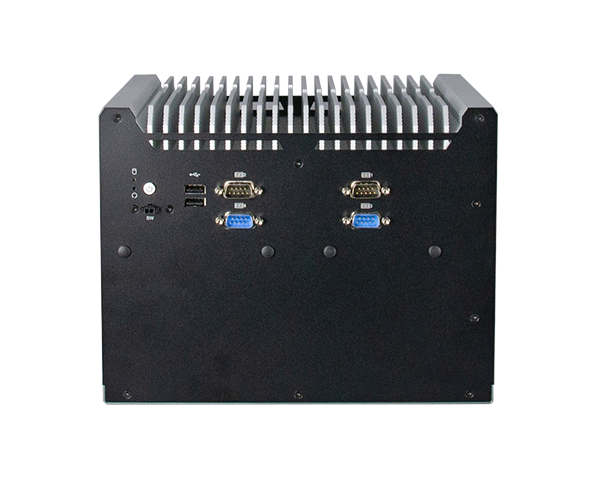

Front I/O
Serial
4 x RS-232/422/485 (DB-9)
USB
2 x USB 2.0 (type A)
Buttons
1 x Power Button
1 x Reset Button
Antenna
4 x Antenna Hole (WiFi)
Rear I/O
PoE

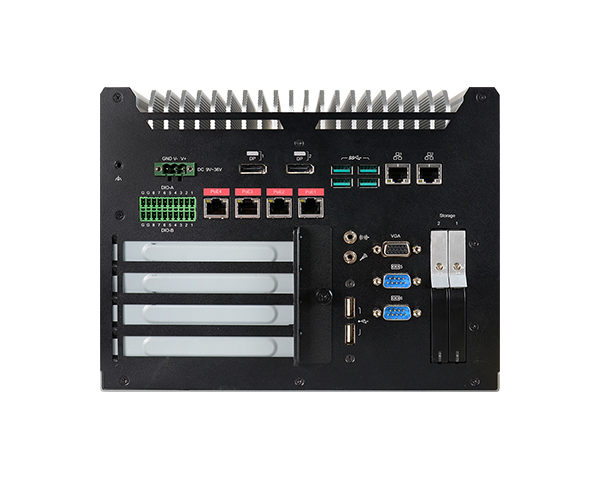

-EC543-CS6G86E-Q
4 x PoE
Ethernet
-EC543-CS6G86E-Q
2 x GbE (RJ-45)

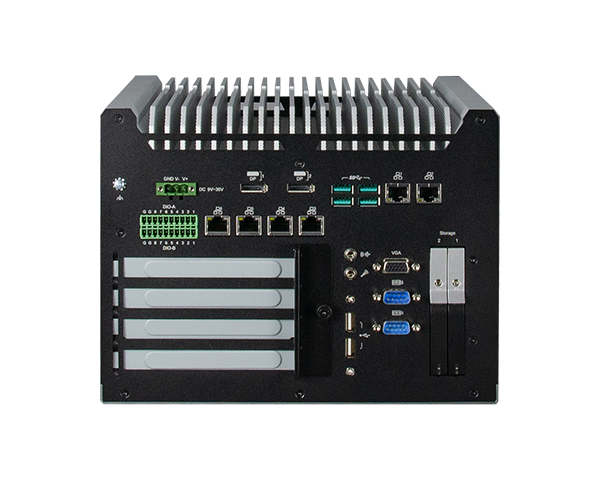

-EC543-CS6G86-Q
6 x GbE (RJ-45)

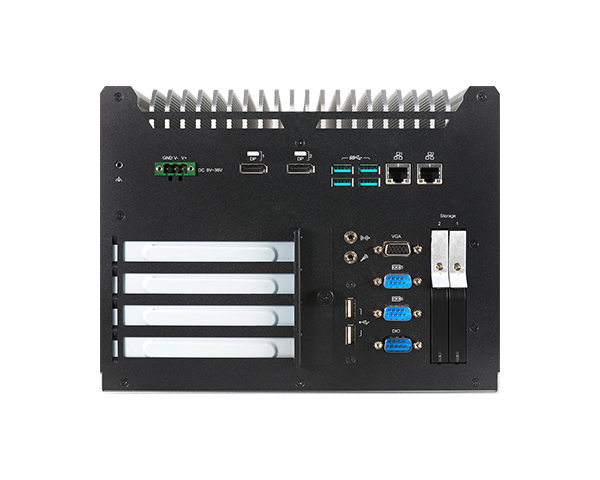

-EC543-CS6861-Q/EC543-CS98A1-Q
2 x GbE (RJ-45)
Serial
-EC543-CS6861-Q/EC543-CS6G86E-Q/EC543-CS6G86-Q
2 x RS232

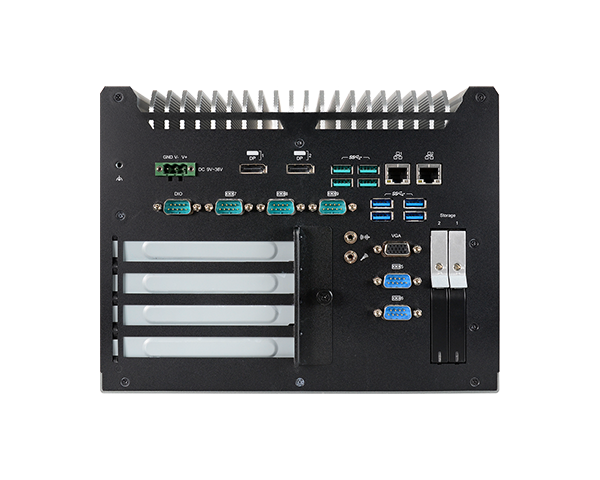

-EC543-CS98A1-Q
3 x RS232/422/485
2 x RS232
USB
-EC543-CS6861-Q/EC543-CS6G86E-Q/EC543-CS6G86-Q
4 x USB 3.1(Gen.2)
2 x USB2.0
-EC543-CS98A1-Q
4 x USB 3.1(Gen.2)
4 x USB 3.1(Gen.1)
DIO
-EC543-CS6G86E-Q/EC543-CS6G86-Q
16 bits DIO
-EC543-CS6861-Q/EC543-CS98A1-Q
8 bits DIO
Display
1 x VGA
2 x HDMI/DP++ (auto detection)
Audio
1 x Line-out
1 x Mic-in
Watchdog Timer
Output & Interval
System reset, programmable via software from 1 to 255 seconds
Security
TPM
TPM 2.0
Power
Type
Wide range 9~36V
Connector
3-pole terminal block
2-pin power extension switch connector
OS Support
Microsoft
Windows 10 IoT Enterprise 64 Bit
Linux
Linux (available upon request)
Environment
Operating Temperature
-20 to 70°C (SSD or mSATA)
Storage Temperature
-20 to 85°C
Relative Humidity
5 to 95% RH (non-condensing)
Mechanism
Construction
Metal + Aluminum
Mounting
Wall mount
Dimensions (W x H x D)
255.3 x 195 x 224mm
Weight
5.4 kg
Standards and Certifications
Shock
Half sine wave 3G, 11ms, 3 shock per axis
Vibration
IEC68-2-64
Certifications
CE, FCC Class A
Packing List
Packing List
1 EC510/EC511-CS system unit
1 M.2 slot screws
1 terminal block 3-pole for DC input
1 cable with 2 wire stripped and tinned to DC jack
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)

Working with DFI

DFI’s Customization Services (DCS) comes with full support and industry expertise from a dedicated team to provide you exclusive services in design, production, warranty, repairs, and life cycle management. In order to make the project as easy as possible for you, DFI will closely work with you to learn your design requirements and offer real-time technical support as you develop the solution to reduce your development cost and effort.

Get Started
