EC100-XNX｜Industrial Computers｜DFI

EC100-XNX
Overview
Overview
Specification
Download
QUOTE
2
COMPARE
Home Industrial Computers AI Inference/Training System EC100-XNX
  • Fully support NVIDIA® Jetson Xavier™ NX
  • 8 x 10/100 MbE with PoE
  • Fanless chassis technology
  • 20 pins with 1 x UART, 2 x I2C, 9 x GPIOs
  • 1 x HDMI 2.0a/b Type-A supports 4K@60Hz

Status : Launched QUOTE NOW

Fanless Design
Compact Size
Multiple Expansion
+Compare +Quotation
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
CE Certification
FCC Certification

EC100-XNX Related Tags

#NVIDIA AI#Compact PC#PoE#HDMI#Multiple Expansion#CE Certification#FCC Certification

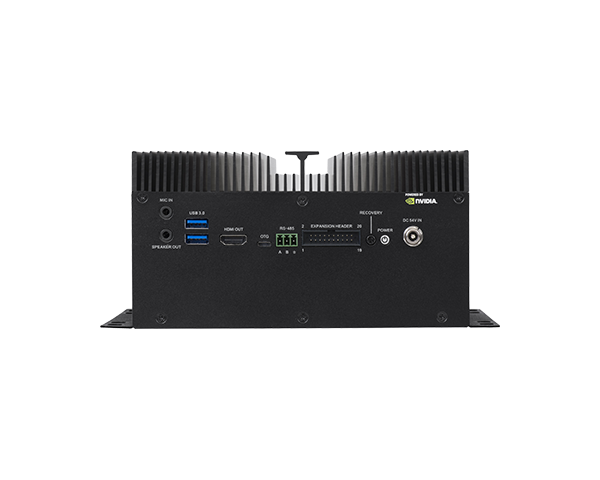

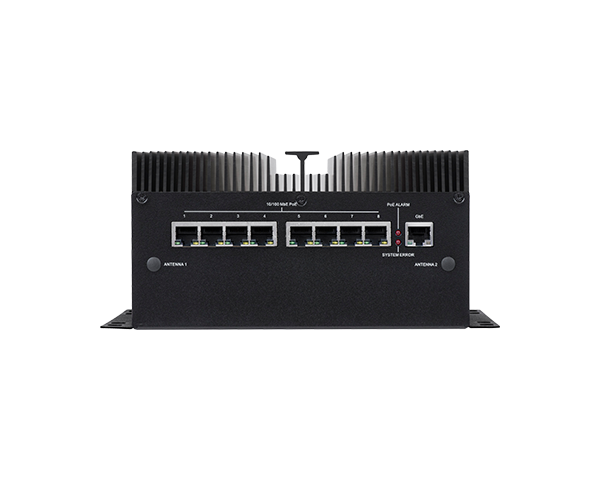

EC100-XNX
EC100-XNX
EC100-XNX

Related Products:

Select All - Clear
System
Computing Platform
NVIDIA® Jetson Xavier™ NX module
Storage
External
16 GB e.MMC v5.1
Ethernet
Interface
1 x GbE RJ-45
8 x 10/100 MbE RJ-45 with PoE
LED
Indicators
1 x Power LED
1 x Recovery LED
(RGB tri-color LED)
I/O
Ethernet
1 x GbE RJ-45
USB
1 x USB 2.0 Micro-B for recovery
2 x USB 3.0 Type-A (USB 3.2 Gen1 x 1)
1 x mPCIe (Host Interface: USB 2.0)
Display
1 x HDMI 2.0a/b Type-A
(HDMI: resolution up to 3840 x 2160 @ 60Hz)
GPIO
1 x 3.3V UART
2 x I2C
9 x GPIOs
Buttons
1 x Power Button
1 x Recovery Button
PoE
8 x 10/100 MbE RJ-45 with PoE
(Max for the first 4 ports is 15.4W and total power budget is 100W)
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
54V / 2.78A
RTC Battery
Support RTC battery and Battery Life Monitoring by MCU
Environment
Operating Temperature
0°C ~ 60°C
Storage Temperature
-40°C ~ 85°C
Relative Humidity
Relative Humidity 40 °C @ 95%, Non-Condensing
Mechanism
Dimensions
190mm(W) x 80mm(H) x 175mm(D)
(W:220 mm with mounting ears)
Weight
2.75 Kg
Standards and Certifications
Certifications
CE, FCC
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
