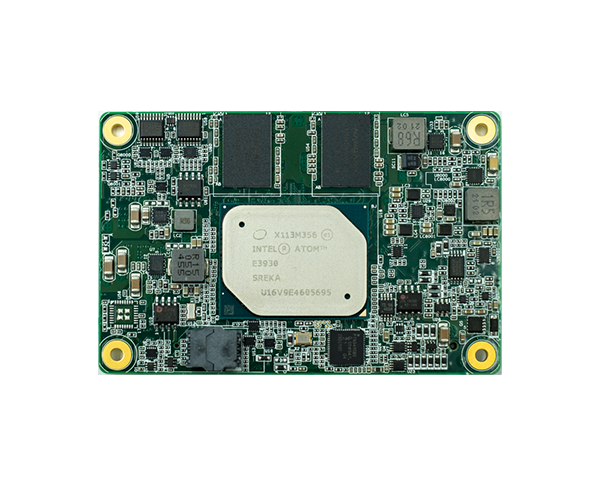

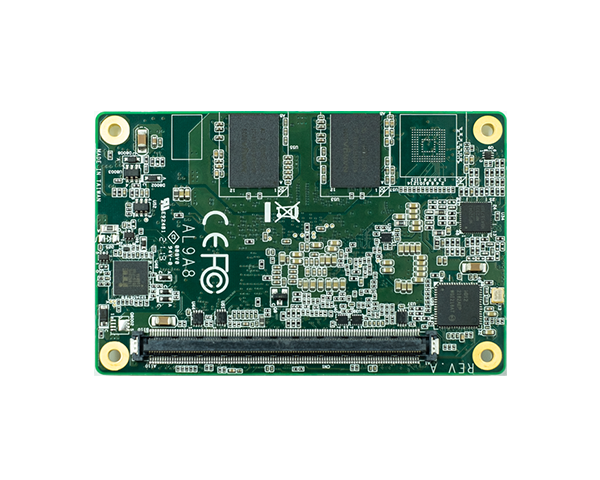

AL9A8

Overview

Home System-On-Modules COM Express Mini AL9A8

Intel Atom® E3900 Processor Series

Multiple expansions: 4 PCIe x1

Rich I/O: 1 Intel GbE, 2 USB 3.0, 8 USB 2.0

1 LVDS/eDP, 1 DDI (HDMI/DP++) Supports dual displays: DDI + LVDS/eDP

Dual Channel LPDDR4-2400MHz Memory Down up to 8GB

15-Year CPU Life Cycle Support Until Q4' 31 (Based on Intel IOTG Roadmap)

Status : Launched QUOTE NOW

+Compare +Quotation

Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW

Quotation
You have ,Up to 3 items.
QUOTE NOW

AL9A8 Related Tags

#IoT#Intel#Fanless Design#Compact Size#4K2K Display#Windows#Linux#HDMI#DP#Multiple Expansion#DDR4#CE Certification#FCC Certification#UKCA Certification

System

Processor

Intel Atom® Processor E3900 Series, BGA 1296
Intel Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W
Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W
Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W
Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W
Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W

Memory

4GB/8GB Memory Down
Dual Channel LPDDR4-2400MHz

BIOS

AMI SPI 128Mbit (supports UEFI boot only)

Graphics

Controller

Intel® HD Graphics

Feature

OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1, WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC

Display

1 x DDI (HDMI/DP++)
1 x LVDS/eDP
LVDS: single channel 24-bit, resolution up to 1366x768 @ 60Hz
HDMI: resolution up to 4096x2160 @ 30 Hz
DP++: resolution up to 4096x2304 @ 60Hz / 3840x2160 @ 60Hz
eDP: resolution up to 4096x2304 @ 60Hz

Dual Displays

DDI + LVDS
DDI + eDP

Expansion

Interface

4 x PCIe x1 (Gen 2)
1 x SDIO (available upon request)
1 x LPC
1 x I2C
1 x SMBus
1 x SPI
2 x UART (TX/RX)

Audio

Internal

HD Audio

Ethernet

Controller

1 x Intel® I210AT (10/100/1000Mbps) (0°C to 60°C)
1 x Intel® I210IT (10/100/1000Mbps) (-40°C to 85°C)

I/O

USB

2 x USB 3.0
8 x USB 2.0

SATA

2 x SATA 3.0 (up to 6Gb/s)

SSD

1 x eMMC up to 128 GByte

GPIO

1 x 6-bit GPIO

Watchdog Timer

Output & Interval

System Reset, Programmable via Software from 1 to 255 Seconds

Security

TPM

BIOS default support FTPM, TPM2.0 by request.

Power

Type

4.75V~20V, 5VSB, VCC_RTC (ATX mode)
4.75V~20V, VCC_RTC (AT mode)

Consumption

Typical: E3940: 12V @ 0.34A (4.08W)
Max.: E3940:12V @ 1.62A (19.44W)

OS Support

OS Support (UEFI Only)

Windows: Windows 10 IoT Enterprise 64-bit
Linux

Environment

Temperature

Operating: -5 to 65°C, -40 to 85°C
Storage: -40 to 85°C

Humidity

Operating: 5 to 90% RH
Storage: 5 to 90% RH

MTBF

1,090,551 hrs @ 25°C; 509,776 hrs @ 45°C; 283,622 hrs @ 60°C
Calculation model: Telcordia Issue 2
Environment: GB, GC – Ground Benign, Controlled

Mechanism

Dimensions

COM Express® Mini
84mm (3.30") x 55mm (2.16")

Compliance

PICMG COM Express® R2.1, Type 10

Standards and Certifications

Certifications

CE, FCC, UKCA

Packing List

· 1 AL9A8 board
· 1 Heat sink:
A71-008160-000G (E Series)
A71-008160-010G (N Series)

Country of Origin

Taiwan (TAA Compliant Country)

Product Collaterals

System-On-Modules Catalog (PDF) 11.75MB 2024/03/05

AL9A8 Datasheet (PDF) 593.2KB 2023/07/29

Technical Documents

AL9A8 Manual (PDF) 5.41MB 2022/03/23

AL9A8 QR (PDF) 101.3KB 2022/05/31

AL9A8 CPU/Memory Compatibility List (PDF) 234.94KB 2022/06/28

Certifications

AL9A8 CE Certification (PDF) 221.85KB 2022/01/11

AL9A8 FCC Certification (PDF) 202.12KB 2022/01/11

AL9A8 UKCA Certification (PDF) 224.82KB 2022/01/11

AL9A8 CE Compliance Verification (PDF) 152.31KB 2024/02/28

AL9A8 FCC Compliance Verification (PDF) 151.54KB 2024/02/28

Ordering Information

Model Name Part Number Description
Model Name :
AL9A8-B43-E3930 Part Number :
770-AL9A81-000G Description :
4GB LPDDR4,LVDS,R.A F/G MOTHER BOARD RoHS
Model Name :
AL9A8-T83-E3940 Part Number :
770-AL9A81-100G Description :
8GB LPDDR4,LVDS,-40~85℃,R.A F/G MOTHER BOARD RoHS
Model Name :
AL9A8-T83-E3950 Part Number :
770-AL9A81-200G Description :
8GB LPDDR4,LVDS,-40~85℃,R.A F/G MOTHER BOARD RoHS
Model Name :
AL9A8-B83-N4200 Part Number :
770-AL9A81-300G Description :
AL9A8-B80-N4200：8GB LPDDR4,LVDS,R.A F/G MOTHER BOARD RoHS

Optional Items

Item Name Part Number Description
Item Name :
COM100-B carrier board kit Part Number :
770-COM104-000G Description :
Item Name :
Heat Spreader Part Number :
A71-808350-000G Description :
