ECX700-AL

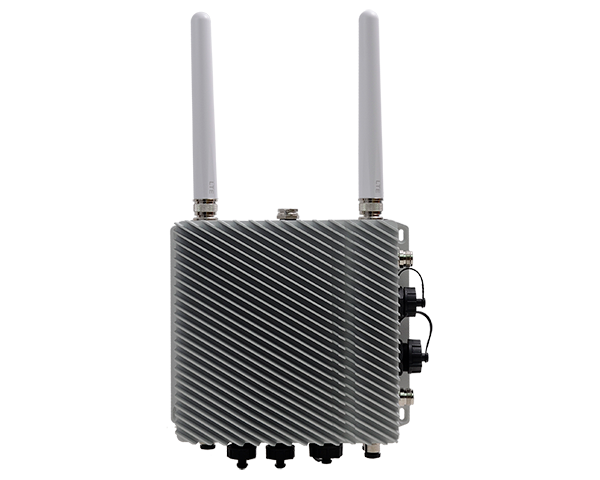

Industrial Computers Fanless Embedded System ECX700-AL
  • Intel® Atom® Processor E3900 Series
  • Ruggedized IPC67 Grade Box PC
  • Outdoor IoT Gateway Application
  • 4GB DDR3 onboard, 64G eMMC
  • Operating temperature: -40° to 70° C
  • 15-Year CPU Life Cycle Support Until Q4' 31 (Based on Intel IOTG Roadmap)

Status : Preliminary

Wide Voltage: 9~36V DC-in
DDR3
Wide-temp: -40~70°C
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
ECX700-AL
ECX700-AL
ECX700-AL
ECX700-AL
ECX700-AL
System
Processor
Intel® Atom® Processor E3900 Series, BGA 1296
Intel® Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W
Intel® Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W
Intel® Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6W
Memory
2GB/4GB/8GB memory onboard
BIOS
AMI SPI 128Mbit (supports UEFI/Legacy mode and Security Boot (optional)
Graphics
Controller
Intel® HD Graphics
Feature
OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0
HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4, MVC, VP9, WMV9, JPEG/MJPEG
HW Encode: H.264, MPEG4, VP8, H.265, MVC
Display
1 x HDMI or VGA
VGA: resolution up to 1920 x 1200@60Hz
HDMI: resolution up to 3840x2160@30Hz
Storage
Internal
Support EMMC up to 8G/16GB/32GB/64GB (optional)
Expansion
Interface
1 x Full-size Mini PCIe for 4G LTE module
1 x Full-size Mini PCIe for Canbus
1 x M.2 2230 (USB2.0/PCIe) for WiFi module
Ethernet
Controller
2 x Intel® I210AT PCIe (10/100/1000Mbps)
LED
Indicators
1 x Power Status LED

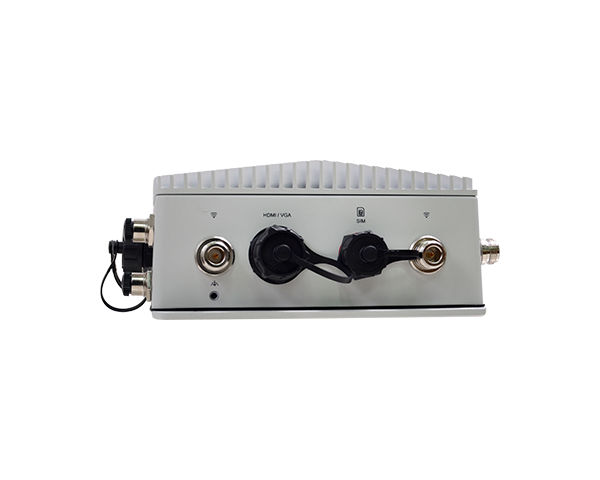

Front I/O
Display
1 x HDMI or 1 x VGA (optional)
Antenna
2 x Antenna (WiFi)
SIM
1 x SIM card slot

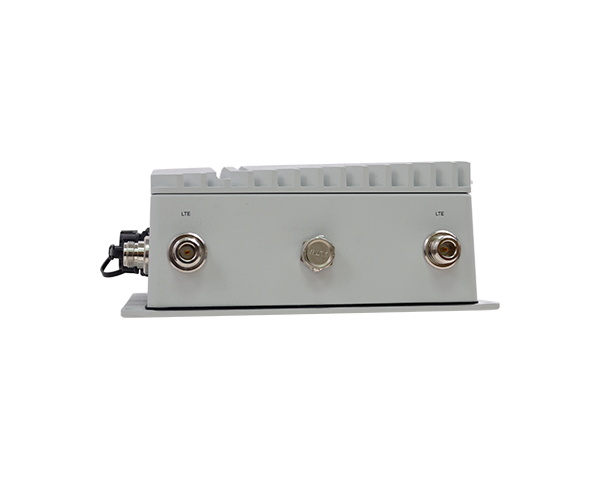

Top I/O
Vent
1 x Vent
Antenna Hole
2 x Antenna (LTE)

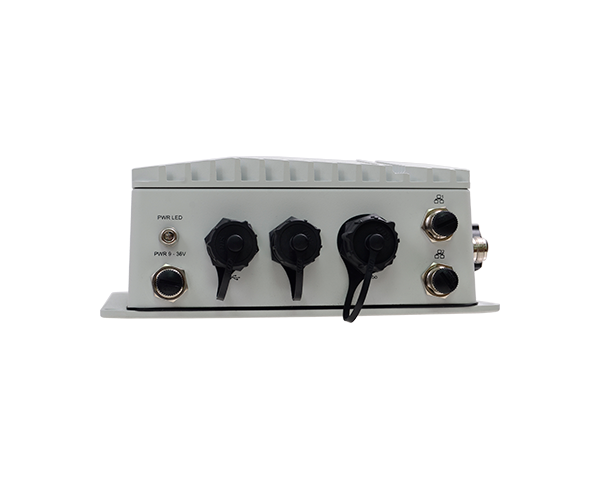

Bottom I/O
Ethernet
2 x GbE
USB
2 x USB 3.0
Combo Port
2 x RS232 and 2 x Can bus protocol
Power
1 x 9~36V DC-IN
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Security
TPM
TPM 1.2/ 2.0
Power
Type
DC-in 9~36V
Connector
M12 D-code
OS Support
OS Support
Windows 10 IoT Enterprise 64-bit
Linux
Environment
Operating Temperature
-40 to 70°C (E3950,E3940, E3930 only)
Storage Temperature
-40 to 85°C
Relative Humidity
5 to 95% RH (non-condensing)
Mechanism
Mounting
Wall Mount
Dimensions (W x H x D)
217 x 188 x 87 mm ( with wall-mount bracket)
Weight
2.1 kg
Standards and Certifications
Shock
Operation shock test: Half Sine Wave 15G, 11ms, 3 Shock Per Axis
Vibration
Operation Vibration test: MIL-STD-810G 514.6C-2, Figure 514.6C-2
Certifications
CE, FCC class A
Construction
IP67 enclosure
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Ordering Information
  • Model Name Part Number Description
  • Model Name :
    ECX700-AL
    Part Number :
    TBD
    Description :
    ECX700-AL-B00: E3950, 4G memory down, 64G emmc, LED, PWR, 1 USB 3.0, 1 USB 2.0, 2 LAN
  • Model Name :
    ECX700-AL
    Part Number :
    TBD
    Description :
    ECX700-AL-BW0: E3950, 4G memory down, 64G emmc, LED, PWR, 1 USB 3.0, 1 USB 2.0, 2 LAN, WiFi
  • Model Name :
    ECX700-AL
    Part Number :
    TBD
    Description :
    ECX700-AL-PC0: E3950, 4G memory down, 64G emmc, LED, PWR, 1 USB 3.0, 1 USB 2.0, 2 LAN, 1 HDMI or VGA, 2 COM
  • Model Name :
    ECX700-AL
    Part Number :
    TBD
    Description :
    ECX700-AL-PC1: E3950, 4G memory down, 64G emmc, LED, PWR, 1 USB 3.0, 1 USB 2.0, 2 LAN, 1 HDMI or VGA, 2 COM + 2 CAN
  • Model Name :
    ECX700-AL
    Part Number :
    TBD
    Description :
    ECX700-AL-PC2: E3950, 4G memory down, 64G emmc, LED, PWR, 1 USB 3.0, 1 USB 2.0, 2 LAN, 1 HDMI or VGA, 2 COM + 2 CAN, WiFi
  • Model Name :
    ECX700-AL
    Part Number :
    TBD
    Description :
    ECX700-AL-PC3: E3950, 4G memory down, 64G emmc, LED, PWR, 1 USB 3.0, 1 USB 2.0, 1 HDMI or VGA, 2 COM + 2 CAN, WiFi, LTE
  • Model Name :
    ECX700-AL
    Part Number :
    TBD
    Description :
    ECX700-AL-PC4: E3950, 4G memory down, 64G eMMC, LED, PWR, 1 USB 3.0, 1 USB 2.0, 2 LAN, 1 HDMI or VGA, 2 COM + 2 Can, WiFi, LTE
  • Model Name :
    ECX700-AL
    Part Number :
    TBD
    Description :
    ECX700-AL-I00: E3950, 4G memory down, 64G emmc, LED, PWR, 1 USB 3.0, 1 USB 2.0, WiFi, LTE
