VC300-CS
Home Application-Specific System In-vehicle System VC300-CS
  • 8th/9th Generation Intel® Core™ Processors
  • 4 x 802.3af PoE ports
  • AI accelerated: up to 150W MXM GPU module supported
  • Multiple expansion slots for 5G cellular supported
  • Extended operating temperature: -20°C to 70°C
  • 15-Year CPU Life Cycle Support Until Q1' 34 (Based on Intel IOTG Roadmap)

Status : Launched QUOTE NOW

Wide-temp: -20~70°C
Wide Voltage: 9~36V DC-in
Windows
Linux
Multiple Expansion
Product Comparison
You have items. ,Up to 3 items.
COMPARE NOW
Quotation
You have ,Up to 3 items.
QUOTE NOW
RoHS Certification
CE Certification
FCC Certification
UKCA Certification
E-Mark (E24) Certification
DFI Proprietary Motherboard

VC300-CS Related Tags

#Edge AI Computing#E-Mark (E24) Certification#MXM#IoT#Intel#5G#PoE#CAN-Bus#Mini PCIe#PCIe x16#Windows#HDMI#VGA#Multiple Expansion#DDR4#RoHS Certification#CE Certification#FCC Certification#In-Vehicle#High-Performance#UKCA Certification
VC300-CS
VC300-CS
VC300-CS
System
Processor
8th/9th Generation Intel® CoreTM Processors, LGA 1151
- Intel® Core™ i7-9700TE 8C/8T 1.8GHz 12MB cache, TDP 35W with Q370PCH
- Intel® Core™ i7-8700T 6C/12T 2.4GHz 12MB cache, TDP 35W with Q370PCH
- Intel® Core™ i7-9700E 8C/8T 2.6GHz 12MB cache, TDP 65W with Q370PCH
- Intel® Core™ i5-9500TE 6C/6T 2.2GHz 9MB cache, TDP 35W with Q370PCH
(Other CPU support upon request)
Chipset
Intel® Q370 Chipset
Memory
Dual Channel DDR4 2666/2400 MHz by SODIMMs up to 64GB
BIOS
AMI SPI 128Mbit
Graphics
Controller
Intel® HD Graphics
Display
1 x VGA (display out by DB-15 connector)
1 x HDMI (with screw lock)
1 x DP++ (standard display port connector DIP type with screw lock)
Support NIVIDIA Optimus technology
VGA: resolution up to 1920x1200@60Hz
HDMI: resolution up to 4096x2160@24Hz
DP++: resolution up to 4096x2304@60Hz
AI Accelerator
Interface
MXM Type A, B, C on x16 PCIe 3.0
Controller
Nvidia Quadro embedded/ Geforce series
Storage
External
2 x Swappable 2.5” storage bays with lock.
Supports 7mm SSD devices
Internal
1 x M.2 2280 M key supports SATA SSD
Expansion
Interface
1 x Half-size Mini PCIe for WiFi/BT modules, with PCIe x1 & USB signal
2 x Full-size Mini PCIe support PCIe x1, USB 2.0 signal with SIM card socket of each
1 x M.2 B key supports 3042, 3052 devices or 5G module on PCIe x1, USB2.0, USB3.0 signal with SIM card slot bracket
- SIM card can all be external accessible
1 x M.2 2280 M key supports 2242, 2260 & 2280 devices (PCIe x4 & SATA signal, support boot up function)
Audio
Audio Codec
Realtek ALC888
Interface
1 x Mic-in
1 x Line-out
Ethernet
Controller
5 x Intel® I210IT NIC (10/100/1000Mbps)
1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
LED
Indicators
1 x Power LED (green)
5 x Storage LED (red)
4 x PoE LED

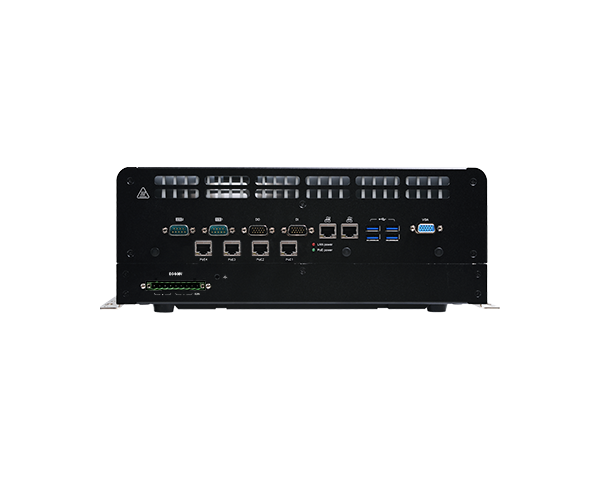

Front I/O
PoE
4 x PoE ports at RJ45 or M12 X-coded connectors
Support 802.3af, max 15.4W (PSE side)
NOT support Wake on Lan
Ethernet
2 x GbE (RJ-45) support Wake on Lan
Serial
2 x High speed full RS-232/422/485 (DB-9)
2 x RS-232/422/485 (pin headers)
USB
4 x USB 3.0 (type A)
Display
1 x VGA display out by DB-15 connector
DIO
1 x 8-bit isolated DI port by DB-9 connector
1 x 8-bit isolated DO port by DB-9 connector
2KV isolation
Power-in
1 x 9pins 5.0mm terminal block

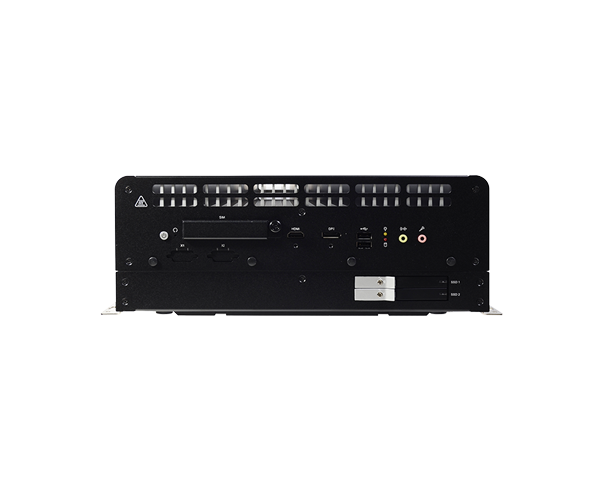

Rear I/O
USB
2 x USB 2.0 (type A)
Display
1 x HDMI
1 x DP++
Audio
1 x Mic-in
1 x Line-out
by 3.5mm 3P Phone Jack
Buttons
1 x Power button
1 x Reset button
Antenna
7 x SMA type antenna hole for GNSS, WWAN/LTE MIMO, WLAN/ BT MIMO, 5G
SIM
3 x SIM sockets (external accessible with cover)
Watchdog Timer
Output & Interval
System reset, programmable via software from 1 to 255 seconds
Security
TPM
TPM 2.0
Power
Type
+12VDC (9~36V), +24VDC(14.4~33.6)
+12V and +24V compliant to eMark with power ignition function
Reverse polarity protection
Connector
9-pin 5.0mm terminal block
OS Support
Microsoft
Windows 10 IoT Enterprise 64 Bit
Linux
Ubuntu 18.04
Environment
Operating Temperature
-20°C to 70°C with when CPU+GPU<100W without fan
-20°C to 60°C with when CPU+GPU<160W without fan
-20°C to 70°C when CPU+GPU<190W with active fan
CPU throttling at high temperature is acceptable
Storage Temperature
-40°C to 85°C
Relative Humidity
10% to 90% (non-condensing)
Mechanism
Construction
Metal + Aluminum
Mounting
Wall mount
Dimensions (W x H x D)
340.5 x 132 x 223 mm (3U height, excluding rubber foot)
Weight
9.85 kg
Standards and Certifications
Shock
MIL-STD-810G Method 516.6, Procedure 1, OP:10G 11ms, Non-OP: 40G 11ms (Test by SSD, HDD is not support)
Vibration
MIL-STD-810G Method 514.6C-3, Category 4 Composite wheeled vehicle Table 514.6C-VI
Certifications
CE, FCC, UKCA, RoHS, E-Mark
Packing List
Packing List
1 VC300-CS system unit
1 Power connector
1 Mounting bracket
Country of Origin
Country of Origin
Taiwan (TAA Compliant Country)
Optional Items
  • Item Name Part Number Description
  • Item Name :
    2.5" SSD
    Part Number :
    785-S251TBG
    785-S25512G
    785-S25256G
    785-S25128G
    Description :
    2.5" SATA SSD, 1TB MLC, -40 to 85°C, RoHS
    2.5" SATA SSD, 512GB MLC, -40 to 85°C, RoHS
    2.5" SATA SSD, 256GB MLC, -40 to 85°C, RoHS
    2.5" SATA SSD, 128GB MLC, -40 to 85°C, RoH
  • Item Name :
    M.2 SATA SSD
    Part Number :
    785-M2SATA64G
    785-M2SATA128G
    785-M2SATA256G
    785-M2SATA512G
    Description :
    64GB, M.2 2280 SSD, SATA3 B+M Key, MLC, Wide Temp.
    128GB, M.2 2280 SSD, SATA3 B+M Key, MLC, Wide Temp.
    256GB, M.2 2280 SSD, SATA3 B+M Key, MLC, Wide Temp.
    512GB, M.2 2280 SSD, SATA3 B+M Key, 3D TLC, PE: 3K, 30u” -20~75℃
  • Item Name :
    Memory
    Part Number :
    138-580004-104G
    138-540002-121G
    Description :
    8GB DDR4 2666Mhz SO-DIMM 1Rx8 IND 1Gx8 CL19 1.2V
    4GB DDR4 2666Mhz SO-DIMM, '-40 to 85C
  • Item Name :
    WiFi/BT module kit
    Part Number :
    761-AP1235-000G
    Description :
    WiFi/Bluetooth Module ENL-R8852BE, antenna *2, 200mm SMA cables*2, Mini PCIe Bracket, screws
  • Item Name :
    LTE module kit
    Part Number :
    761-RC3000-001G
    Description :
    EG25GGB CAT4 miniPCIe module, antenna*2, 300mm SMA cables*2
  • Item Name :
    5G module kit
    Part Number :
    761-RC3000-100G
    Description :
    RM520N-GL-M2 M.2 module, antenna*4, 184mm SMA cables *4
  • Item Name :
    M12 Cable
    Part Number :
    A81-005038-054G
    Description :
    8-pin M12 X-coded to RJ45 PoE cable
  • Item Name :
    CAN bus module
    Part Number :
    770-MPEC21-100G
    Description :
    MPE-CAN2 MiniPCIe Full CAN Module Card Asssembly

AI Edge Computing in Vehicle: VC300-CS With MXM & 5G

DFI’s VC300-CS is a fanless and AI-enabled in-vehicle computer. Powered by Intel® 9/8th Gen Core™ processors and integrated with NVIDIA MXM module, VC300-CS accelerates graphic processing for AI vision and machine learning. In addition, 5G capability brings up real-time communication and response to the dynamics at the edge. VC300-CS achieves tremendous performance for advanced driver assistance, risk predictions, and onboard surveillance while also delivering passenger comfort and safety in today’s increasingly diverse ecosystem of intelligent transportation.

Enhanced A.I. New Force by MXM

On the moving vehicle, AI vision and machine learning require abundant images and data for precise detection and analysis, making GPU even more essential for future vehicles. Providing processing capabilities of up to 150W, 3072 CUDA cores, and 64TFlops by MXM3.1 module, VC300-CS is powerful enough for workloads of autonomous driving. The compact and rugged with better heat dissipation becomes a better choice for in-vehicle computers.

5G Era Equal Real-time Data Synchronization

To optimize the ecosystem of future transportation needs to transfer and analyze a large amount of data in real-time. Therefore, the 5G network, featuring multi-gigabit speeds and ultra-low latency, strengthens the synergy of devices and makes communications seamless and efficient to achieve immediate roadway hazard detection and rapid response in emergencies.

All-inclusive Function and Interface

VC300-CS not only supports four 15W M12 X-coded PoE, 2kV isolated DIO, and numerous ruggedized I/O interfaces but also provides multiple M.2 & mini PCIe slots for LTE, 5G, WiFi, GNSS, CAN bus, or MVB functions. In addition, four external 2.5” SSD bring abundant data storage and disk arrays function. The comprehensive I/Os meet varying system requirements in smart transportation including wayside or onboard applications.

Durable with the Protection - Power Ignition

VC300-CS supports a wide range of 9~36V DC power input to protect from the overcurrent and overvoltage. To guarantee the in-vehicle experiences, VC300-CS supports Power Ignition to shut down the system correctly and avoid reducing the computer's performance and lifetime when the engine power cuts off.

Perfect Balance Between High Performance and Heat Dissipation

Since vehicles always faces a huge temperature difference outdoor, VC300-CS, with an excellent dissipation, can operate in a harsh environment of -25°C ~ 70°C even if deployed under the driver or passenger seat without active fans.

Working with DFI

DFI’s Customization Services (DCS) comes with full support and industry expertise from a dedicated team to provide you exclusive services in design, production, warranty, repairs, and life cycle management. In order to make the project as easy as possible for you, DFI will closely work with you to learn your design requirements and offer real-time technical support as you develop the solution to reduce your development cost and effort.
